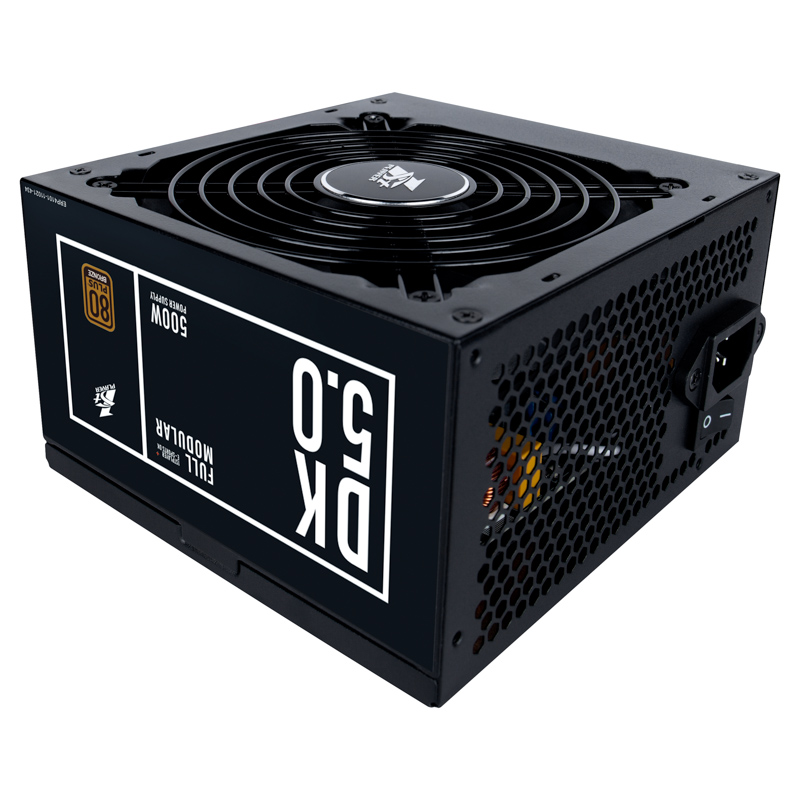

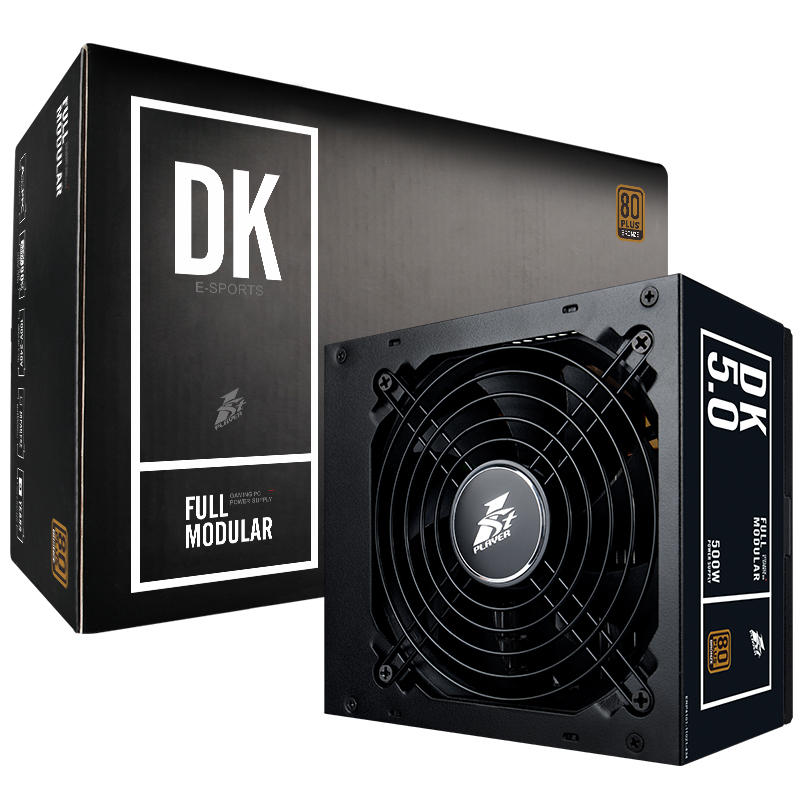

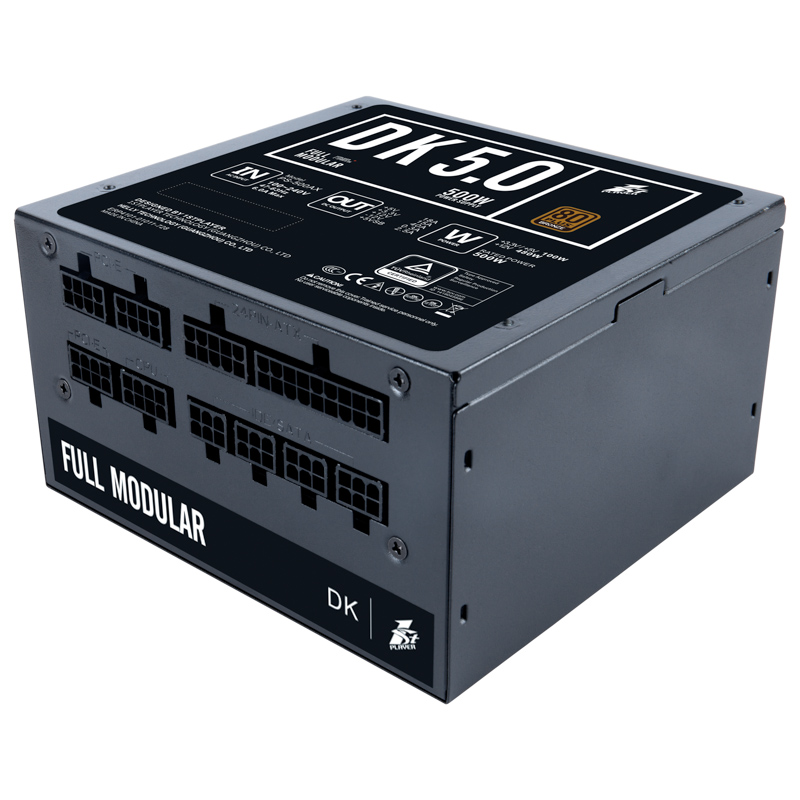

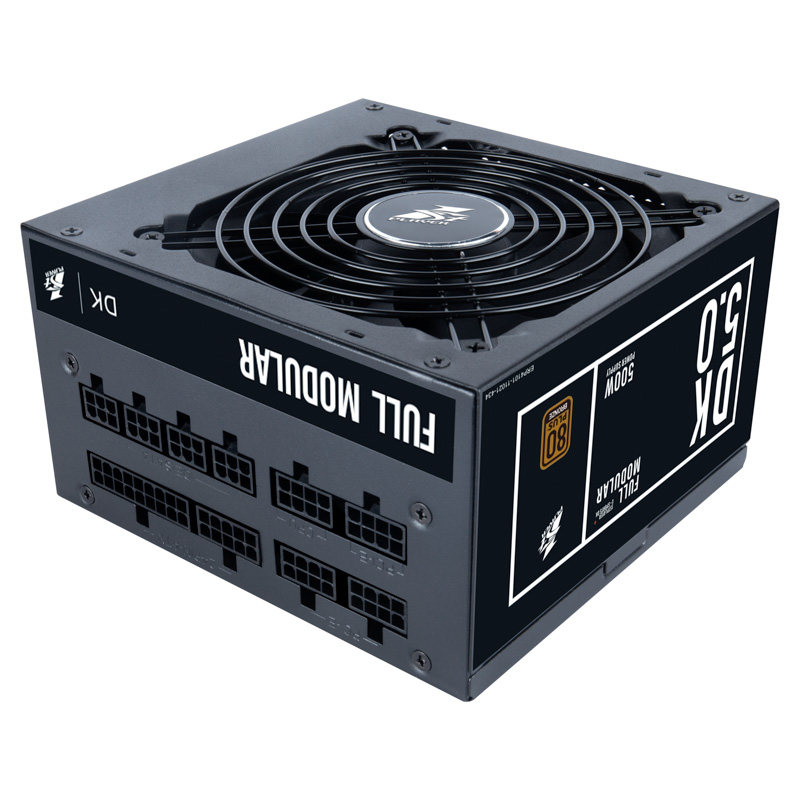

DK Full Modular

1STPLAYER Power Supply

500W

  • 80 PLUS Bronze certification for high energy efficiency

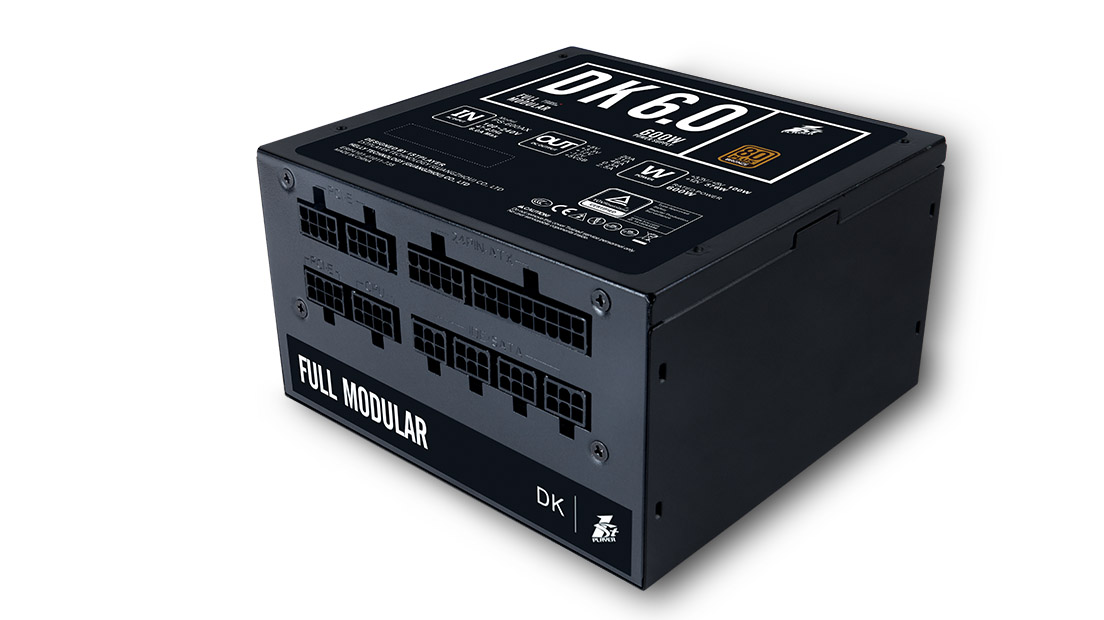

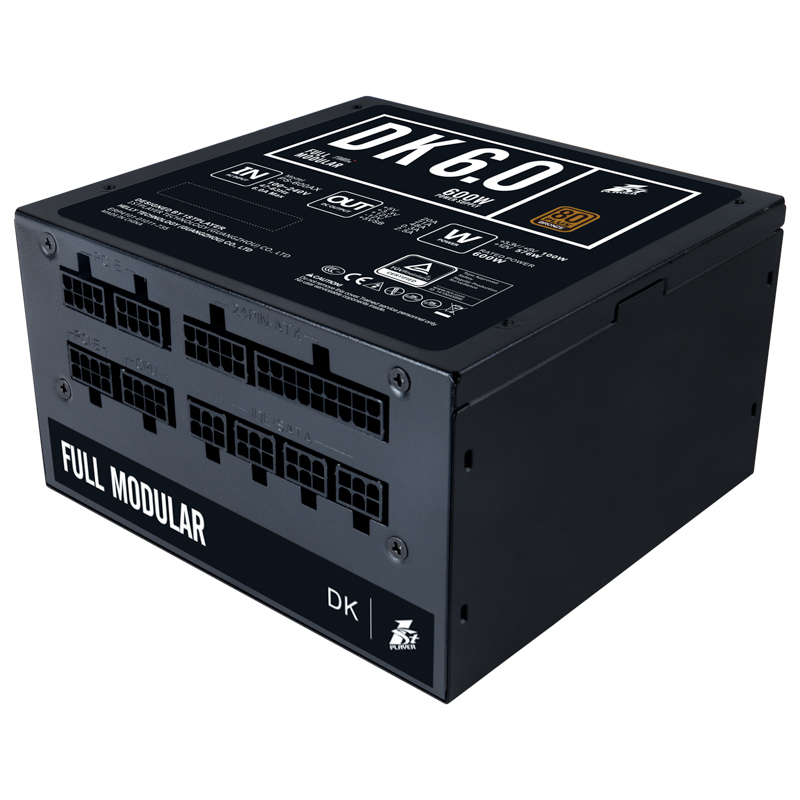

  • Full modular design for organized cable management

  • Double Forward + APFC for stable power delivery

  • Over 85% efficiency at typical load

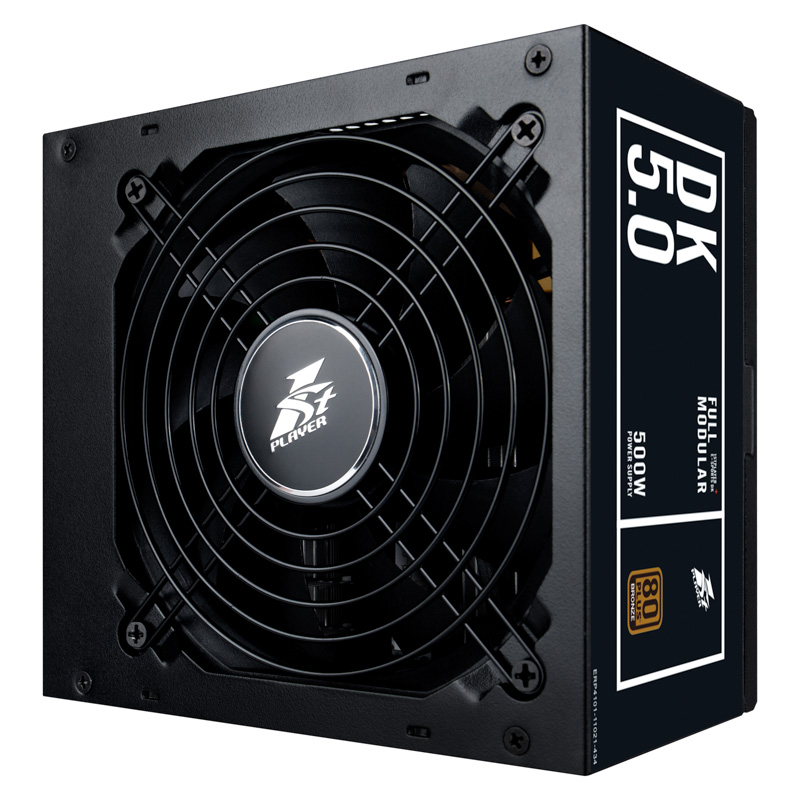

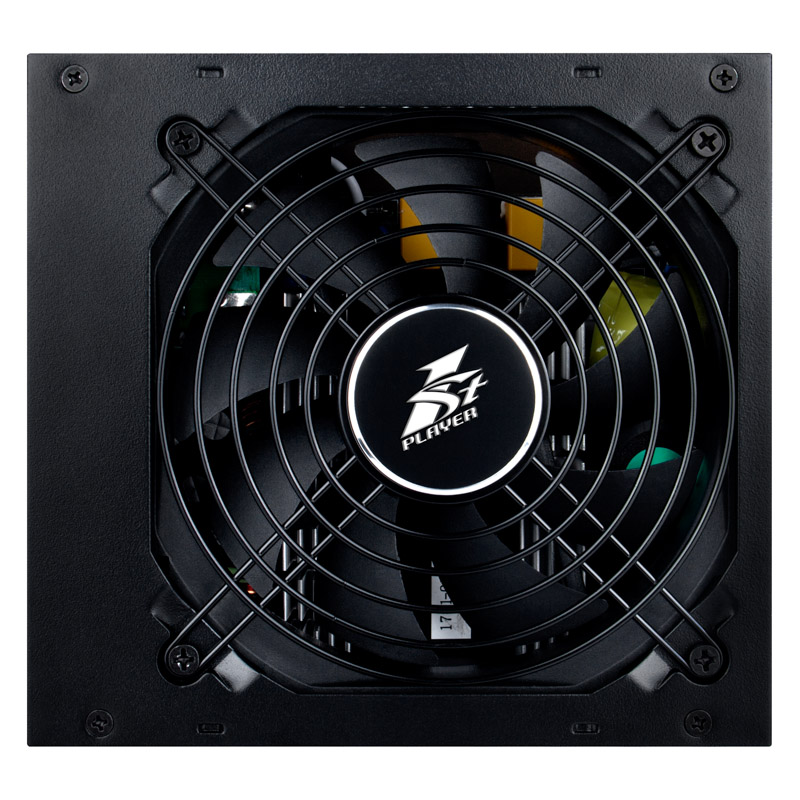

  • 120mm fan for effective cooling

  • UVP, OVP, OPP, SCP and lightning protection ensure your system stays safe from power issues

  • FULL
    MODULAR

  • +12V Loadup
    To 90% Of Total Power

  • Active PFC

  • Erp 6 Lot
    Ready

  • 12CM
    Hydraulic Beaning Fan

(Data Provided by 1STPLAYER,For Reference Only)


DK series is the latest PSU series launched by 1STPLAYER.All the DK models are armed with 80 PLUS bronze certificate, Japanese TK main capacitors,single +12V rail design and 1ST optimized rail structure, so as to realize a more powerful performance.


Japanese TK Main Capacitor

With the main capacitor from Toshin Kogyo Co.,Ltd, a company focus on the production of electrolytic capacitors and film capacitors, DK 4.0 delivers a reliable life expectancy and quality assurance.

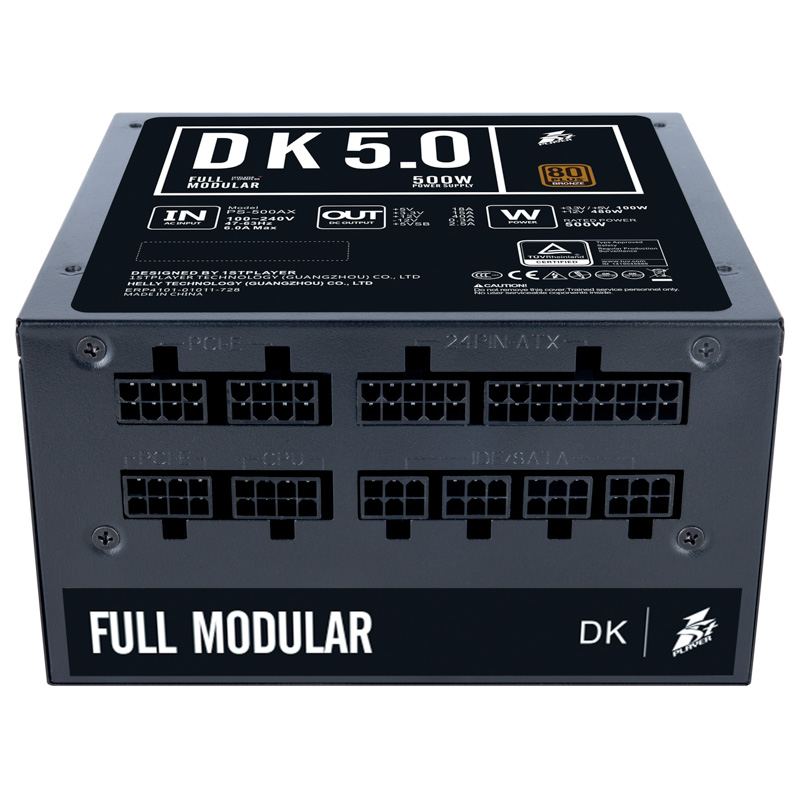

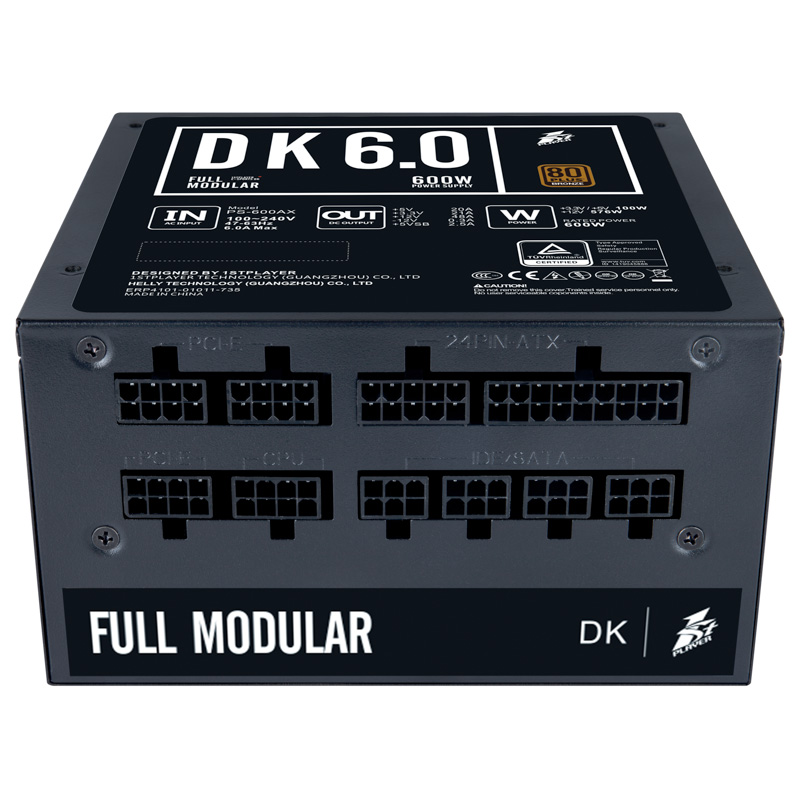

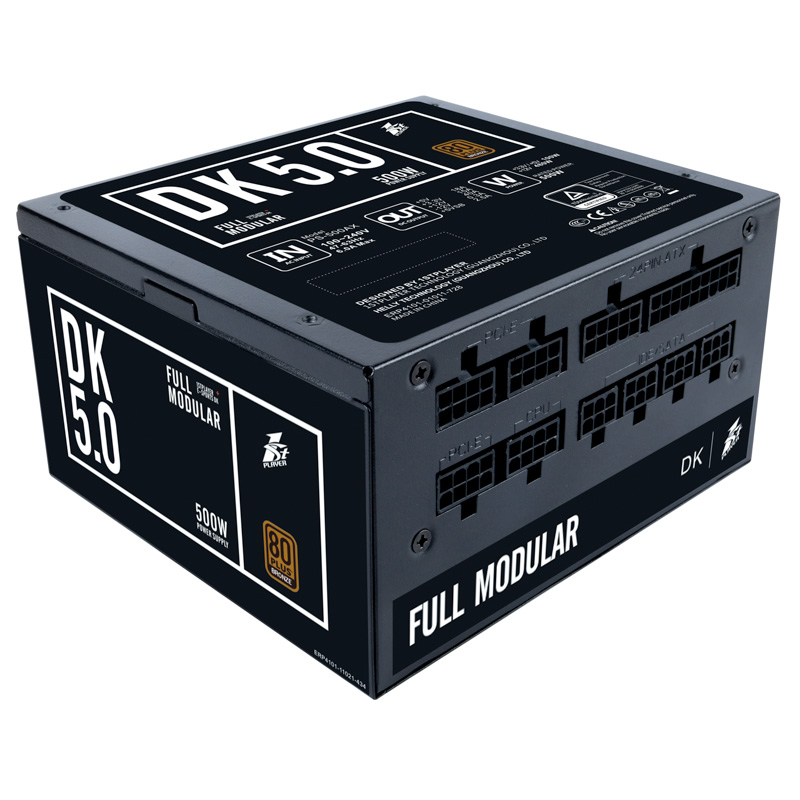

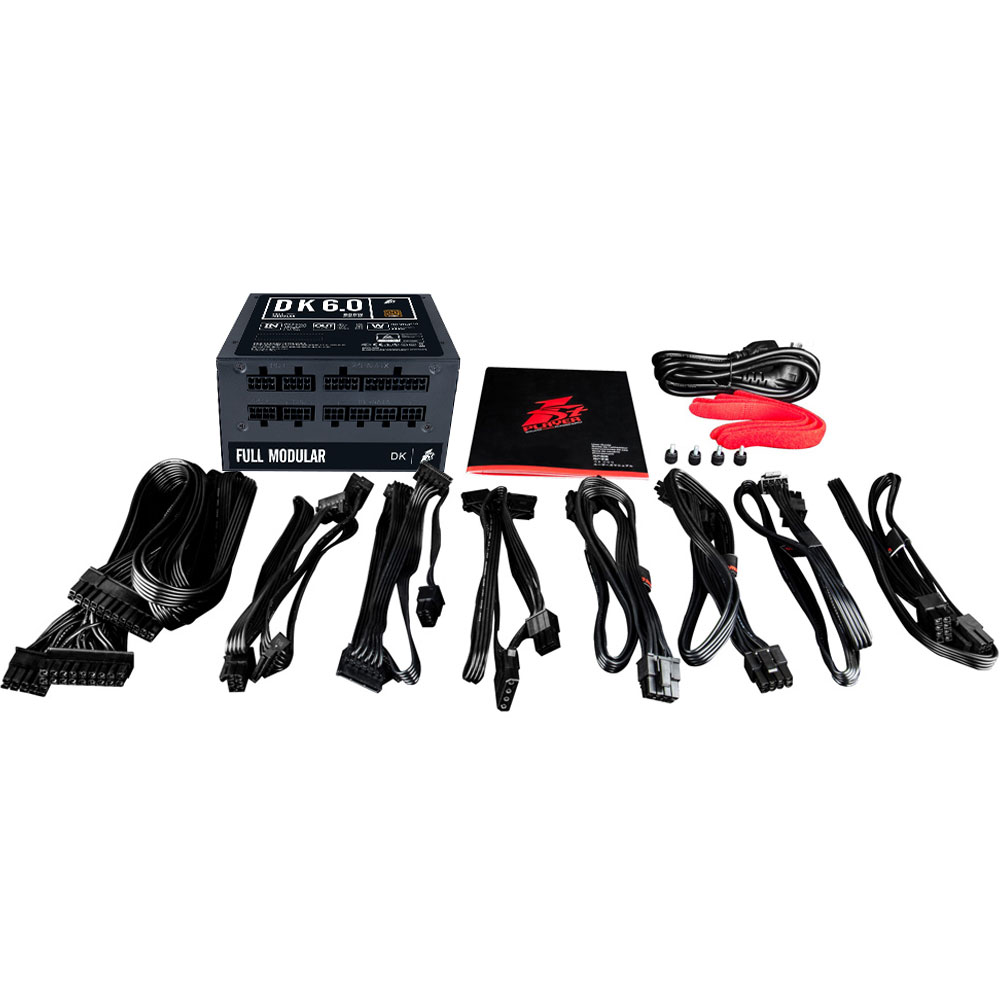

Expansion Modular

Full modular design can cable issue when upgrading GPU, multiple hard drives and case fans. Users can add/remove cable as their demand.

Moreover, full modular design delivers a convenient cable management.


Double Forward + Active PFC

CPU decides the computing power in smartphone, PC. In a similar way, the structure of a PSU decides the main performance like efficiency, temp. With double forward and active PFC, DK 4.0 ensures a supreme performance.

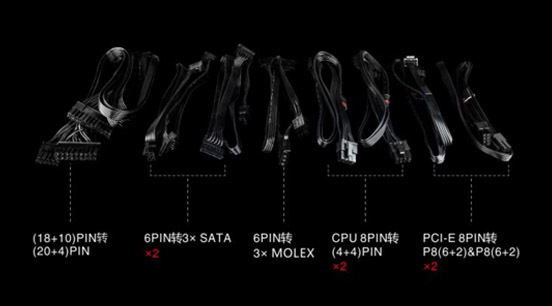

Cable Flat Cable

With flat cable, users can save space, manage cable and easily make the back routing for nice looking.A PSU with flat cable is an essential element for modding.


5V & 3Vsupply Power To

HDD/ ODD/ Floppy driver/Motherboard/Memory

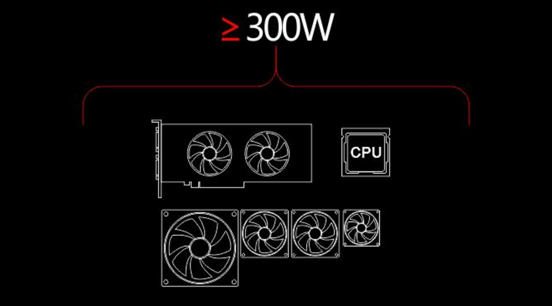

+12V Supply Power To CPU, GPU, Cooling Fans

Mainstream gaming PC overall power under full load

(Data Provided by 1STPLAYER, For Reference Only)


  • Full Range Voltage Power Off Protection

    Worry free of unstable voltage.

    With the full range voltage and SCP function, when the power is cut off under abnormal condition, DK 5.0 will activate the power fff protection function to protect the PSU and motherboard effectively.

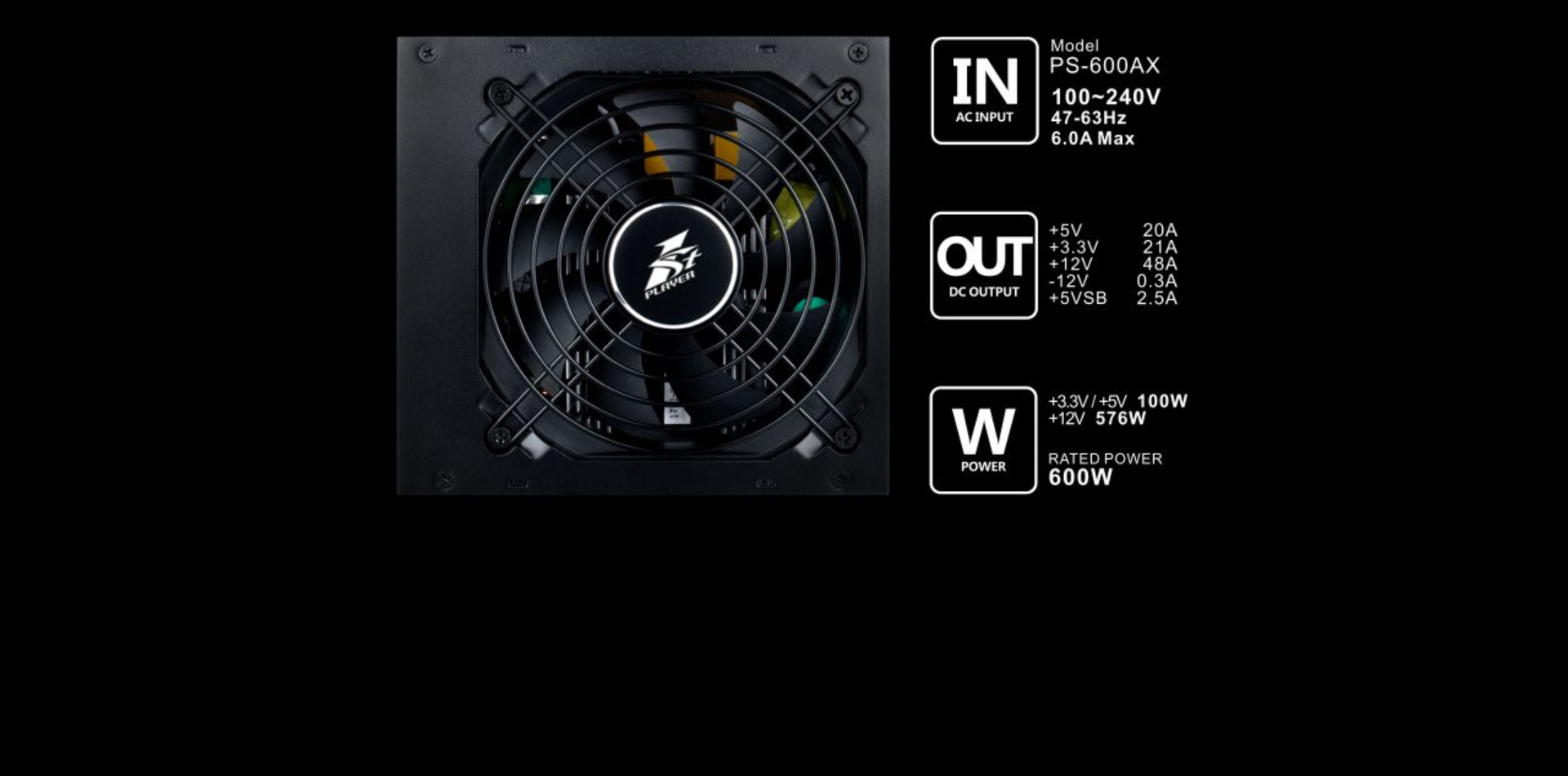

MODEL
PS-500AX / PS-600AX
DIMENSIONS (L x W x H)
140 x 150 x 86 mm

MODULAR

500 / 600 full modular

CERTIFICATIONS

80 PLUS Bronze
WARRANTY
3 years
INPUT VOLTAGE
100 - 240 VAC
INPUT CURRENT
10 A MAX
EFFICIENCY
85% @ typical load
OUTPUT CAPACITY
400 / 500 / 600 W
INPUT FREQUENCY
50 - 60 Hz
PFC
Active PFC
NET WEIGHT
2.2 kg
GROSS WEIGHT
2.6 kg
FAN SIZE
120 mm hydraulic bearing
PROTECTIONS
UVP, OVP, OPP, SCP, lightning protection
MTBF
100,000 hours
CIRCUIT STRUCTURE
Double forward
Regulatory
CE / FCC / C-Tick / ROHS / CCC / cTUVus / IEC / EAC
