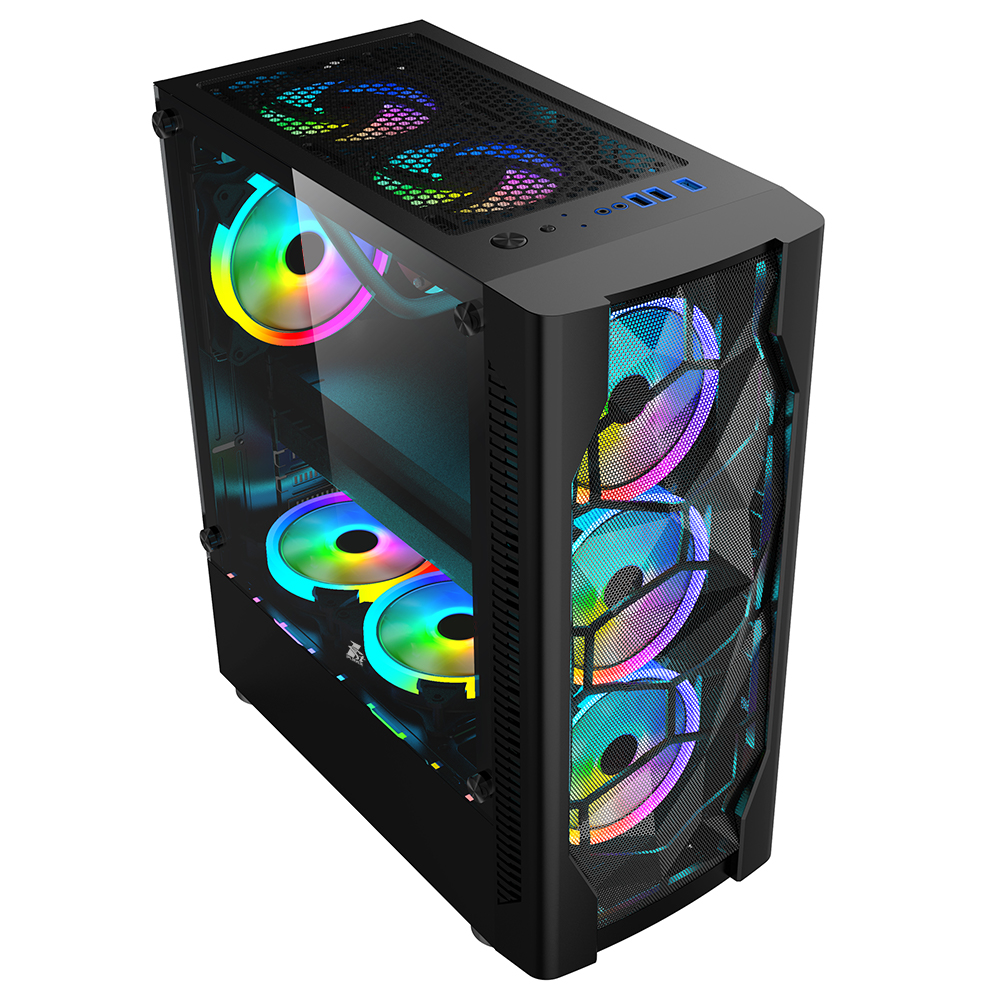

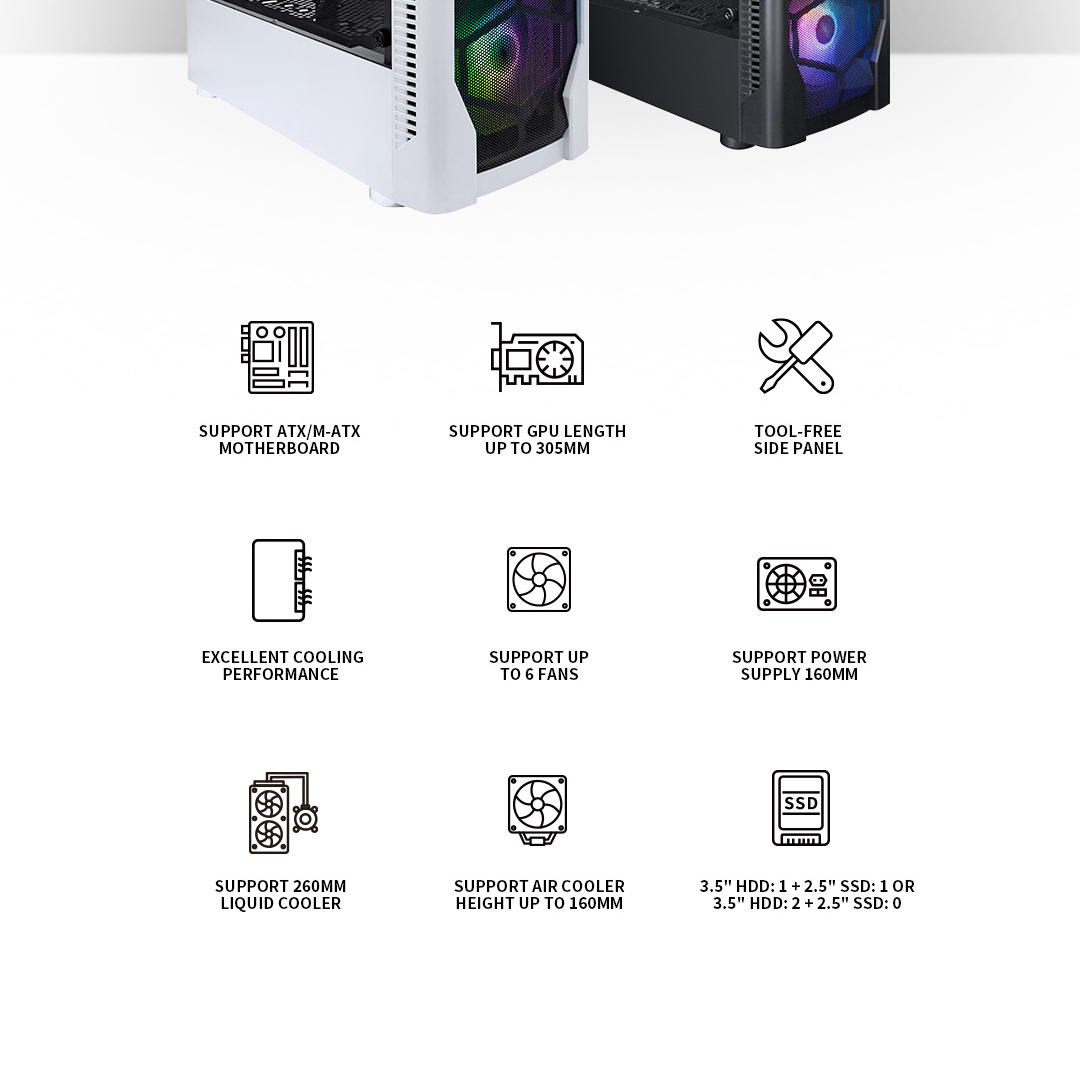

Support installation of up to 6 fans
Support CPU cooler height up to 160 mm
Support GPU length up to 305 mm
Support a 240 mm radiator at the top
Support up to 2 drive bays: 1 x 3.5" HDD + 1 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.
Black

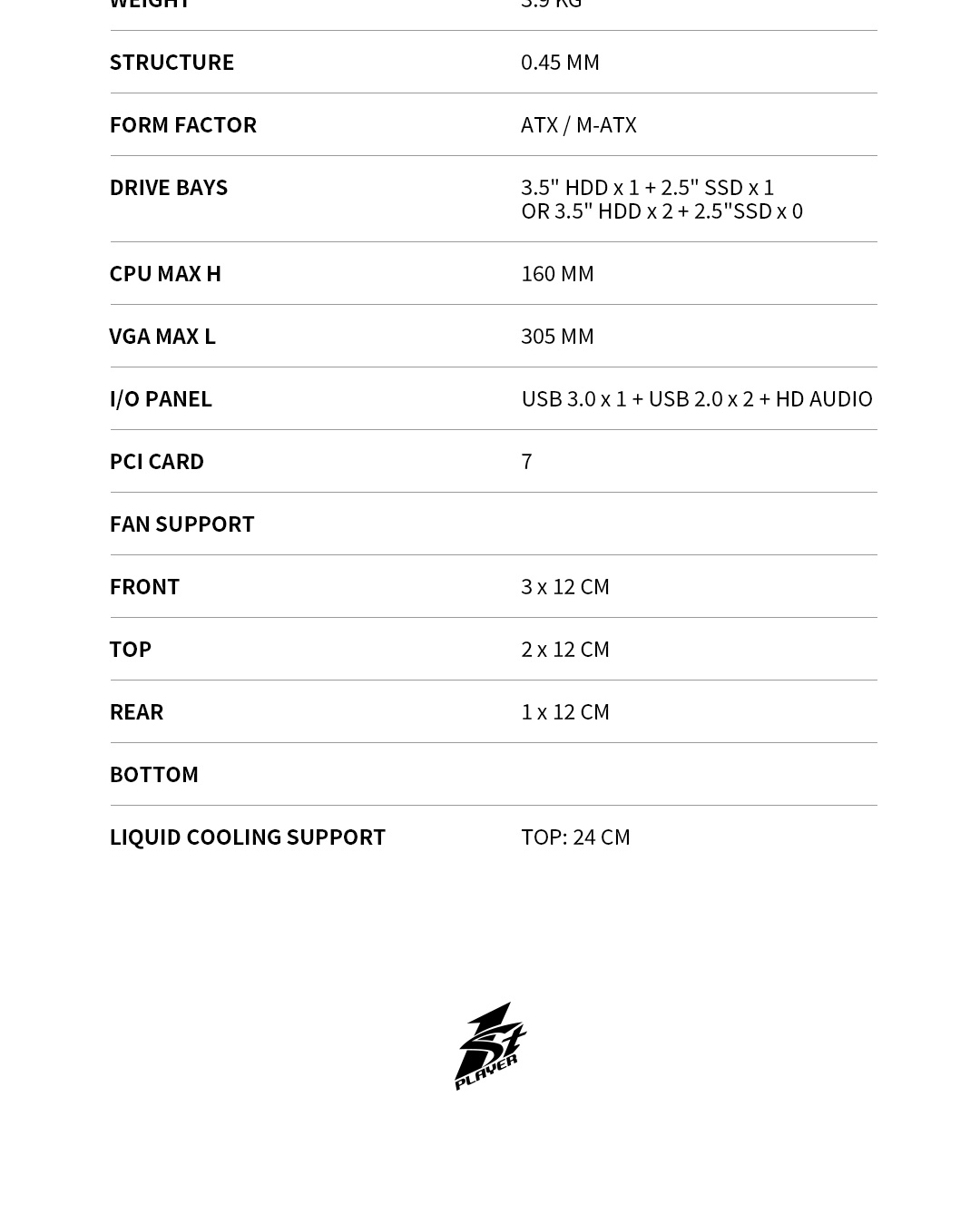

MODEL
D4
STRUCTURE DIMENSIONS (L x W x H)
335 x 190 x 435 mm

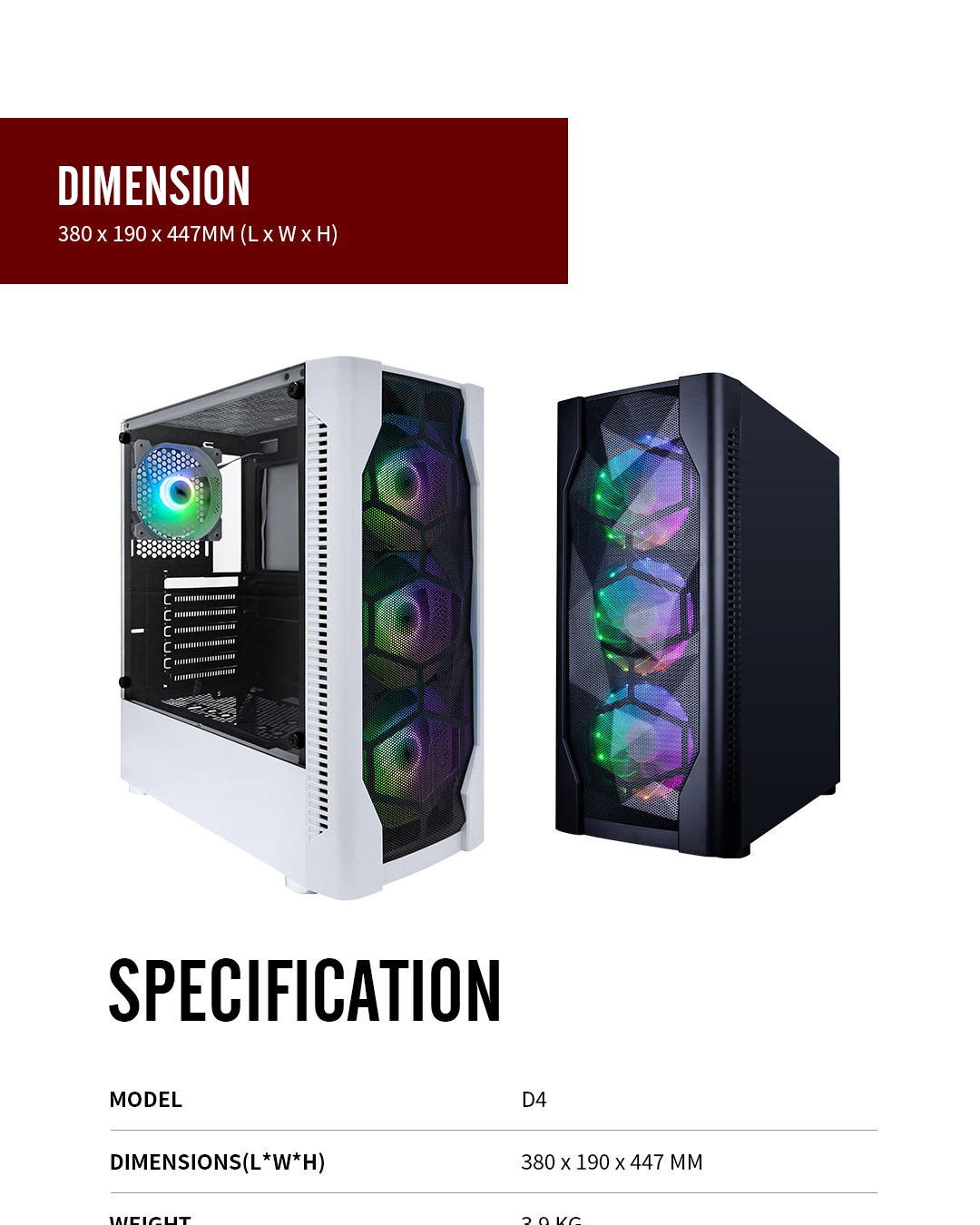

PRODUCT DIMENSIONS(L x W x H)
380 x 190 x 447 mm
PACKAGE DIMENSIONS(L x W x H)
500 x 245 x 445 mm
STRUCTURE THICKNESS
0.45 mm
MATERIALS
SPCC 0.45 mm

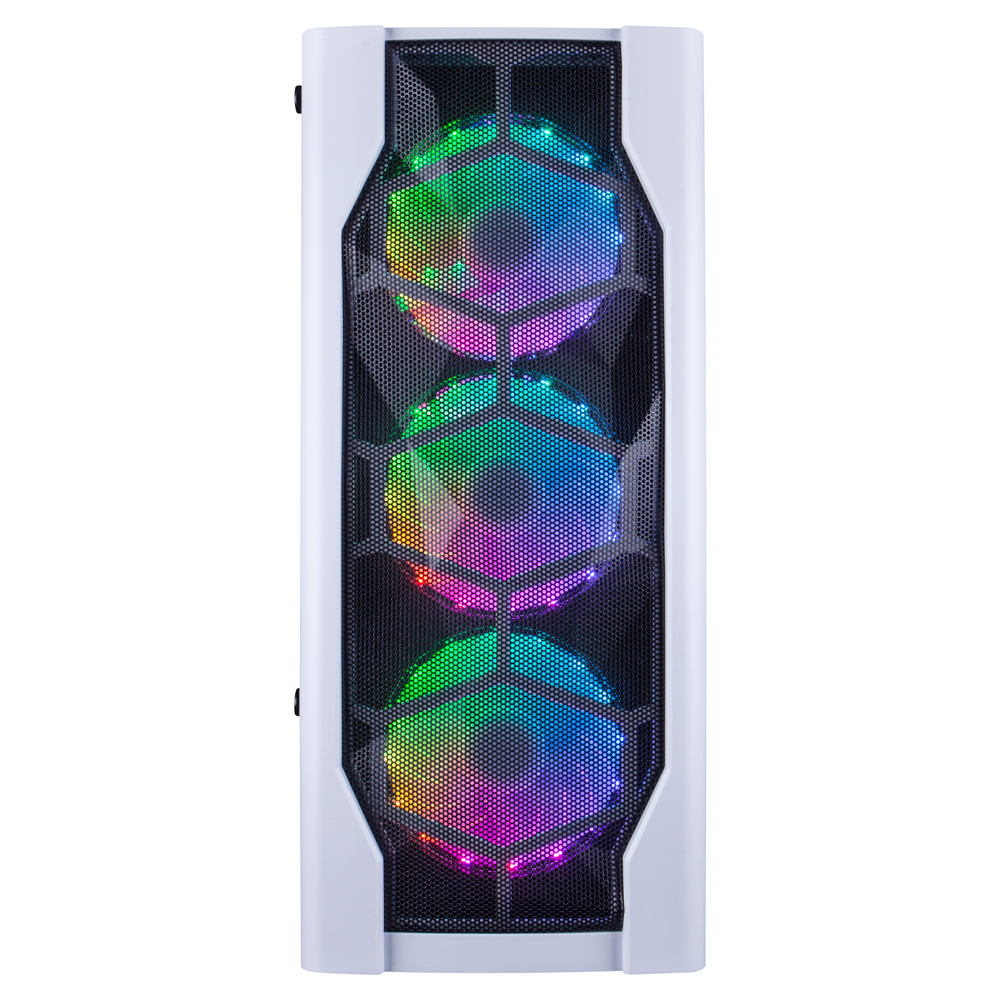

Front panel: Metal mesh

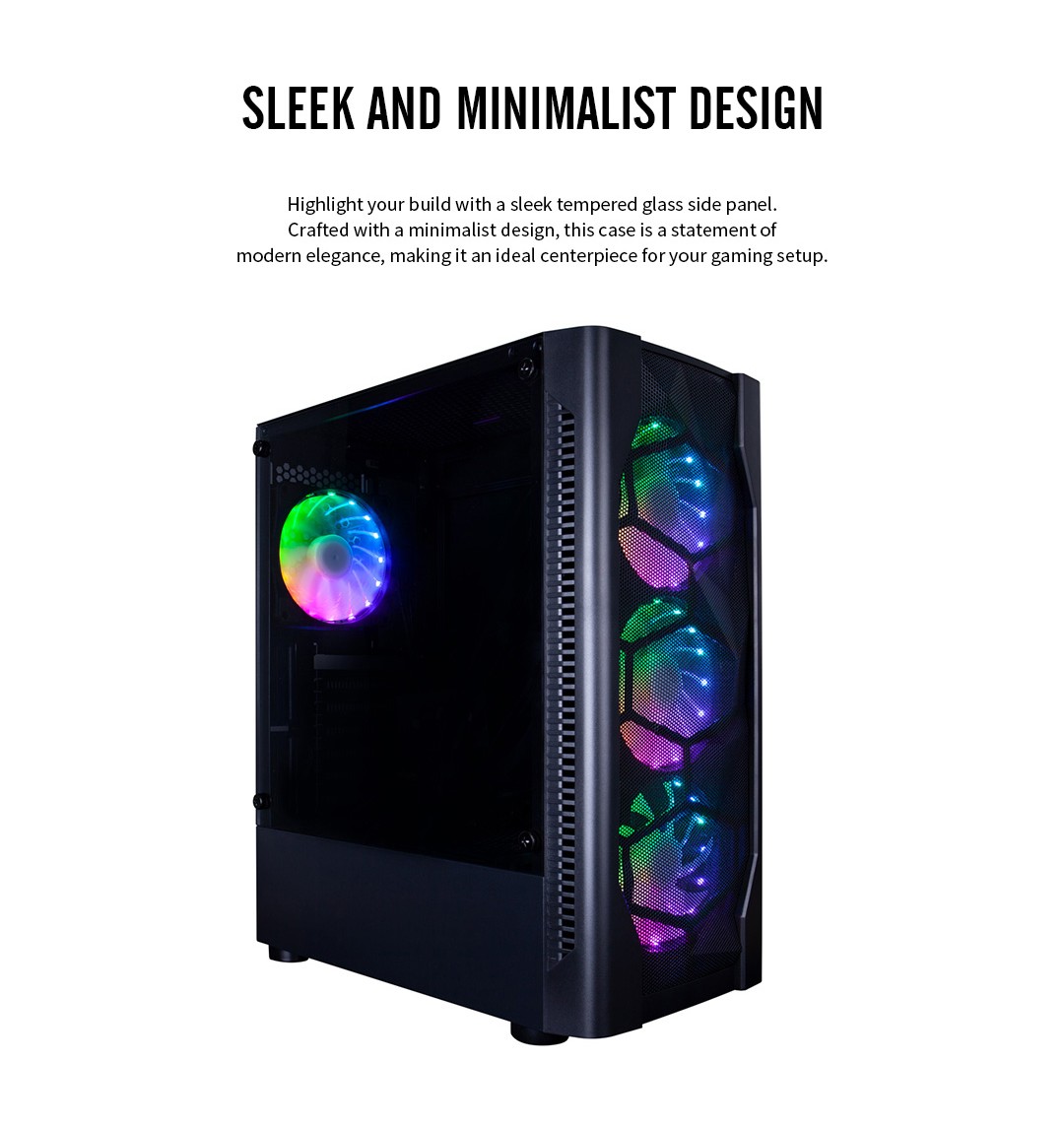

Left panel: Tempered glass
FORM FACTOR
ATX / M-ATX
DRIVE BAYS
5.25" CD ROM: 0
3.5" HDD: 1 + 2.5" SSD: 1
3.5" HDD: 2 + 2.5" SSD: 0

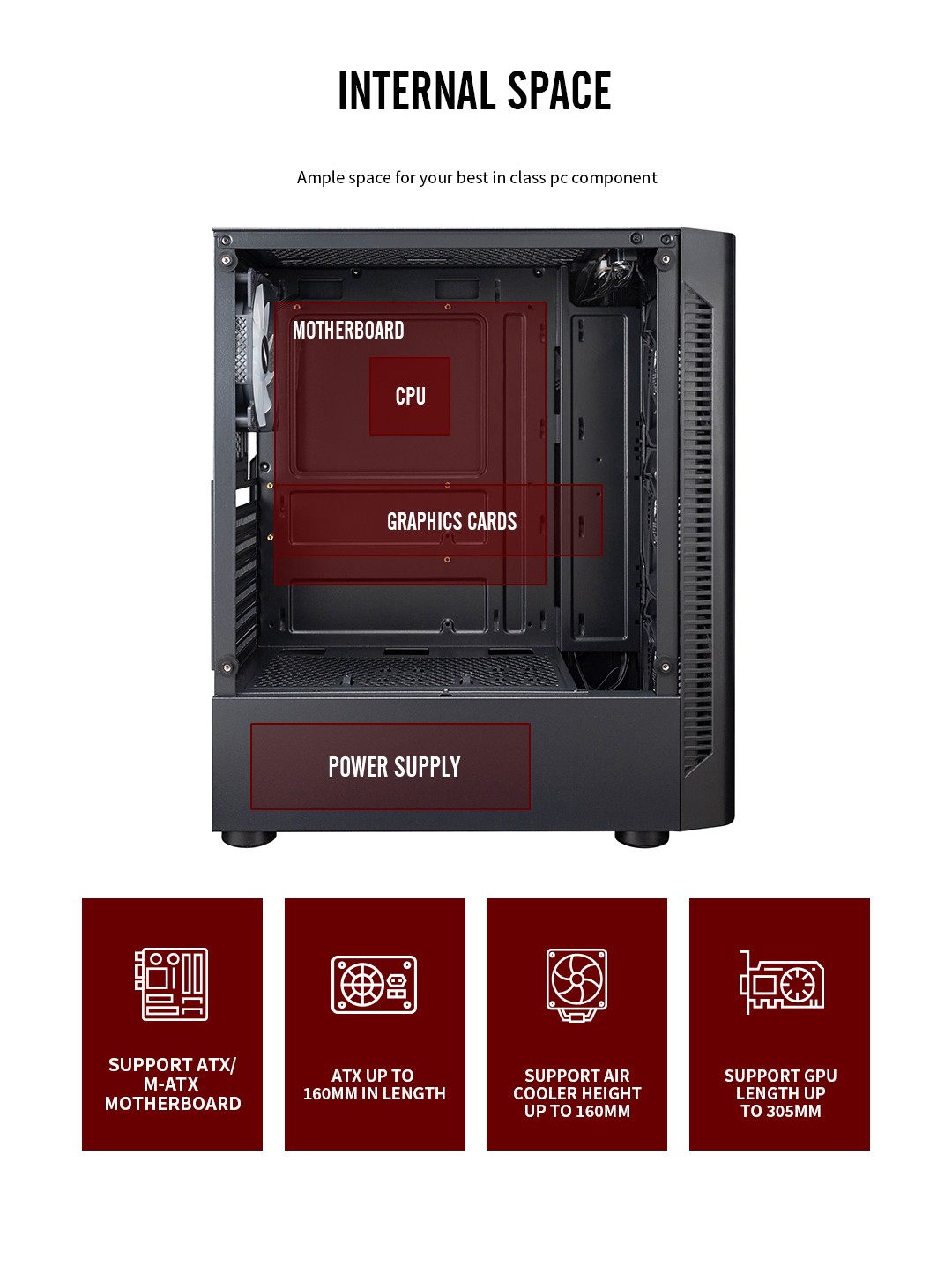

CPU MAX HEIGHT
160 mm
GPU MAX LENGTH
305 mm

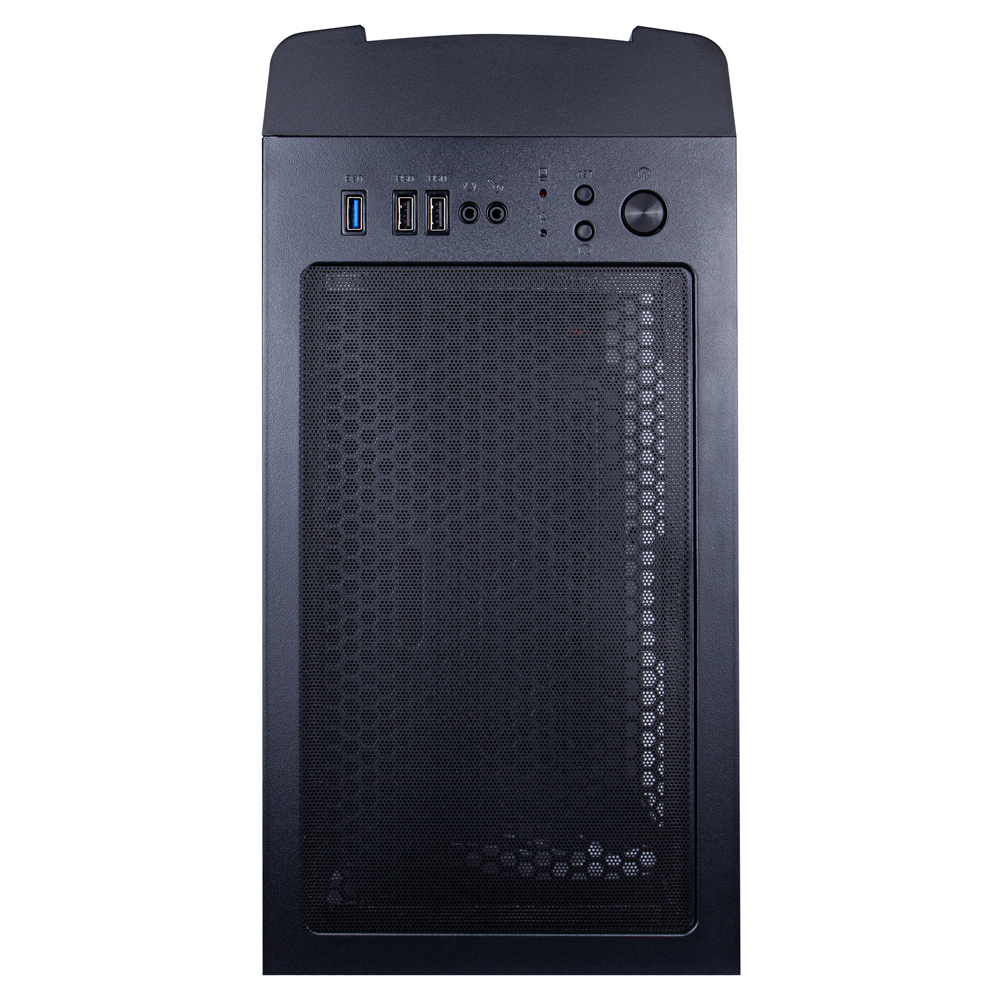

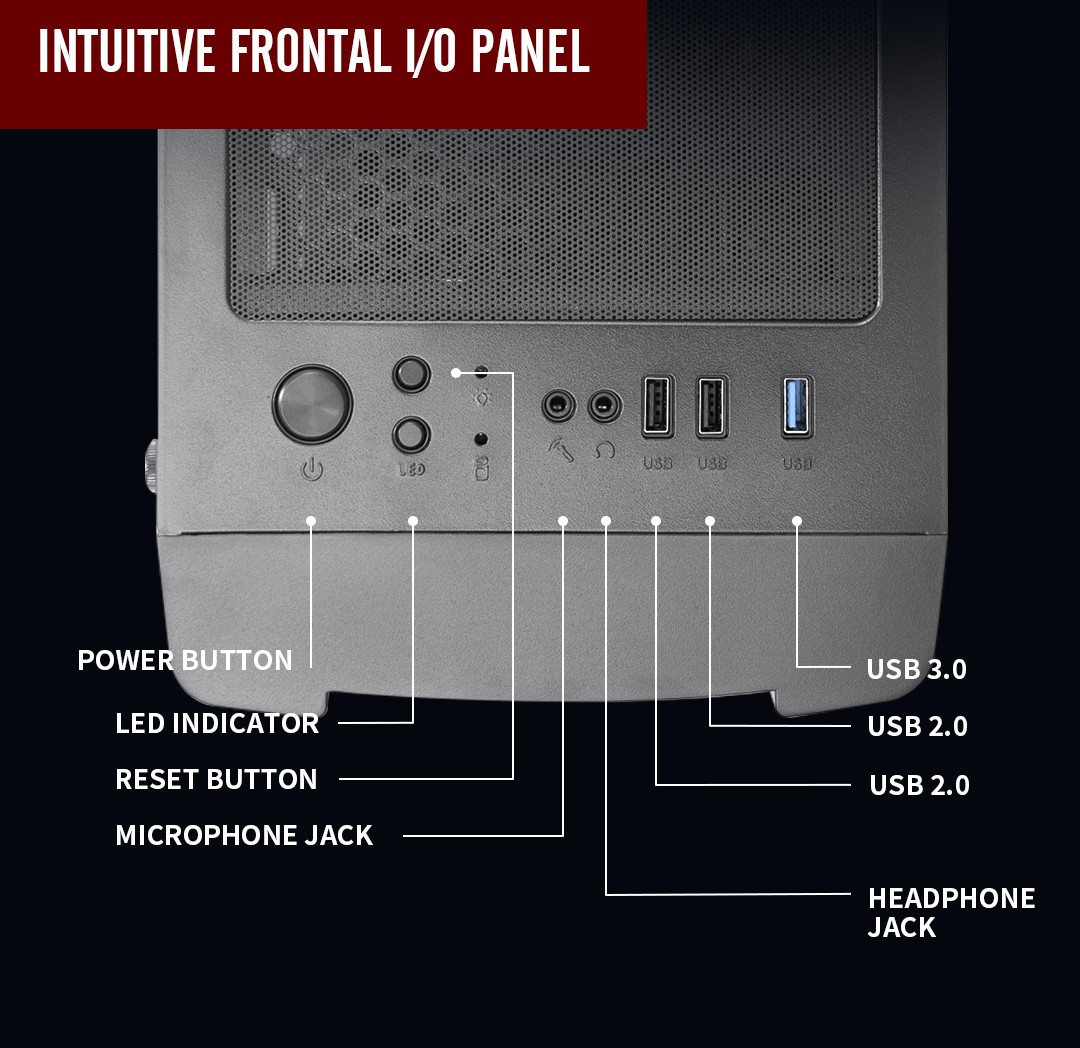

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO x 1

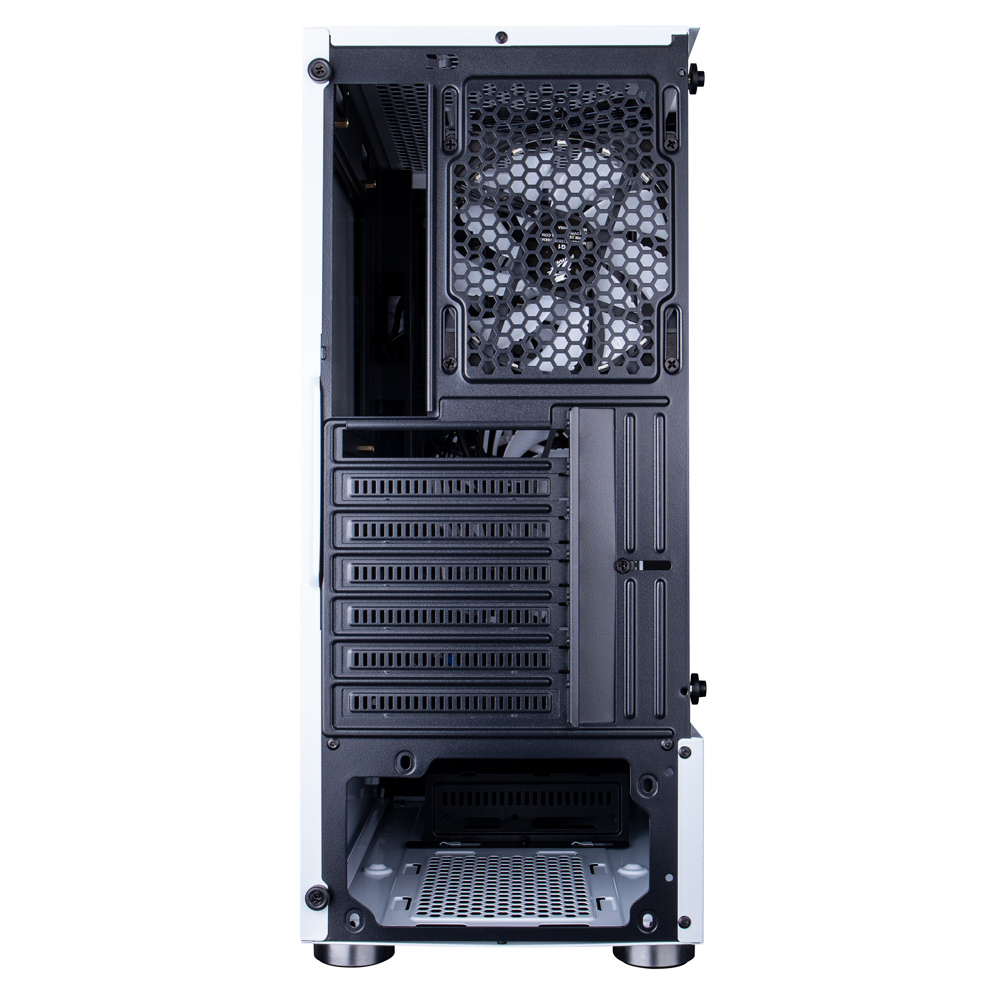

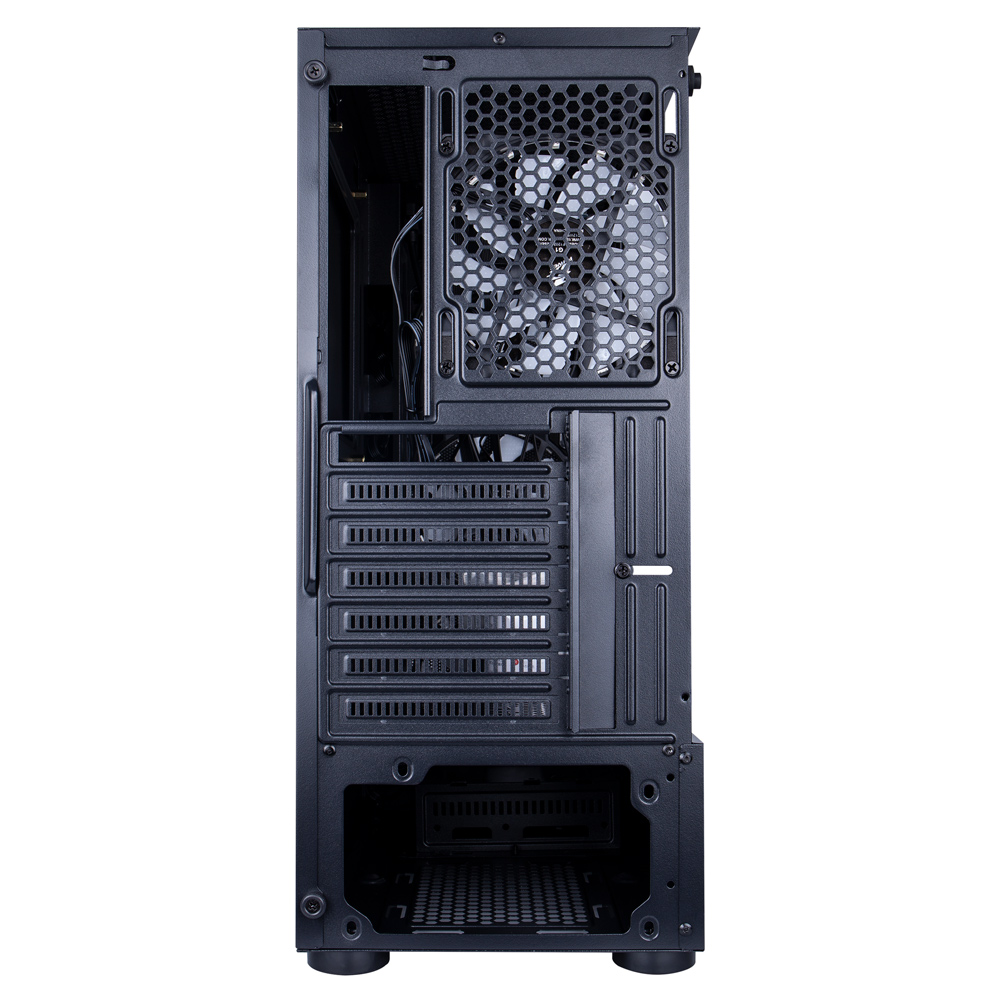

PCI CARD SLOT
7

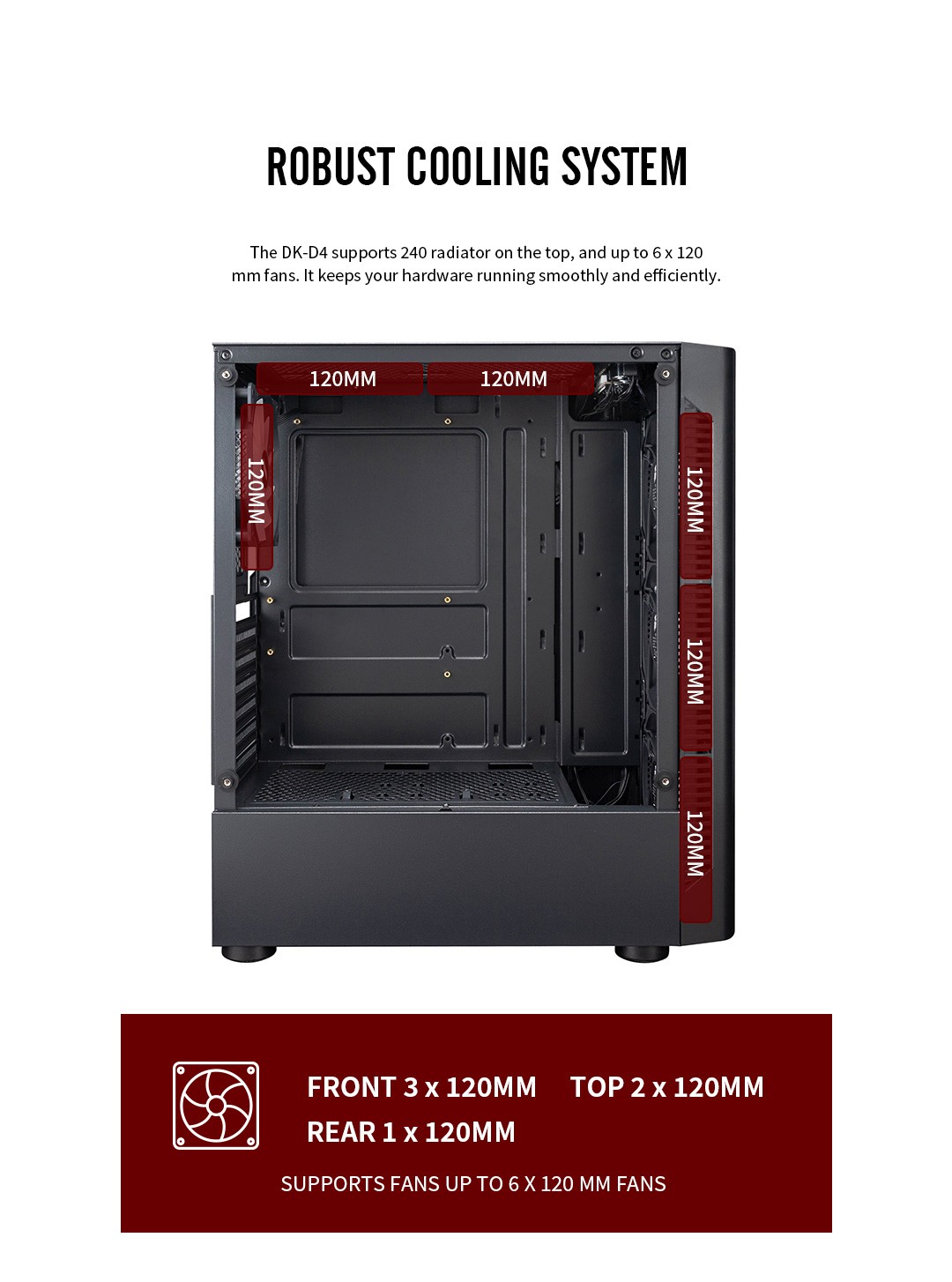

FAN SUPPORT
Front: 3 x 12 cm
Top: 2 x 12 cm
Rear: 1 x 12 cm
LIQUID COOLING SUPPORT
TOP: 240 mm
POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
3.9 kg / 8.60 lb
4.6 kg / 10.1 lb
