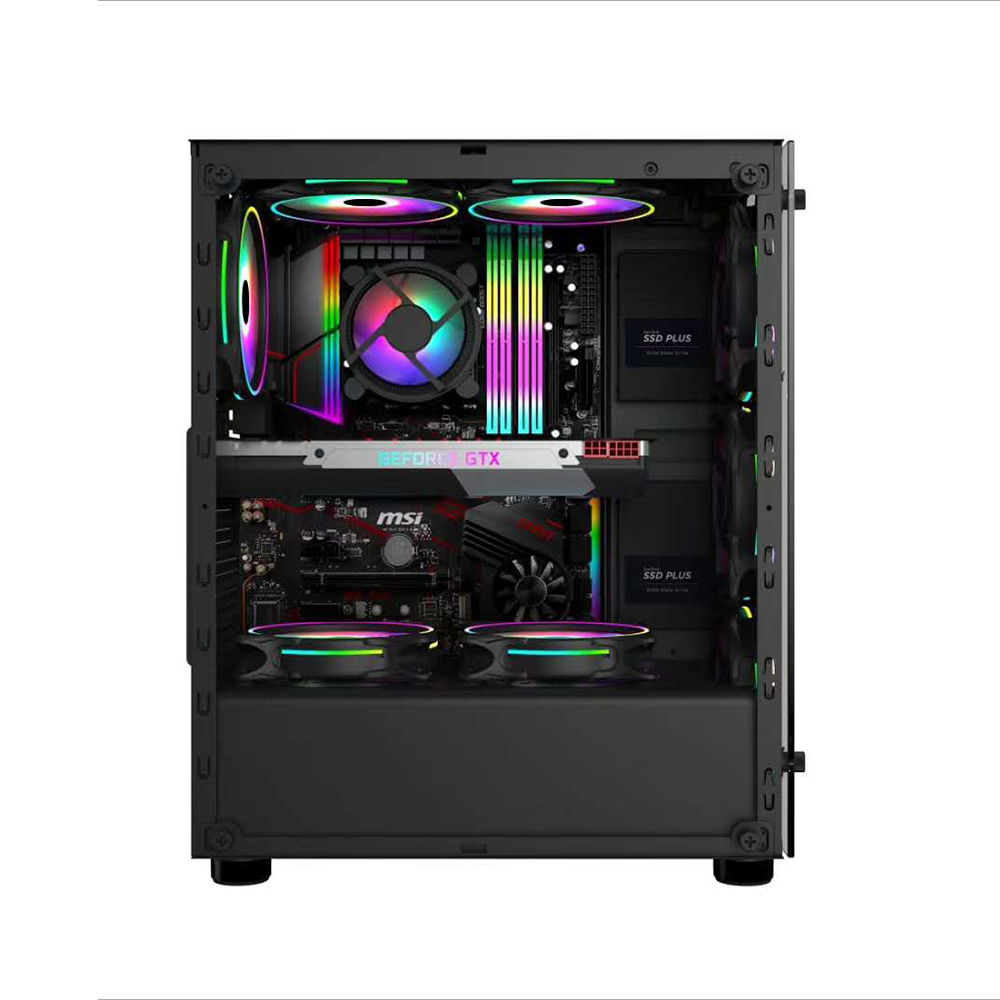

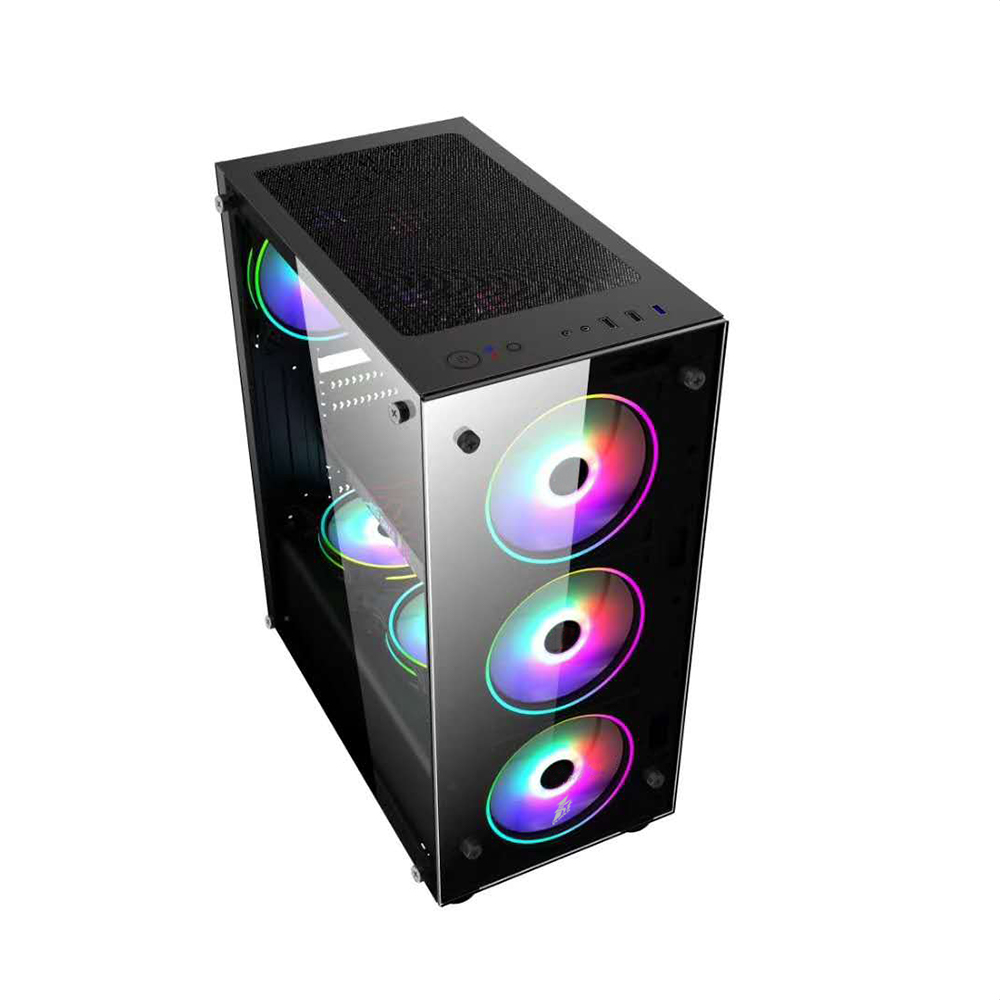

Support installation of up to 8 fans
Support CPU cooler height up to 160 mm
Support GPU length up to 350 mm
Support a 240 mm radiator at the top, a 240 mm radiator at the front and a 120 mm radiator at the rear
Support up to 3 drive bays: 1 x 3.5" HDD + 2 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.
Black
MODEL
V3-A
STRUCTURE DIMENSIONS (L x W x H)
342 x 192 x 413 mm
PRODUCT DIMENSIONS (L x W x H)
372 x 200 x 425 mm
PACKAGE DIMENSIONS (L x W x H)
475 x 238 x 439 mm
STRUCTURE THICKNESS
SPCC 0.5 mm
MATERIALS
Front / Left Panel: Tempered glass
FORM FACTOR
ATX / M-ATX / Mini-ITX
DRIVE BAYS
5.25" CD ROM: 0
3.5" HDD: 1
2.5" SSD: 2
CPU MAX HEIGHT
160 mm
GPU MAX LENGTH
350 mm
I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO x 1 + Microphone x 1
PCI CARD SLOT
7
FAN SUPPORT

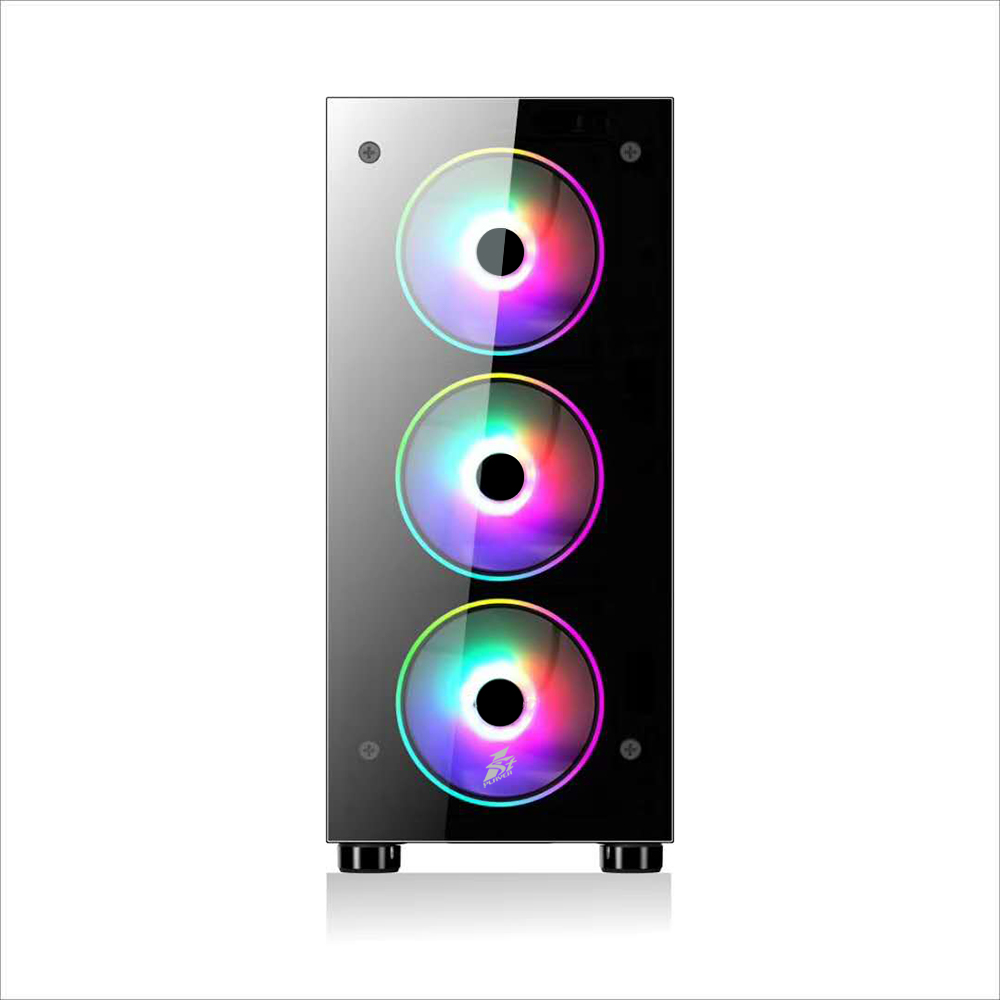

Front: 3 x 12 cm
Top: 2 x 12 cm
Rear: 1 x 12 cm
Bottom: 2 x 12 cm
LIQUID COOLING SUPPORT
Front: 240 mm
Top: 240 mm
Rear: 120 mm
POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
4.4 kg / 9.70 lb
5.1 kg / 11.2 lb
