Support GPU length up to 435 mm
Support CPU cooler height up to 185 mm
Support installing of up to 9 x 120 mm or 8 x 140 mm fans
Support 420 liquid cooler at front, 360 liquid cooler at top
Equipped with snap-fit top, front, and side panels, this case allows for effortless tool-free removal and reinstallation. The panels are reversible, enabling upside-down installation for enhanced customization and convenience.
*Computer parts are not included. Cooling fan may vary among different countries/regions.
White
Where infinite possibilities begin
MODEL
IF8
STRUCTURE DIMENSIONS (L x W x H)
440 × 223 × 480 mm
PRODUCT DIMENSIONS (L x W x H)
450 × 243 × 512 mm
PACKAGE DIMENSIONS (L x W x H)
566 x 317 × 530 mm
STRUCTURE THICKNESS
0.7 mm
MATERIALS
SPCC, tempered glass, plastic
FORM FACTOR
E-ATX / ATX / M-ATX / ITX
3.5" HDD: 1 + 2.5" SSD: 5
3.5" HDD: 2 + 2.5" SSD: 4
3.5" HDD: 3 + 2.5" SSD: 3
CPU MAX HEIGHT
180 mm
GPU MAX LENGTH
390 mm

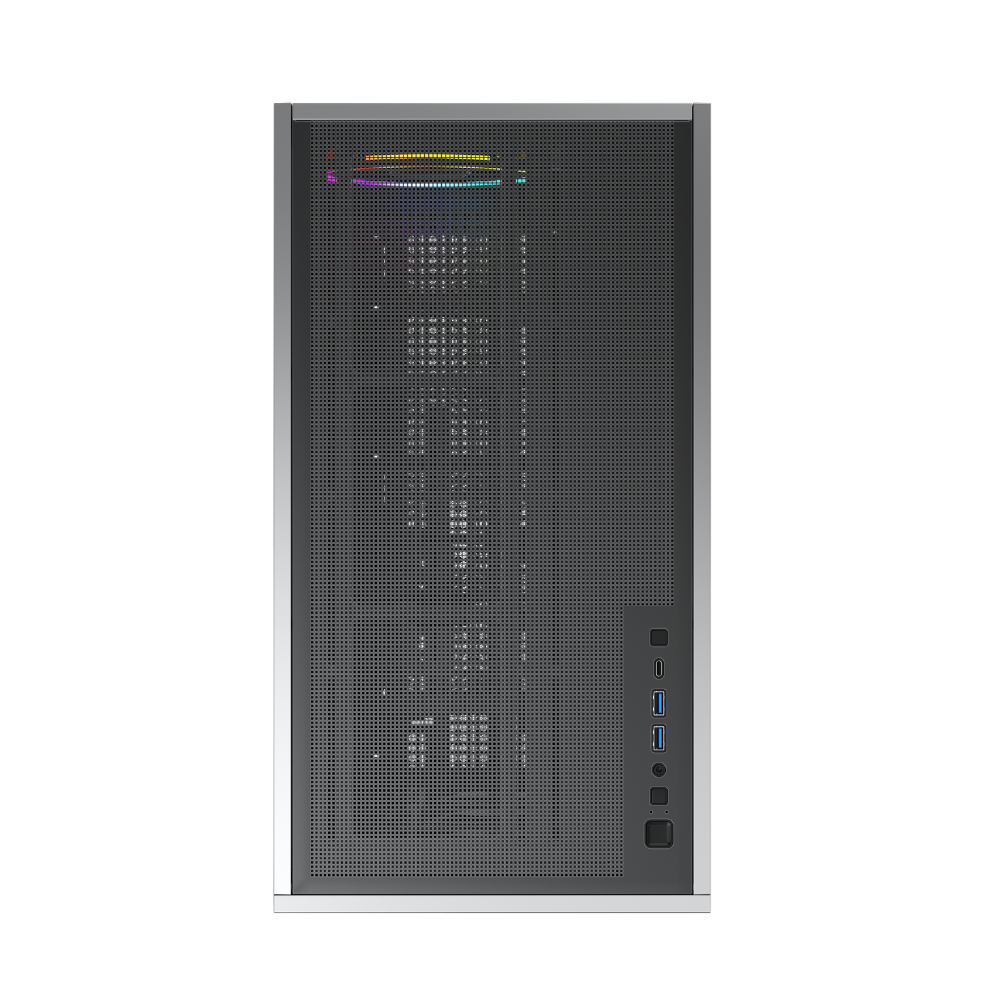

I/O PANEL
USB 3.0 x 2 + Type-C x 1 + HD AUDIO
PCI CARD SLOT
7

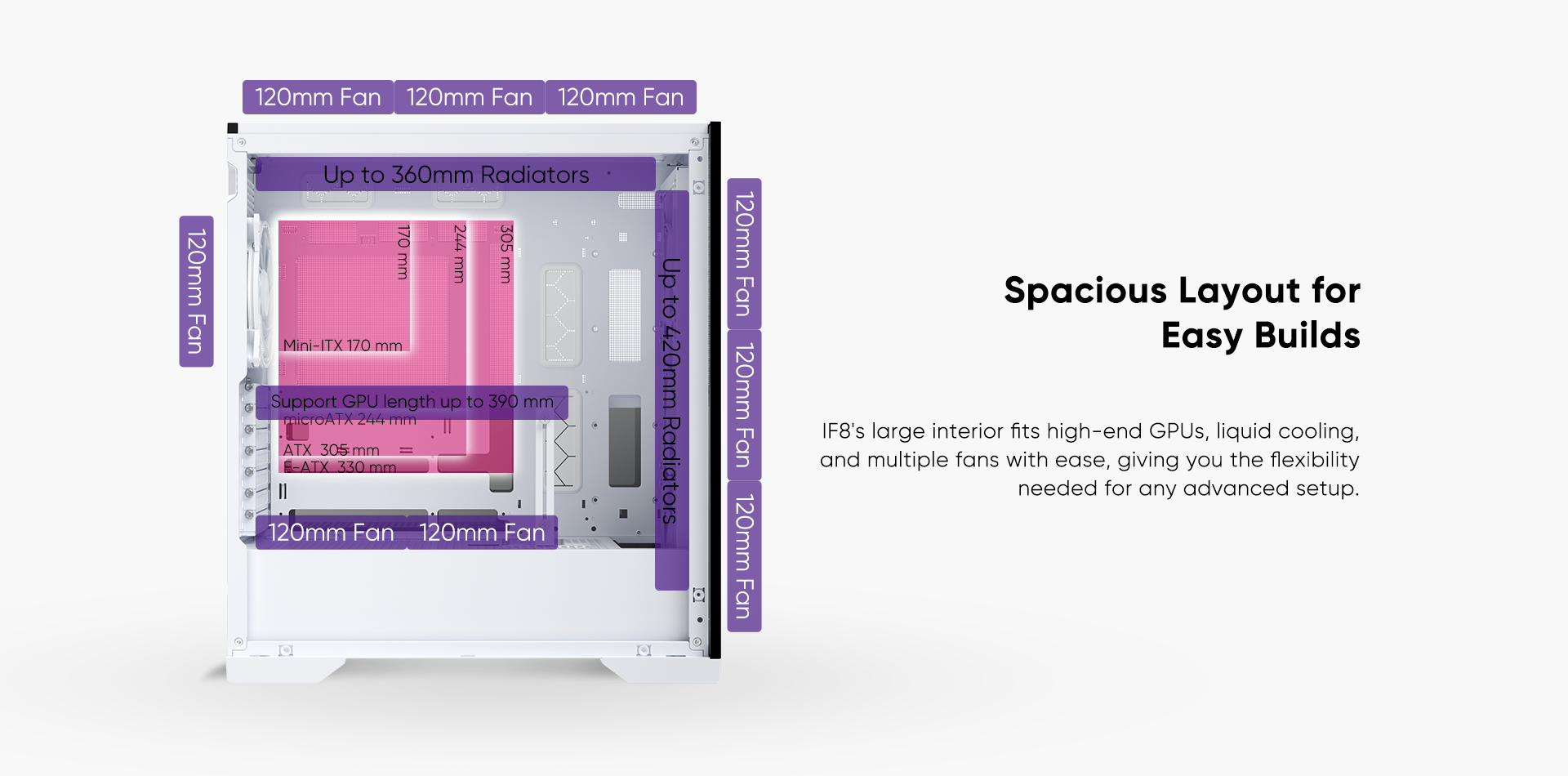

FAN SUPPORT
Front: 3 x 120 mm / 3 x 140 mm
Top: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm / 1 x 140 mm
Bottom: 2 x 120 mm / 2 x 140 mm
LIQUID COOLING SUPPORT
Front: 420 mm, Top: 360 mm
POWER SUPPLY SUPPORT
Bottom mounted 200 mm
WEIGHT
N.W.: kg
G.W.: kg
