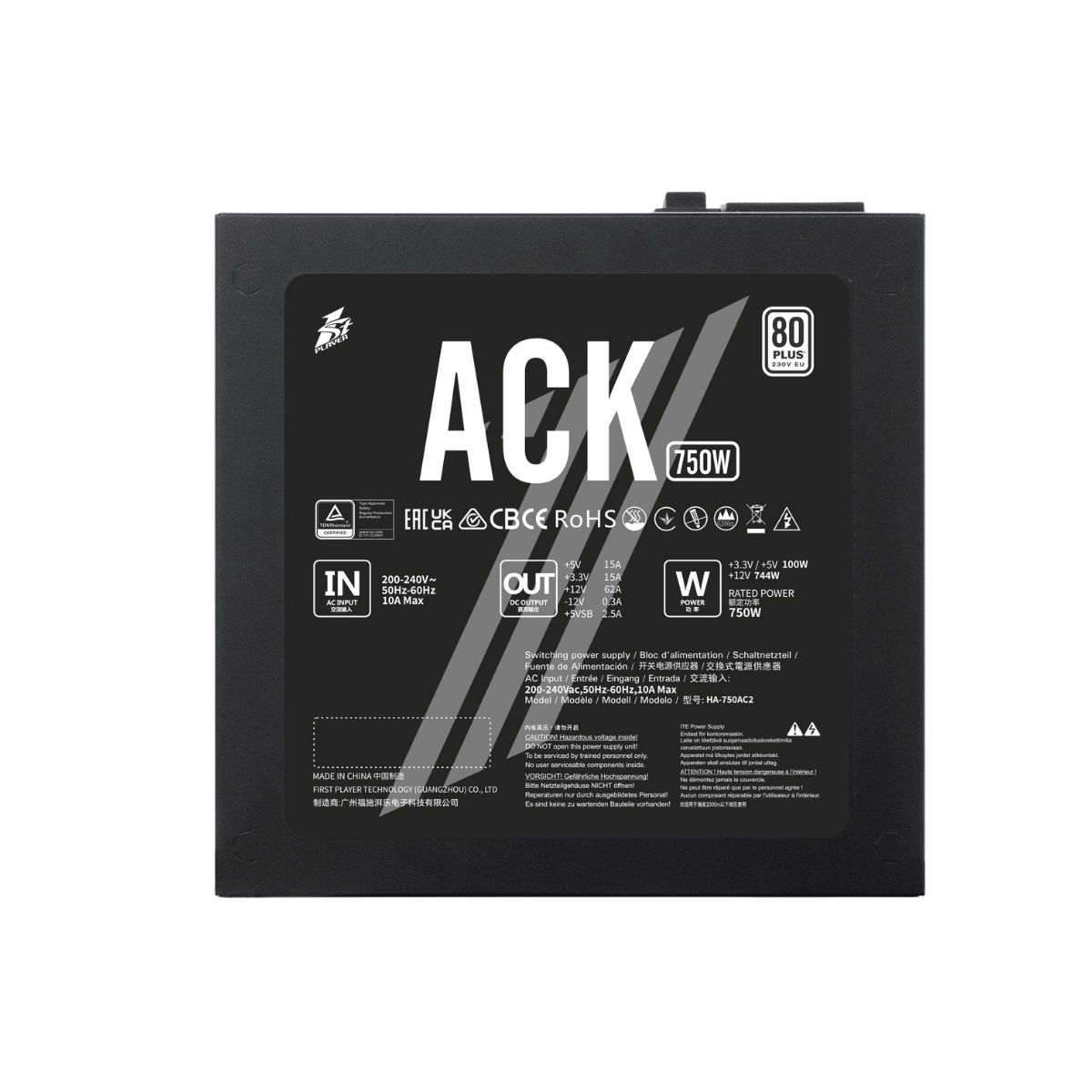

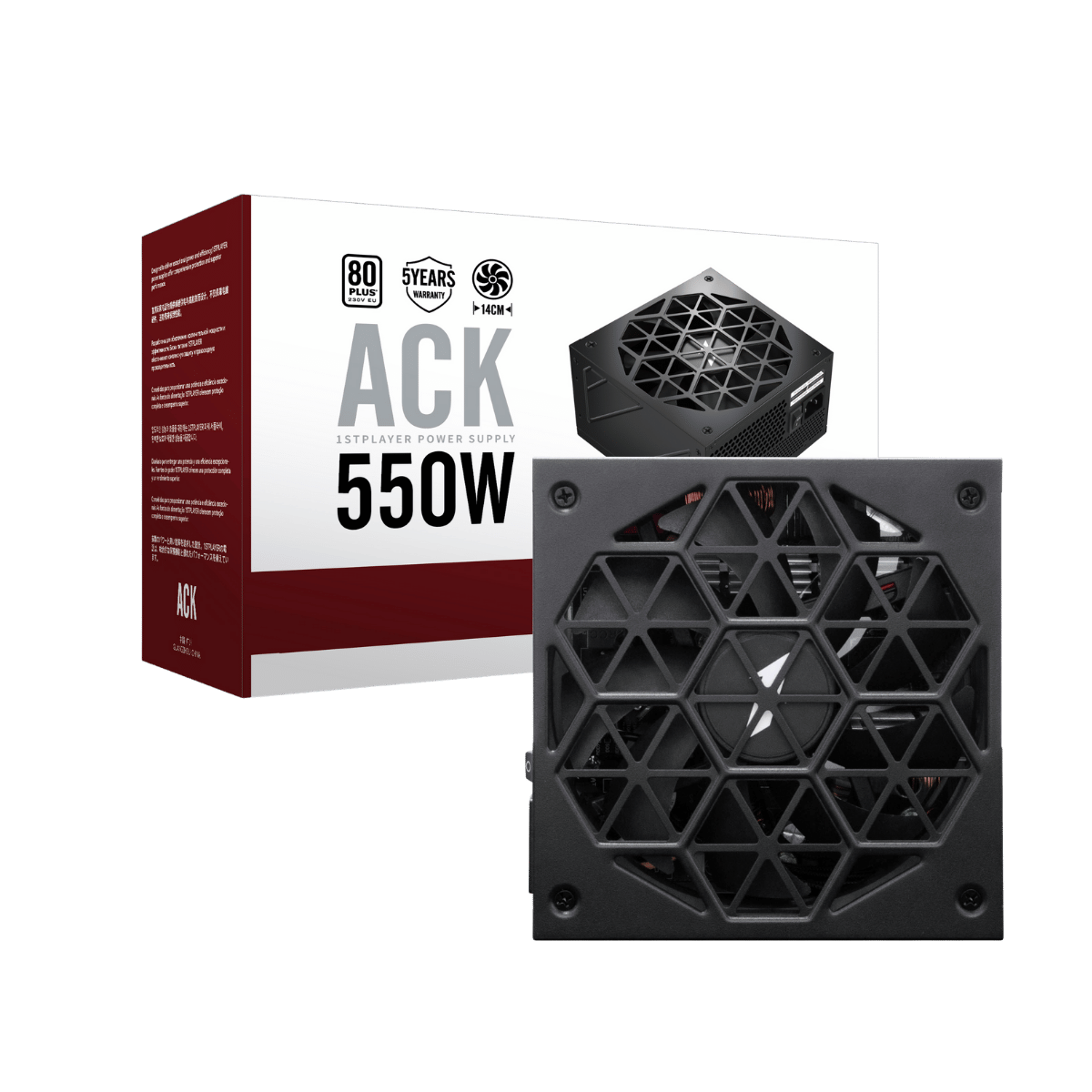

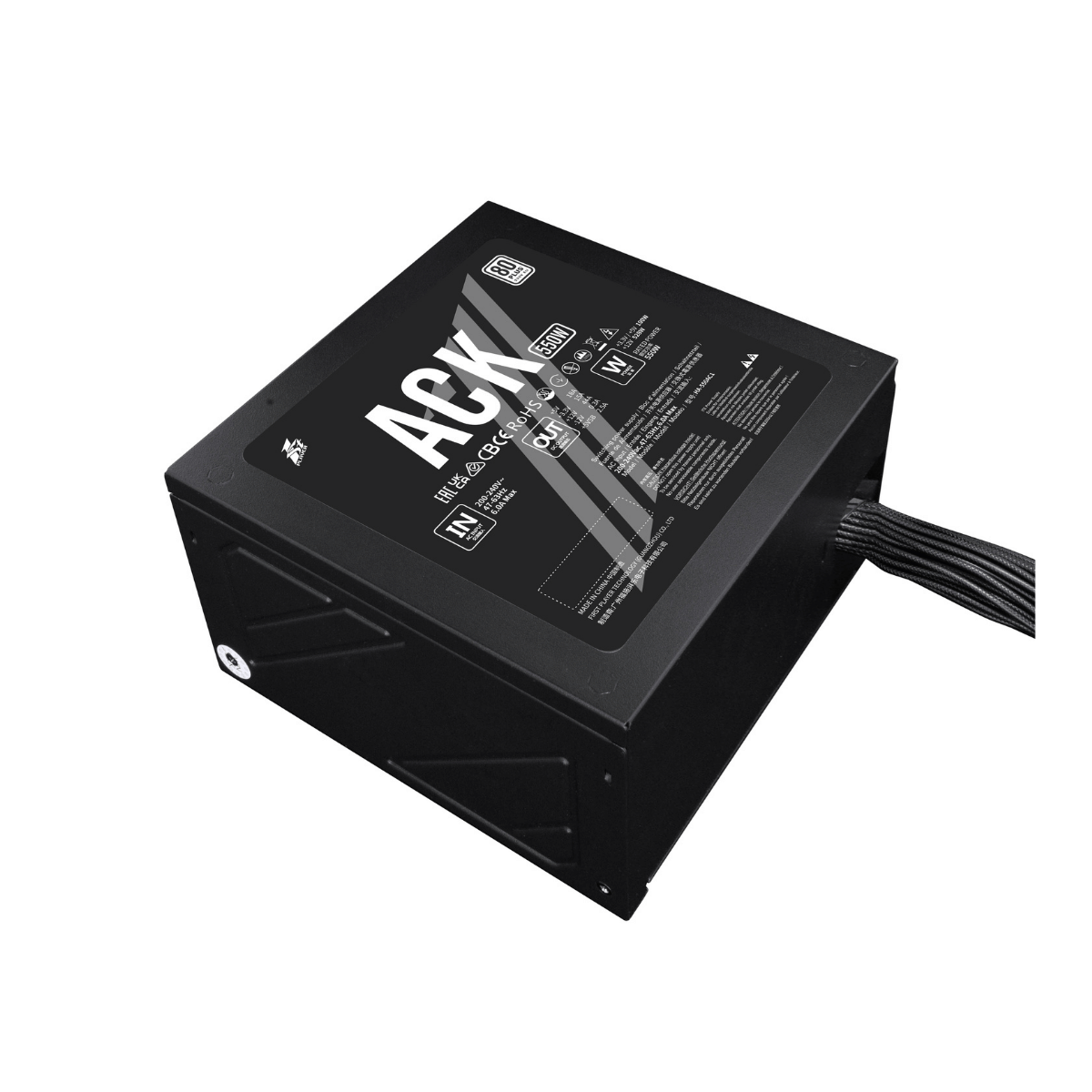

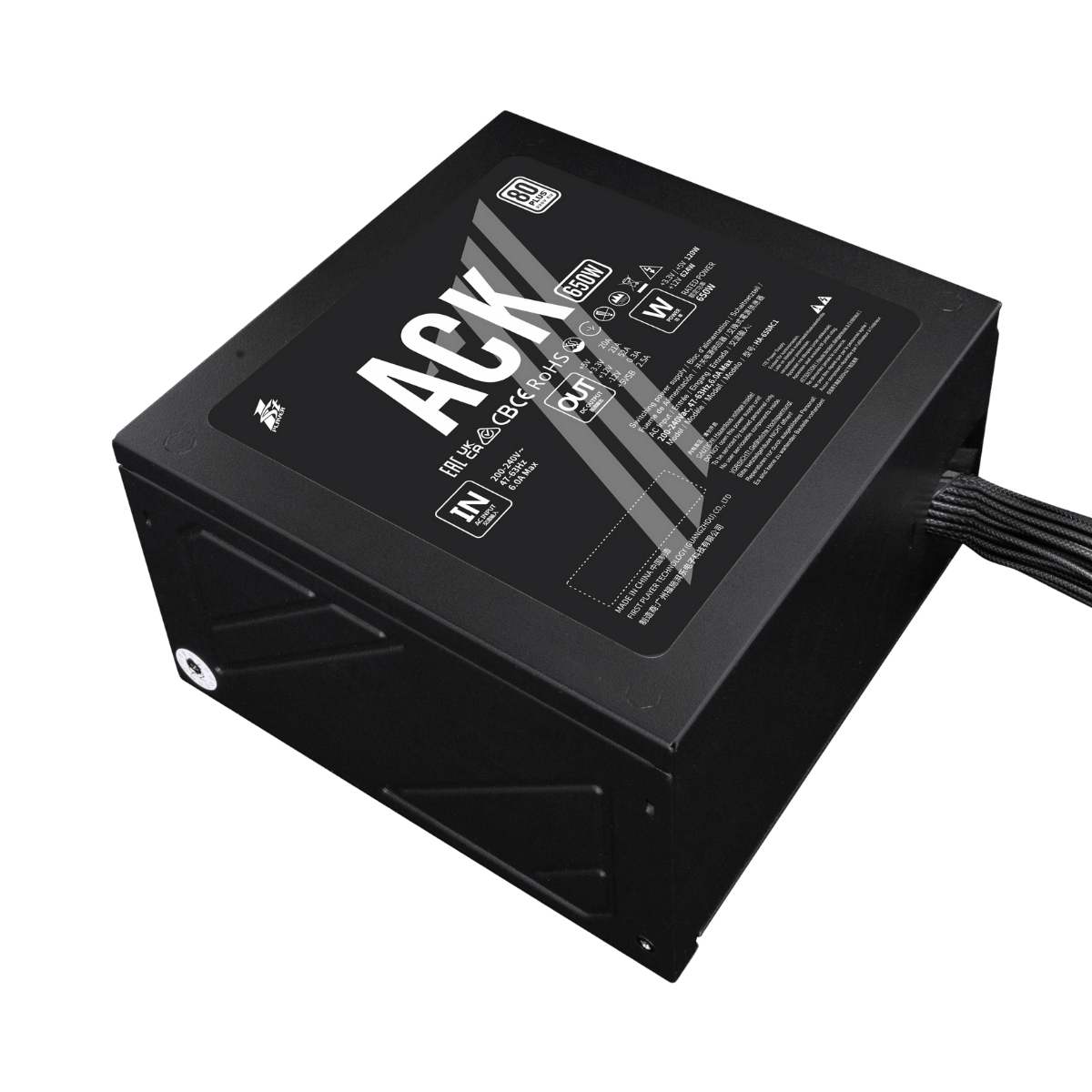

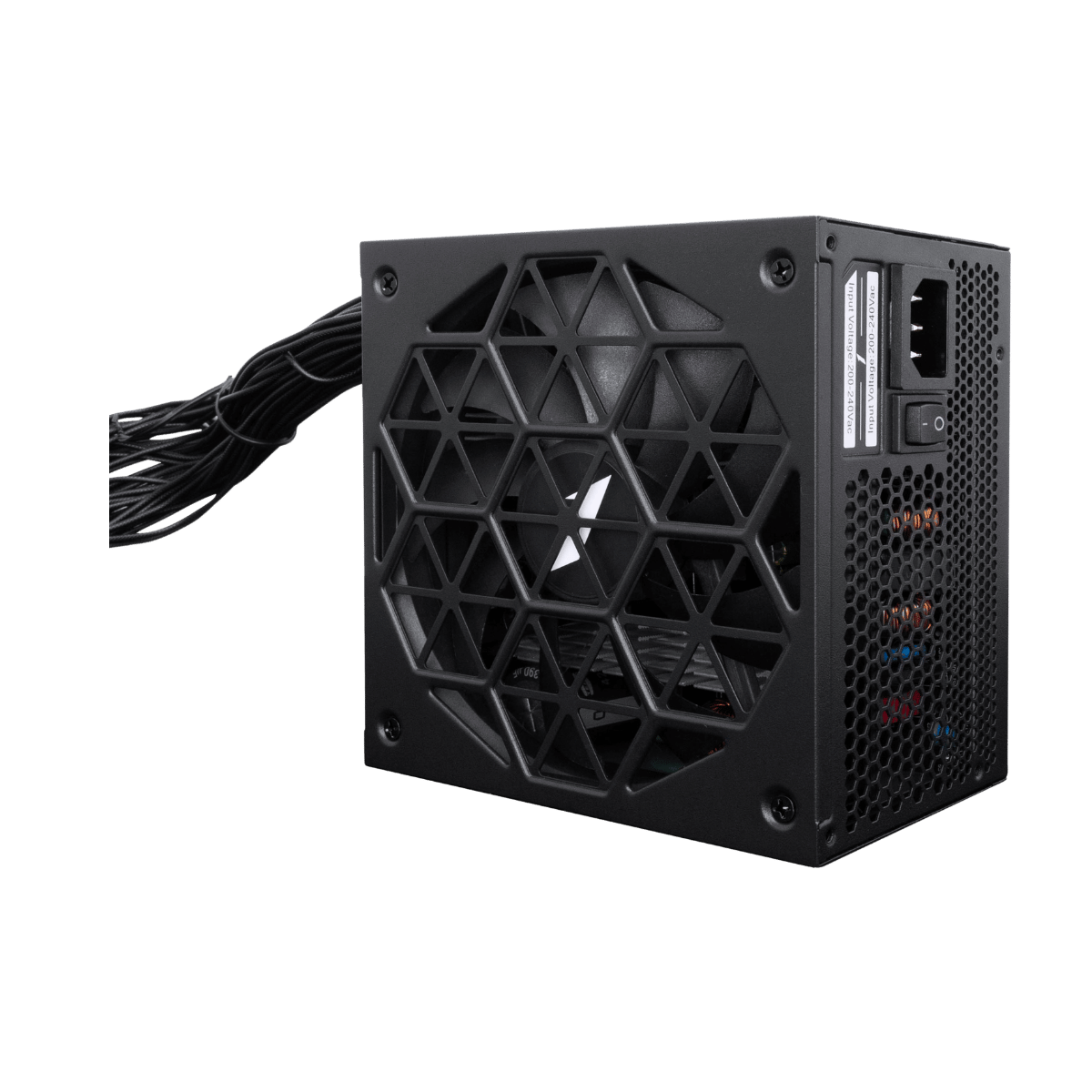

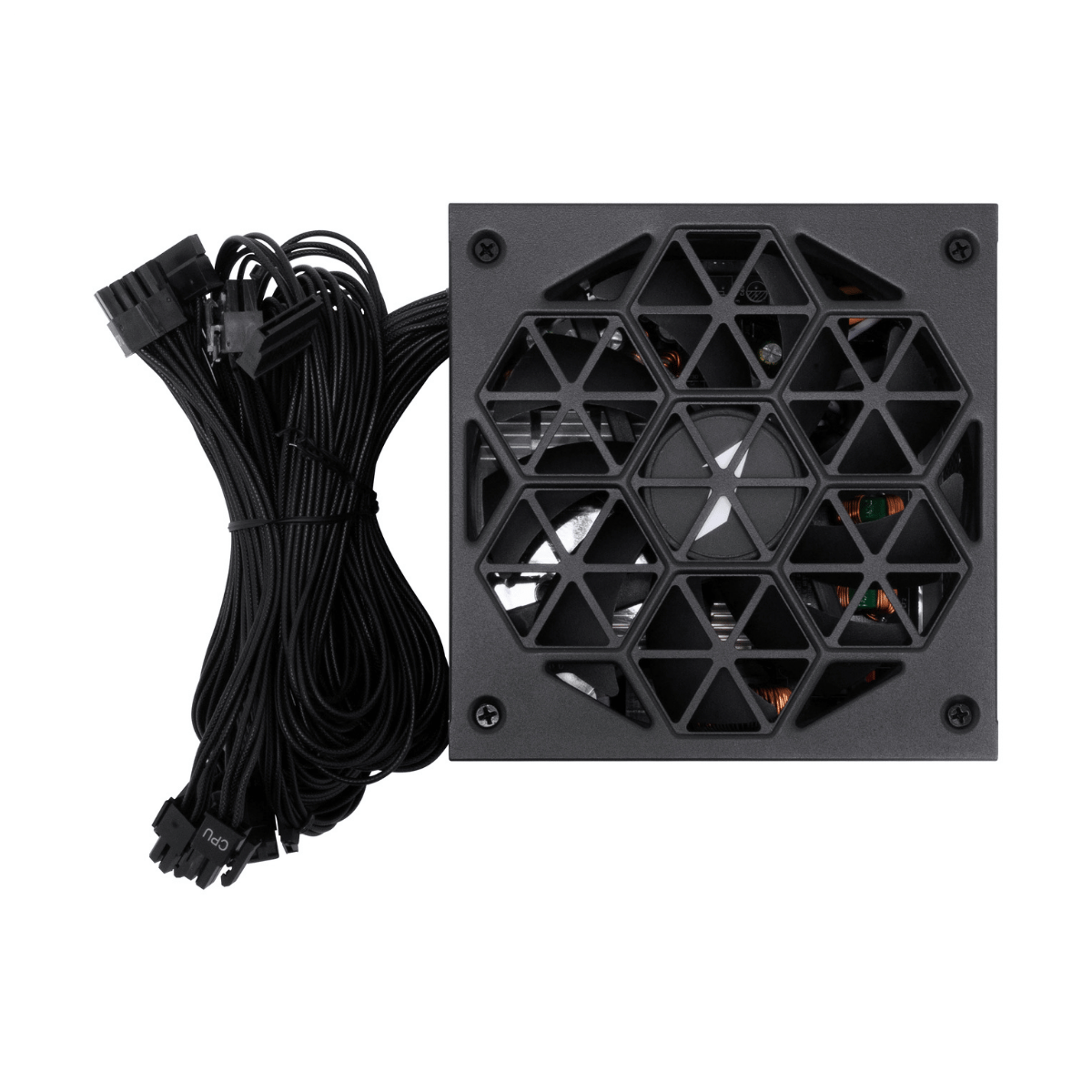

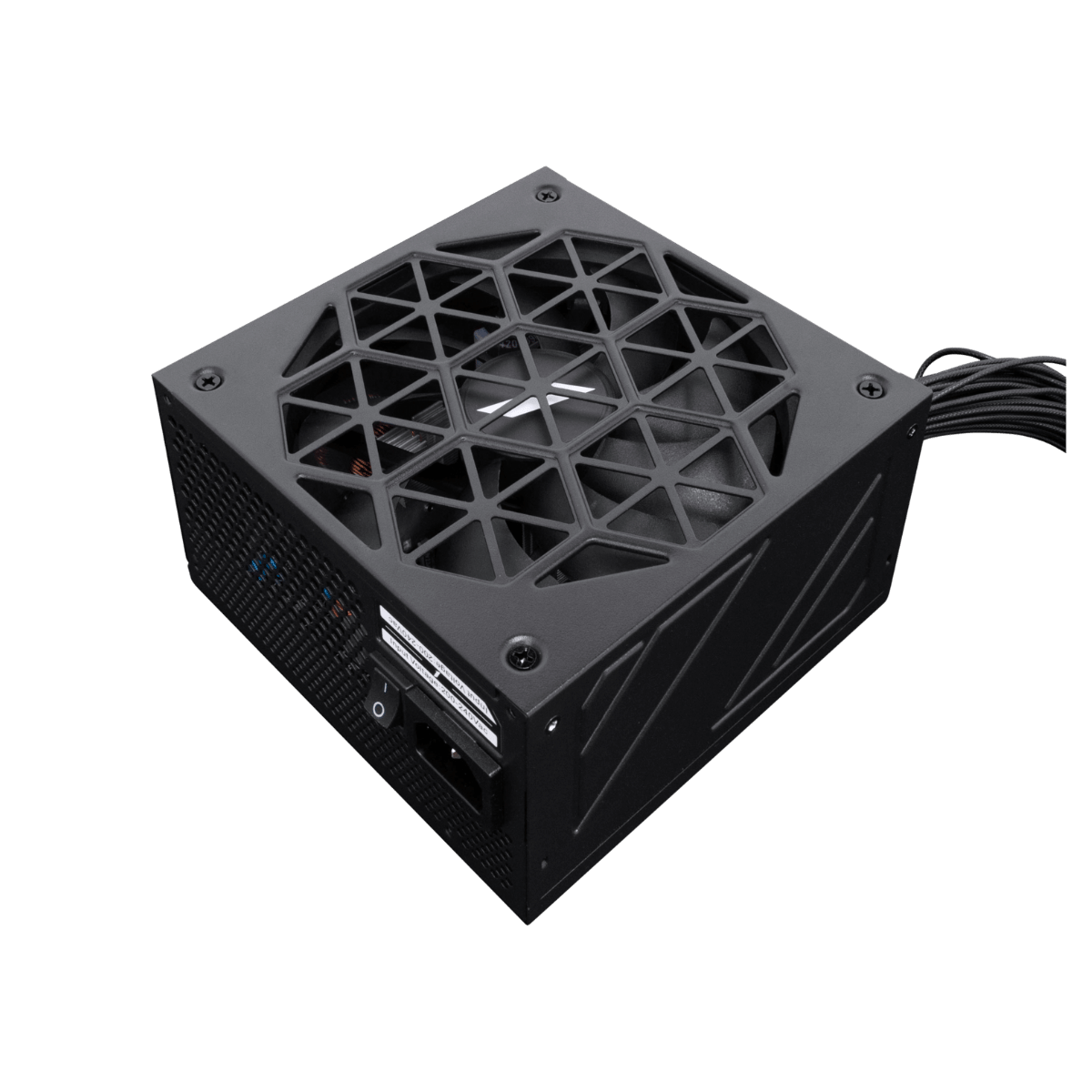

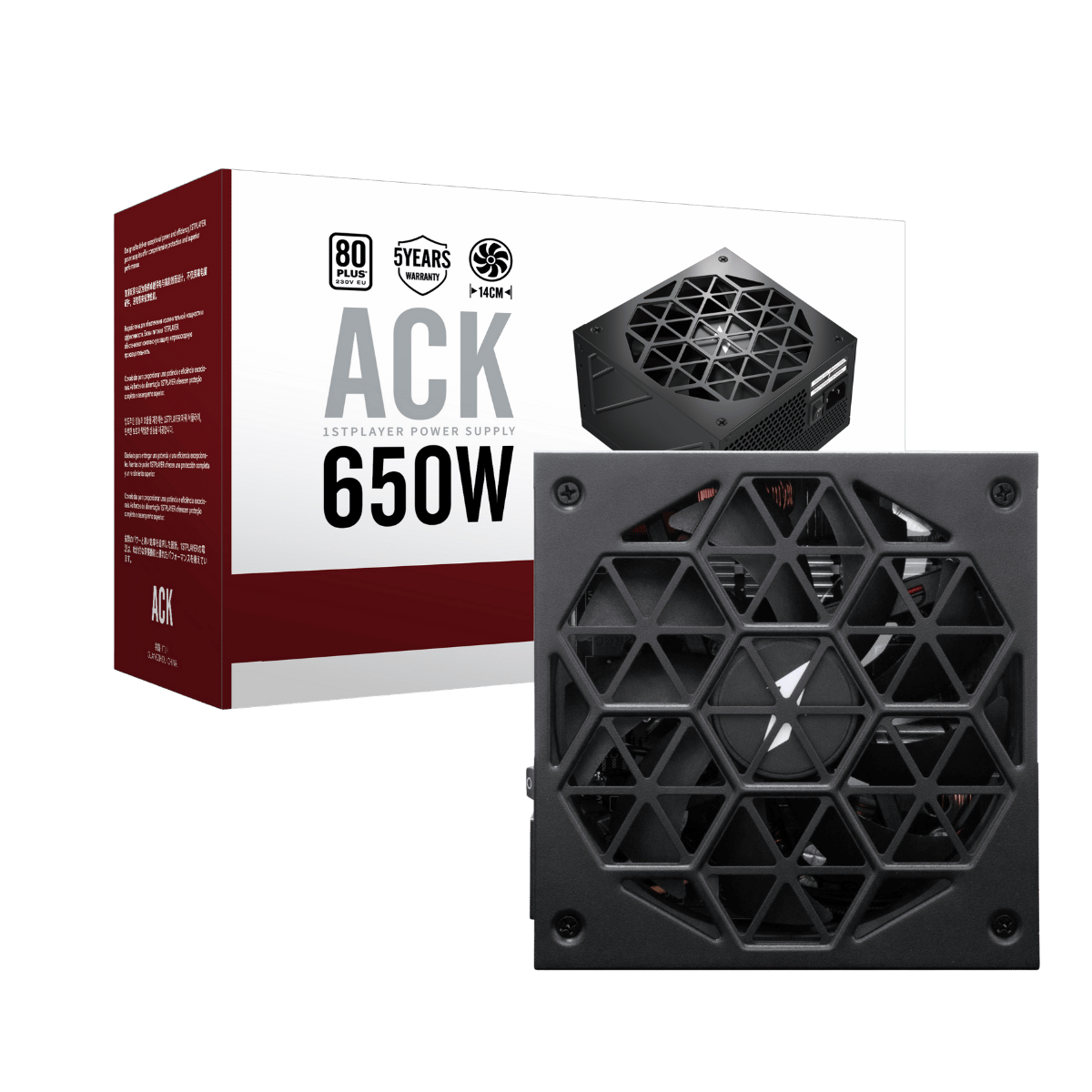

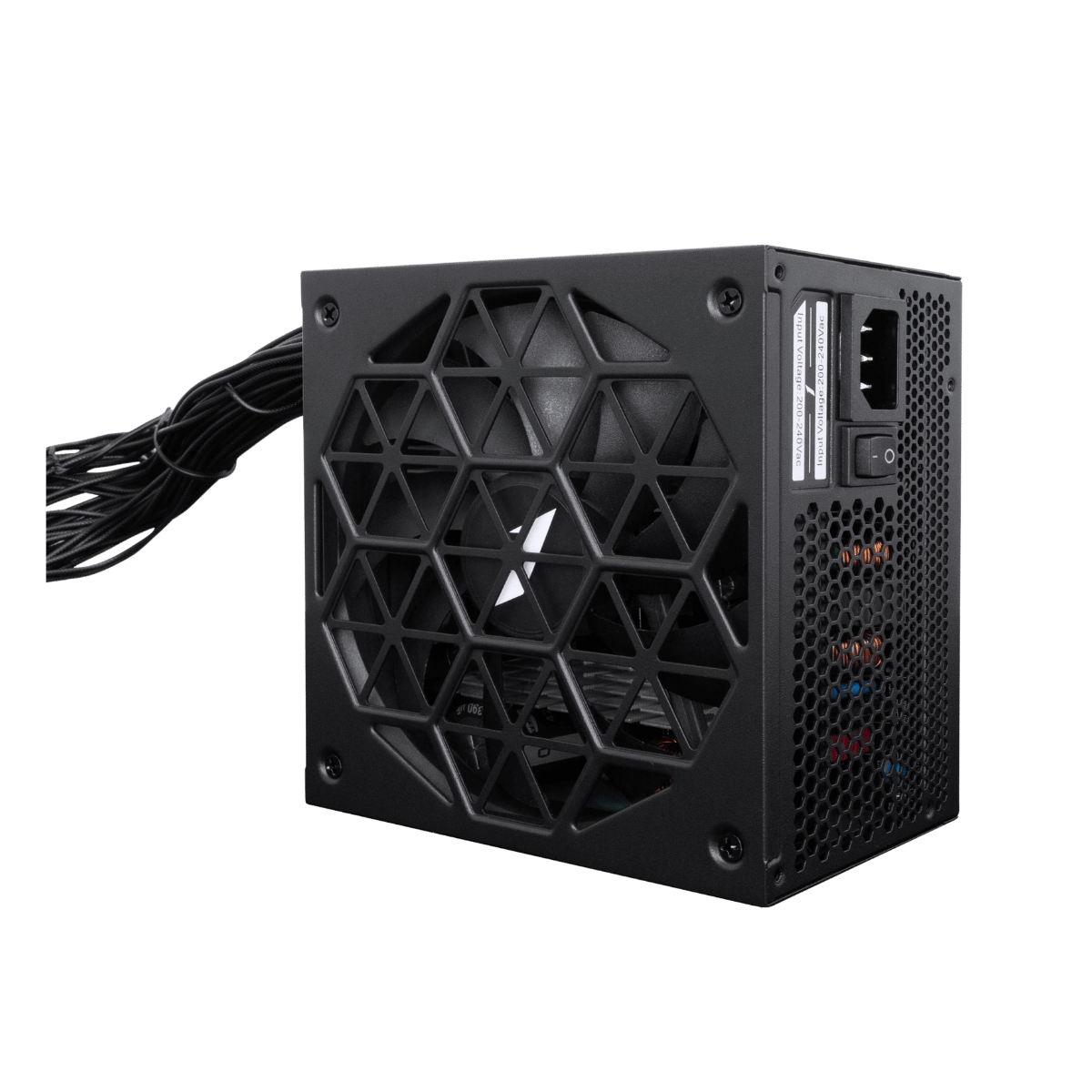

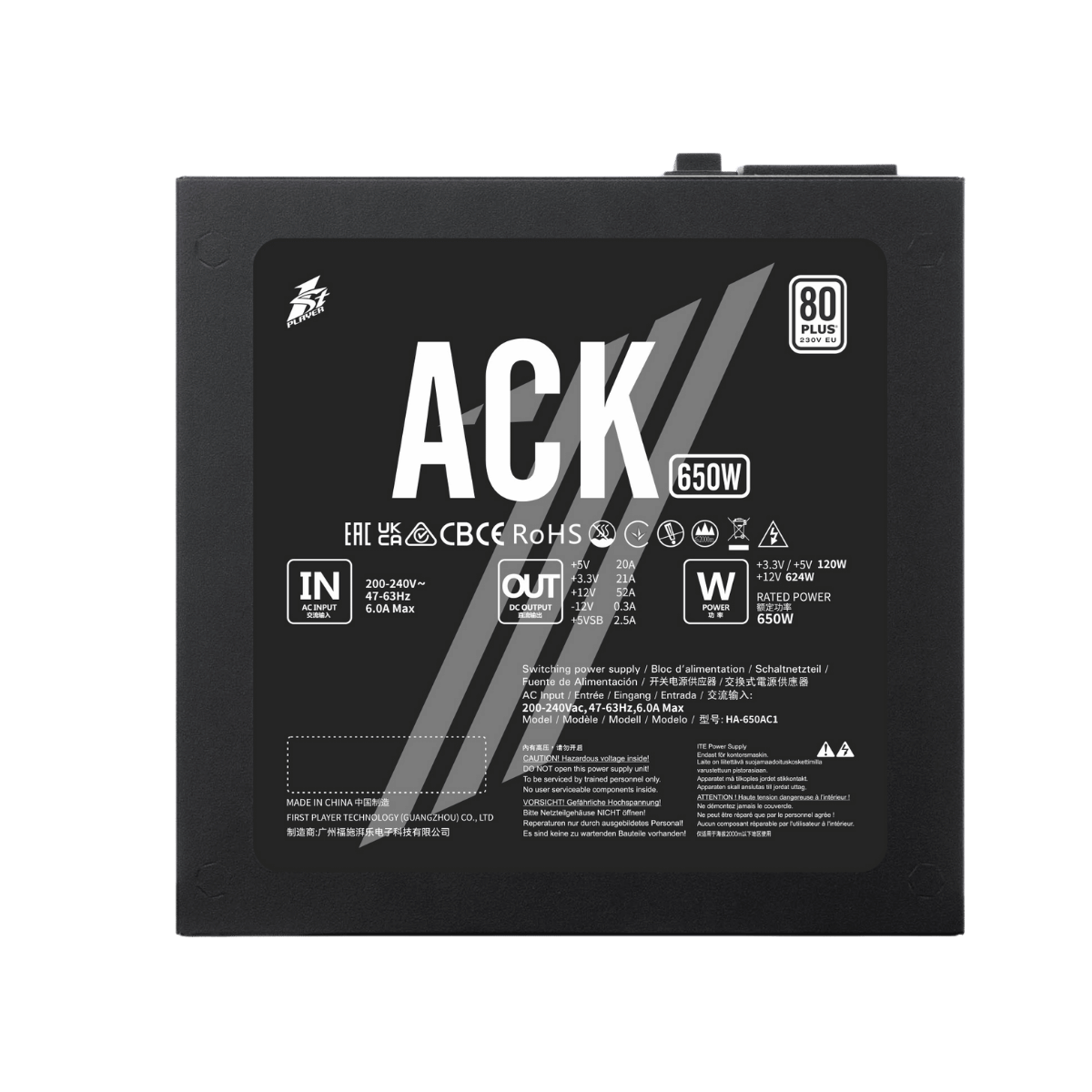

ACK Standard 550W / 650W / 750W

  • Active PFC

  • Embossed cable

  • 80 PLUS certified

  • Dual forward topology

  • 5-year warranty

  • Multiple protections: OPP, OVP, SCP


550W / 650W / 750W

MODEL
HA-550AC1 / HA-650AC1 / HA-750AC1
DIMENSIONS (L x W x H)
145 x 150 x 86 mm

MODULAR

Non-modular

CERTIFICATIONS

80 PLUS
WARRANTY
5 Years

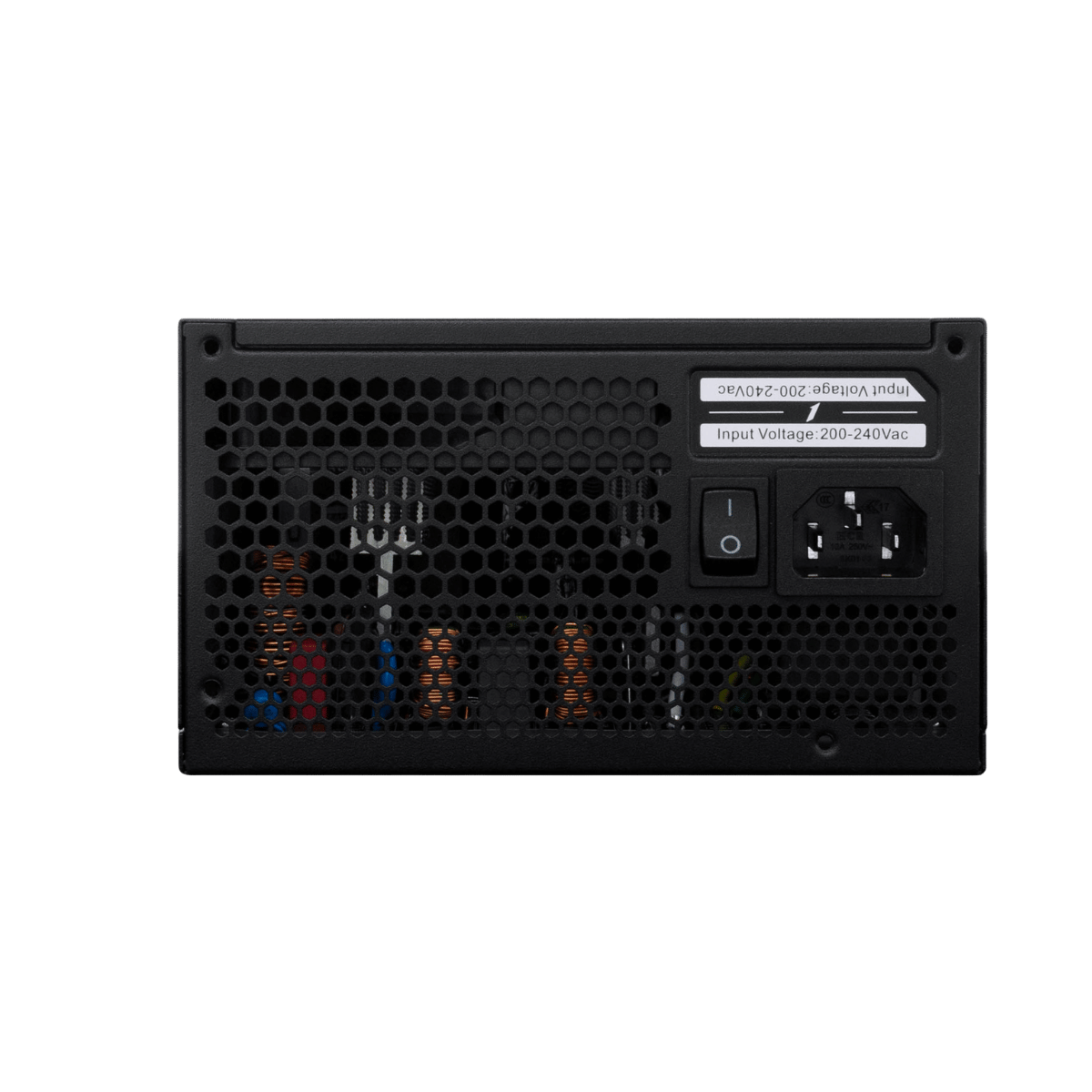

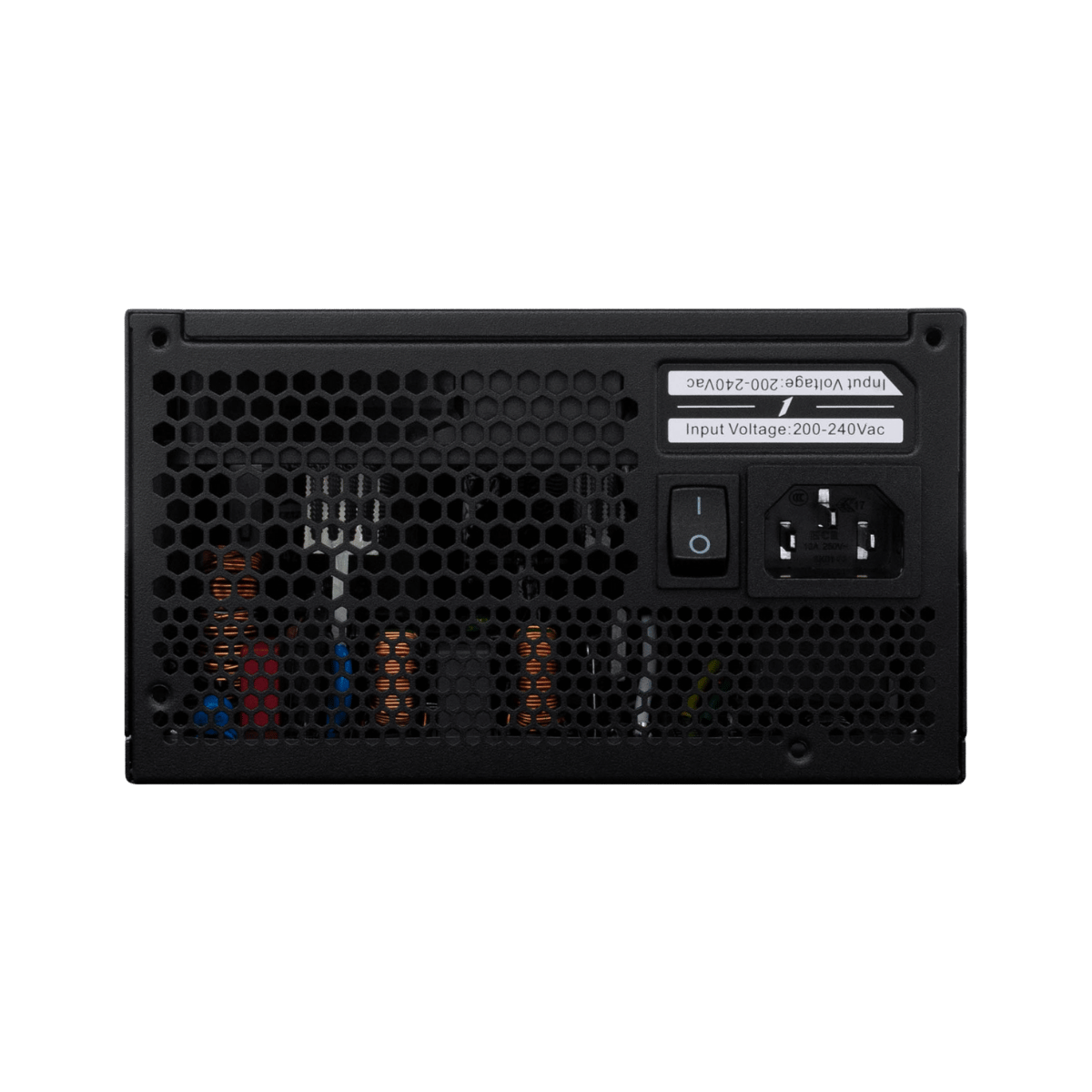

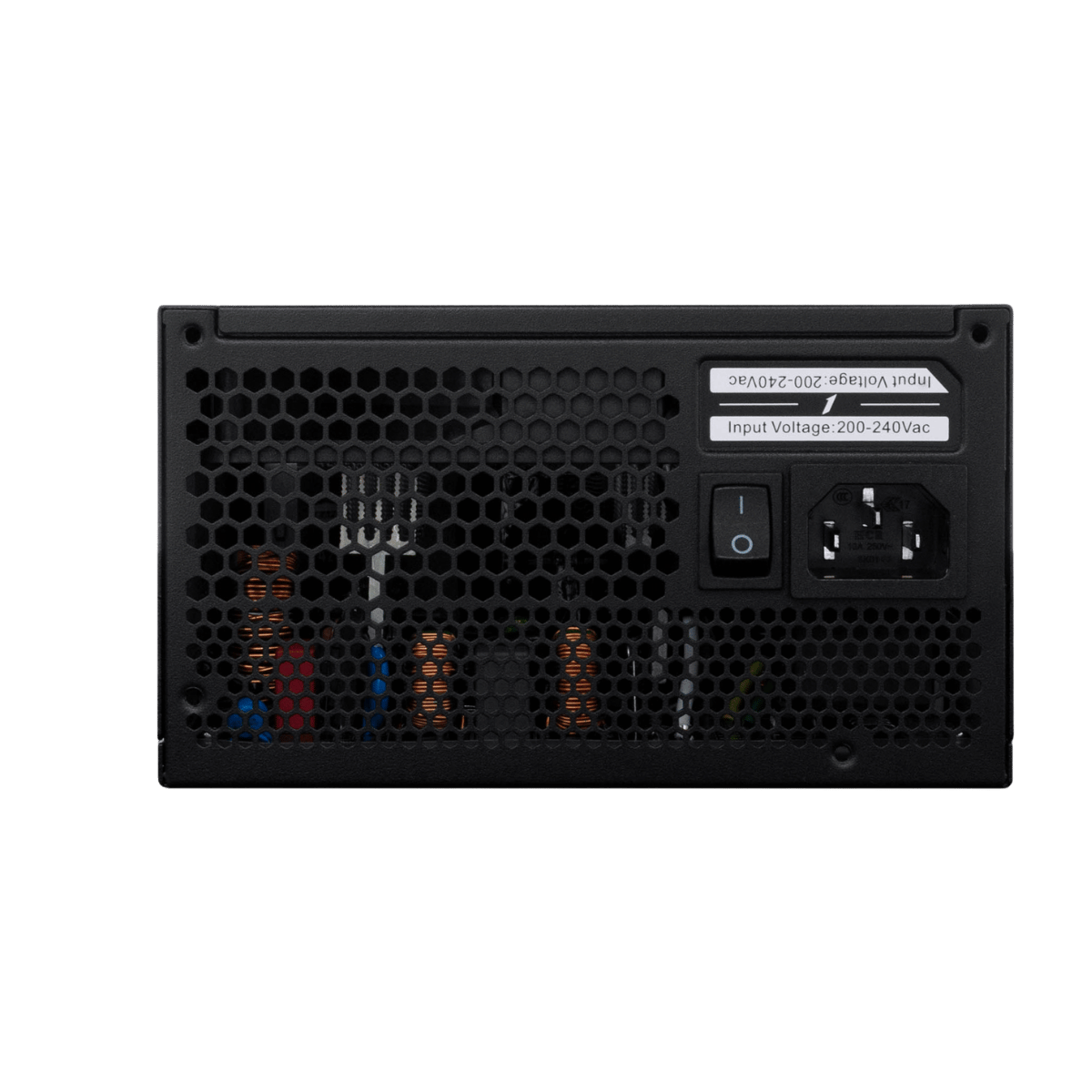

INPUT VOLTAGE
200- 240V
INPUT CURRENT
6 A MAX
EFFICIENCY

87% at typical load / 87.5% at typical load / 88.5% at typical load

OUTPUT CAPACITY
550W / 650W / 750W
INPUT FREQUENCY
47-63 Hz / 47-63 Hz / 50-60 Hz
PFC
Active PFC

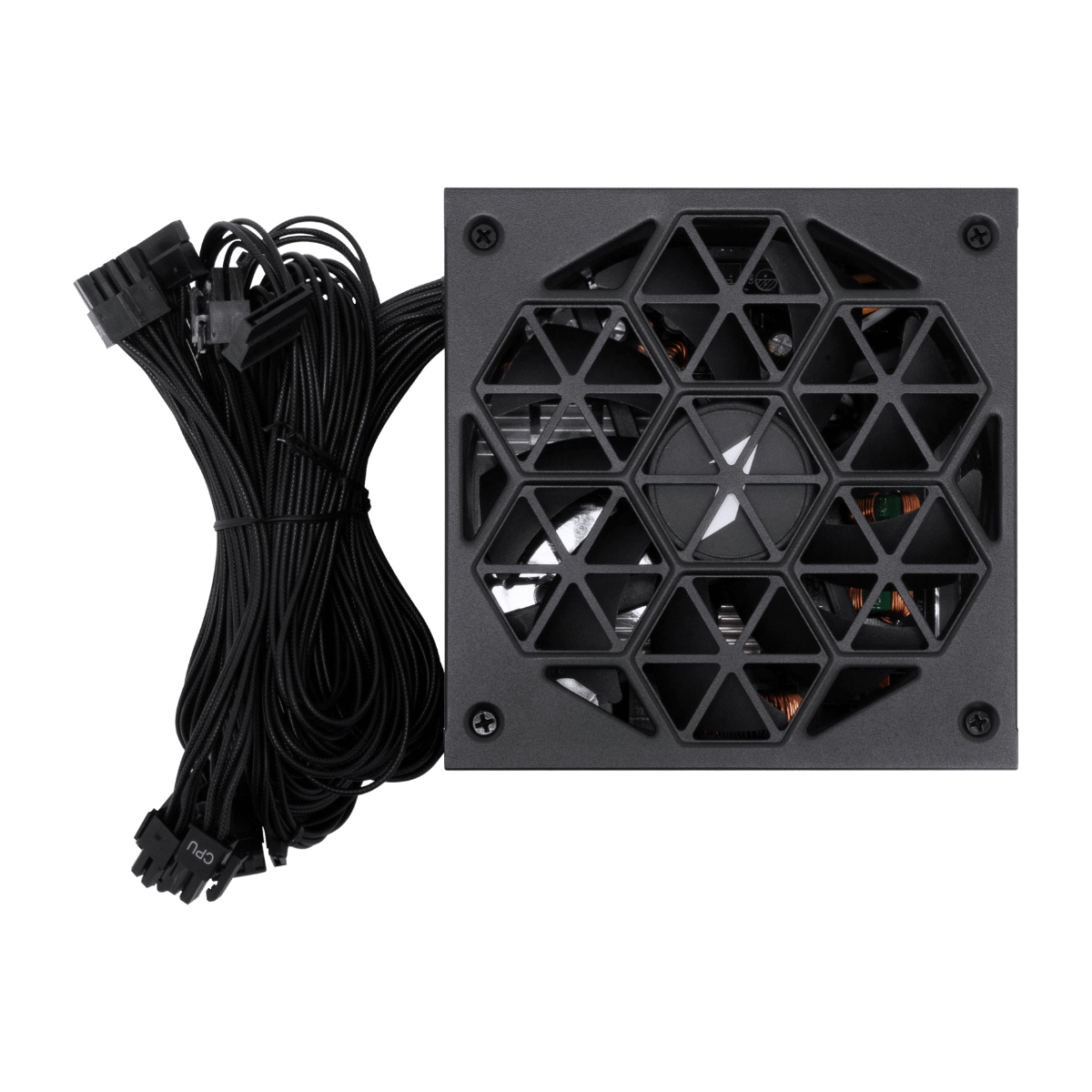

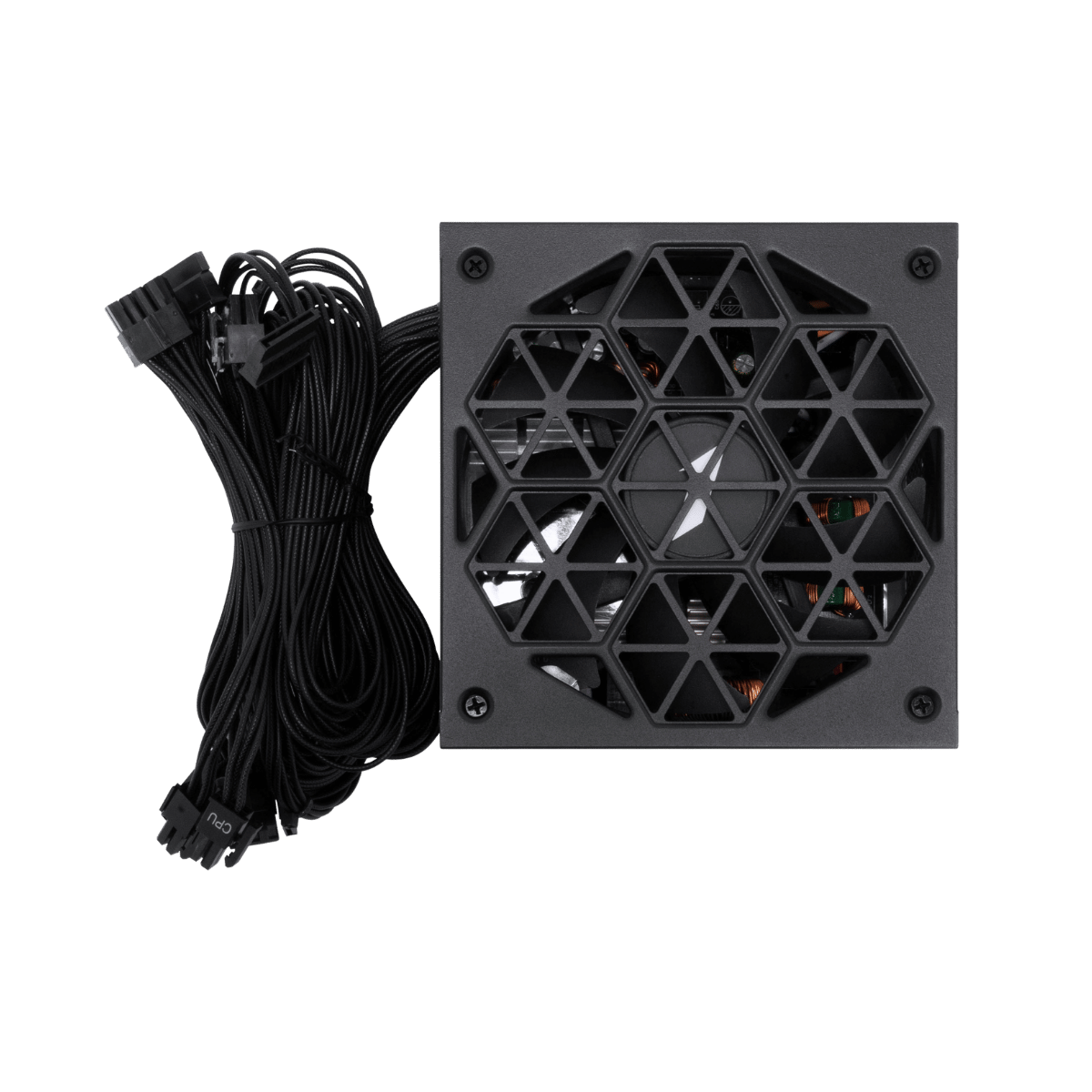

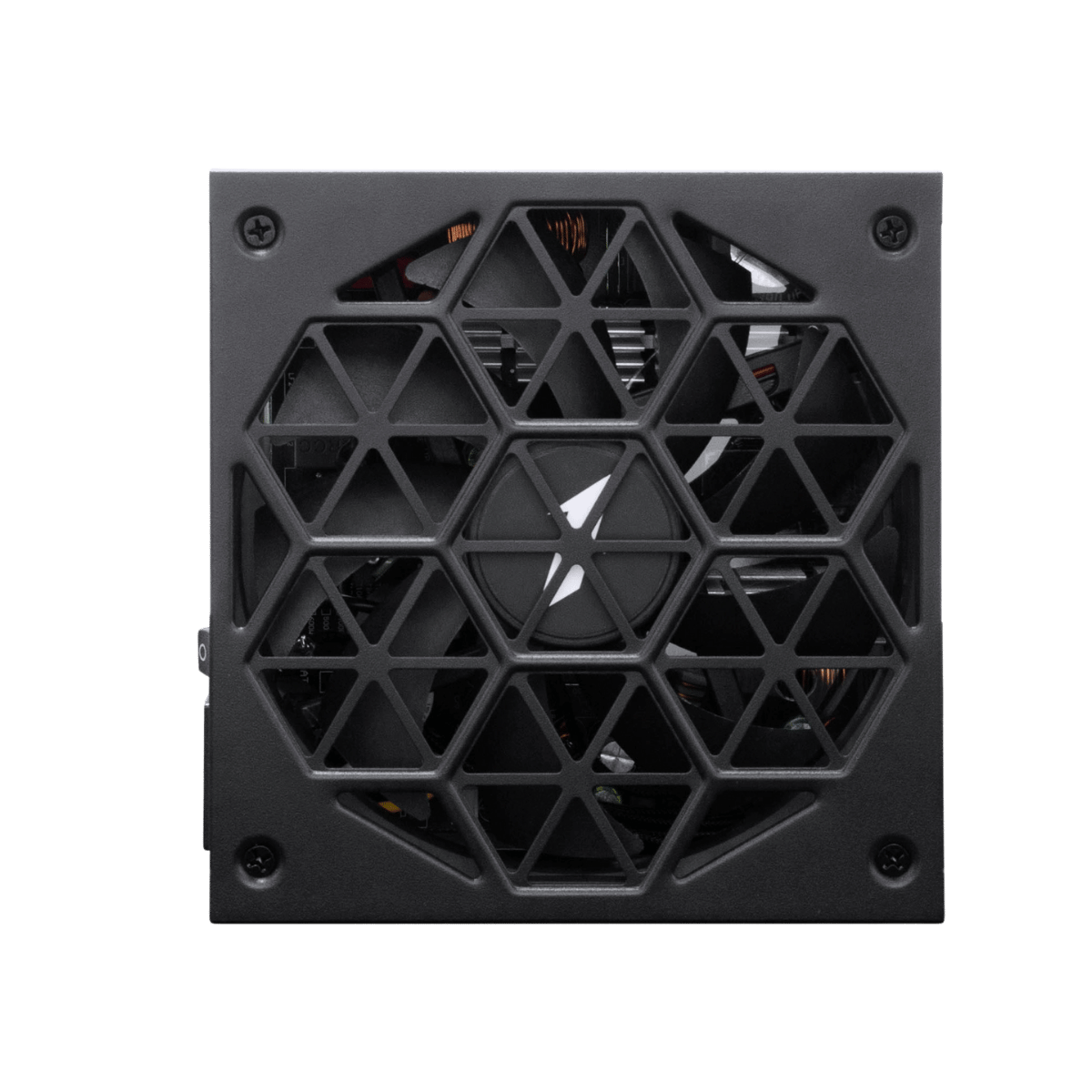

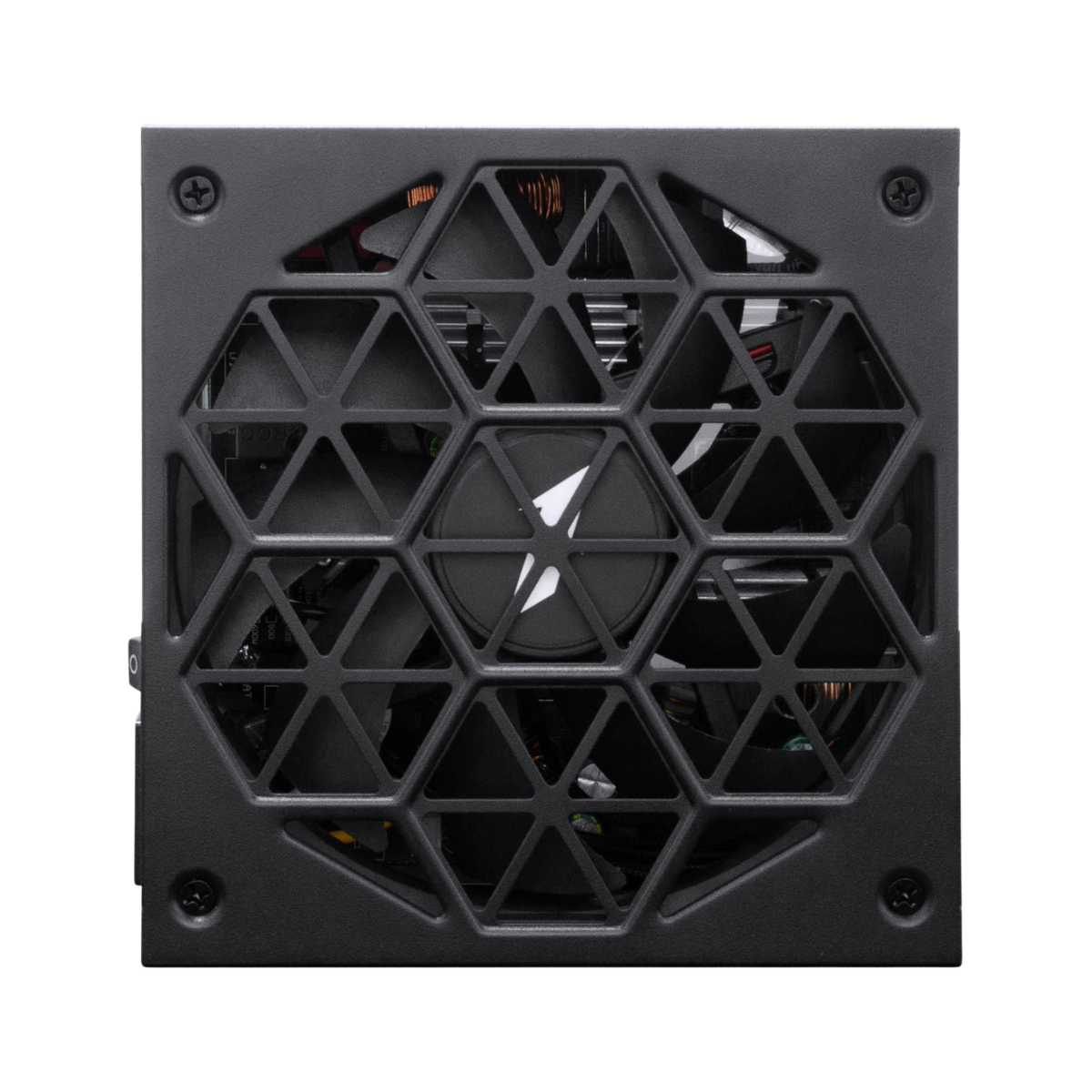

FAN SIZE

140 mm hydraulic bearing
PROTECTIONS
OVP, OPP, SCP
CIRCUIT STRUCTURE
Double forward topology
REGULATORY
EAC / CE / FCC / UKCA / RoHS
