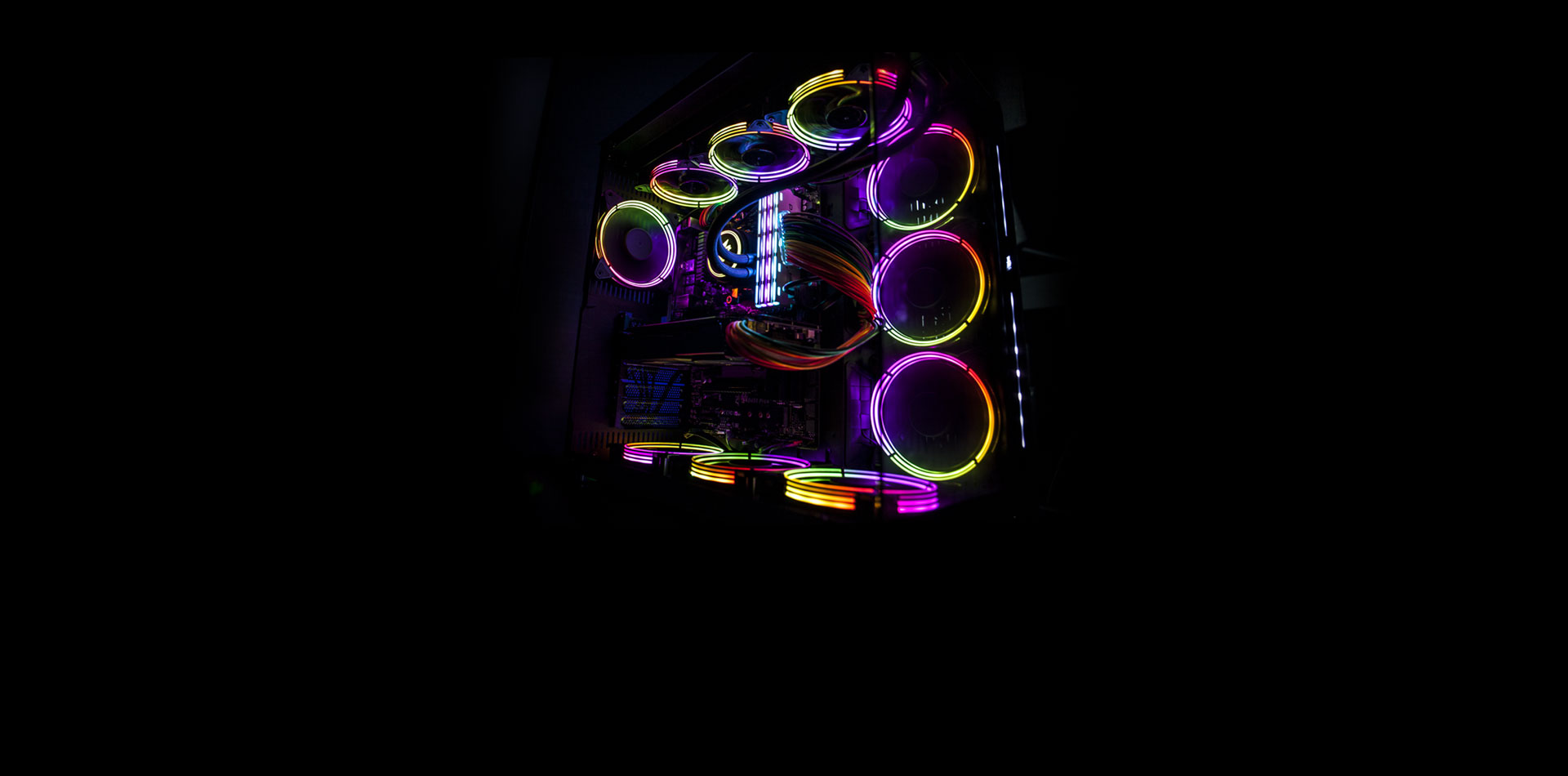

Support installation of up to 10 fans
Support CPU cooler height up to 160 mm
Support GPU length up to 400 mm
Support a 240 mm radiator at the top and a 240 mm radiator at the bottom
Support up to 4 drive bays: 2 x 3.5" HDD + 2 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.
Black
50%VIEW
PANELS
10*120MM
CASE FAN
2X4MM
TEMPERD GLASS PANELS
0.8MM
STEEL STRCTURE
USB3.0X1
+USB2.0X2+HD AUDIO
RAINBOW
RGB STRIPS
Model
SP8
STRUCTURE DIMENSIONS (L x W x H)
410 x 275 x 415 mm
PRODUCT DIMENSIONS (L x W x H)
415 x 275 x 427 mm
PACKAGE DIMENSIONS (L x W x H)
510 x 395 x 530 mm
STRUCTURE THICKNESS
0.8 mm
MATERIALS
SPCC 0.8 mm
Left Panel：Tempered glass
FORM FACTOR
ATX / M-ATX
5.25" CD ROM: 0
3.5" HDD: 2
2.5" SSD: 2
CPU MAX HEIGHT
160 mm
GPU MAX LENGTH
400 mm

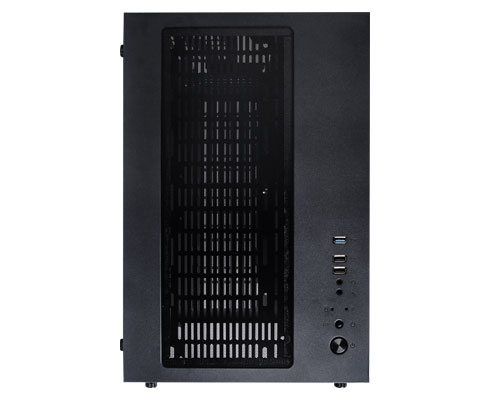

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO

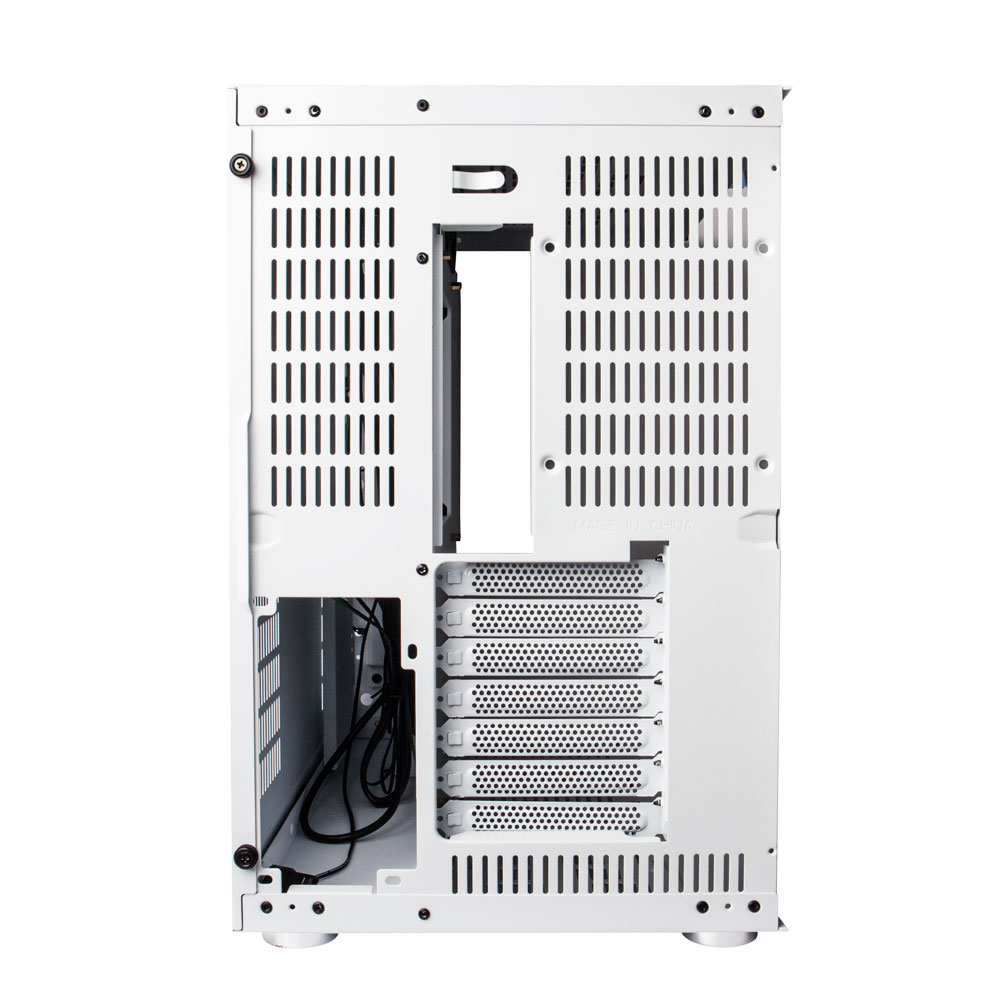

PCI CARD SLOT
7

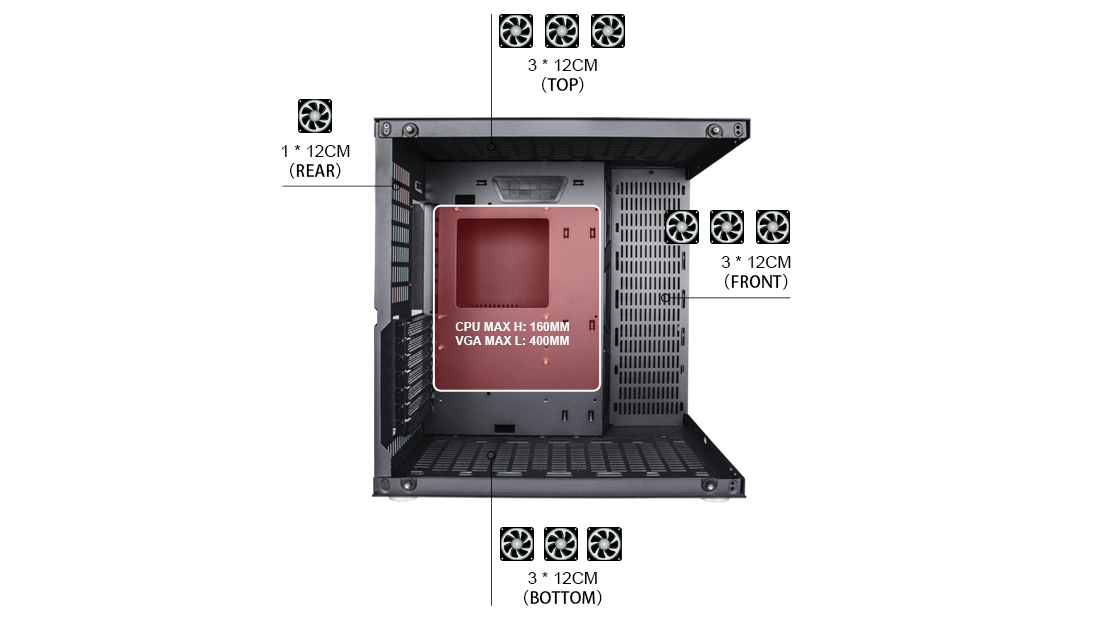

FAN SUPPORT
Front: 3 x 12cm
Top: 3 x 12cm
Rear: 1 x 12cm
Bottom: 3 x 12cm
LIQUID COOLING SUPPORT
Top: 240 mm
Bottom: 240 mm
POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
7.7 kg / 16.98 lb
9.5 kg / 20.94 lb
