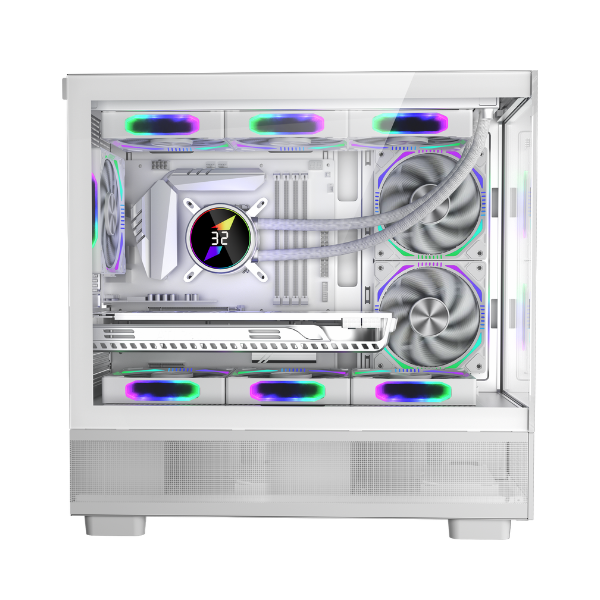

Mi5

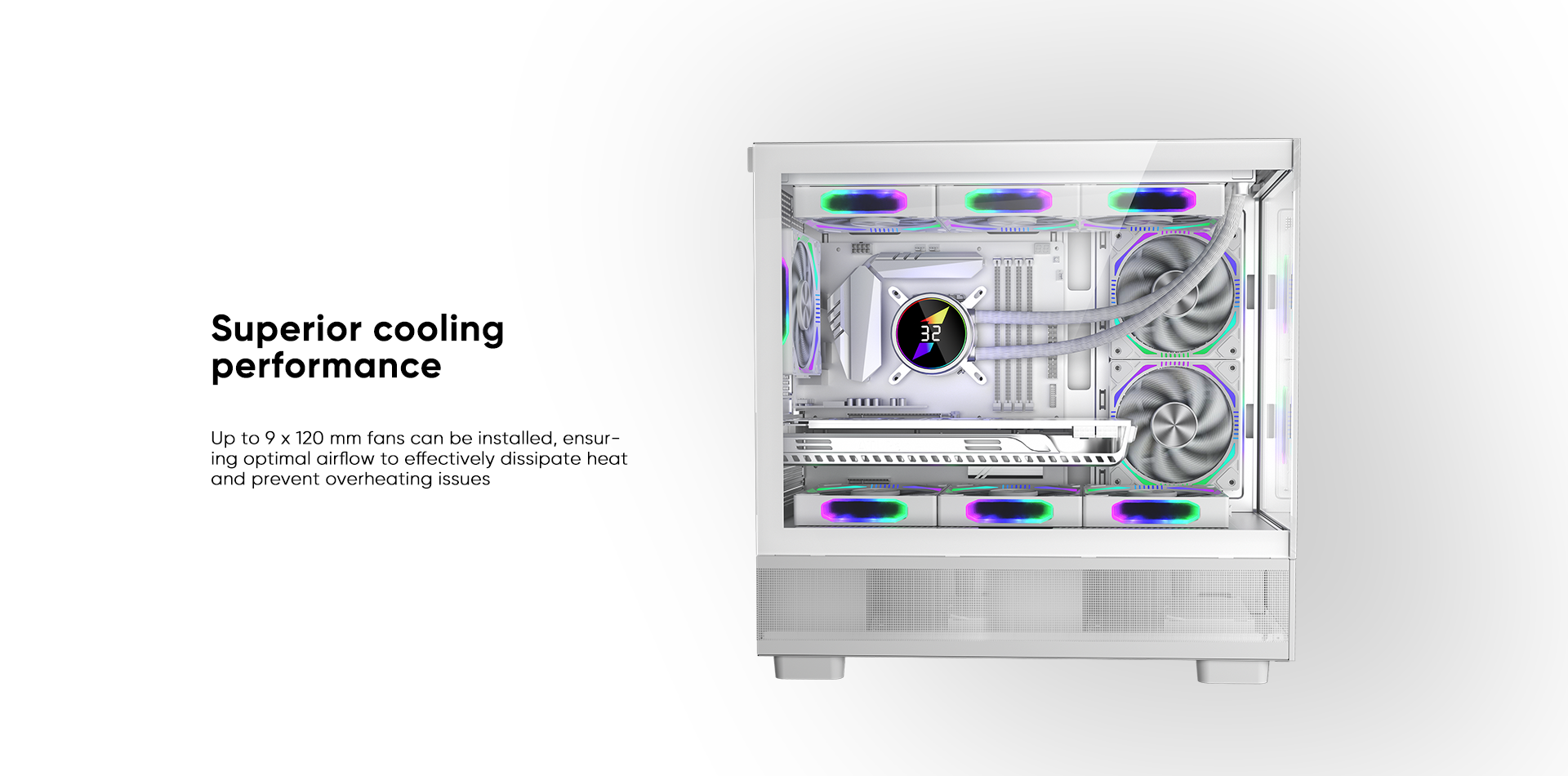

  • Support up to 9 fans

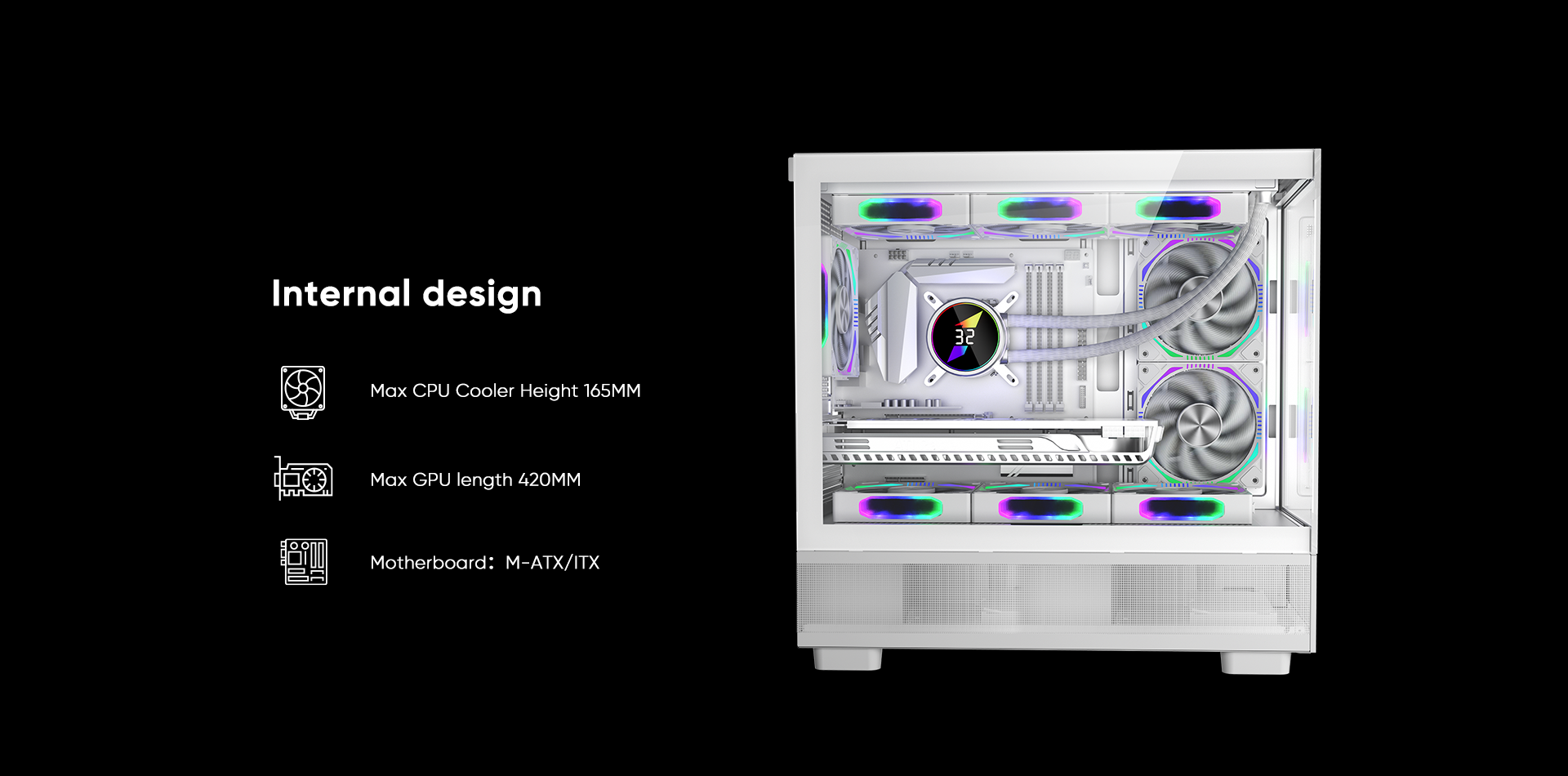

  • Support CPU height up to 165 mm

  • Support GPU length up to 420 mm

  • Support 360 mm radiator at the top

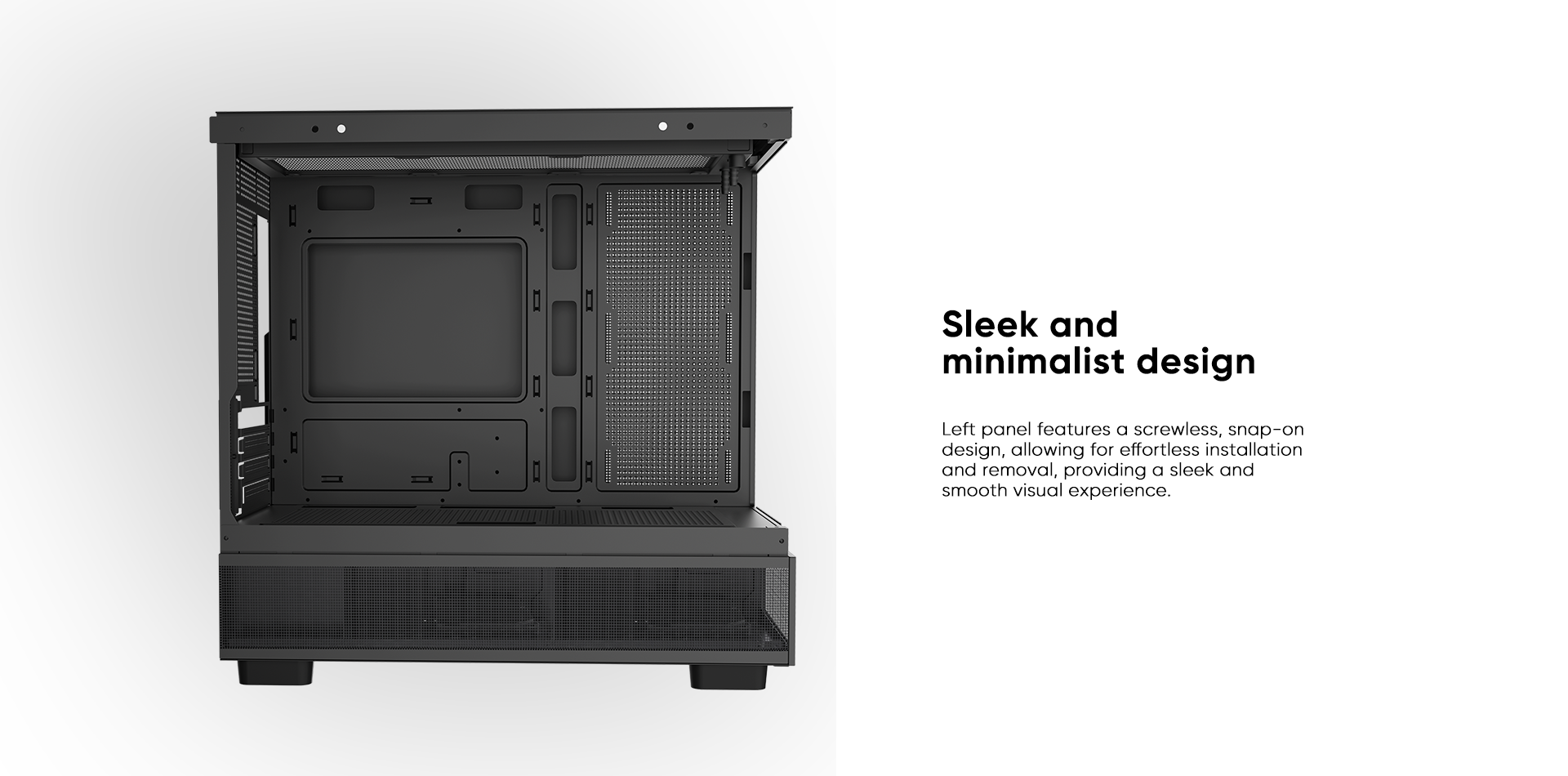

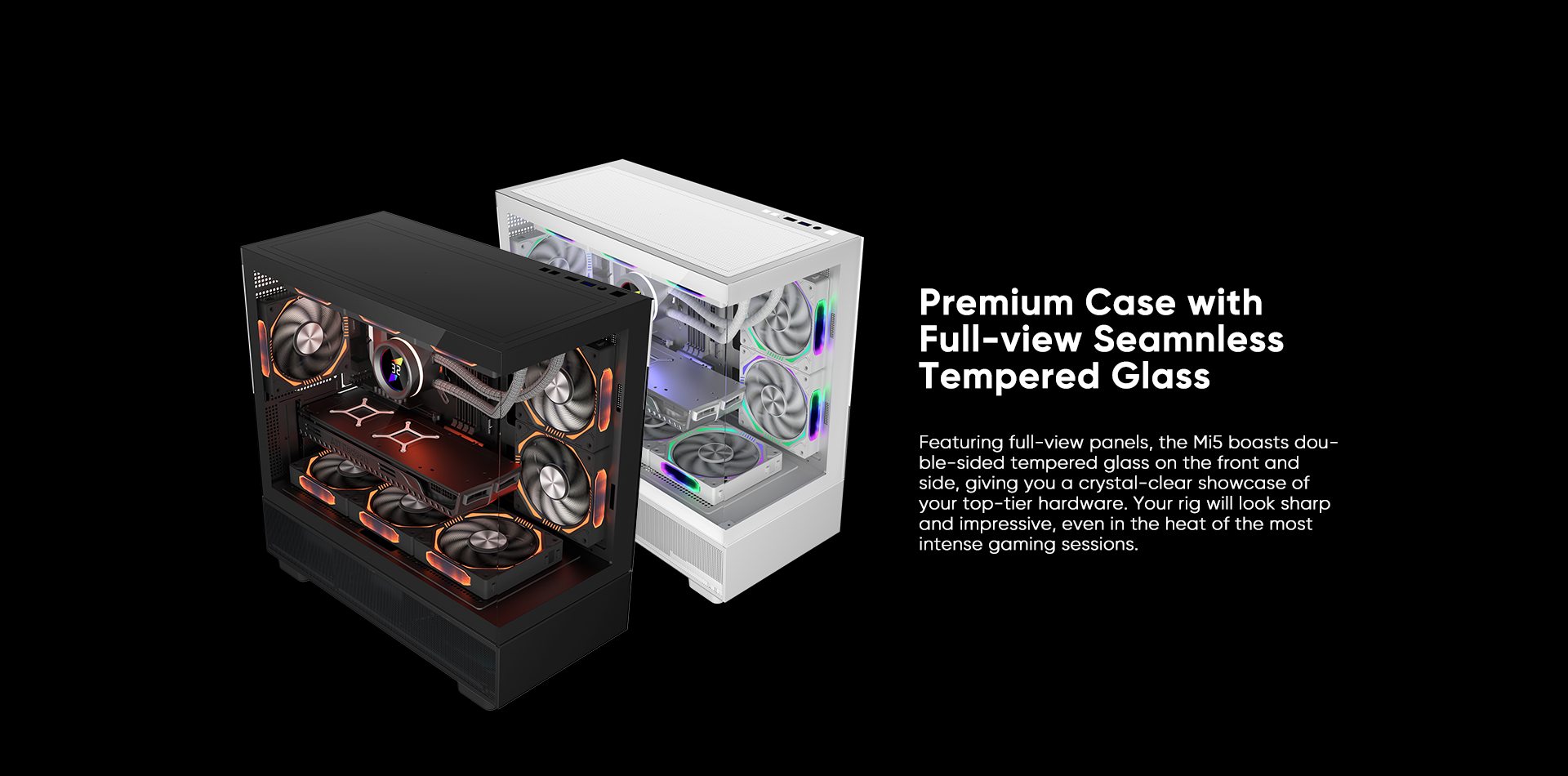

  • Tempered glass on front and left

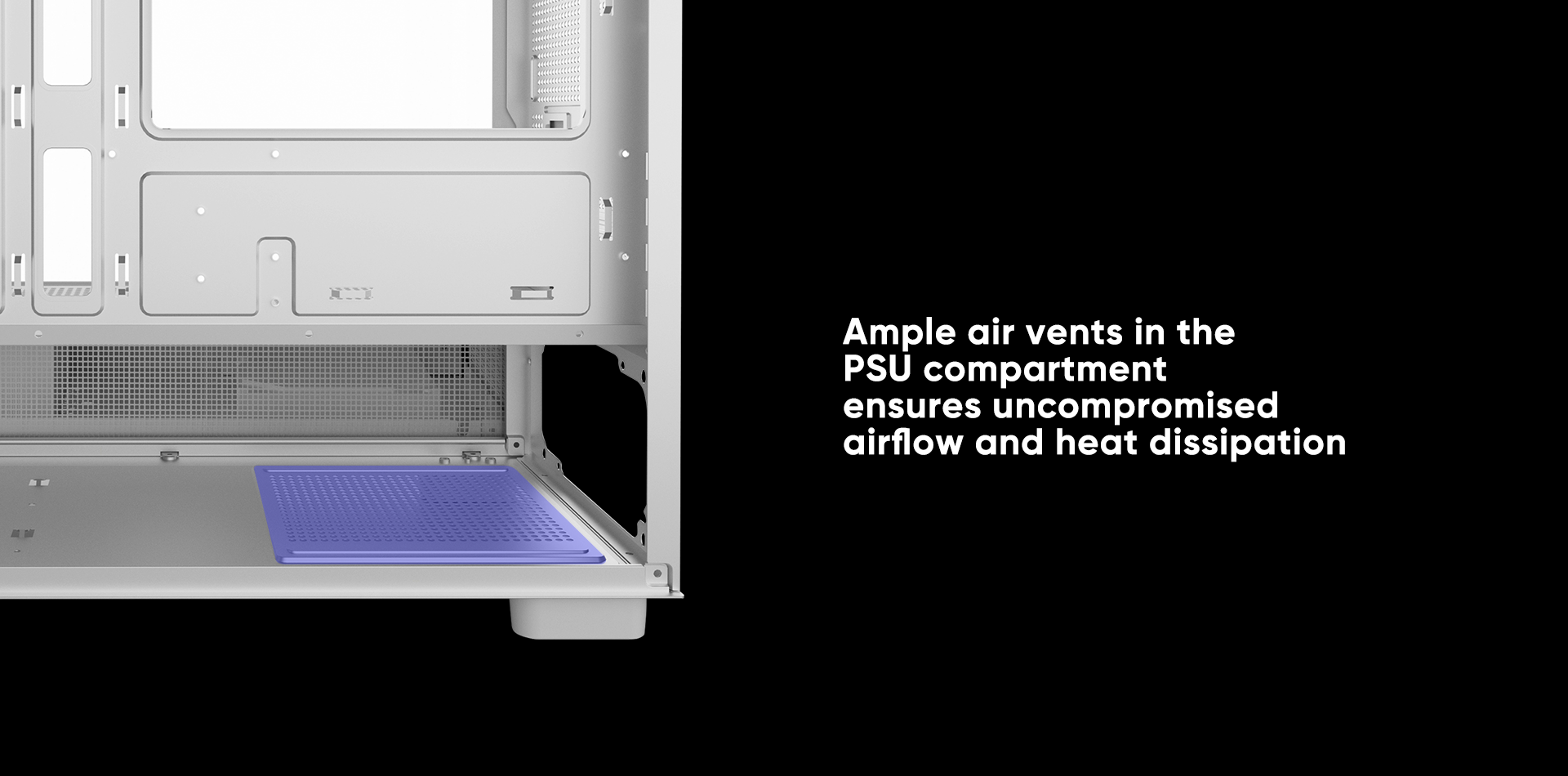

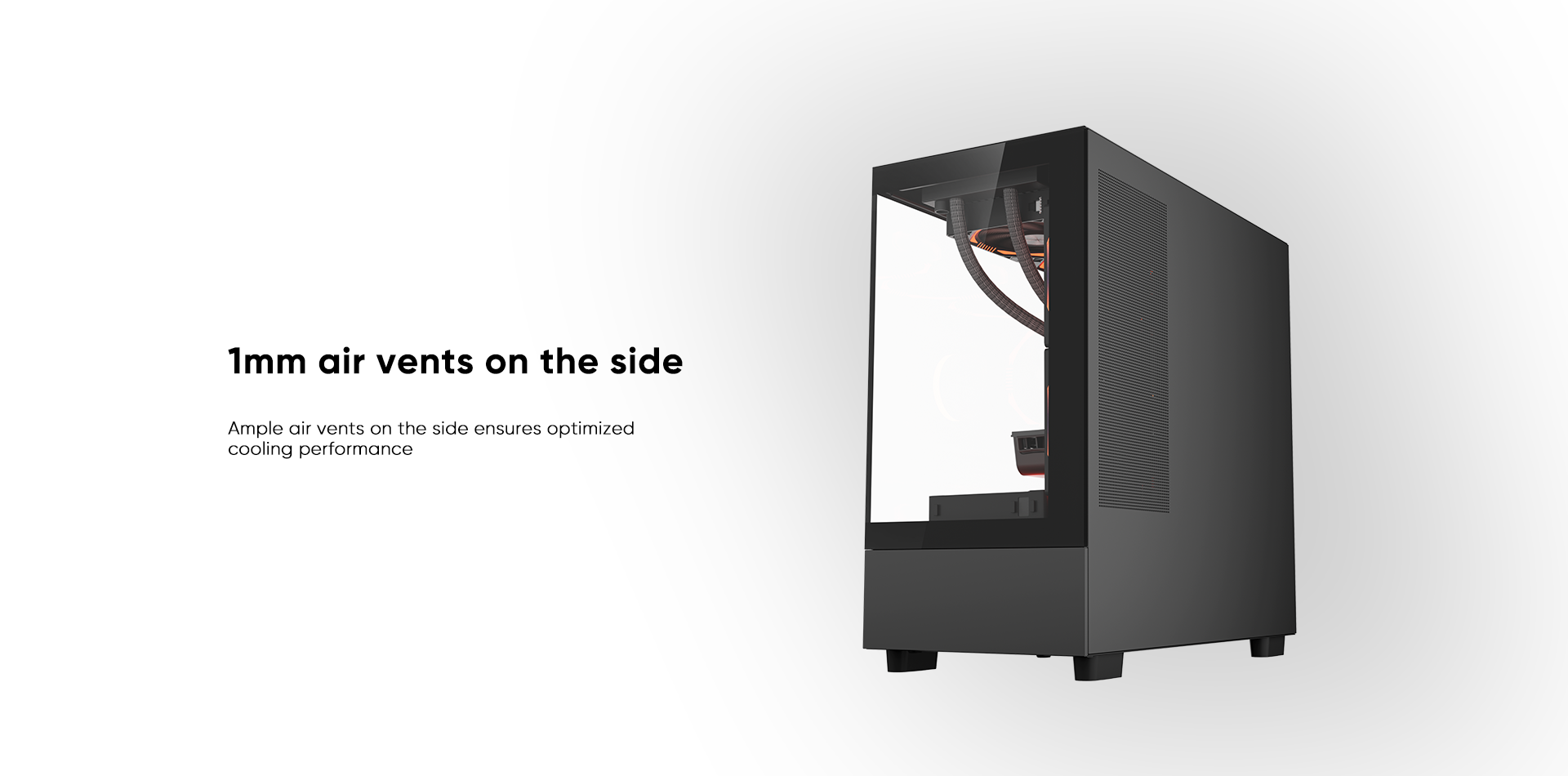

  • Ample ventilation ensures excellent cooling performance

*Computer parts are not included. Cooling fan may vary among different countries/regions.


Black

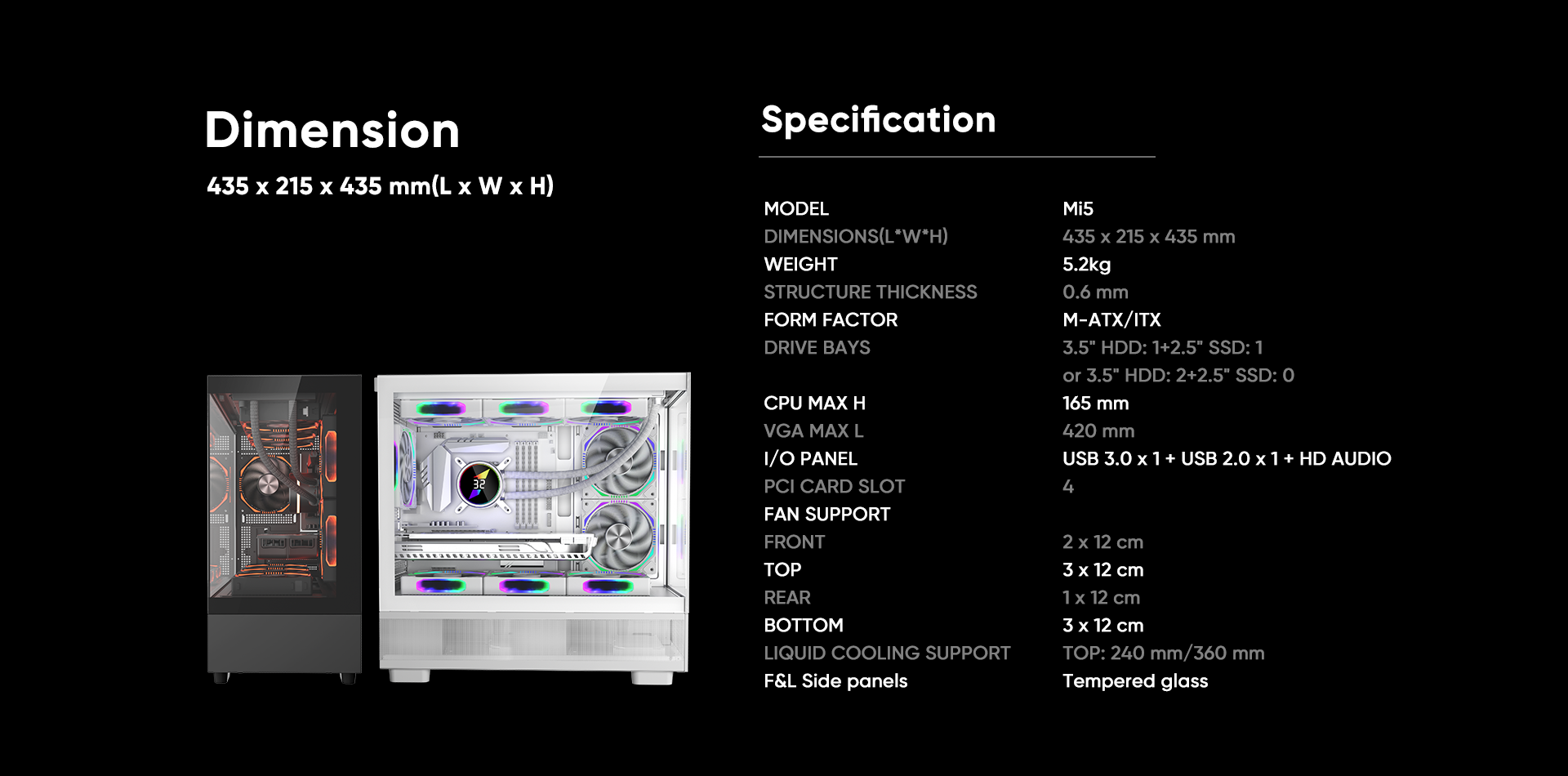

MODEL

Mi5

STRUCTURE DIMENSIONS (L x W x H)

435 x 215 x 415 mm

PRODUCT DIMENSIONS (L x W x H)

435 x 215 x 435 mm

PACKAGE DIMENSIONS (L x W x H)

485 x 270 x 500 mm

STRUCTURE THICKNESS

0.6 mm

MATERIALS

SPCC 0.6 mm

Front/Left Panel: Tempered glass

FORM FACTOR

M-ATX/ITX

DRIVE BAYS

5.25" CD ROM: 0

3.5" HDD: 1 + 2.5" SSD: 1

3.5" HDD: 2 + 2.5" SSD: 0


CPU MAX HEIGHT

165 mm

GPU MAX LENGTH

420 mm

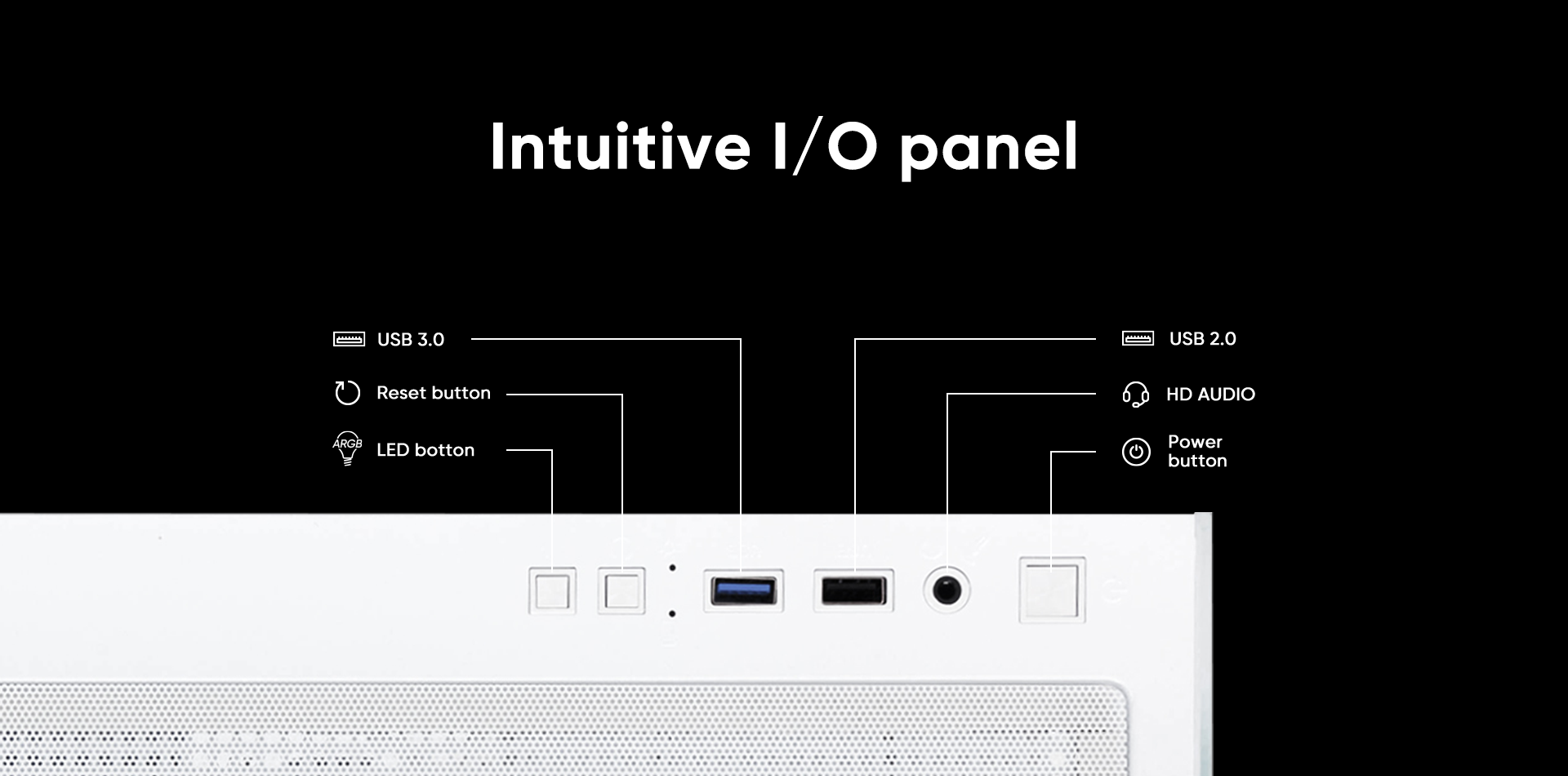

I/O PANEL

USB 3.0 x 1 + USB 2.0 x 1 + HD AUDIO

PCI CARD SLOT

4

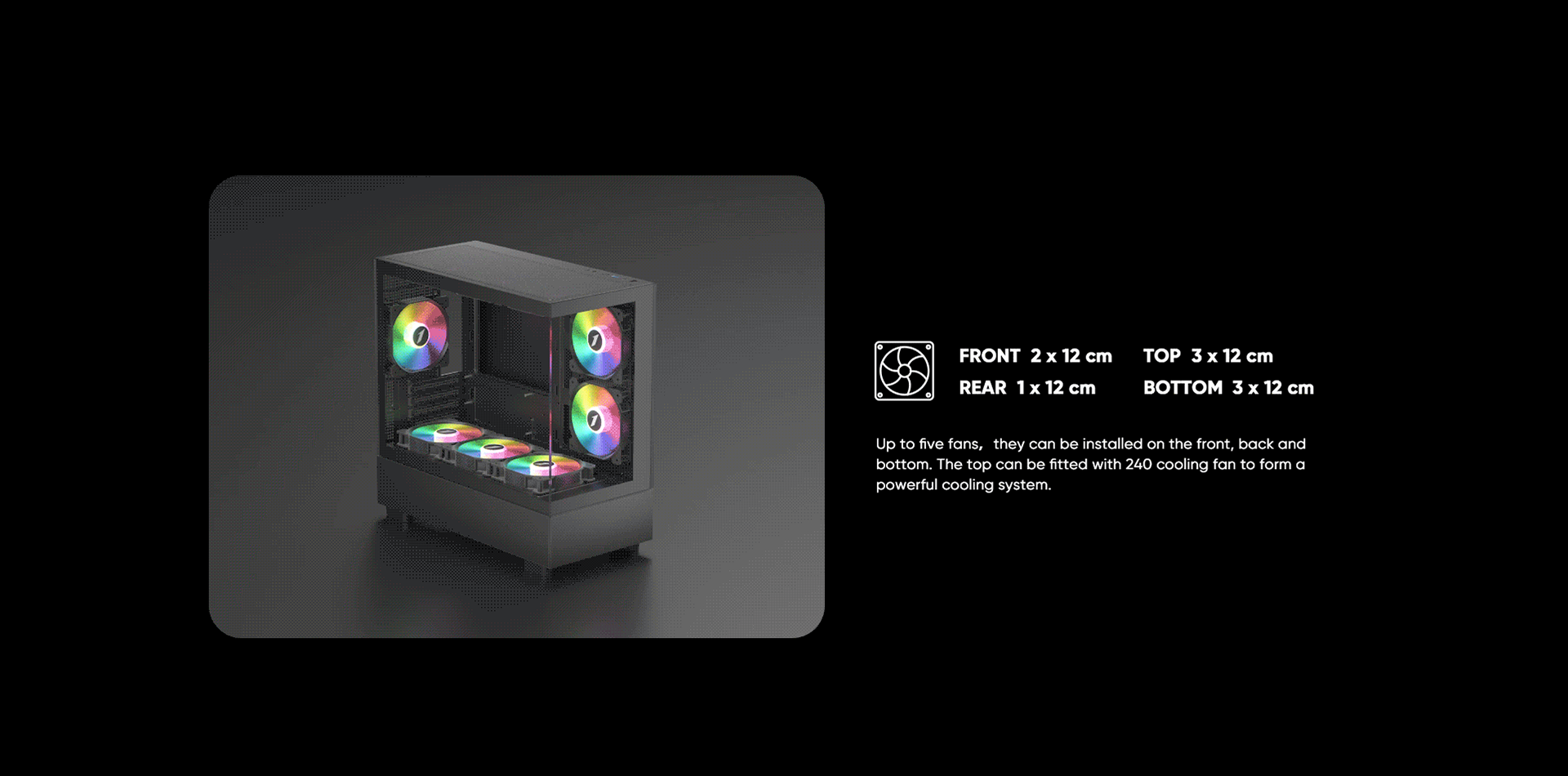

FAN SUPPORT

Front: 2 x 12 cm

Top: 3 x 12 cm

Rear: 1 x 12 cm

Bottom:3 x 12 cm

LIQUID COOLING SUPPORT

Top: 24 cm / 36 cm

POWER SUPPLY SUPPORT

Bottom mount

WEIGHT

N.W.: 5.2 kg

G.W.:  6.3 kg
