NGDP ATX 3.1 GOLD

  • 0 RPM Fan Mode: Silent at low to moderate loads

  • 80 PLUS and Cybenetics Gold Certified: High efficiency for lower energy costs

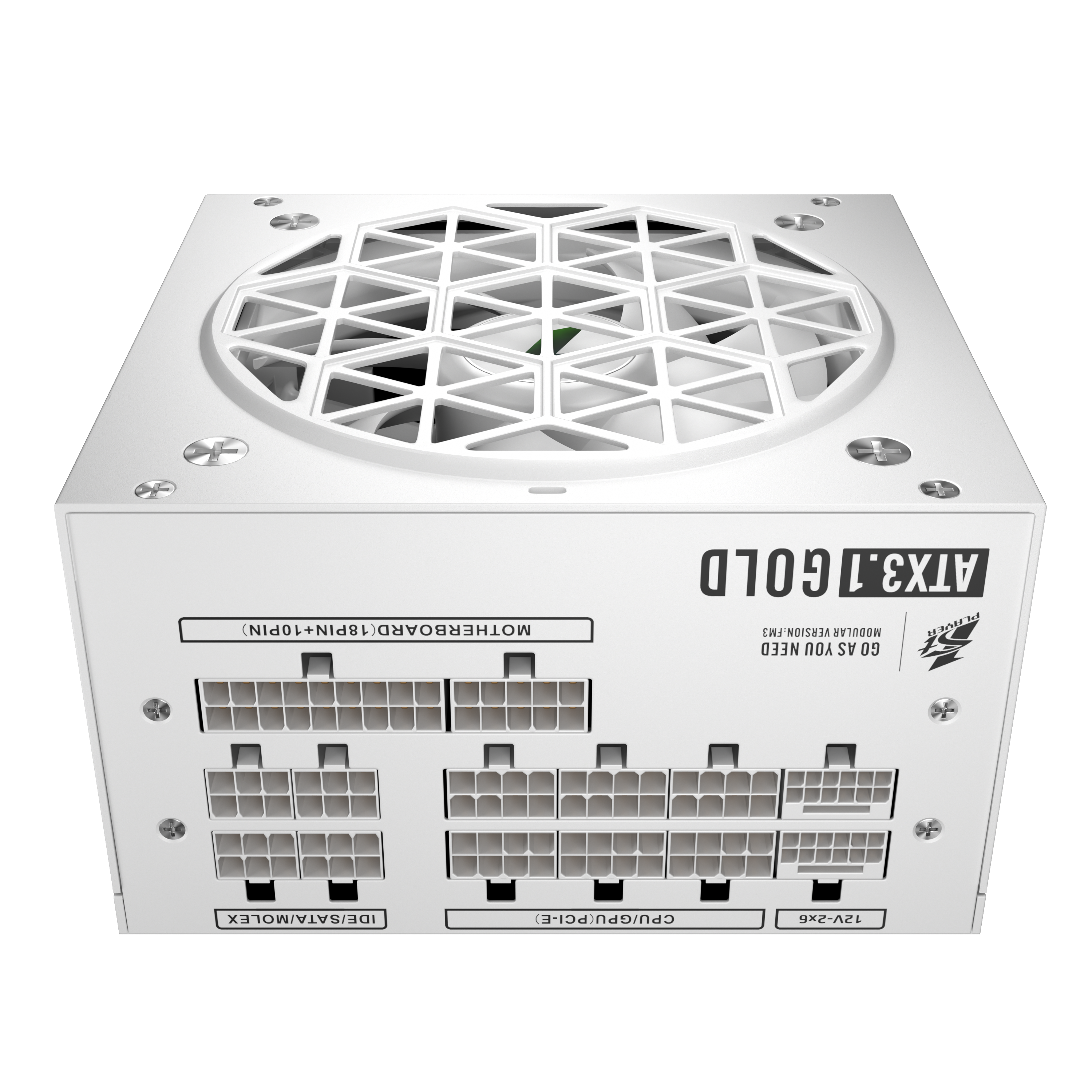

  • Fully Modular: Detachable cables for easy management

  • Full Japanese electrolytic capacitors: Ensures reliability and longevity

  • Embossed Cable: Stylish, durable, and flexible

  • ATX 3.1 and PCIe 5.1 Ready: Future-proof compatibility

  • Test Report Download via MES ID: Quick access to test report

  • 10-year warranty

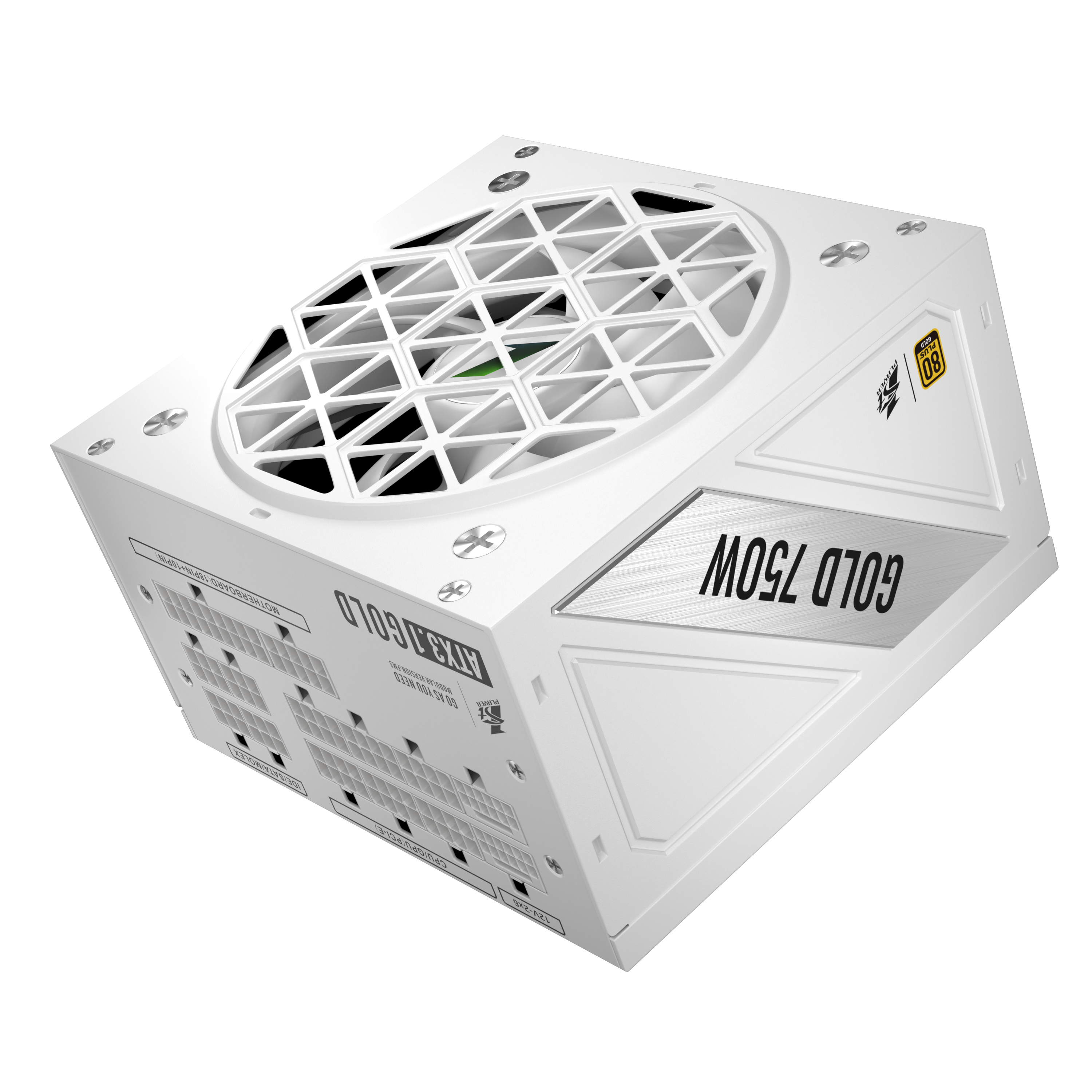

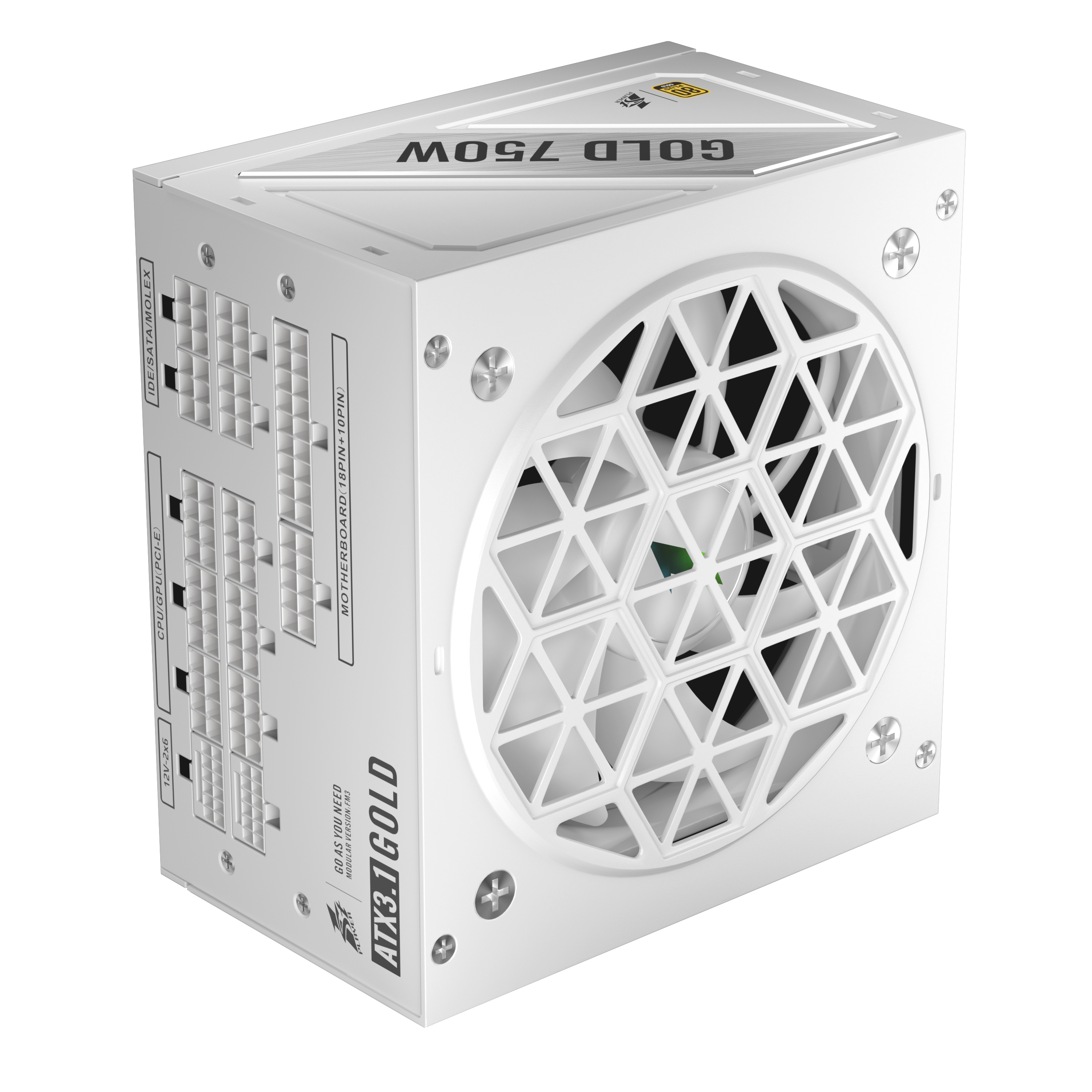

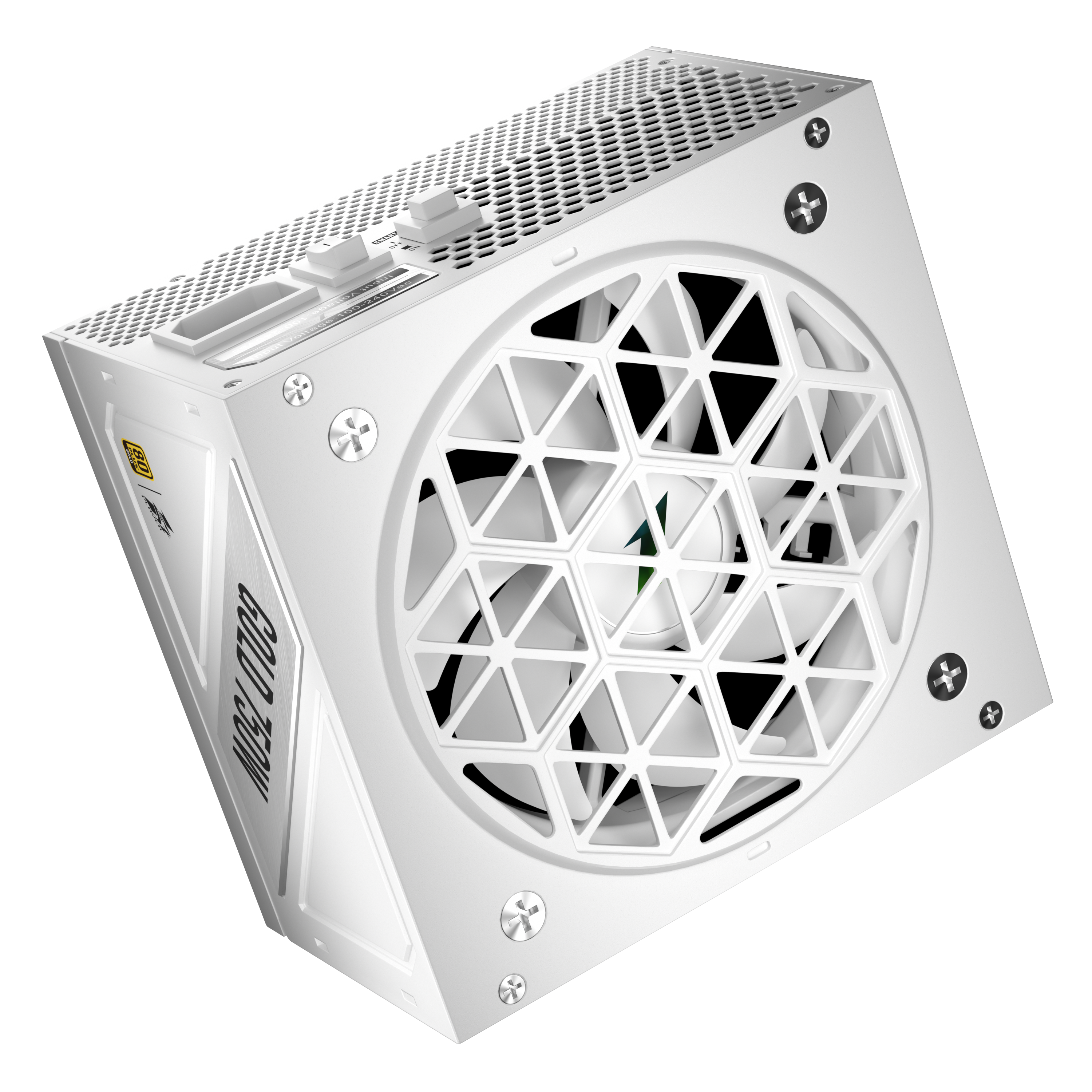

750W

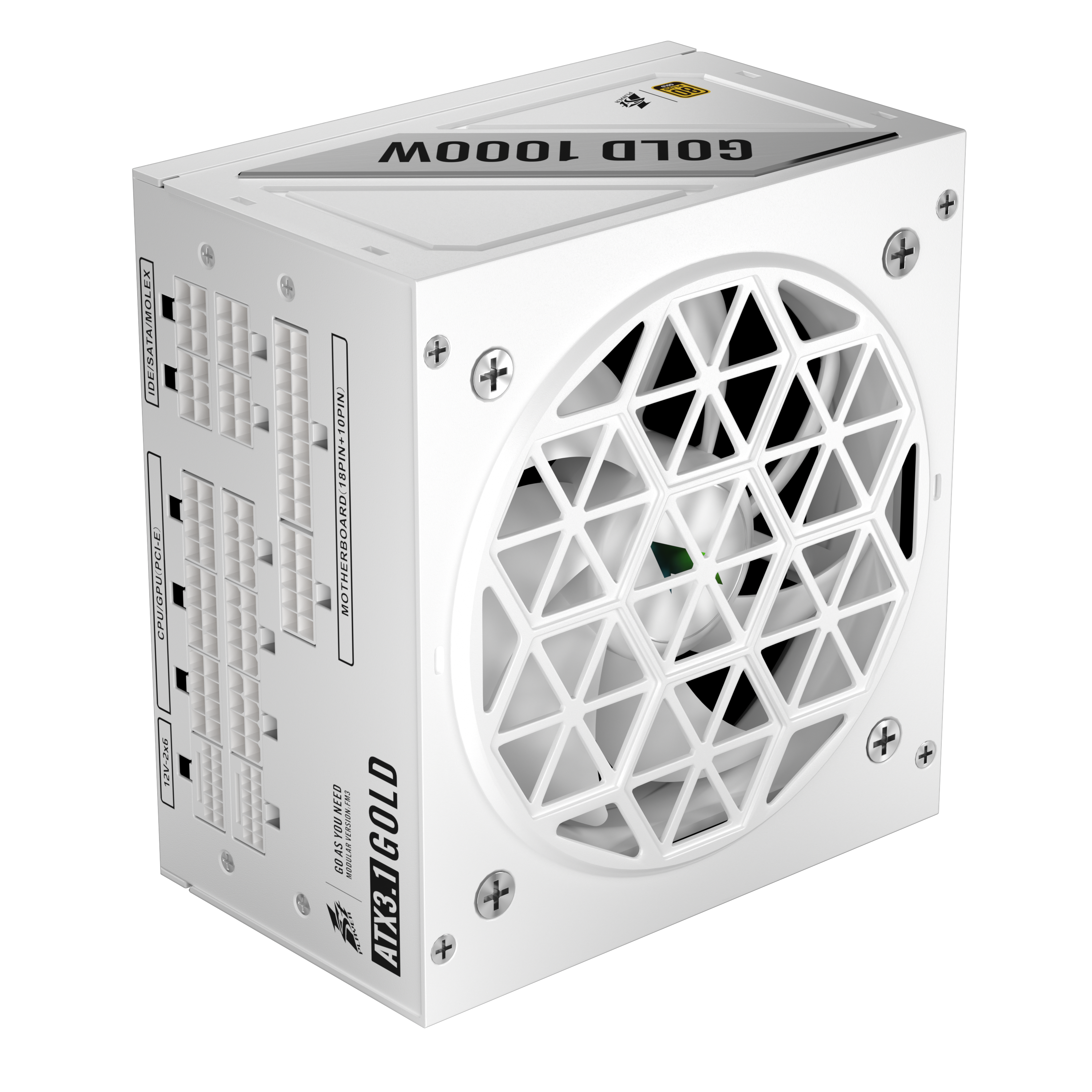

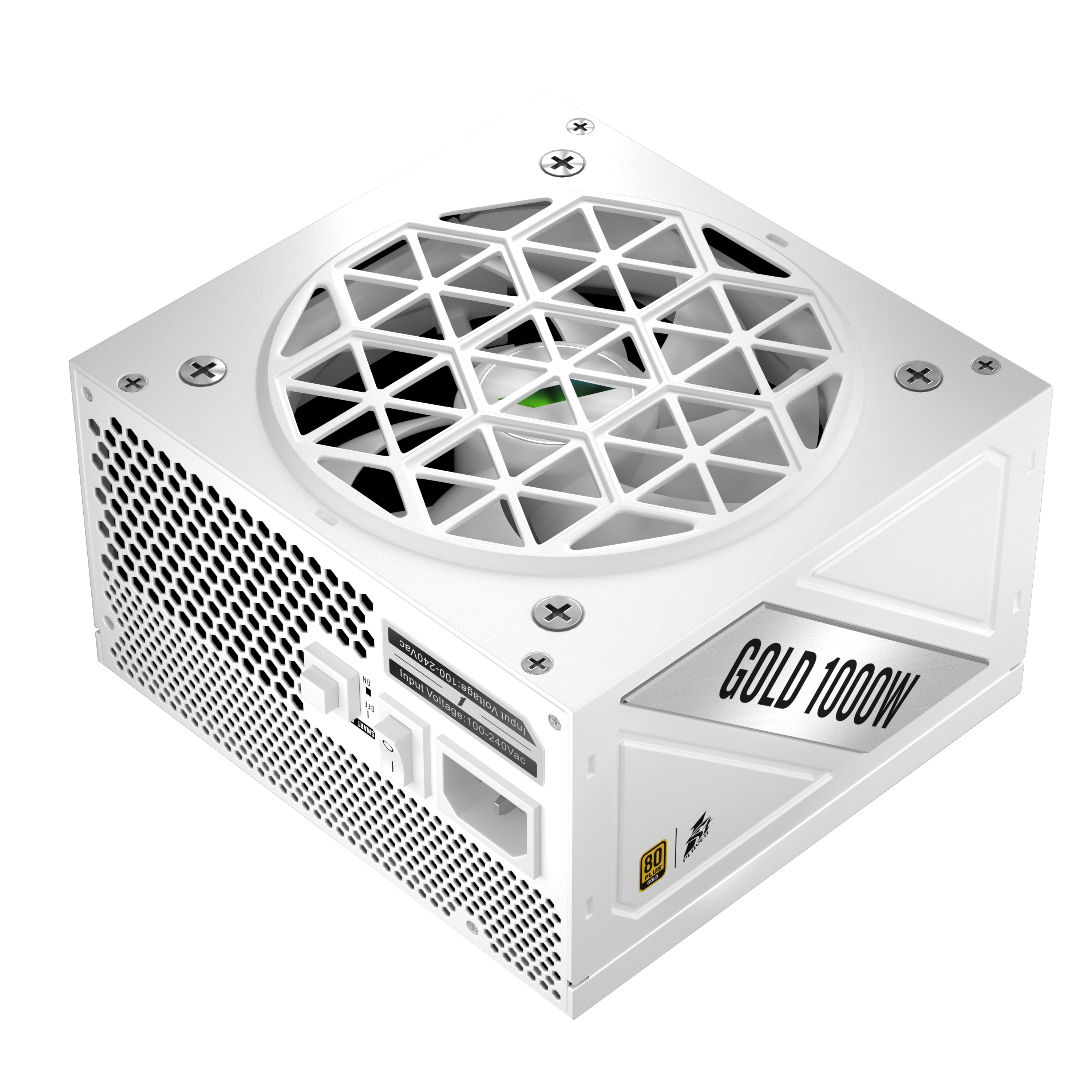

NGDP ATX 3.1 GOLD 1000W

Next Generation Dominating Power

Watch Video

NGDP ATX 3.1 GOLD 850W

Next Generation Dominating Power

Watch Video

MODEL
HA-750BA4 / HA-850BA4 / HA-1000BA4
DIMENSIONS (L x W x H)
140 x 150 x 86 mm

MODULAR

Full-Modular

CERTIFICATIONS

80 PLUS Gold
WARRANTY
10 Years

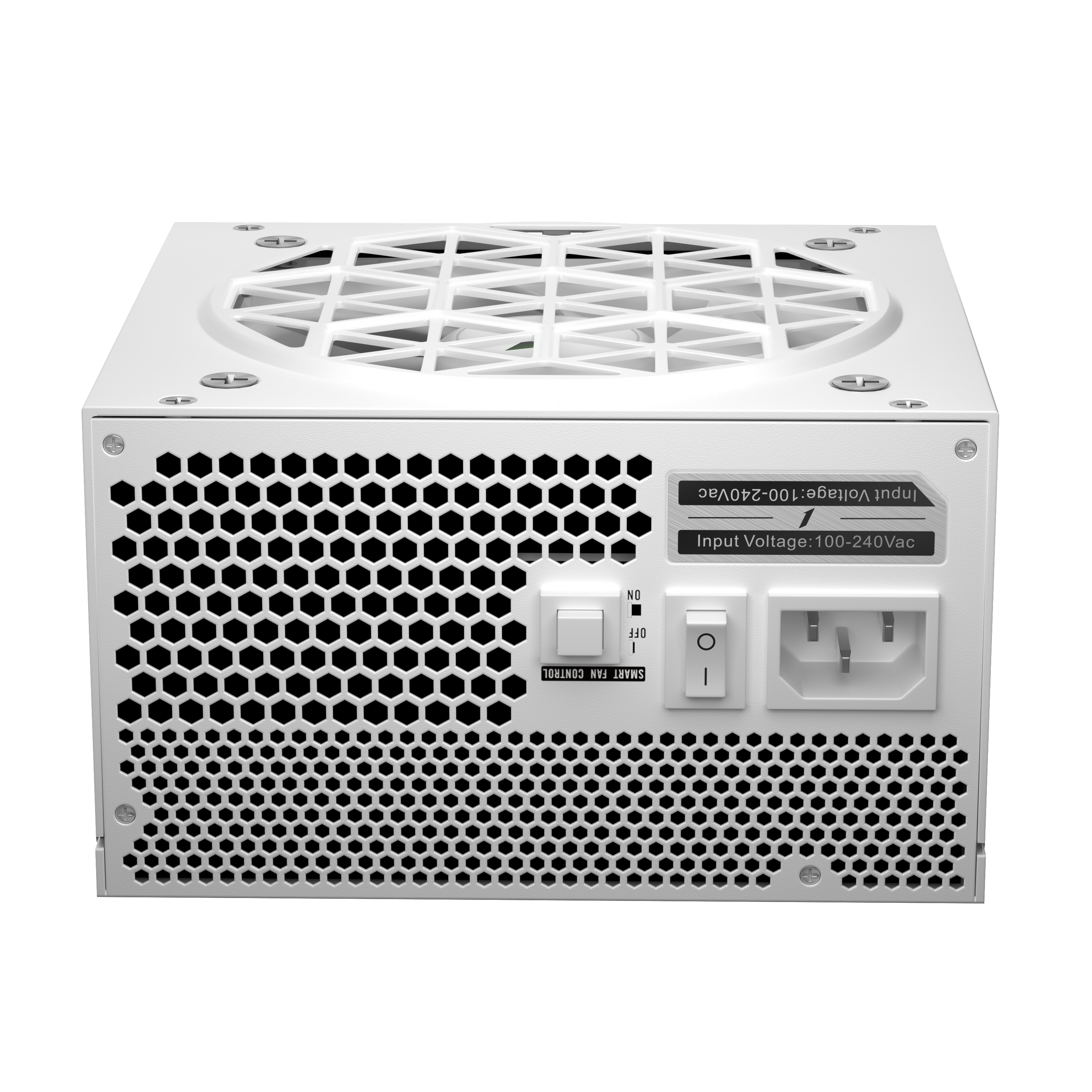

INPUT VOLTAGE
100 - 240 Vac
INPUT CURRENT
10 - 5A / 10 - 5A / 12 - 6A
EFFICIENCY

88.66% at full load (750W) / 88.39 % at full load (850W) / 88.70 % at full load (1000W)

(Data from 80  PLUS Testing Report)

OUTPUT CAPACITY
750W / 850W / 1000W
INPUT FREQUENCY
50 - 60Hz
PFC
Active PFC

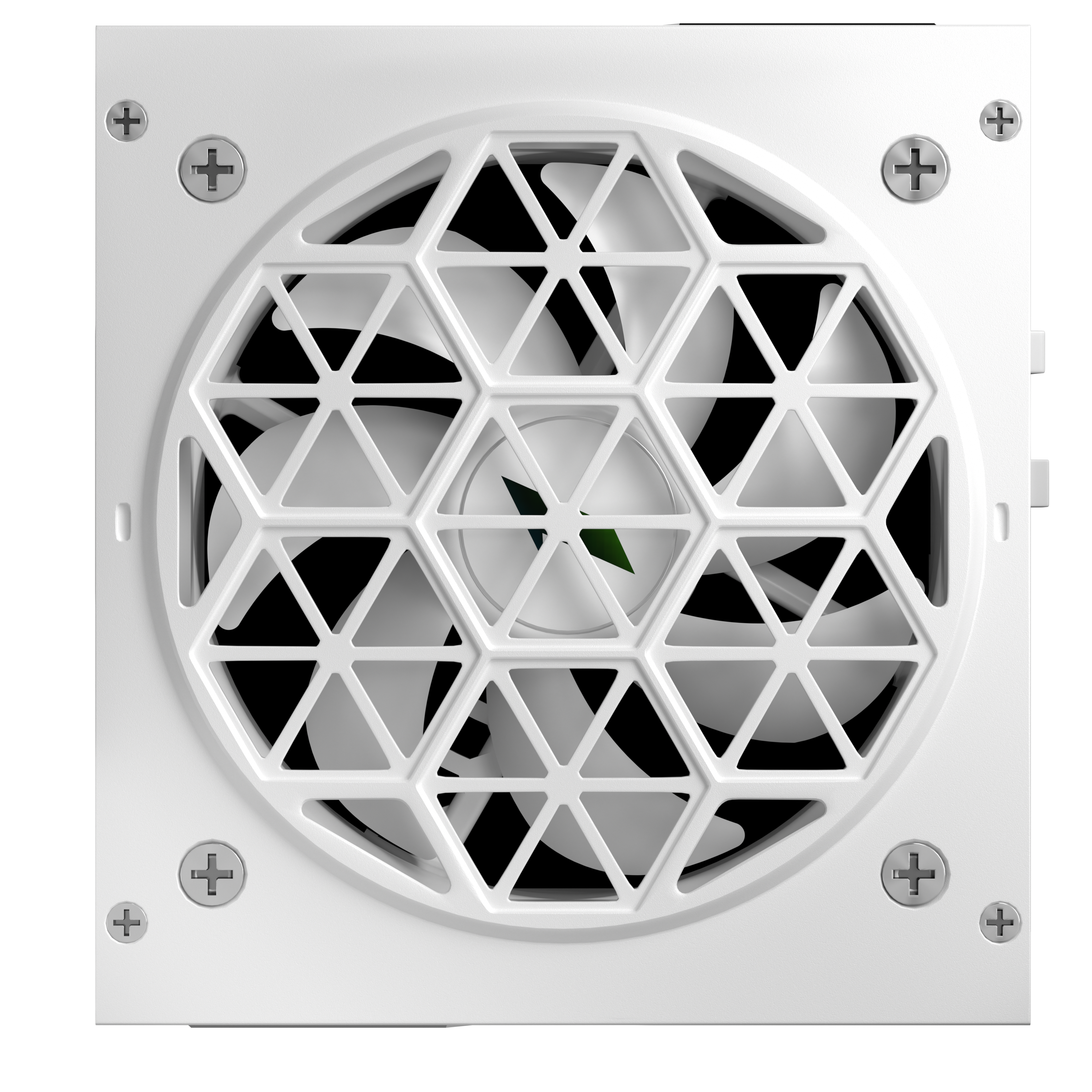

FAN SIZE

120 mm FDB
PROTECTIONS
UVP, OVP, OPP, SCP, OCP, OTP
PROTECTION TEMPERATURE
0 - 40℃
MTBF
100,000 hours
CIRCUIT STRUCTURE
LLC + DC - DC
REGULATORY
CE / FCC / C-Tik / ROHS / CCC / cTUVus / IEC / EAC
