Support up to 7 fans
Support CPU height up to 185 mm
Support GPU length up to 340 mm
Support 240 mm radiator at the top

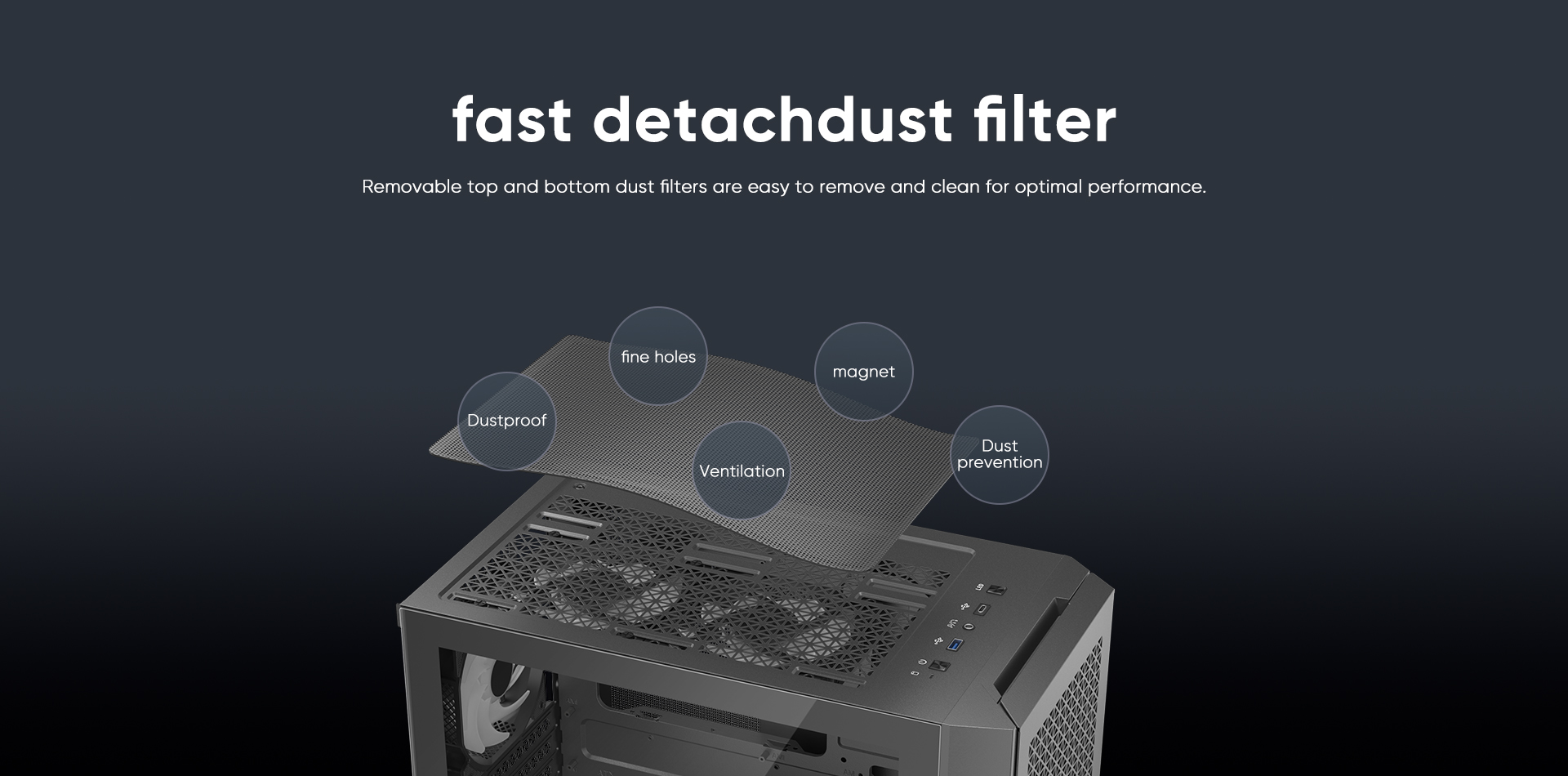

Easy-to-remove dust filter at the top, front and bottom
Ample ventilation ensures excellent cooling performance

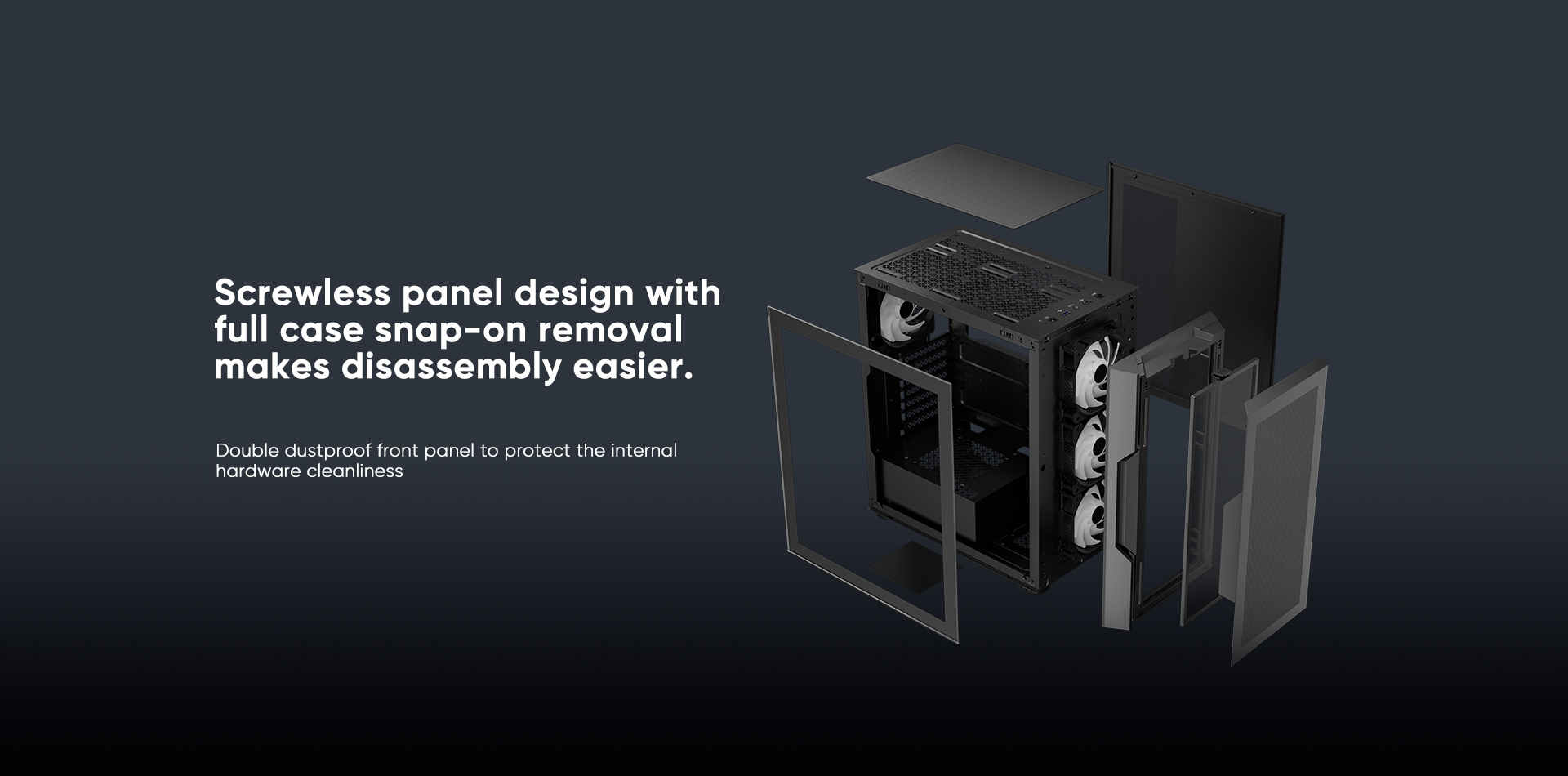

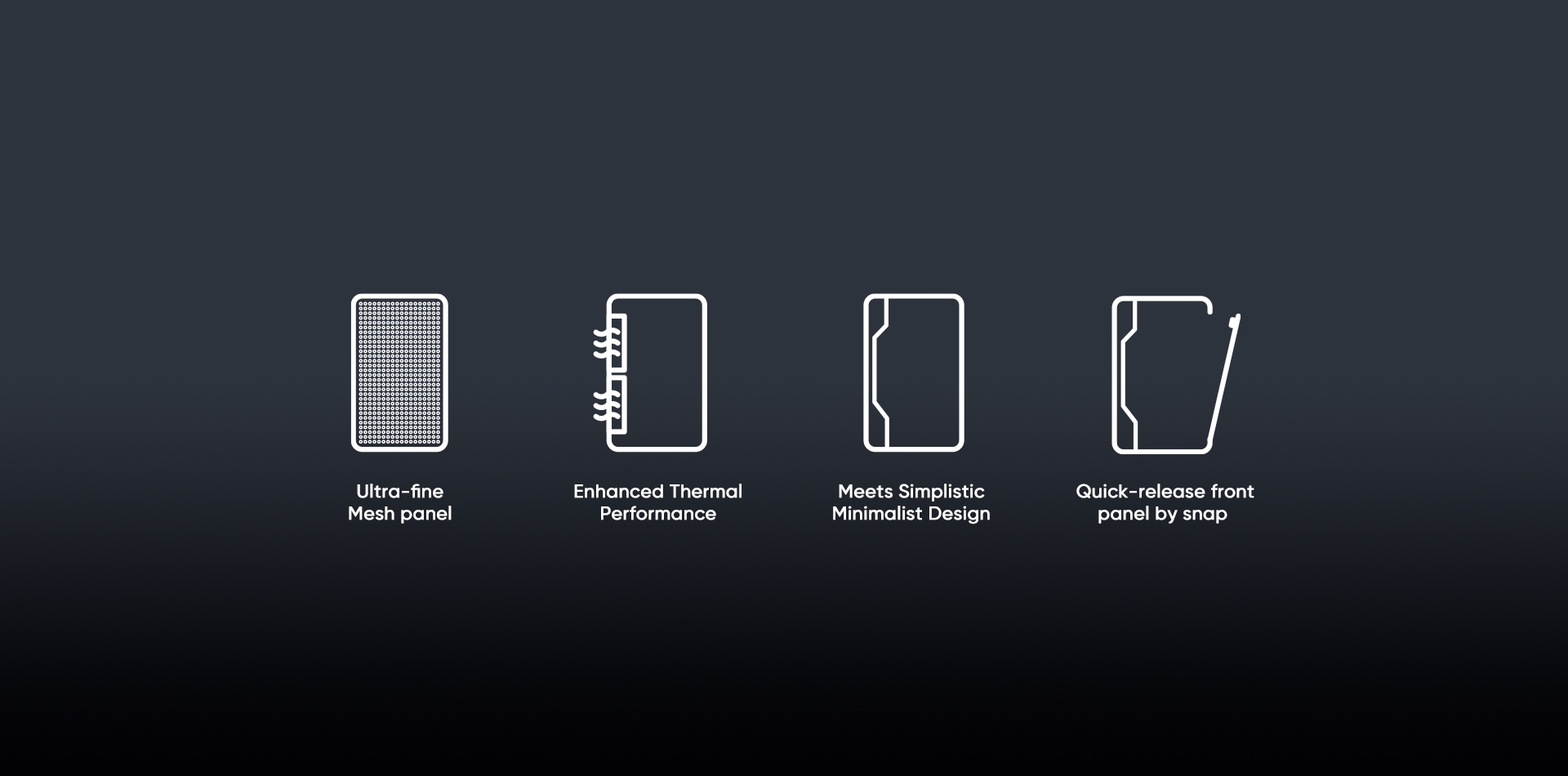

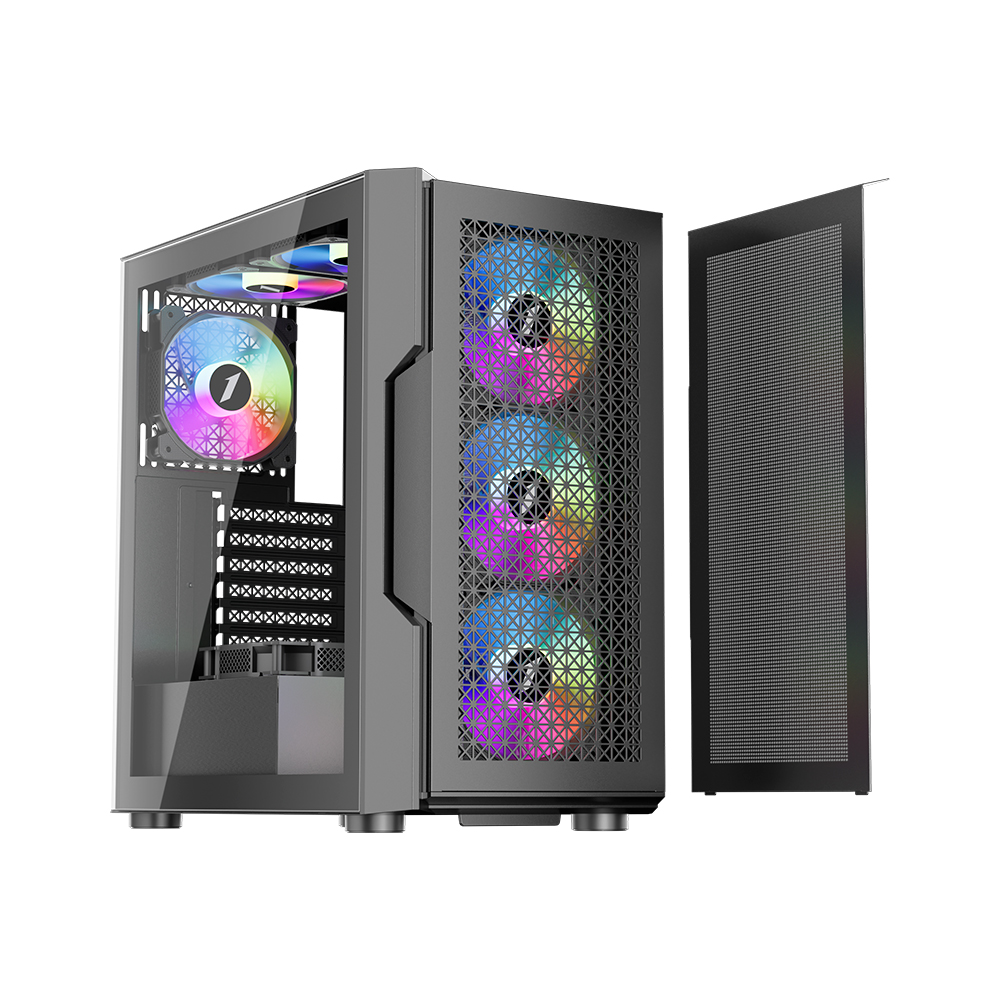

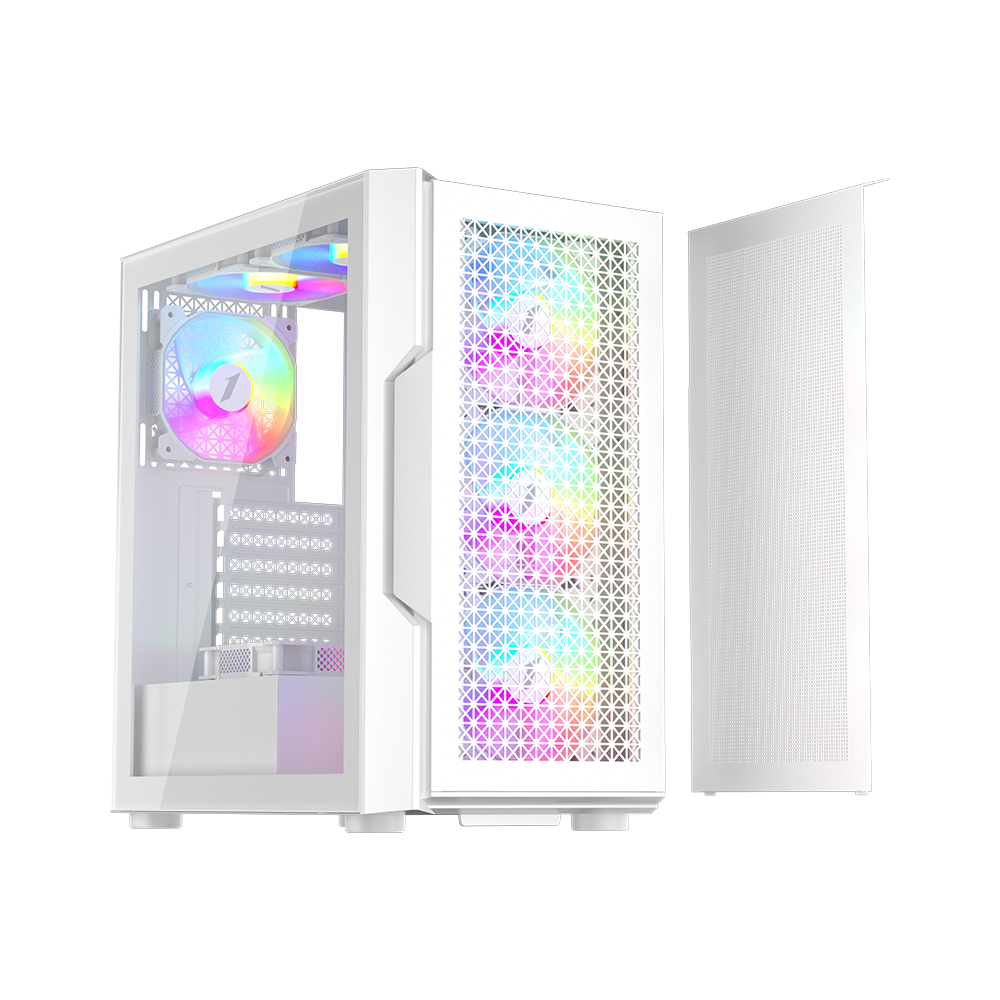

Snap-on front, left, and right panels allowing for quick upgrades and maintenance without the need for screws or additional tools.
*Computer parts are not included. Cooling fan may vary among different countries/regions.

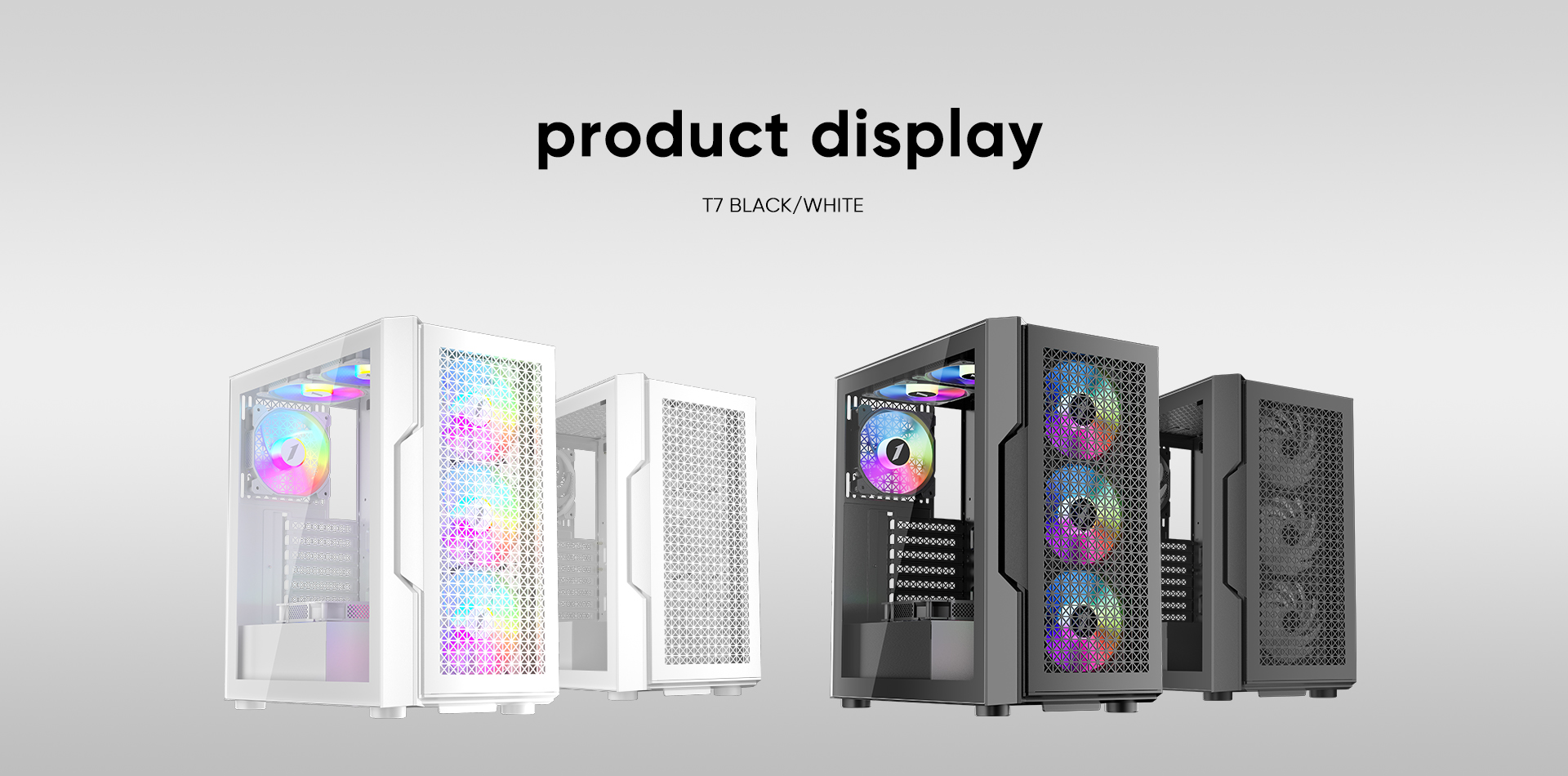

Black

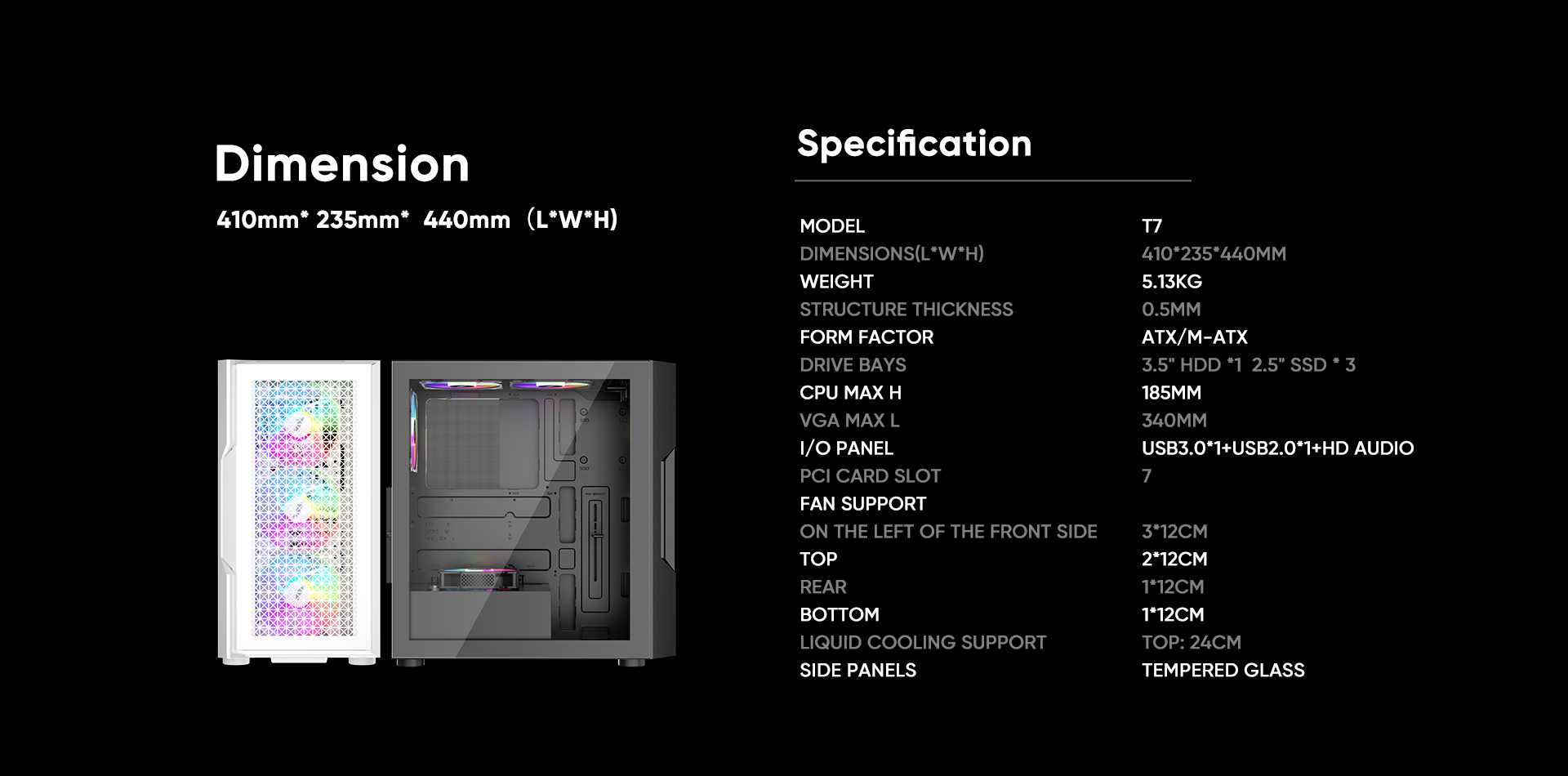

MODEL
T7
STRUCTURE DIMENSIONS (L x W x H)
370 x 235 x 430 mm
PRODUCT DIMENSIONS (L x W x H)
410 x 235 x 440 mm
PACKAGE DIMENSIONS (L x W x H)
505 x 298 x 475 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC 0.5 mm

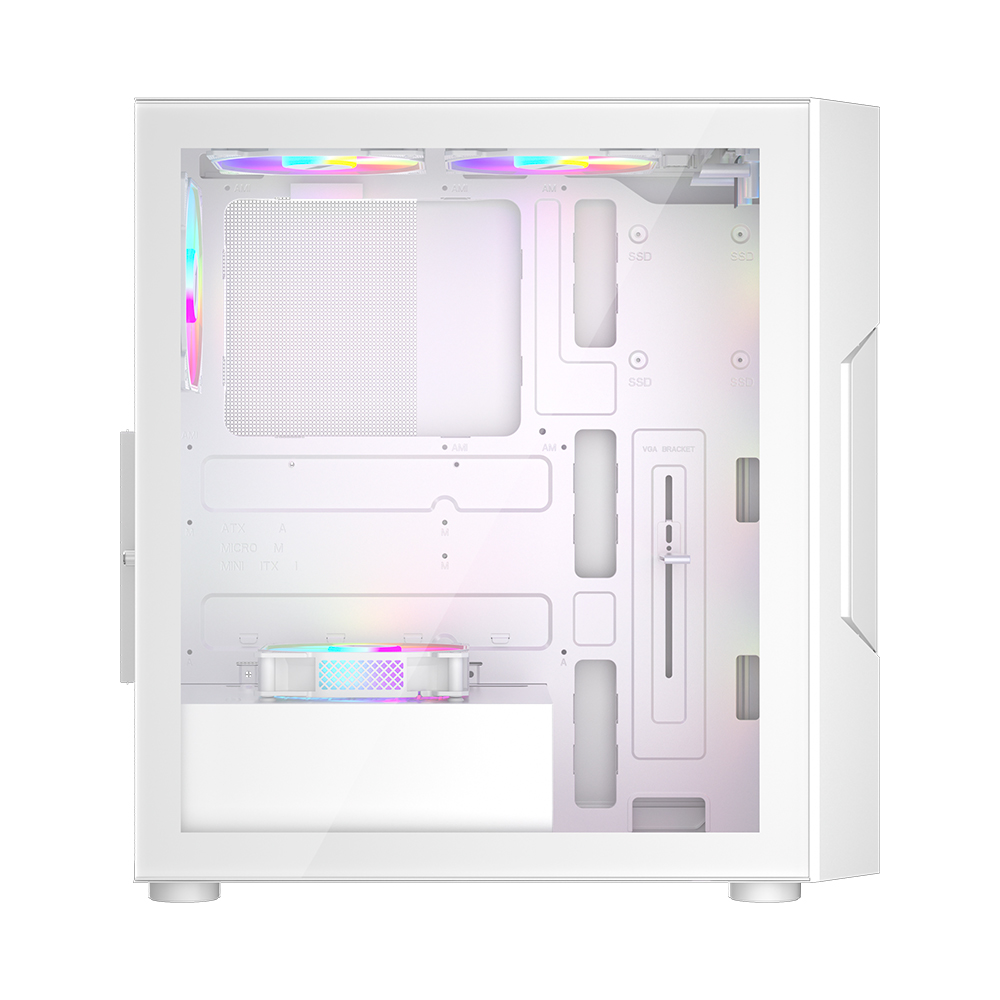

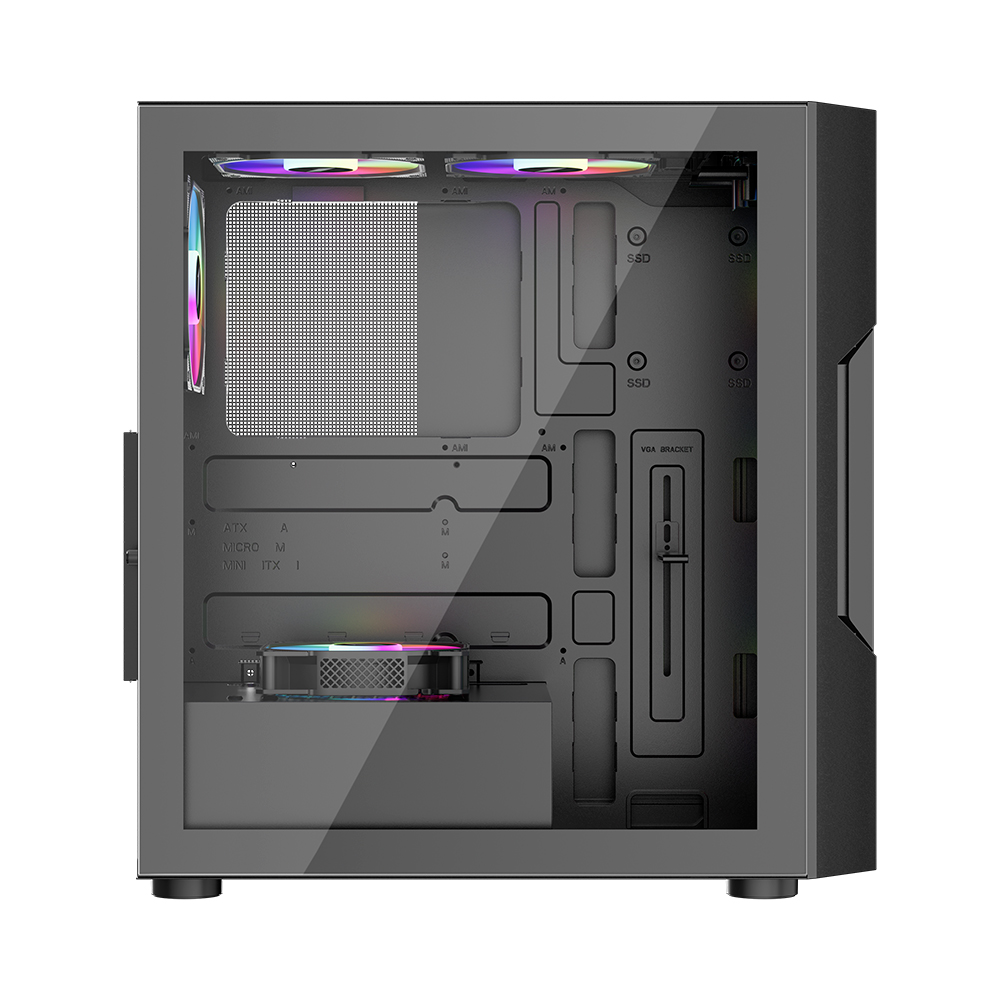

Left Panel: Tempered glass

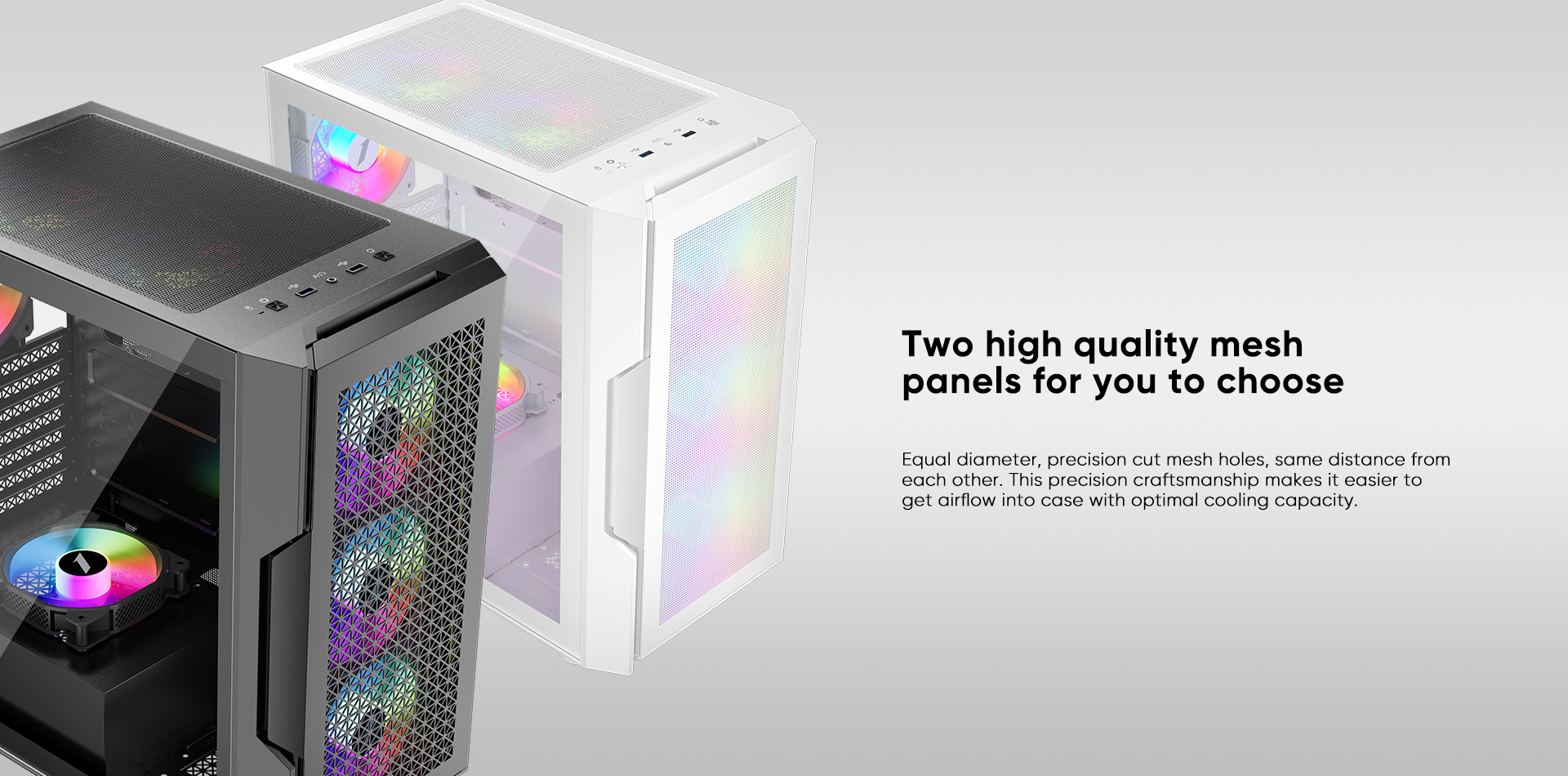

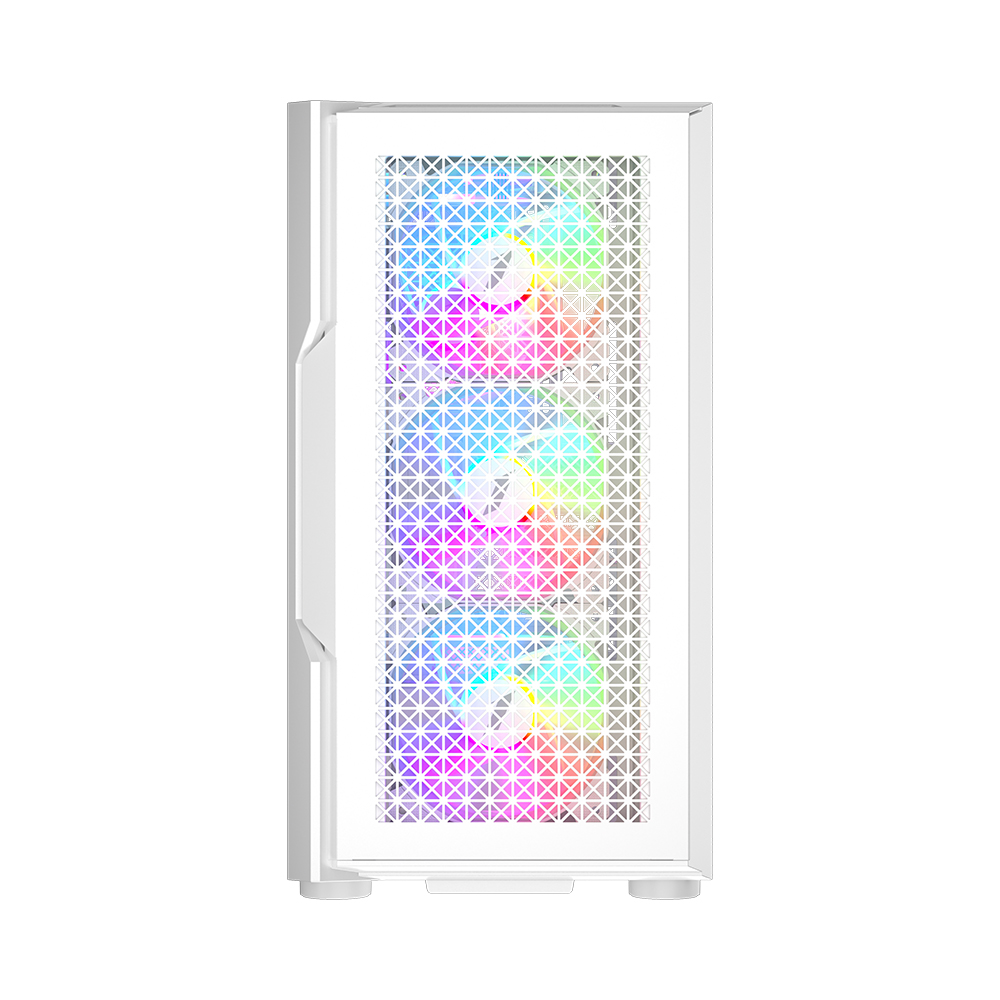

Front panel: Metal mesh
FORM FACTOR
ATX / M-ATX / Mini-ITX
5.25" CD ROM: 0

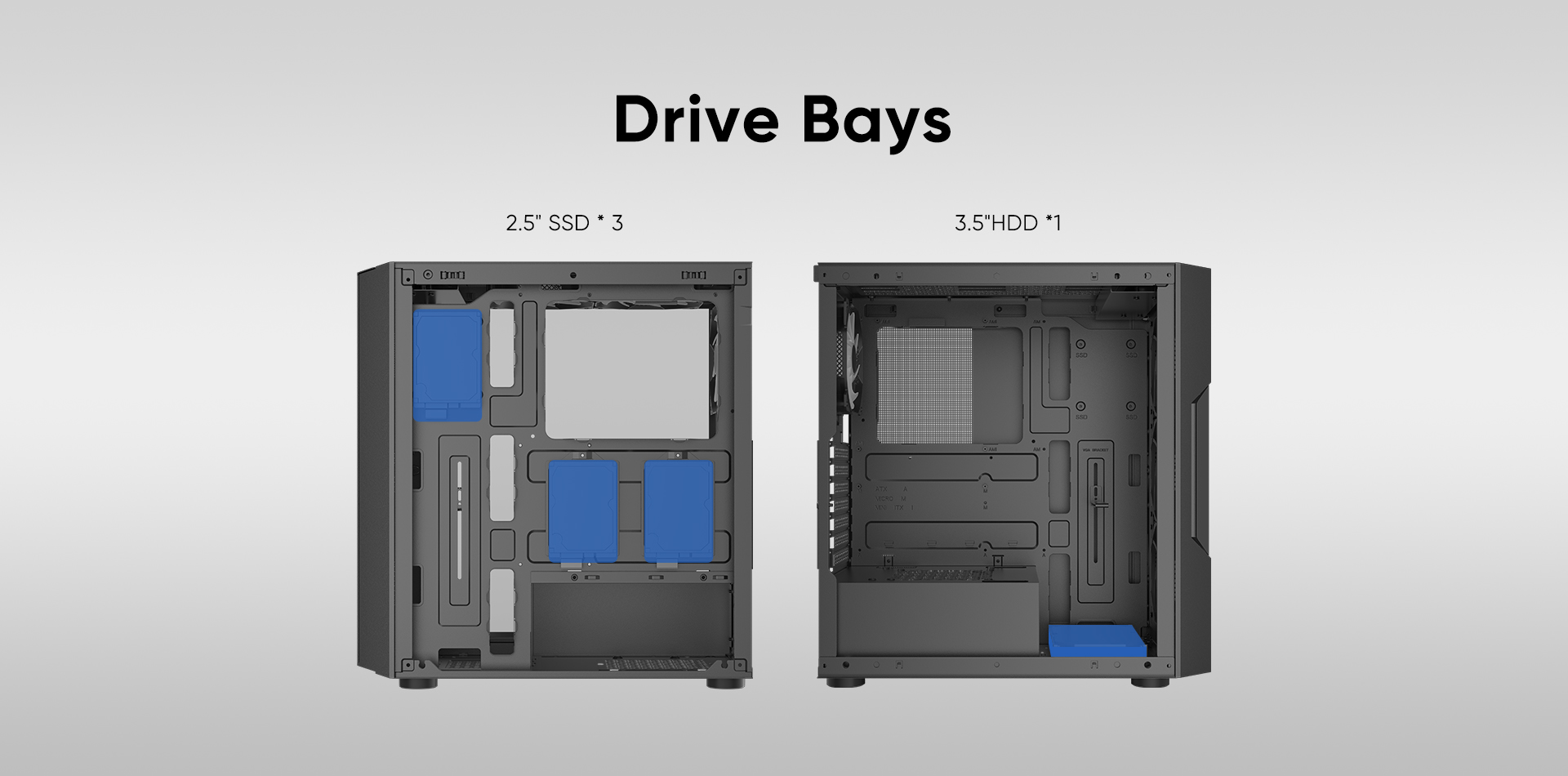

3.5" HDD:1 + 2.5" SSD: 3

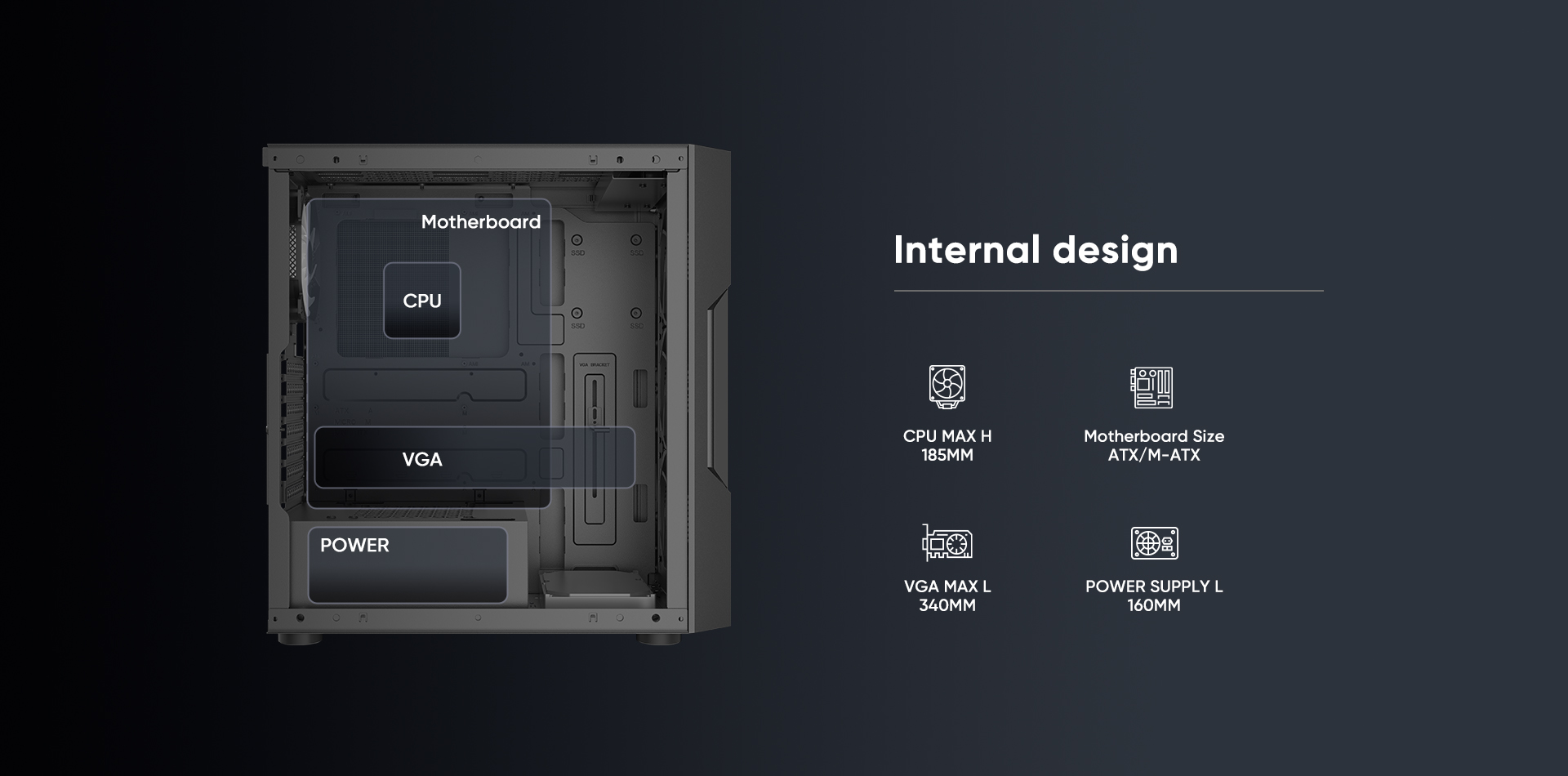

CPU MAX HEIGHT
185 mm
GPU MAX LENGTH
340 mm
I/O PANEL

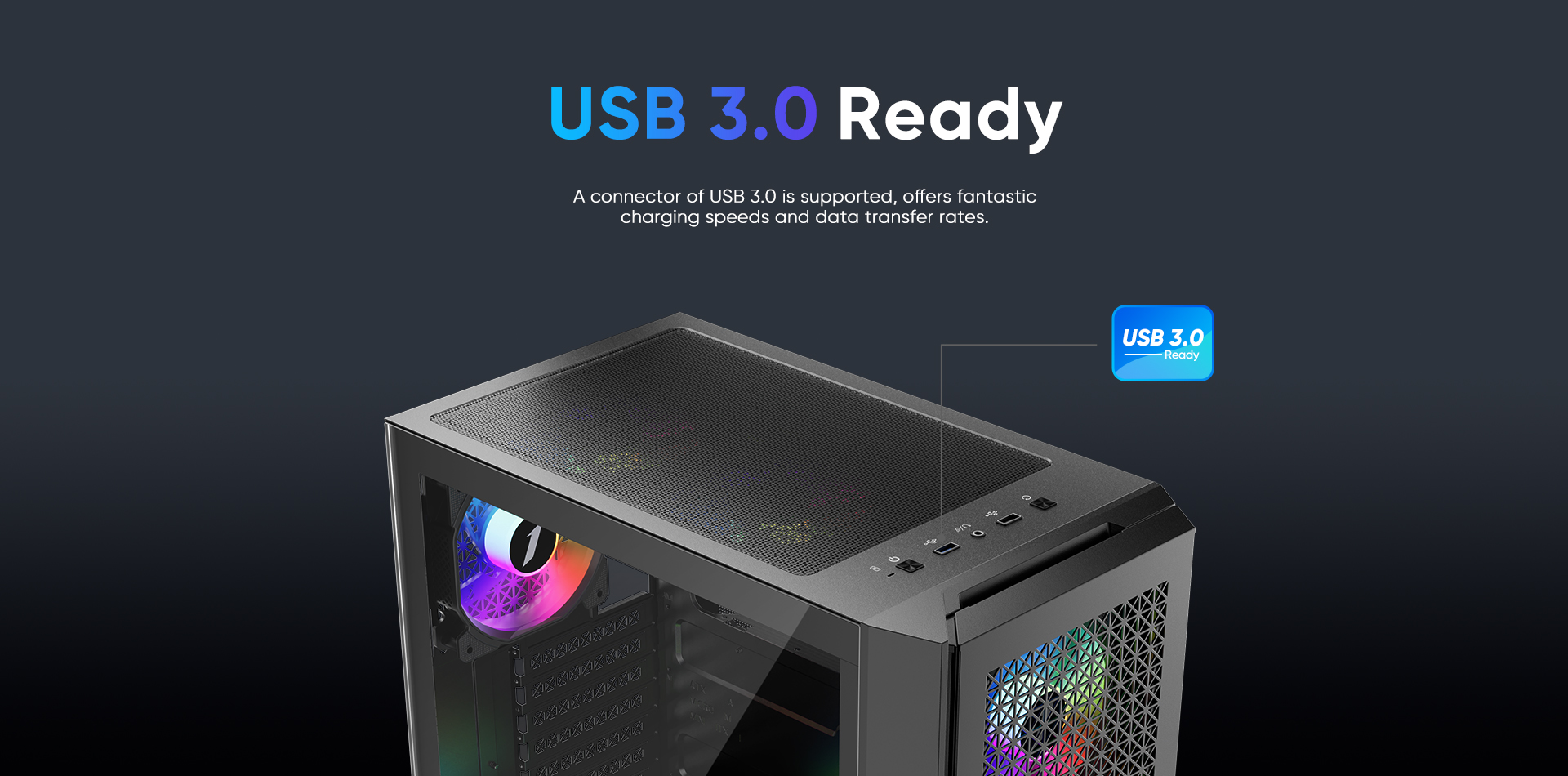

USB 3.0 x 2 + HD AUDIO

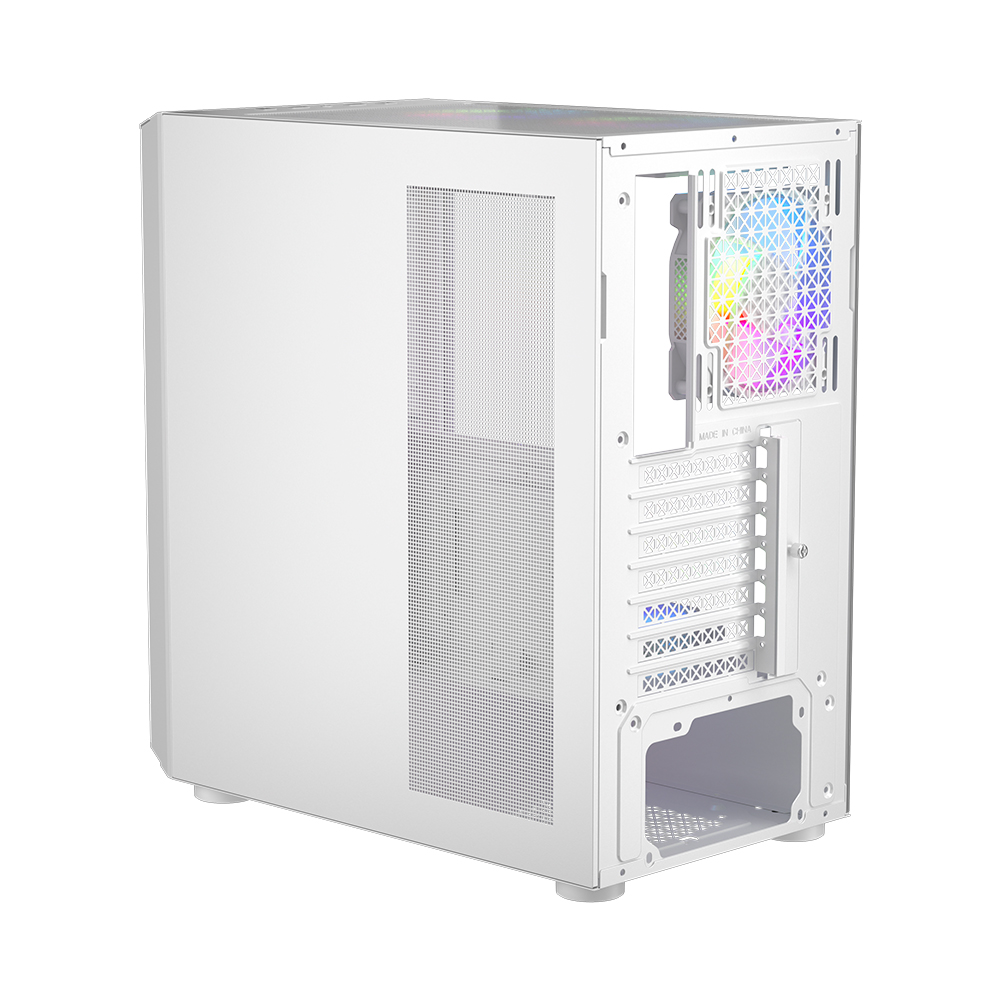

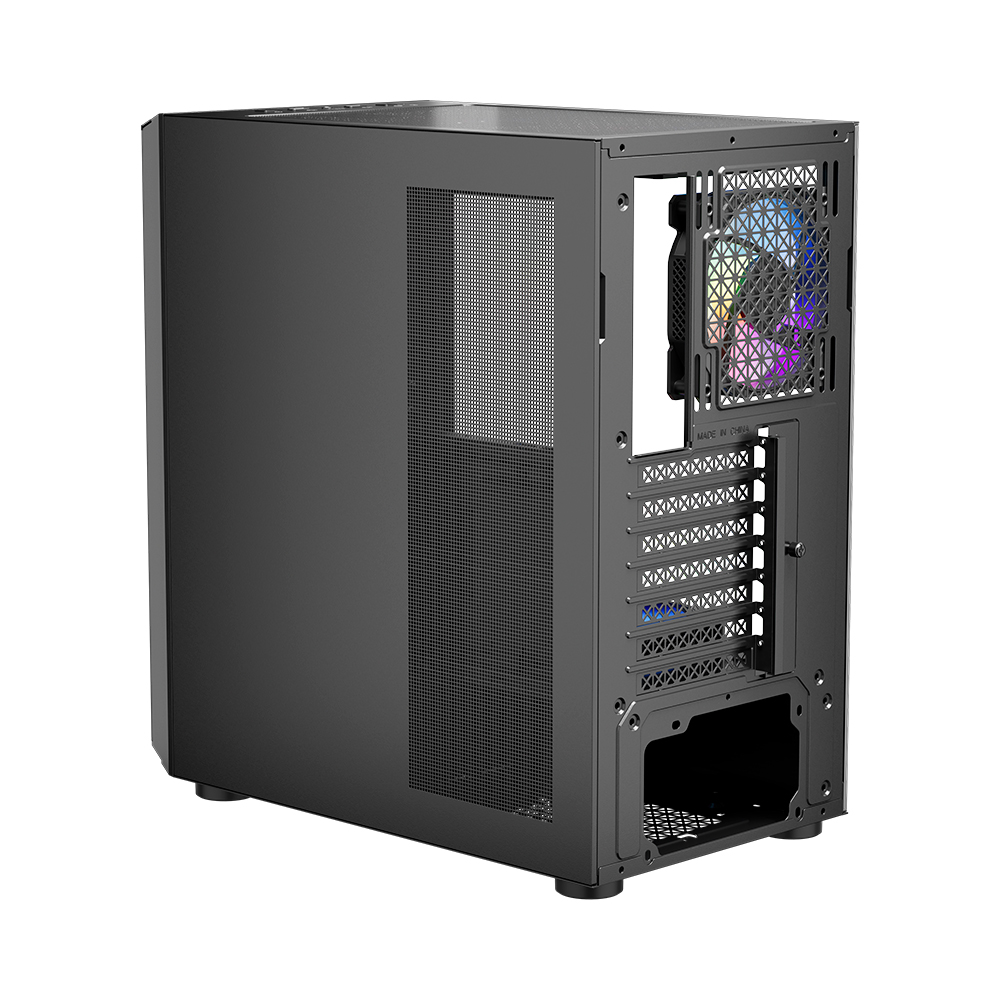

PCI CARD SLOT
7

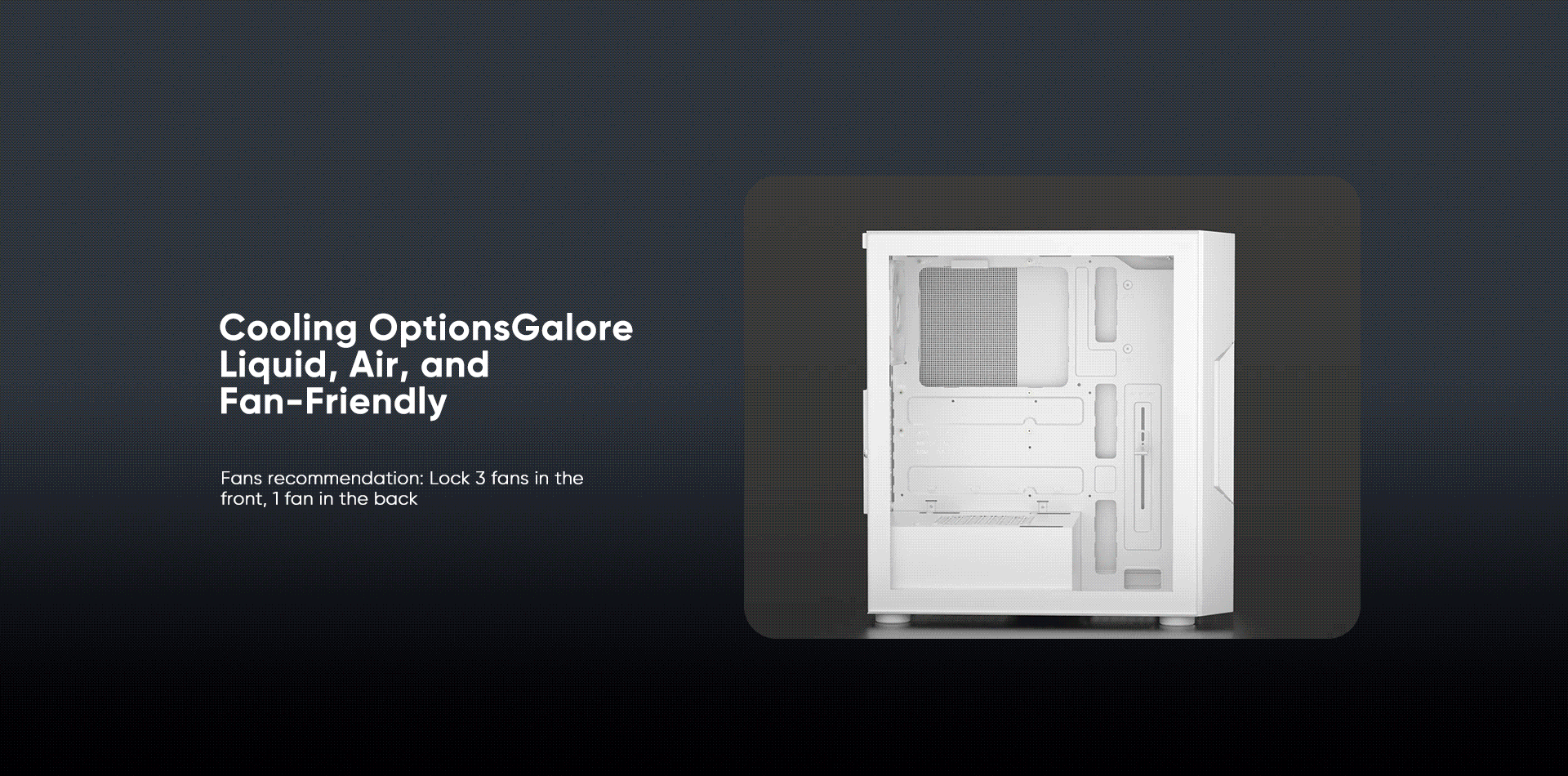

FAN SUPPORT

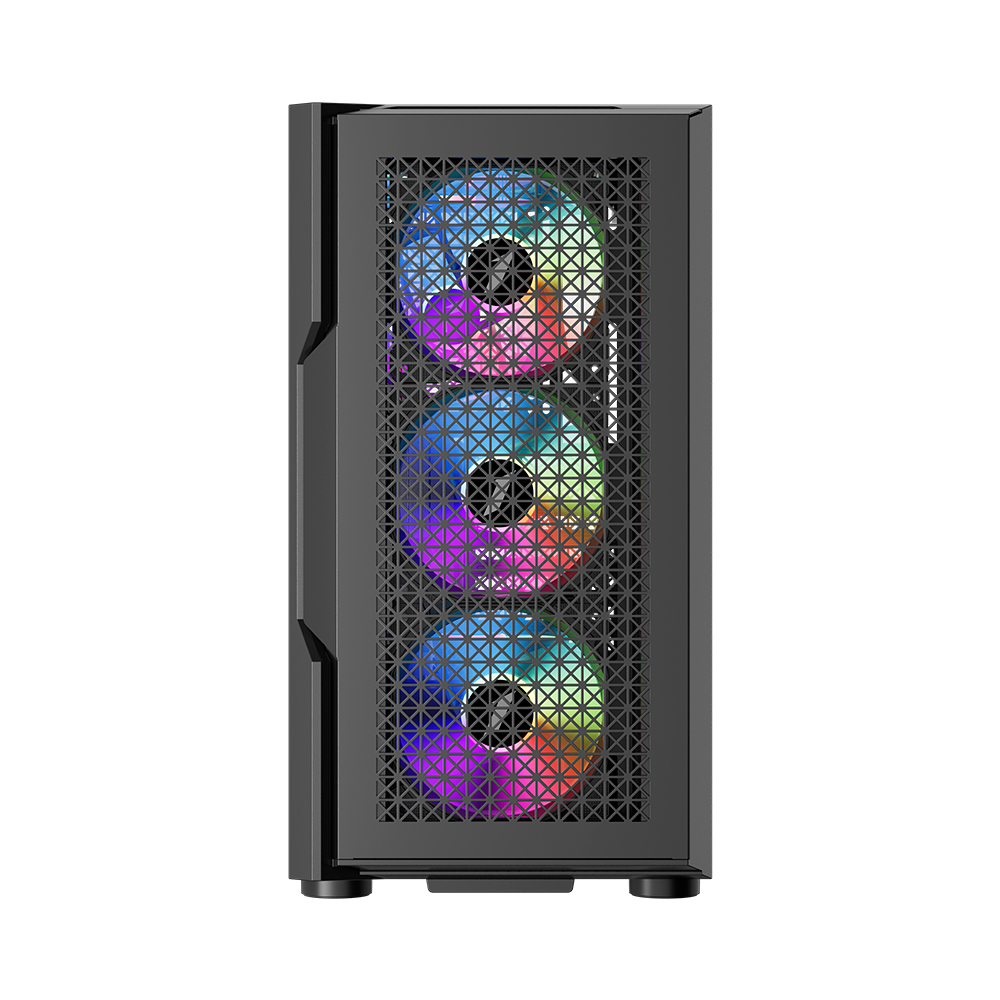

Front: 3 x 12 cm
Top: 2 x 12 cm
Rear: 1 x 12 cm
Bottom: 1 x 12 cm
LIQUID COOLING SUPPORT
Top: 24 cm
POWER SUPPLY SUPPORT
Bottom mount 160mm
NET WEIGHT
N.W.: 5.13 kg
G.W.: 6.53 kg
