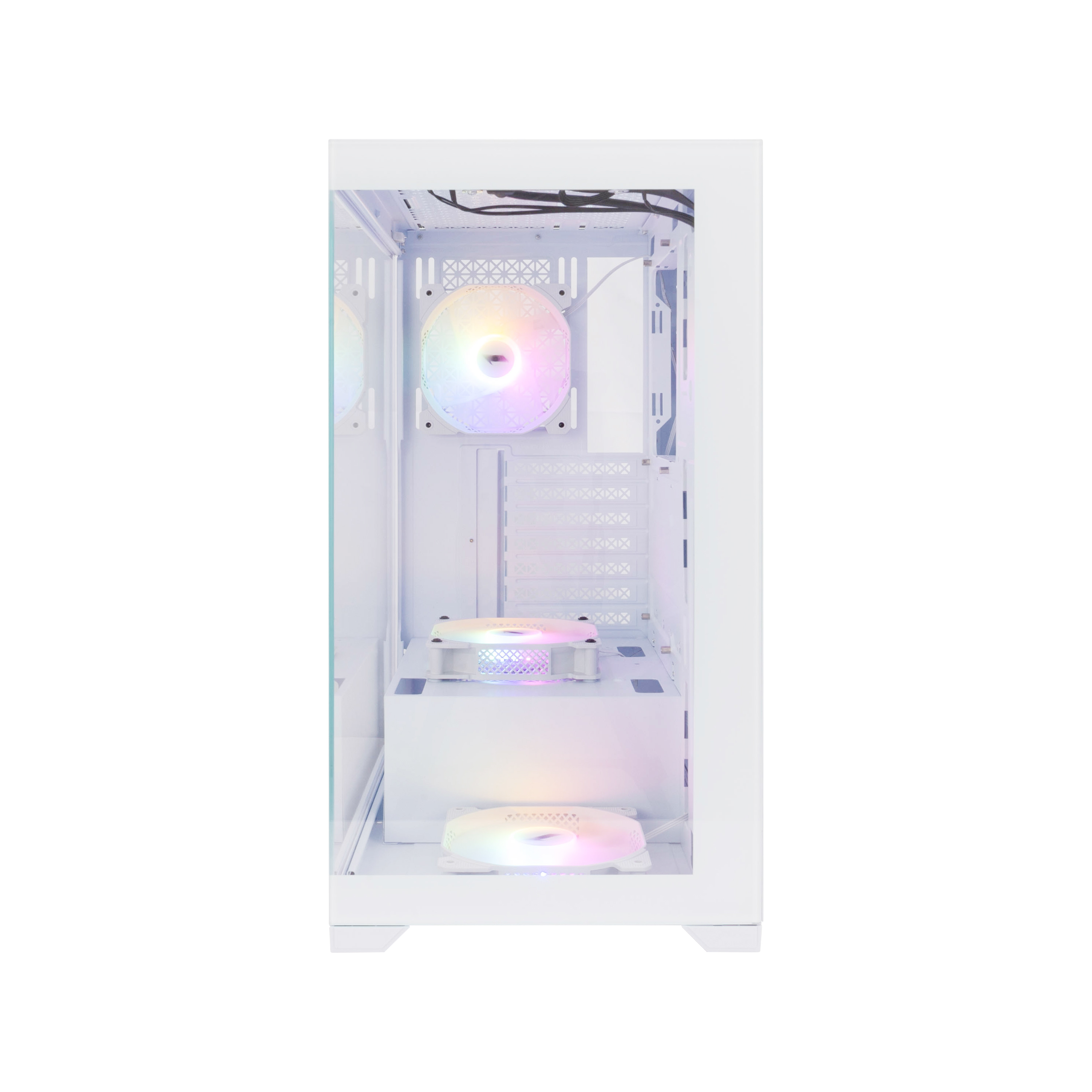

Support installation of up to 5 fans
Support CPU cooler height up to 185 mm

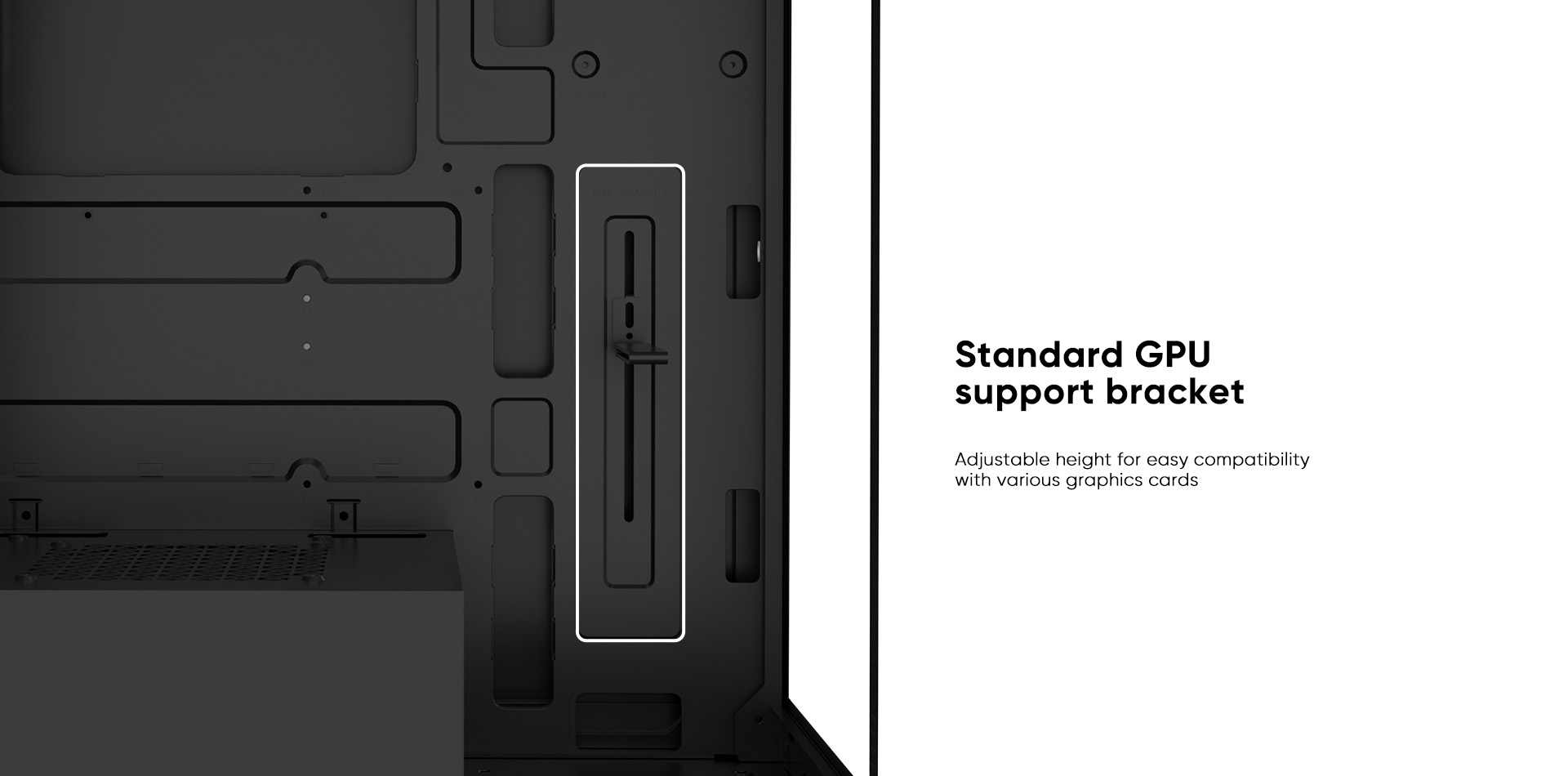

Support GPU length up to 360 mm
Support a 240 mm radiator at the top

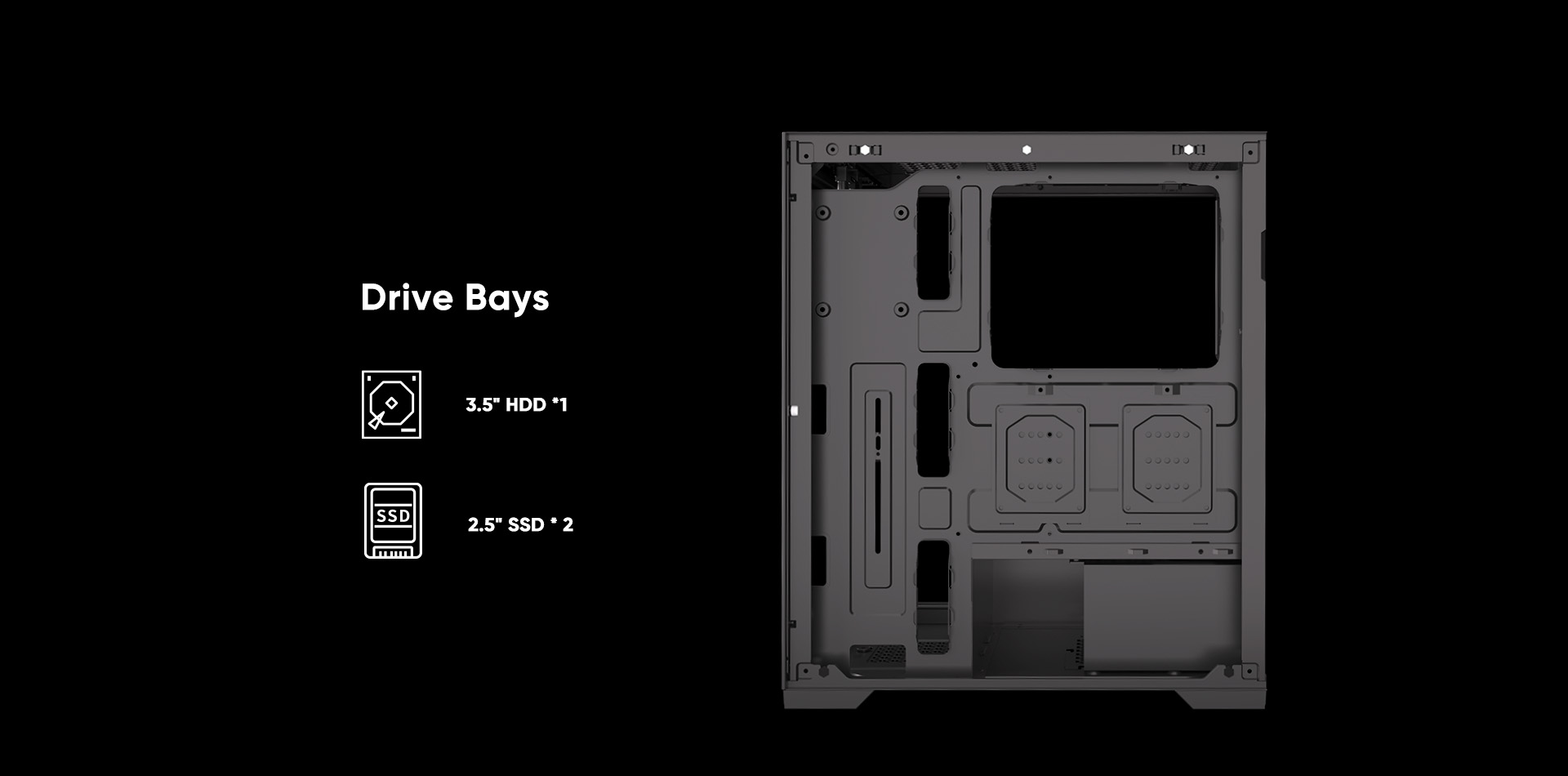

Support up to 4 drive bays: 1 x 3.5" HDD + 2 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.
Black

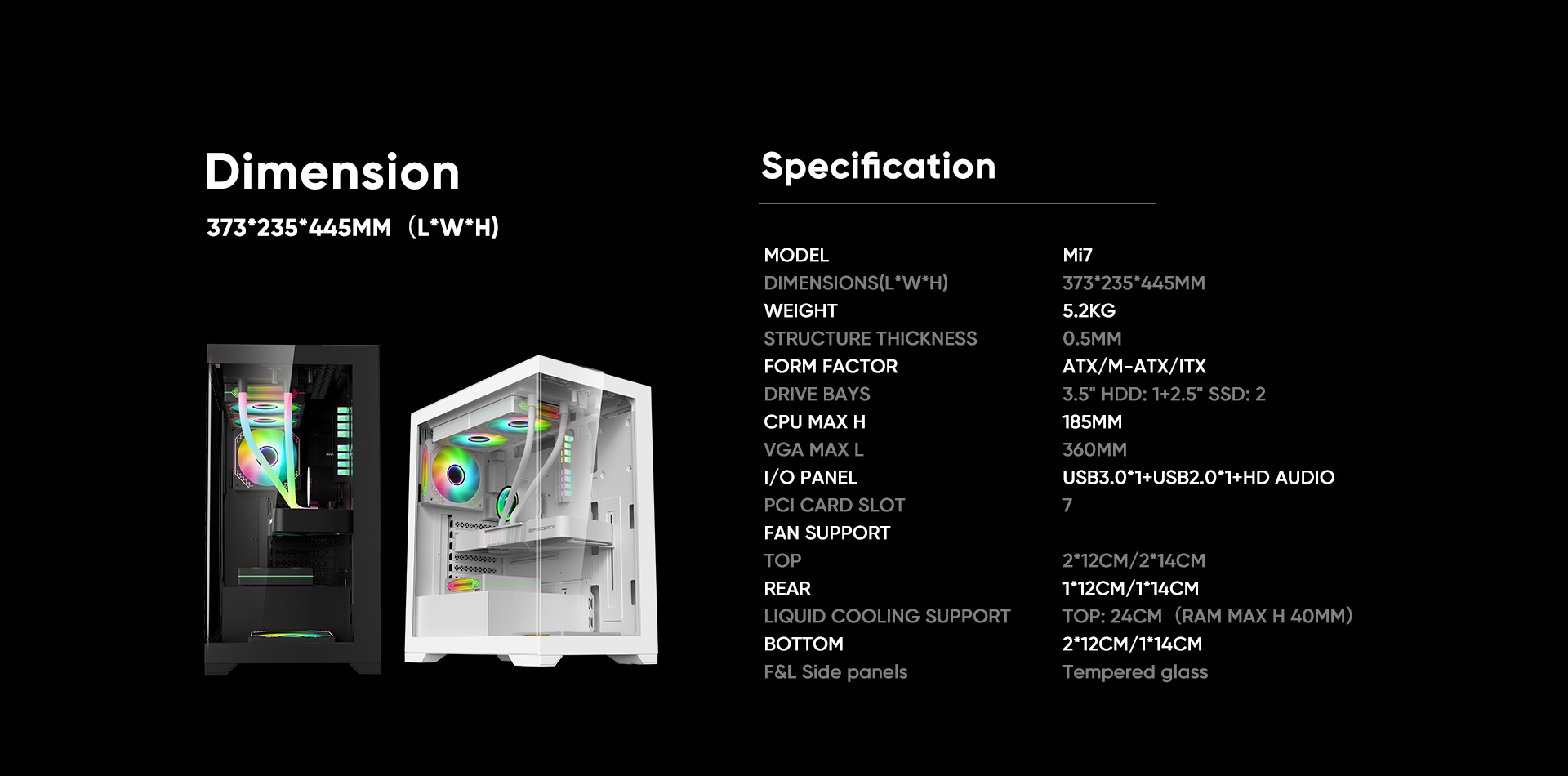

MODEL
Mi7
STRUCTURE DIMENSIONS (L x W x H)
370 x 235 x 430 mm
PRODUCT DIMENSIONS (L x W x H)
373 x 235 x 445 mm
PACKAGE DIMENSIONS (L x W x H)
515 x 295 x 437 mm
STRUCTURE THICKNESS
0.5 mm

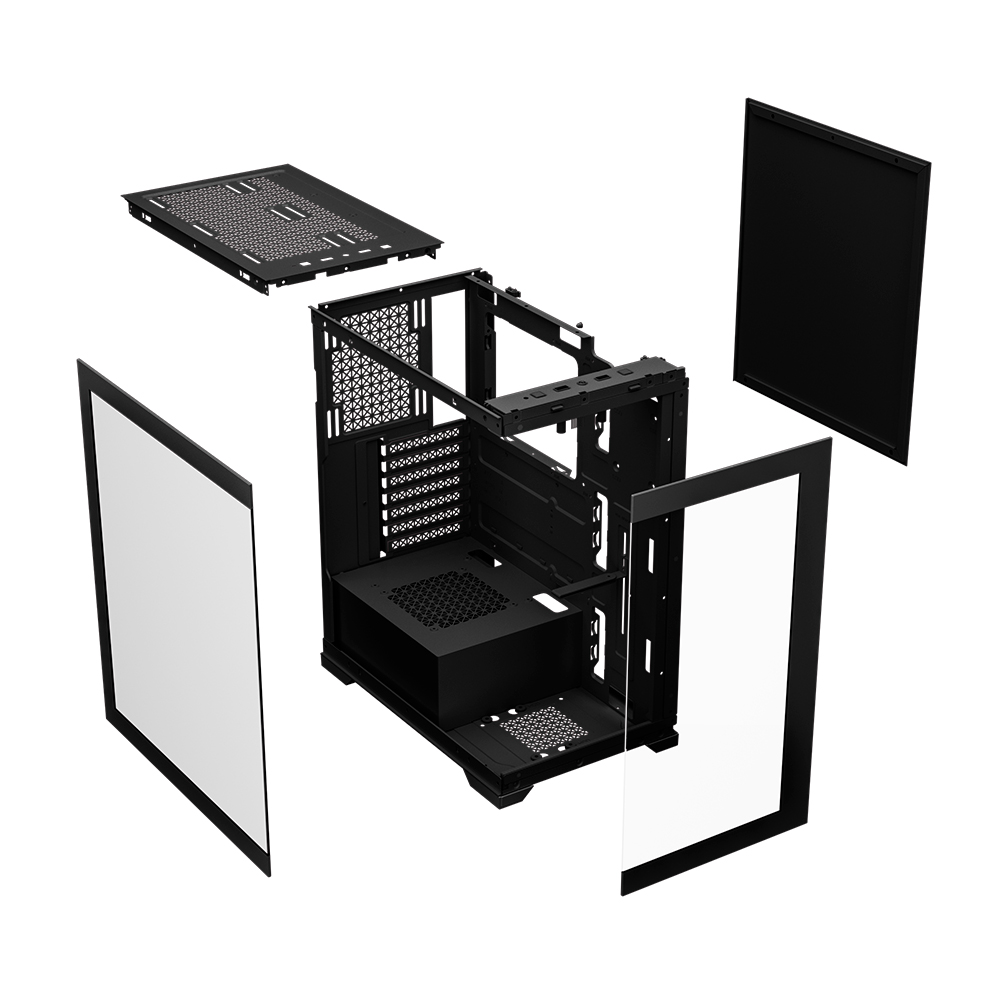

MATERIALS
SPCC 0.5 mm

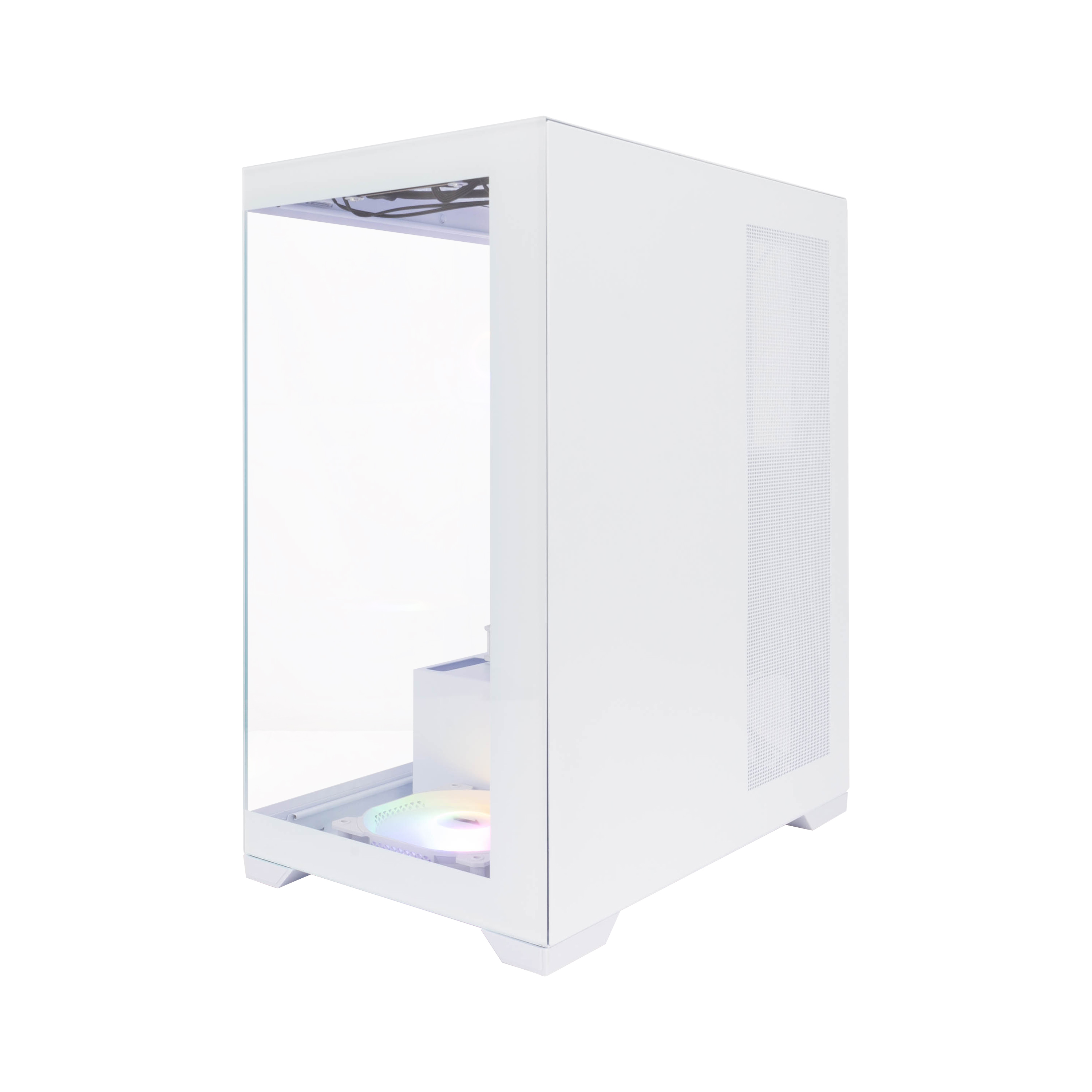

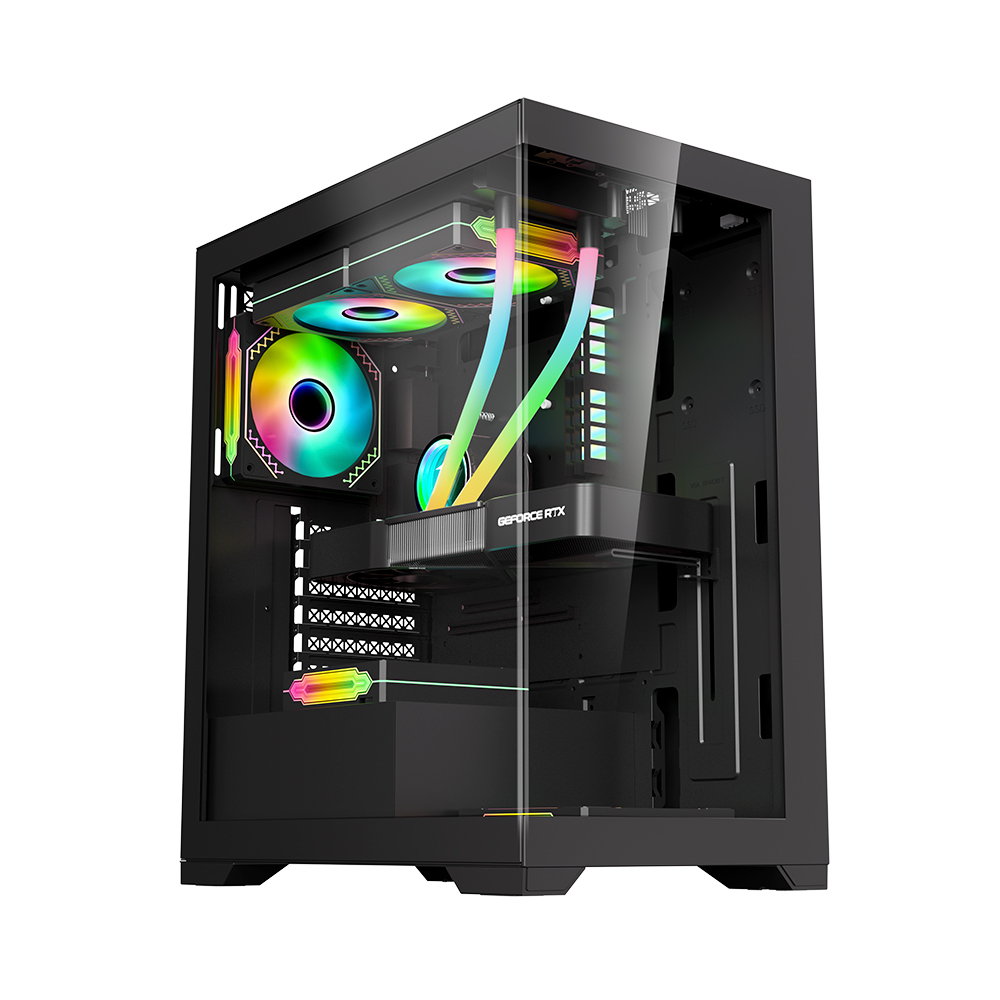

Front / Left Panel: Tempered glass
FORM FACTOR
ATX / M-ATX / Mini-ITX
5.25" CD ROM: 0
3.5" HDD: 1 + 2.5" SSD: 2

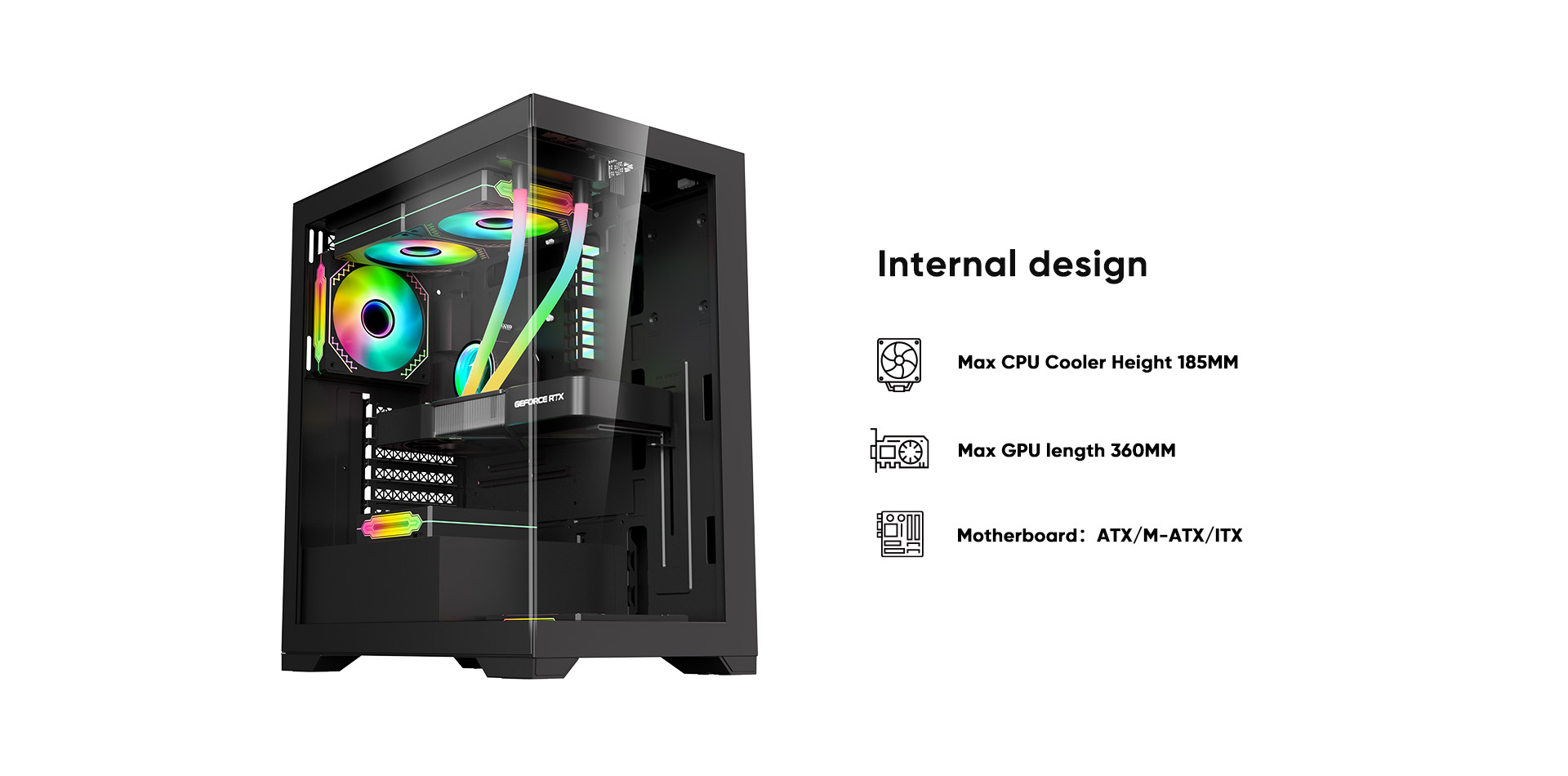

CPU MAX HEIGHT
185 mm
GPU MAX LENGTH
360 mm

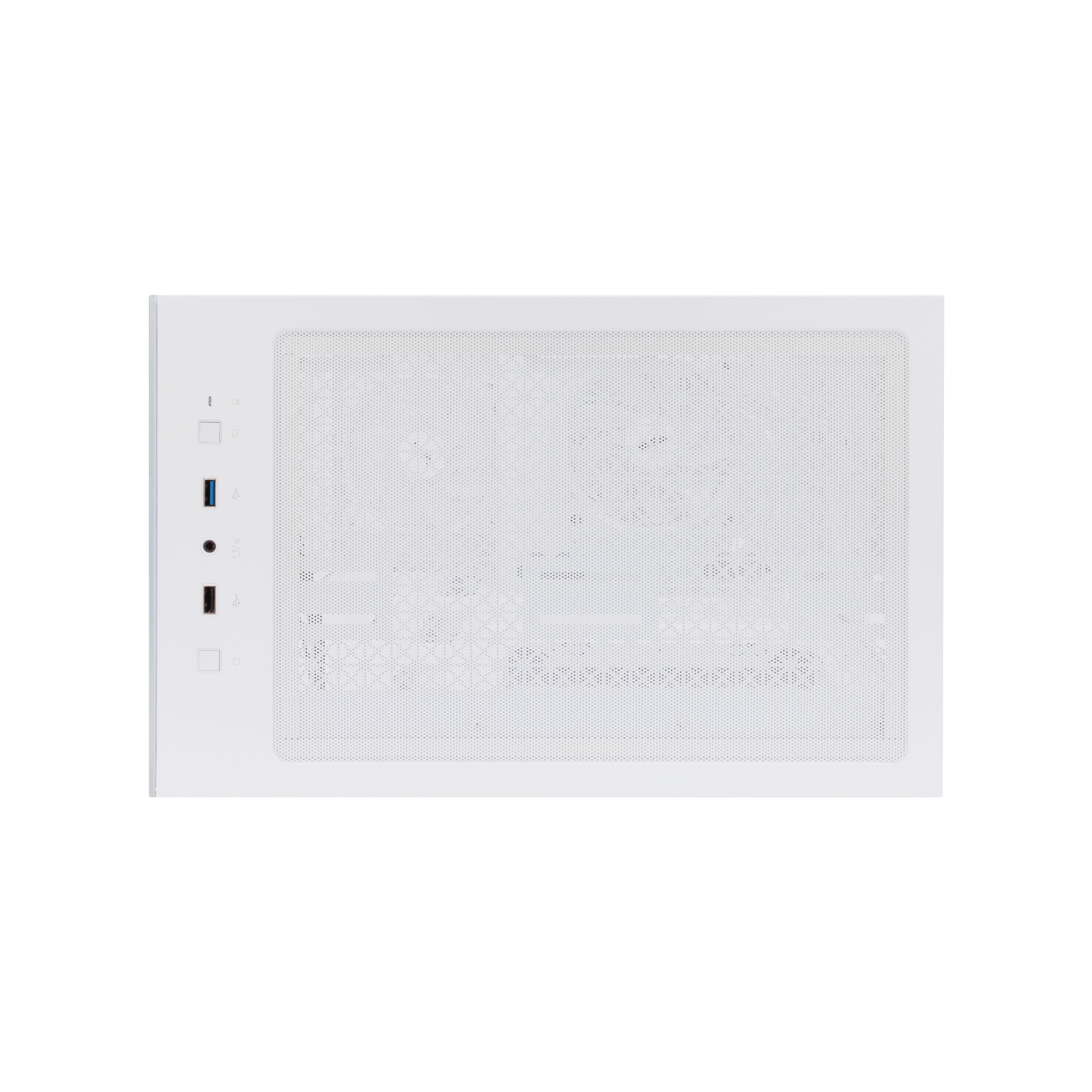

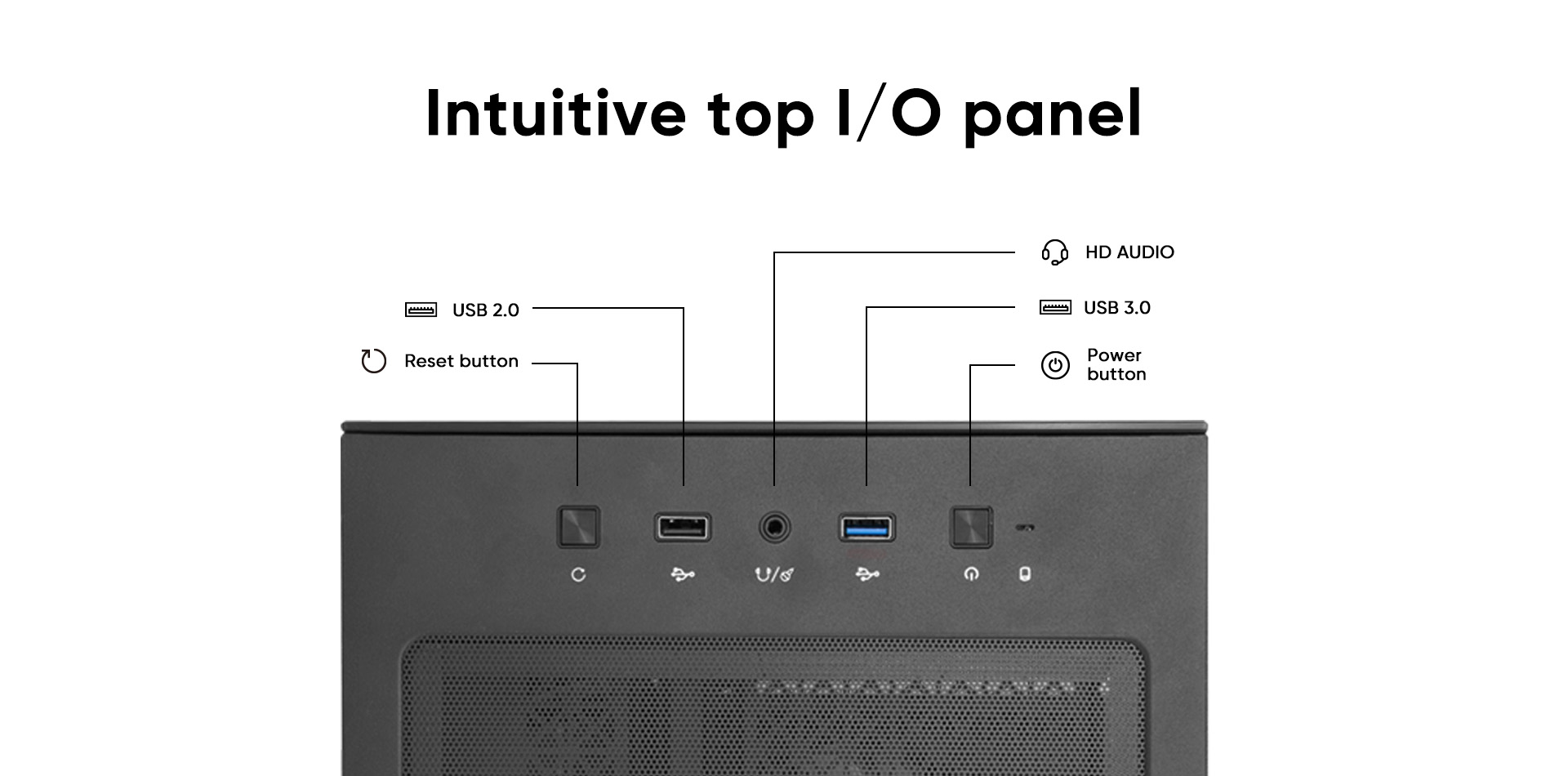

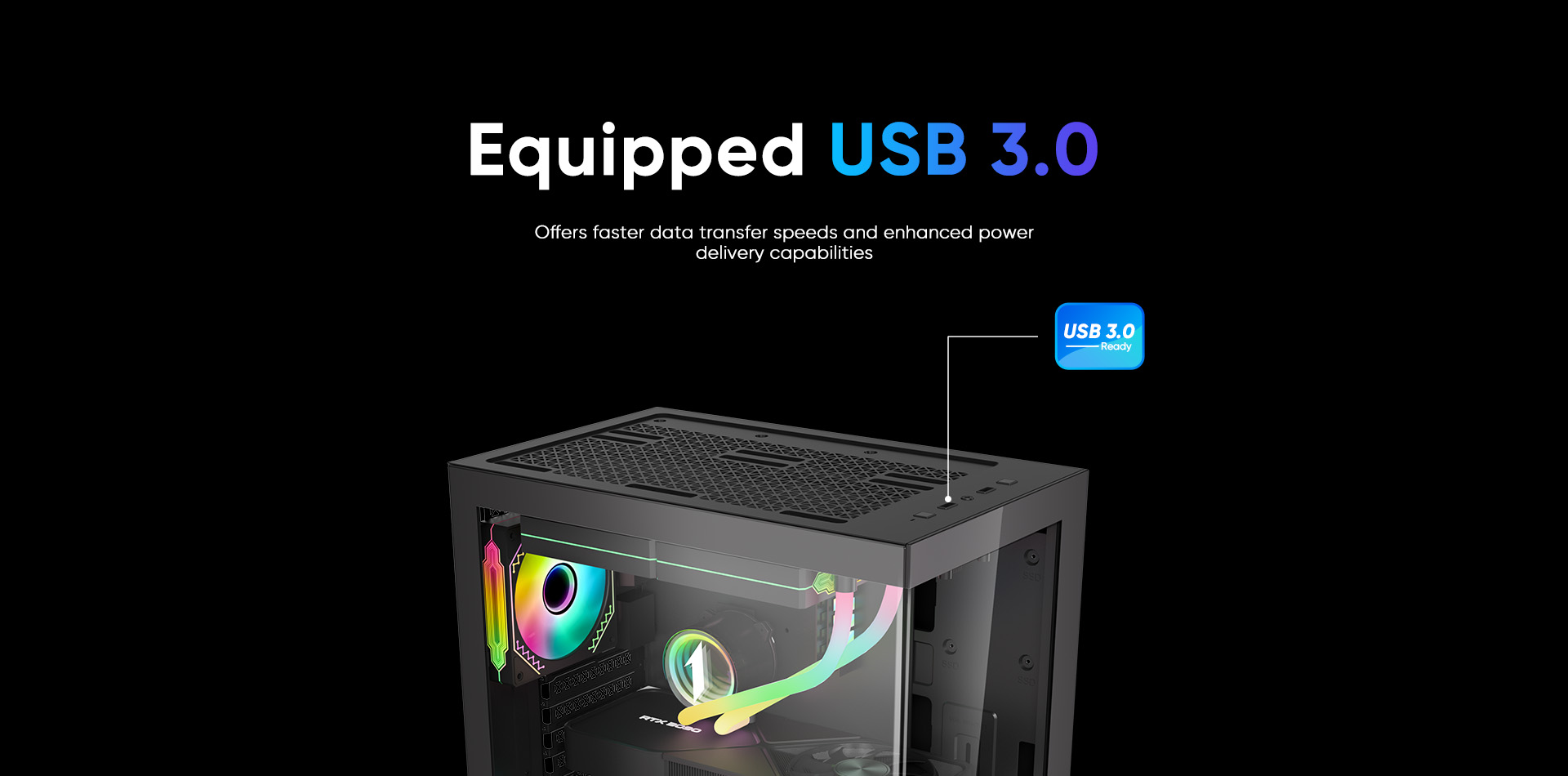

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 1 + HD AUDIO
PCI CARD SLOT
7
FAN SUPPORT
Top: 2 x 12 cm / 2 x 14 cm
Rear: 1 x 12 cm / 1 x 14 cm
Bottom：2 x 12 cm / 1 x 14 cm

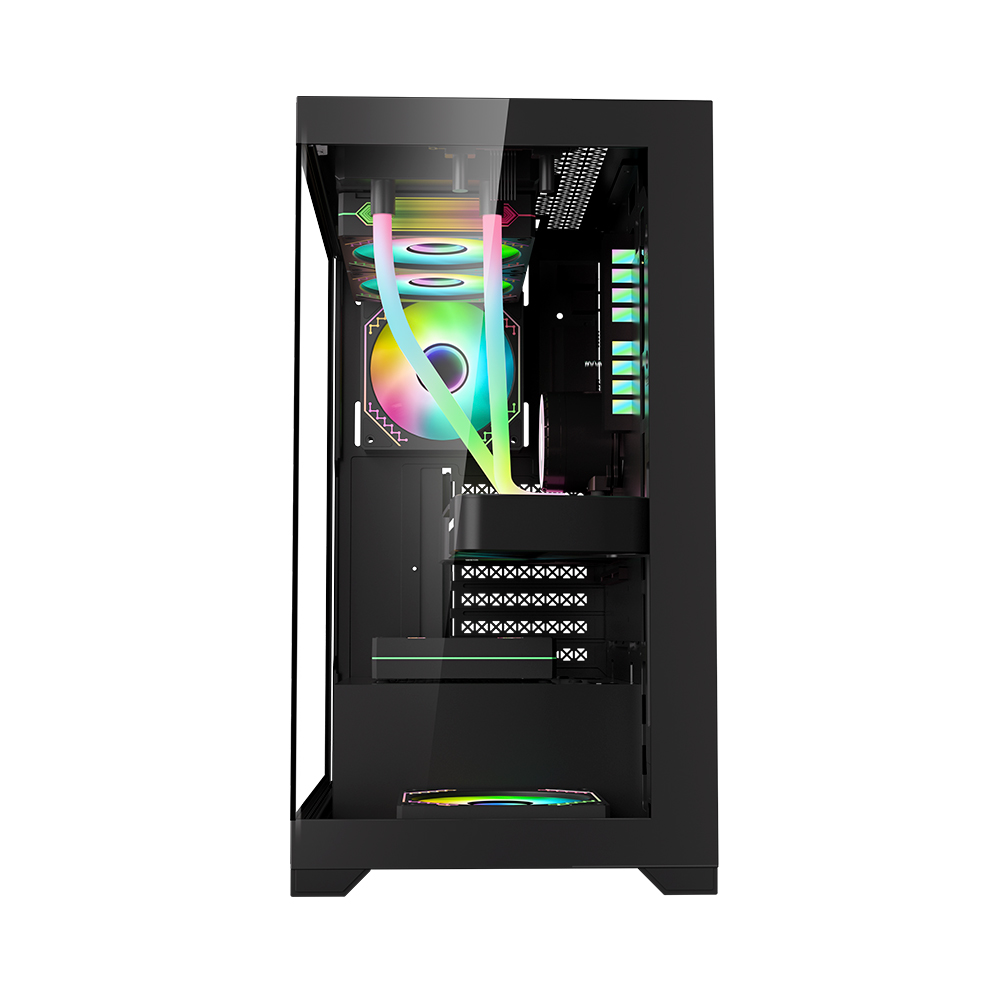

LIQUID COOLING SUPPORT
Top: 24 cm（Ram Max H 40 mm）
POWER SUPPLY SUPPORT
Bottom mount
WEIGHT
N.W.: 5.2 kg
G.W.: 6.4 kg
