Support installation of up to 8 fans
Support CPU cooler height up to 160 mm
Support GPU length up to 340 mm
Support a 360 mm radiator at the front
Support up to 4 drive bays: 2 x 3.5" HDD + 2 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.
Black
MODEL
B3
STRUCTURE DIMENSIONS (L x W x H)
350 x 195 x 435 mm
PRODUCT DIMENSIONS (L x W x H)
385 x 195 x 447 mm
PACKAGE DIMENSIONS (L x W x H)
490 x 240 x 450 mm
STRUCTURE THICKNESS
0.45 mm
MATERIALS
SPCC 0.45 mm

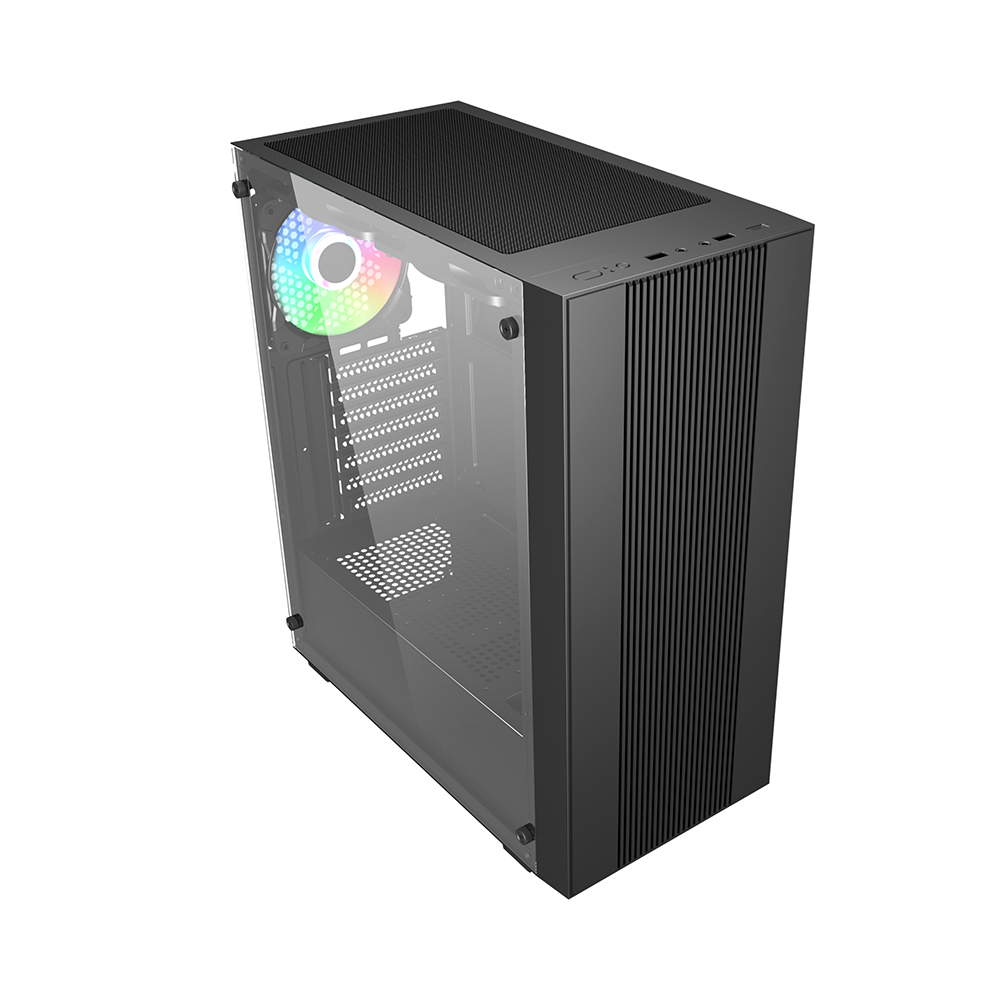

Left Panel: Tempered glass
FORM FACTOR
ATX / M-ATX / Mini-ITX
5.25" CD ROM: 0
3.5" HDD: 2 + 2.5" SSD: 2
3.5" HDD: 1 + 2.5" SSD: 3
CPU MAX HEIGHT
160 mm
GPU MAX LENGTH
340 mm
I/O PANEL
USB 2.0 x 2 + USB 3.0 x 1 + HD AUDIO
PCI CARD SLOT
7
FAN SUPPORT
Front: 3 x 12 cm
Top: 2 x 12 cm
Rear: 1 x 12 cm
Bottom: 2 x 12 cm
LIQUID COOLING SUPPORT
Front: 360 mm / 240 mm
POWER SUPPLY SUPPORT
WEIGHT
N.W.: 4.87 kg / G.W.: 4.09 kg
