Support installation of up to 4 fans

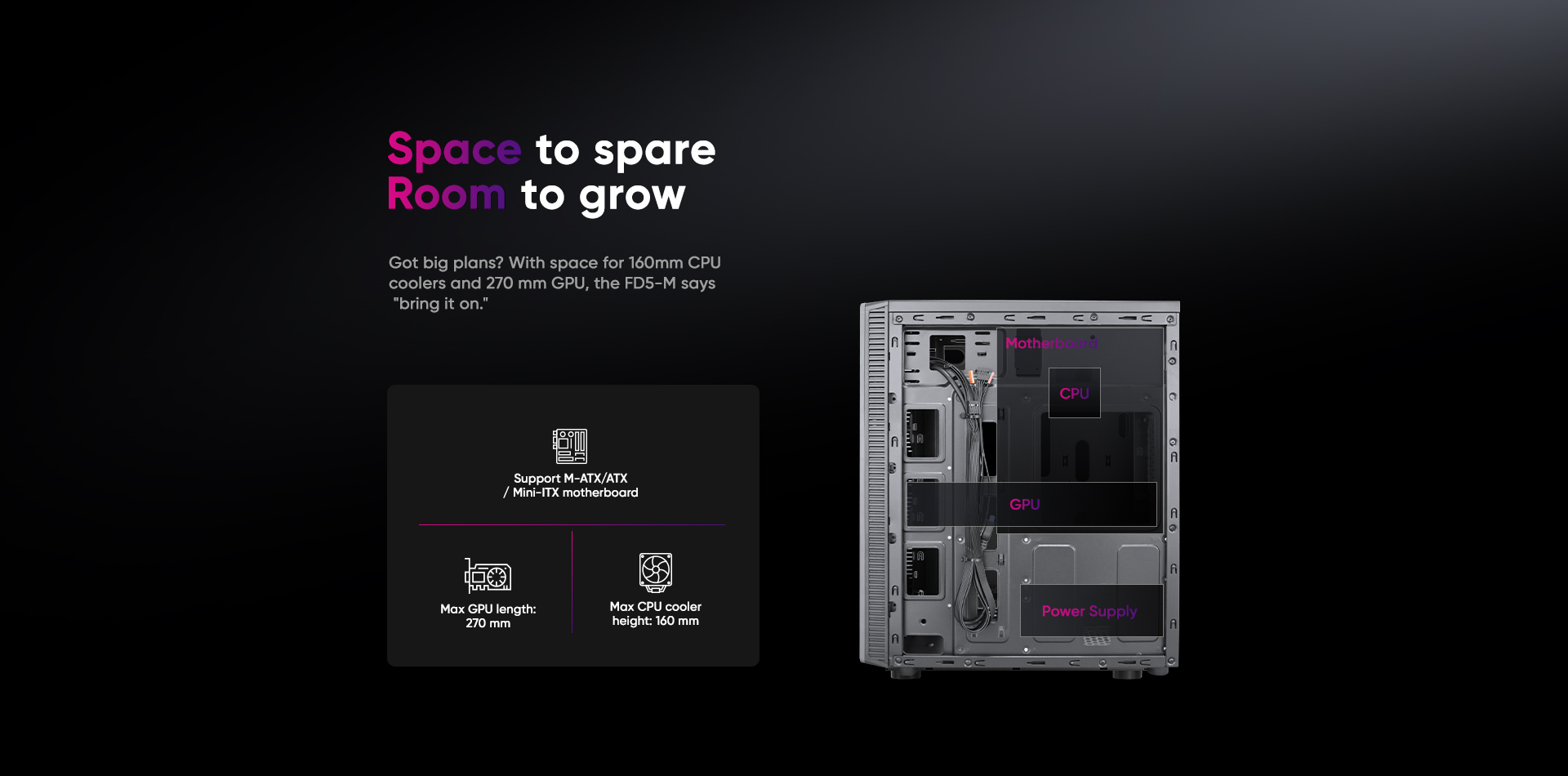

Support CPU cooler height up to 160 mm
Support GPU length up to 270 mm

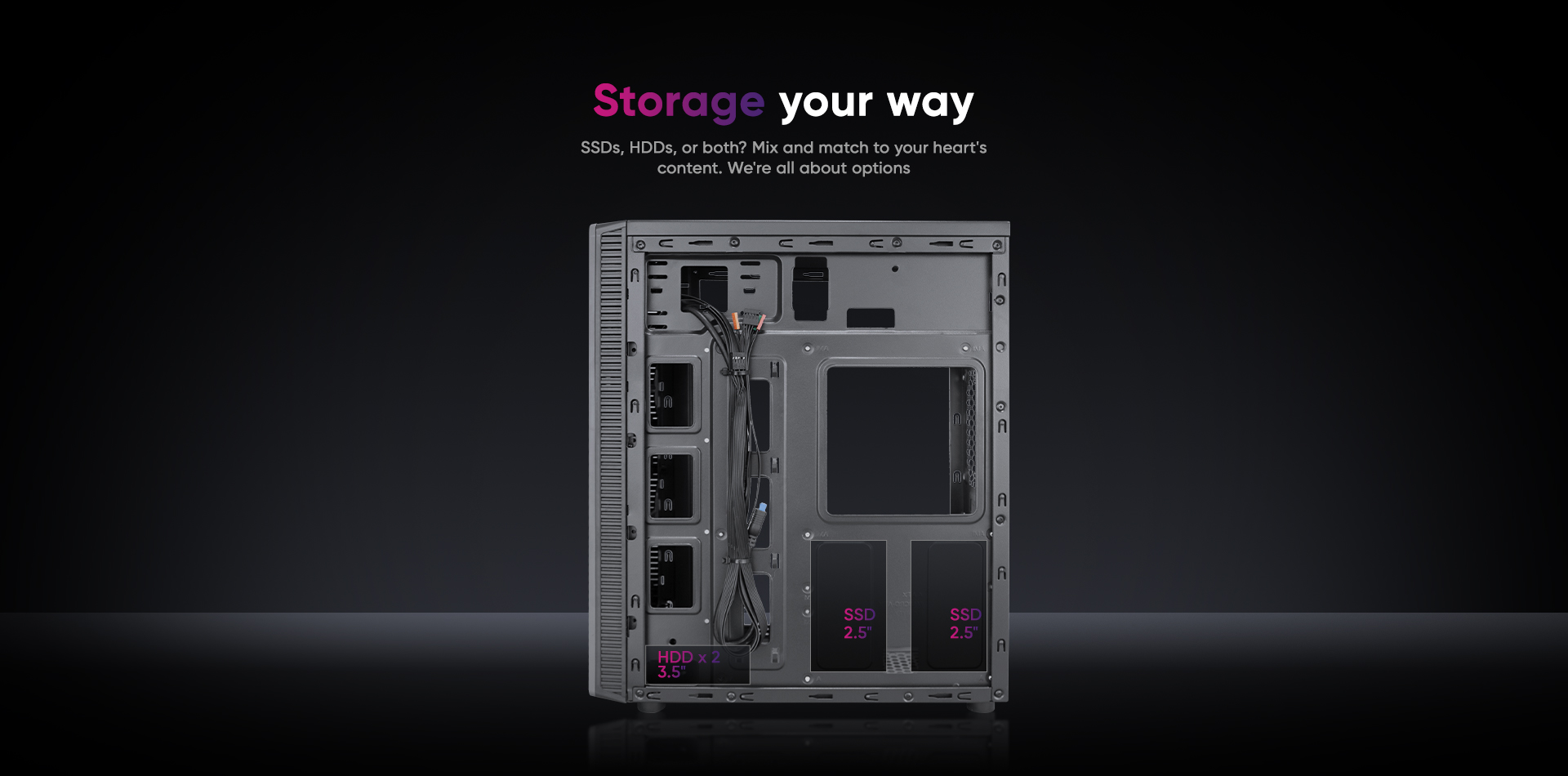

Support up to 3 drive bays: 1 x 3.5" HDD + 2 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.
Black

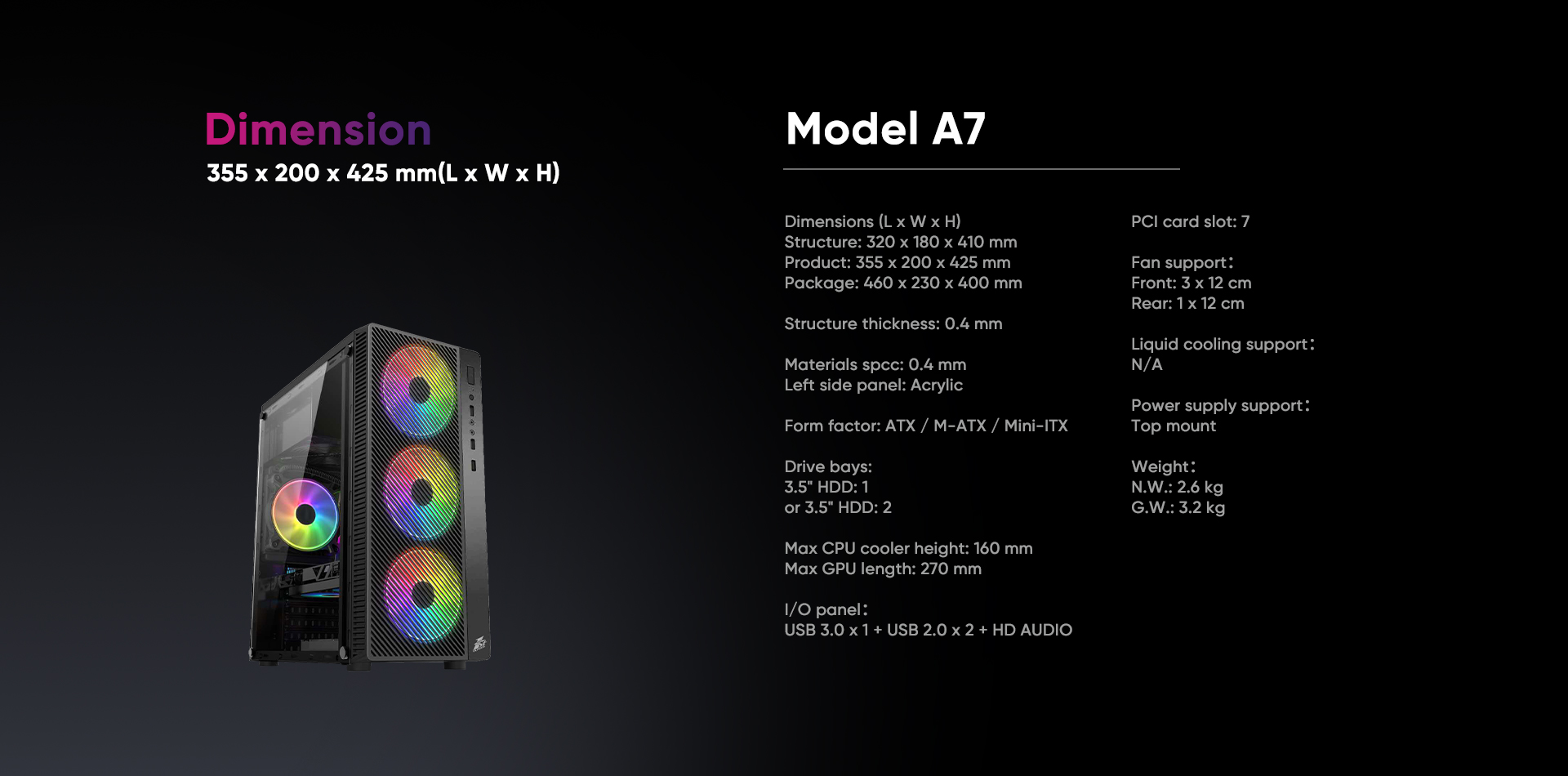

MODEL
A7
STRUCTURE DIMENSIONS (L x W x H)
320 x 180 x 410 mm
PRODUCT DIMENSIONS (L x W x H)
355 x 200 x 425 mm
PACKAGE DIMENSIONS (L x W x H)
460 x 230 x 400 mm
STRUCTURE THICKNESS
0.4 mm
MATERIALS
SPCC 0.4 mm

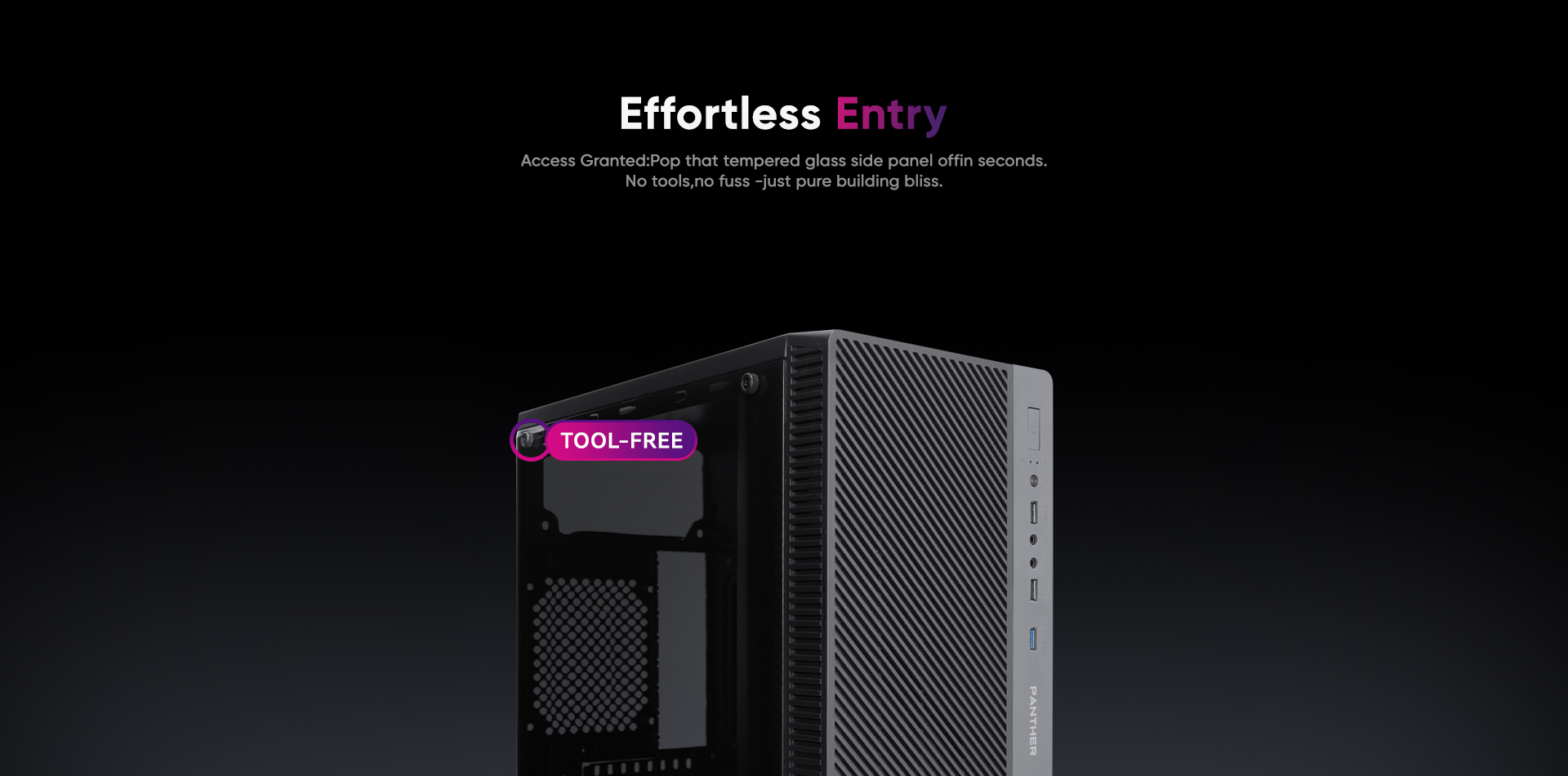

Left Panel: Acrylic
FORM FACTOR
ATX / M-ATX / Mini-ITX
5.25" CD ROM: 0
3.5" HDD: 1
2.5" SSD: 2
CPU MAX HEIGHT
160 mm
GPU MAX LENGTH
270 mm

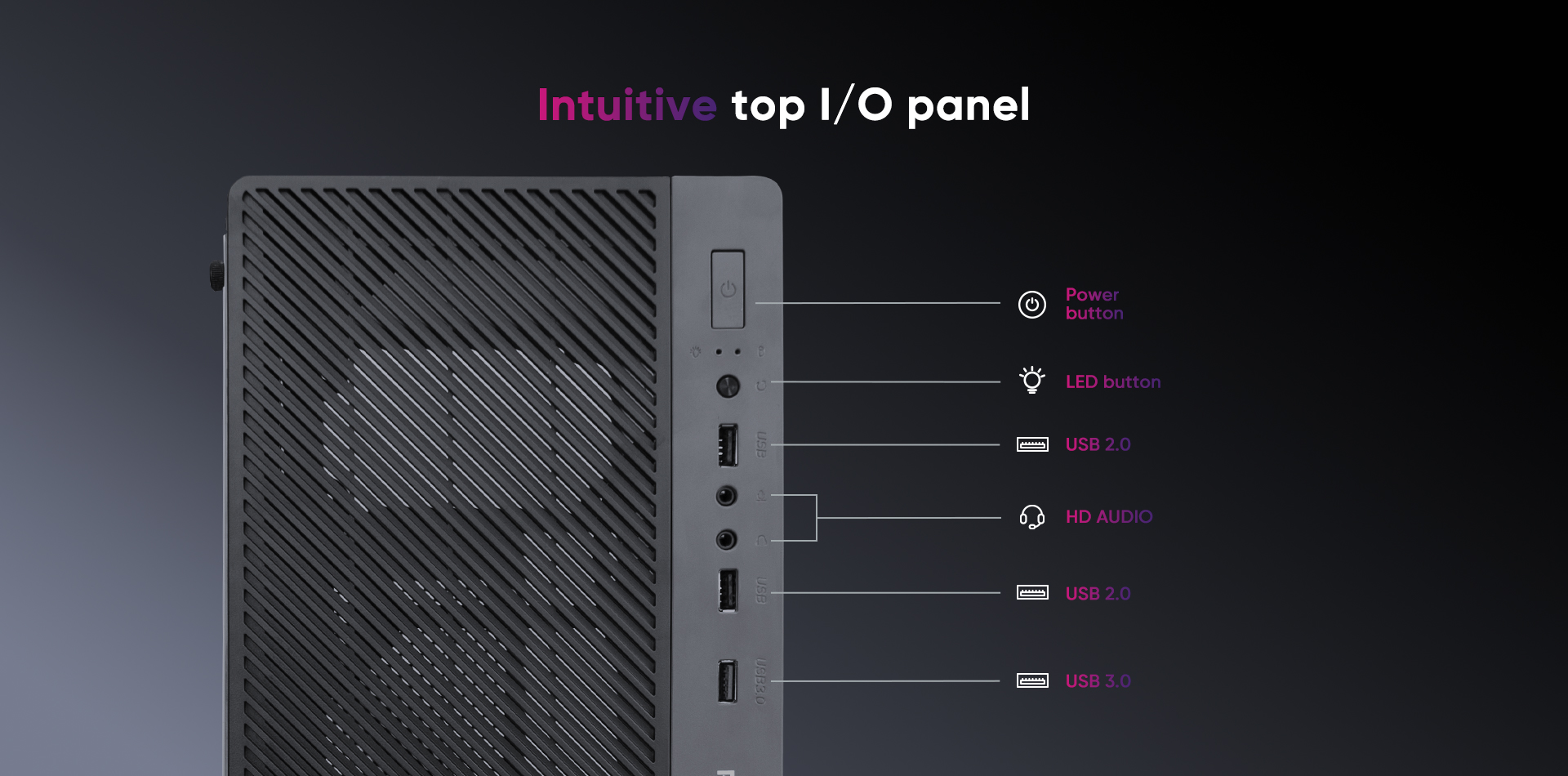

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO
PCI CARD SLOT
7

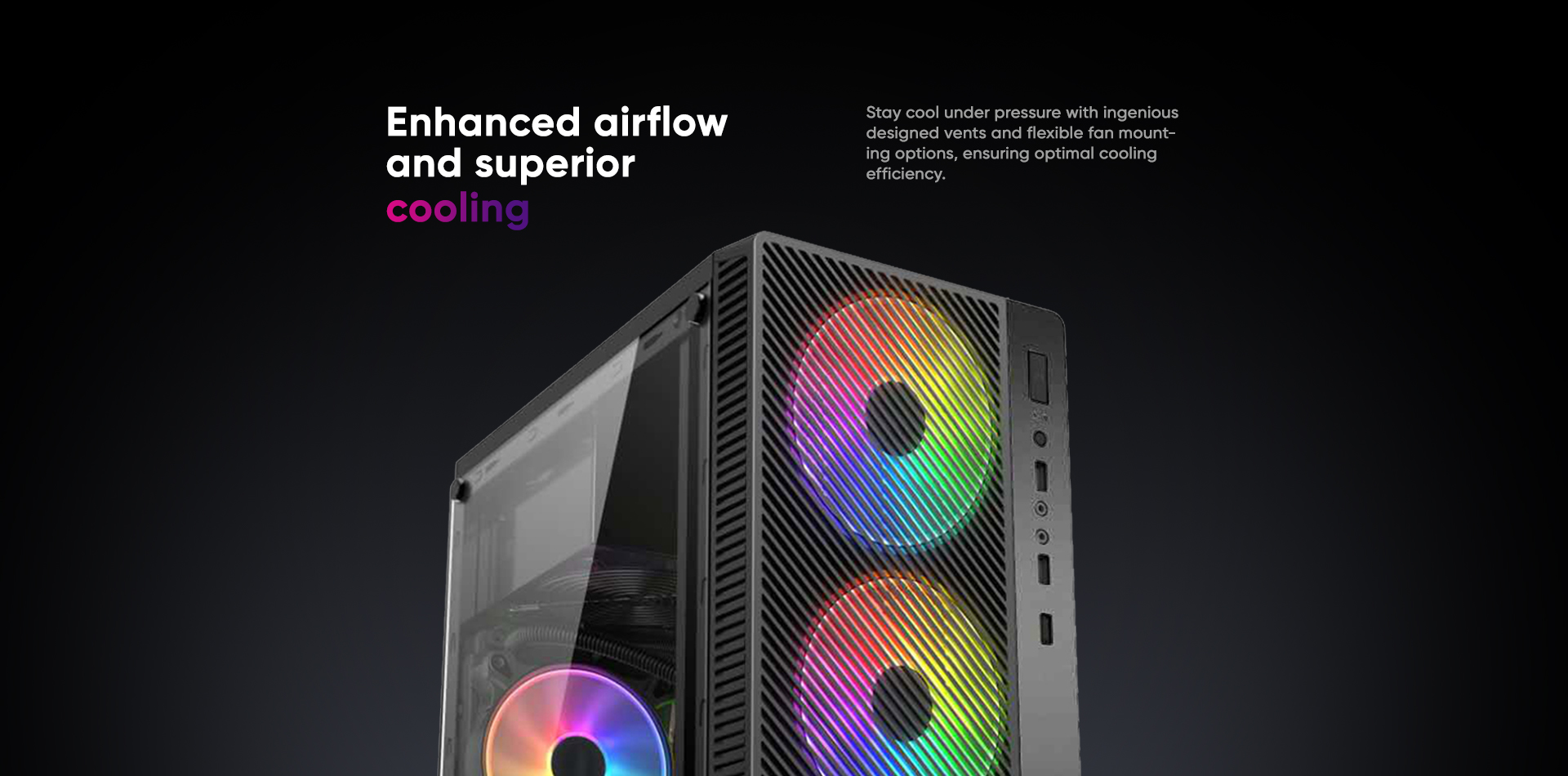

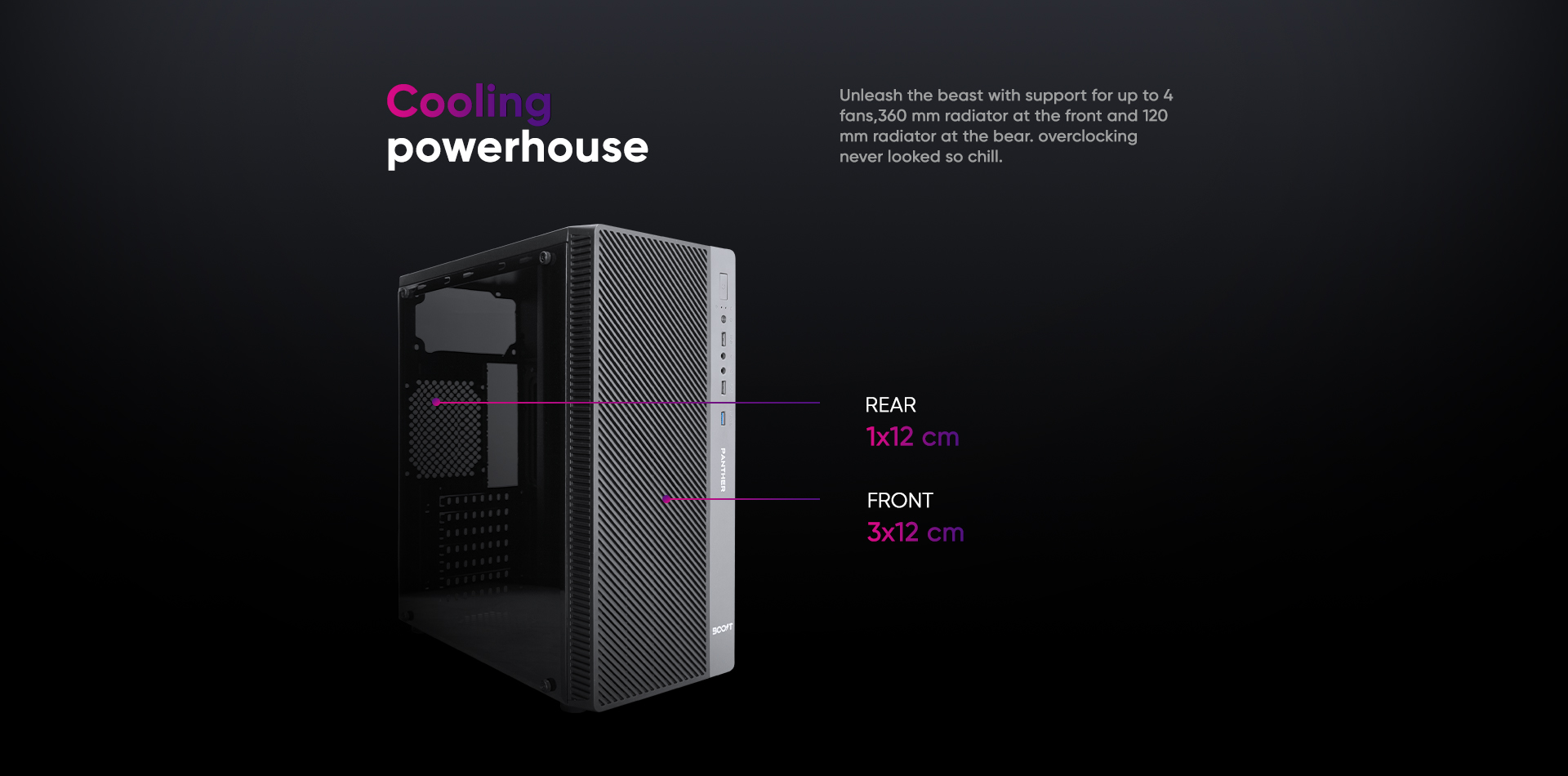

FAN SUPPORT
Front: 3 x 12 cm
Rear: 1 x 12 cm
LIQUID COOLING SUPPORT
N/A
POWER SUPPLY SUPPORT
Top mount
WEIGHT
N.W.: 2.6 kg
G.W.: 3.2 kg
