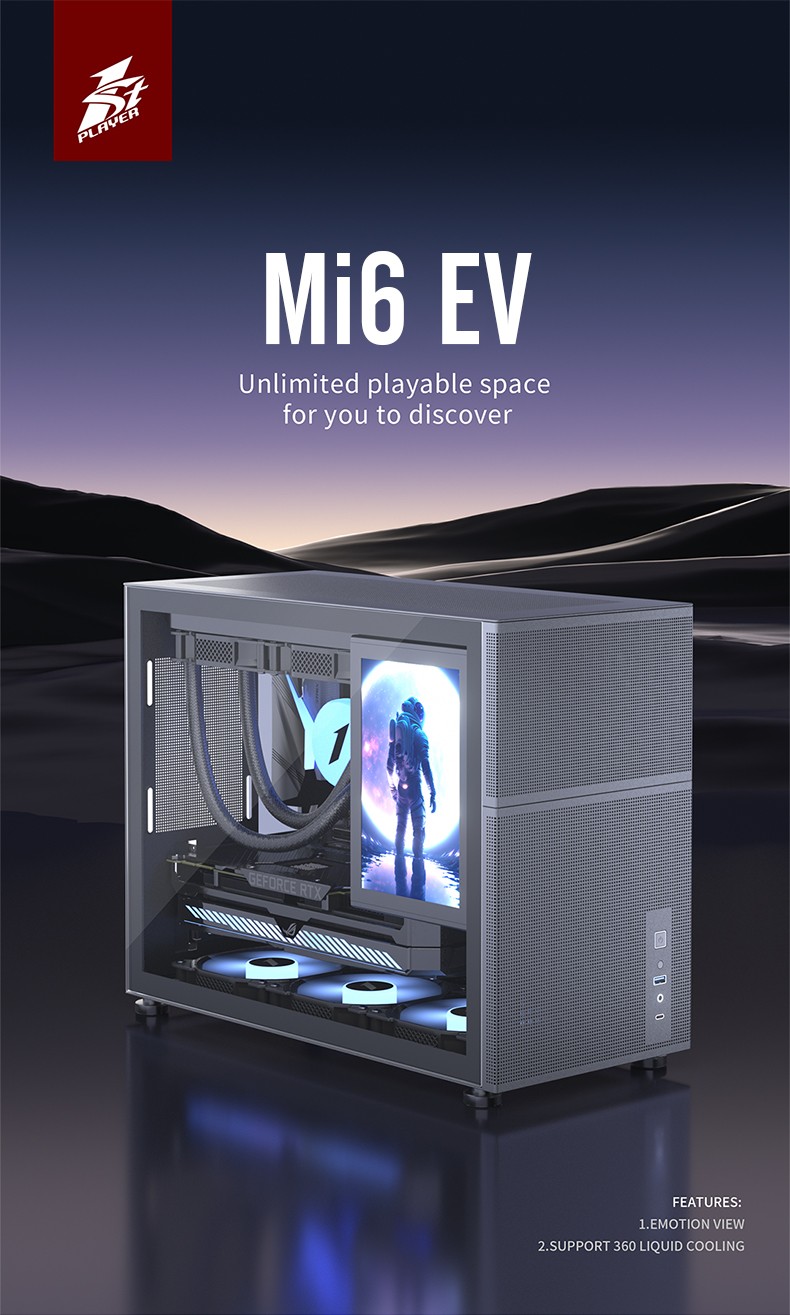

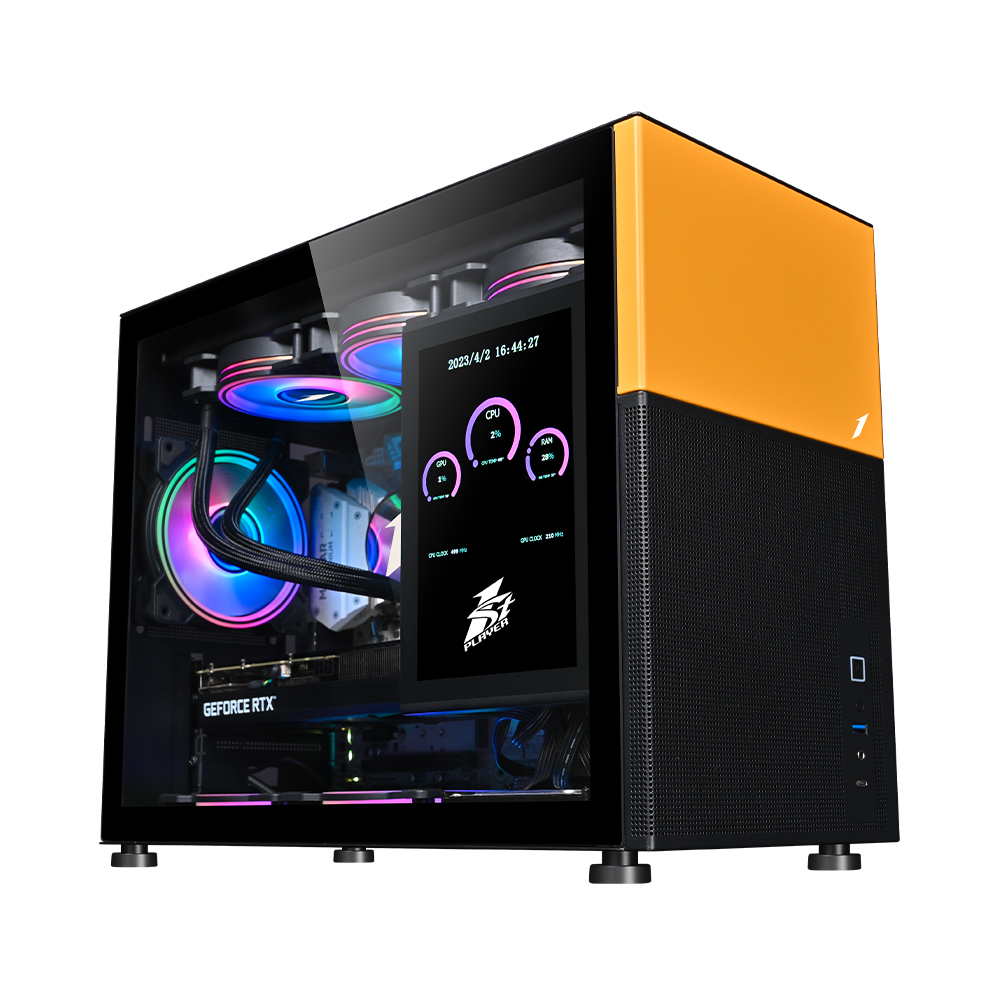

Mi6-EV

MIKU

  • Support installation of up to 6 fans

  • Support CPU cooler height up to 165 mm

  • Support GPU length up to 410 mm

  • Support a 360 mm radiator at the top

  • Support up to 2 drive bays: 1 x 3.5" HDD + 1 x 2.5" SSD

    *Computer parts are not included. Cooling fan may vary among different countries/regions.


Black

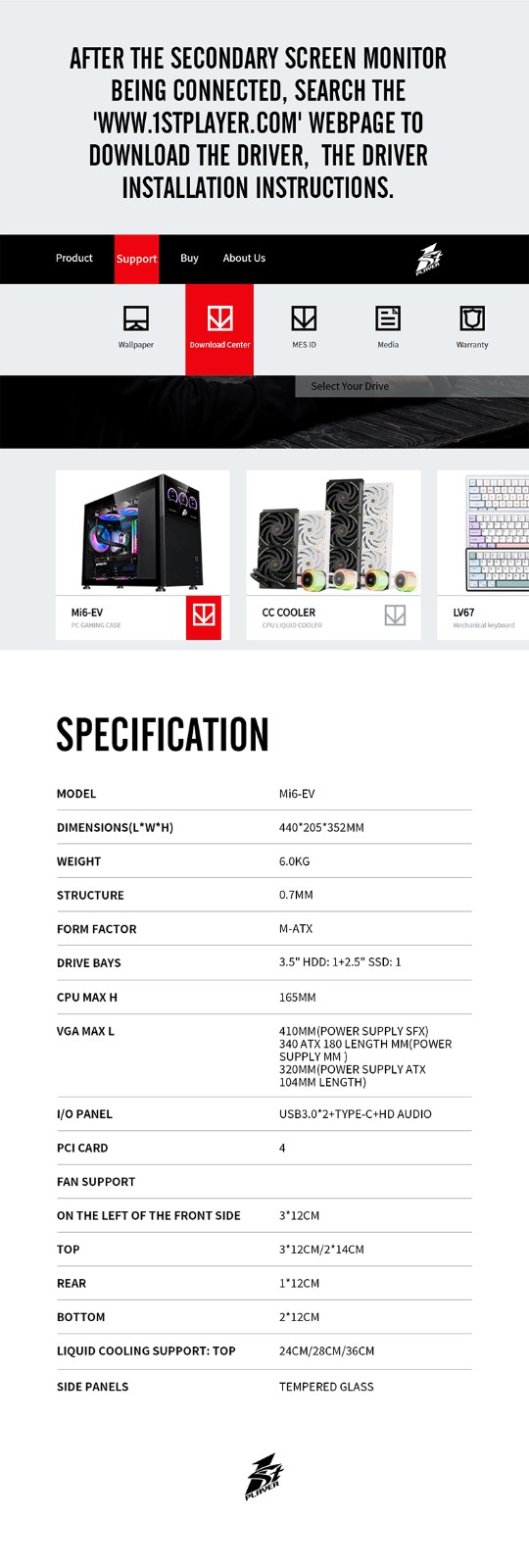

MODEL

Mi6-EV

STRUCTURE DIMENSIONS (L x W x H)

425 x 205 x 352 mm

PRODUCT DIMENSIONS (L x W x H)

440 x 205 x 352 mm

PACKAGE DIMENSIONS (L x W x H)

410 x 270 x 510 mm

STRUCTURE THICKNESS

0.7 mm

MATERIALS

SPCC 0.7 mm

Left Panel:Tempered glass

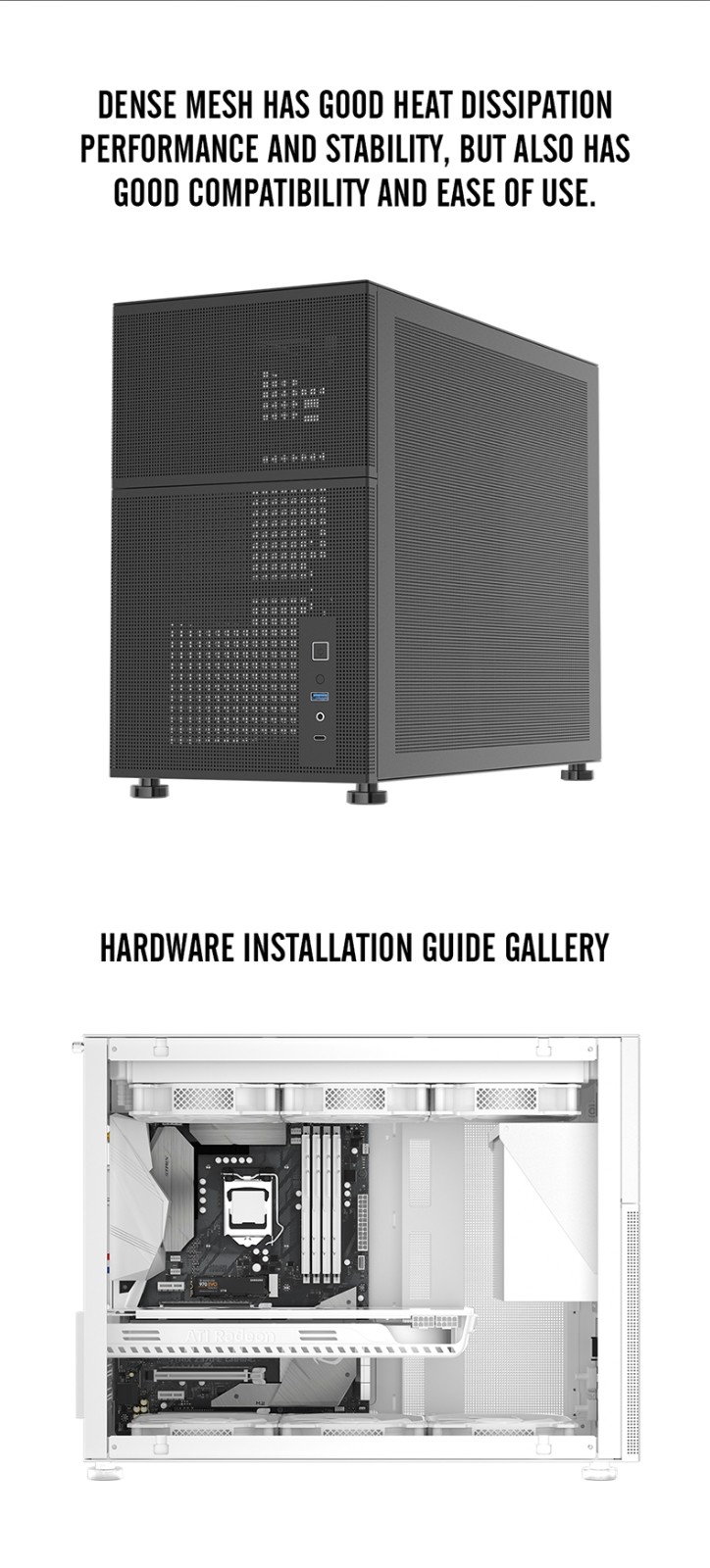

Front Panel: Metal mesh

FORM FACTOR

M-ATX / Mini-ITX

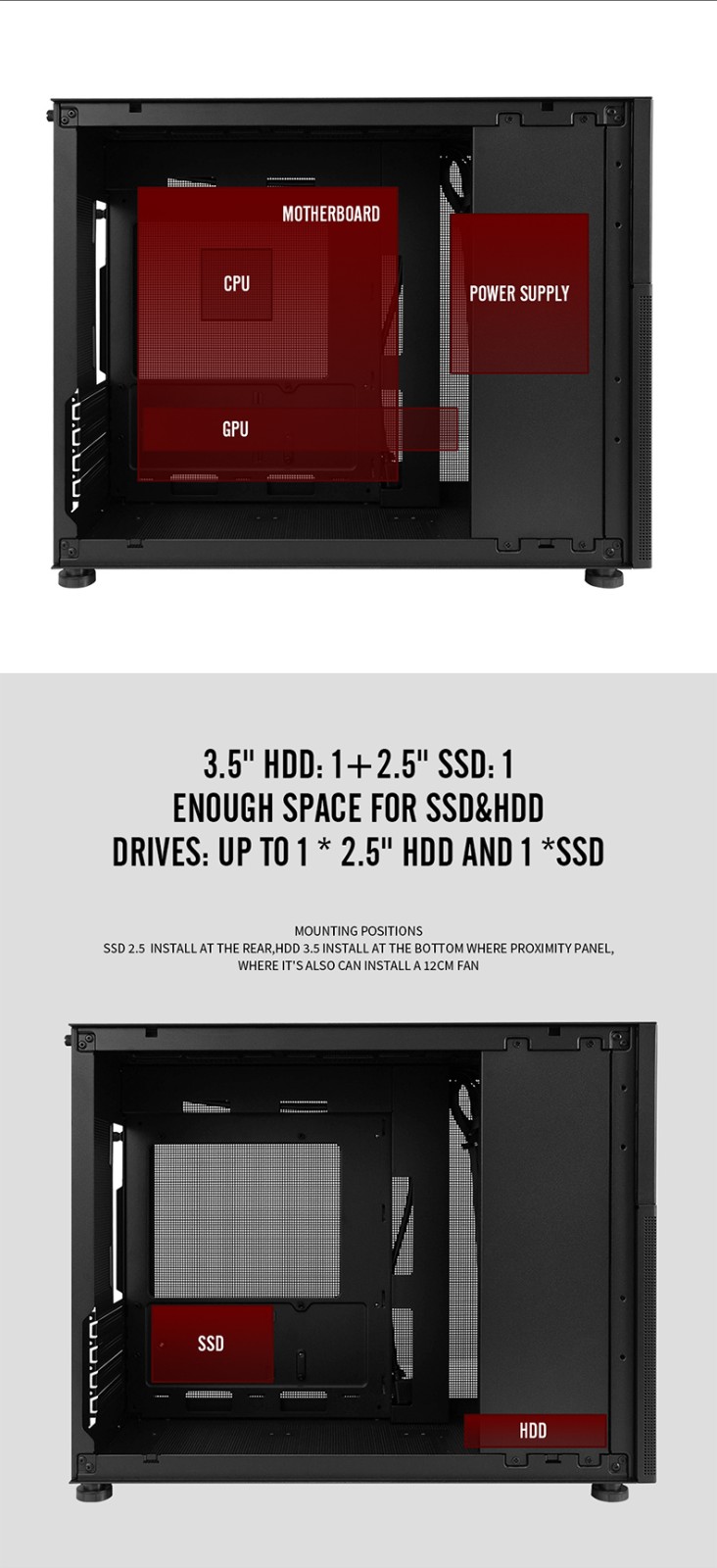

DRIVE BAYS

5.25" CD ROM: 0

3.5" HDD: 1 + 2.5" SSD: 1

3.5" HDD: 0 + 2.5" SSD: 2


CPU MAX HEIGHT

165 mm

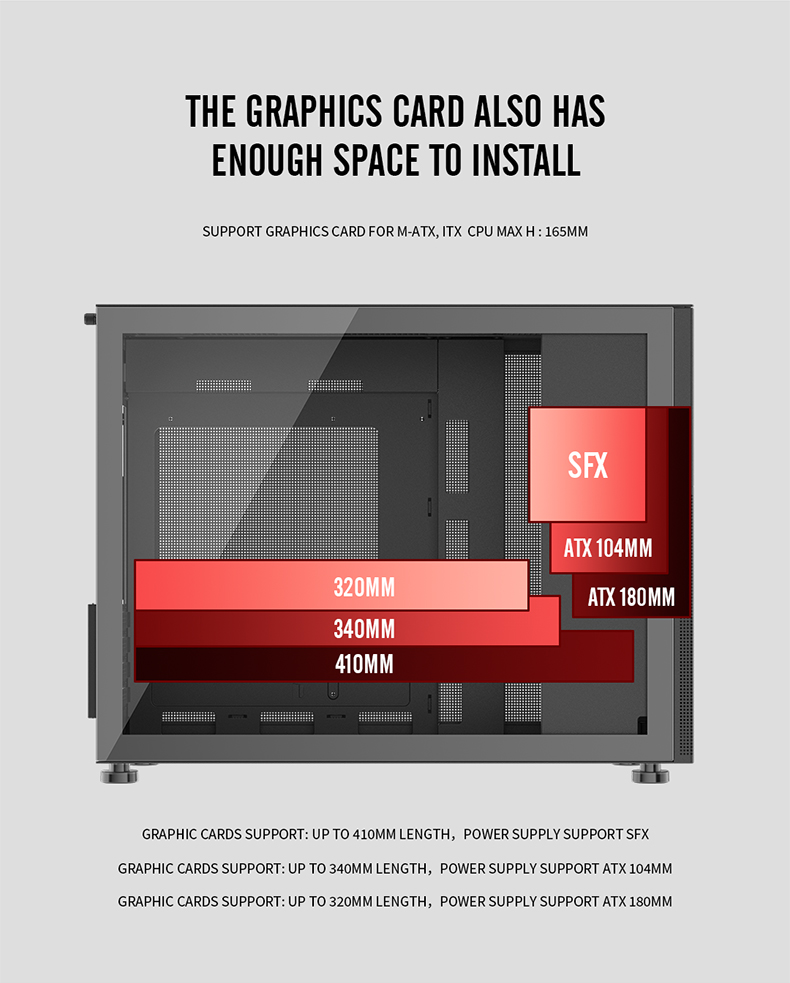

GPU MAX LENGTH

410 mm (w/ SFX PSU)

340 mm (w/ 180 mm PSU)

320 mm (POWER SUPPLY ATX 104MM LENGTH)

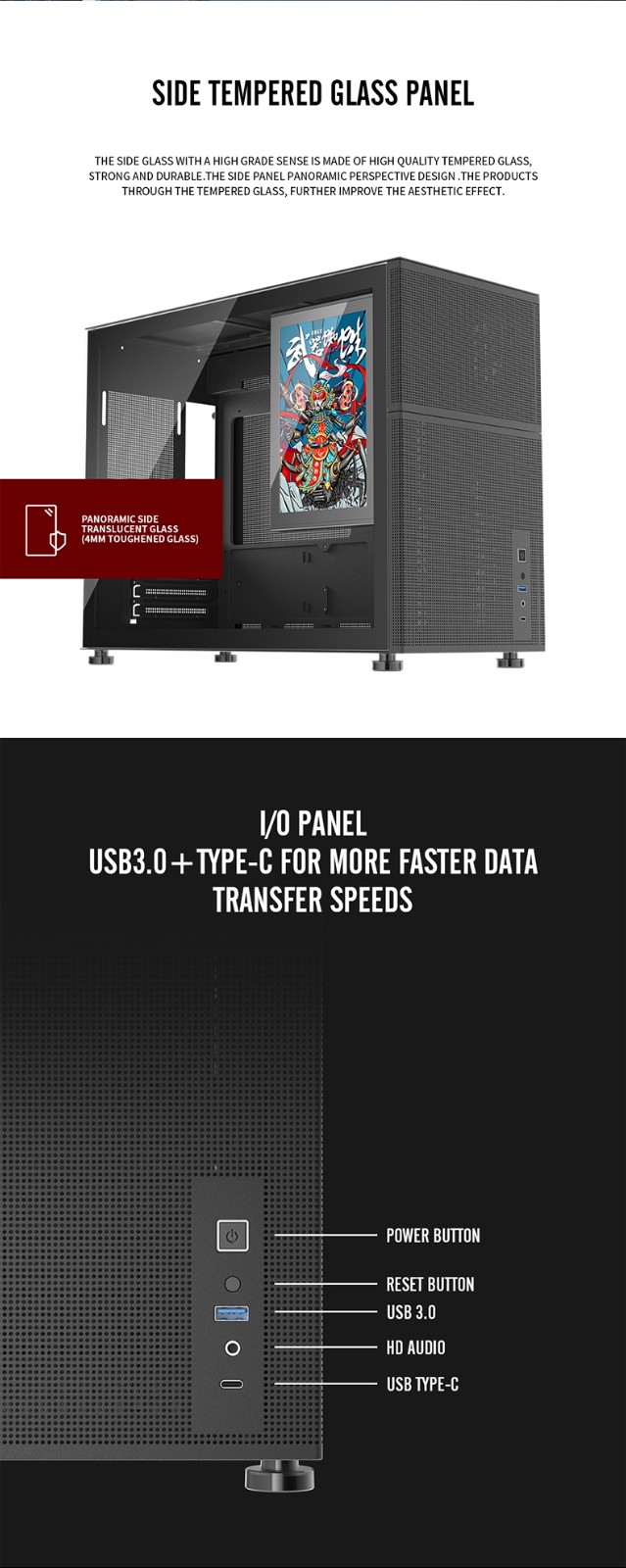

I/O PANEL

USB 3.0 x 1 + TYPE-C x 1 + HD AUDIO

PCI CARD SLOT

4

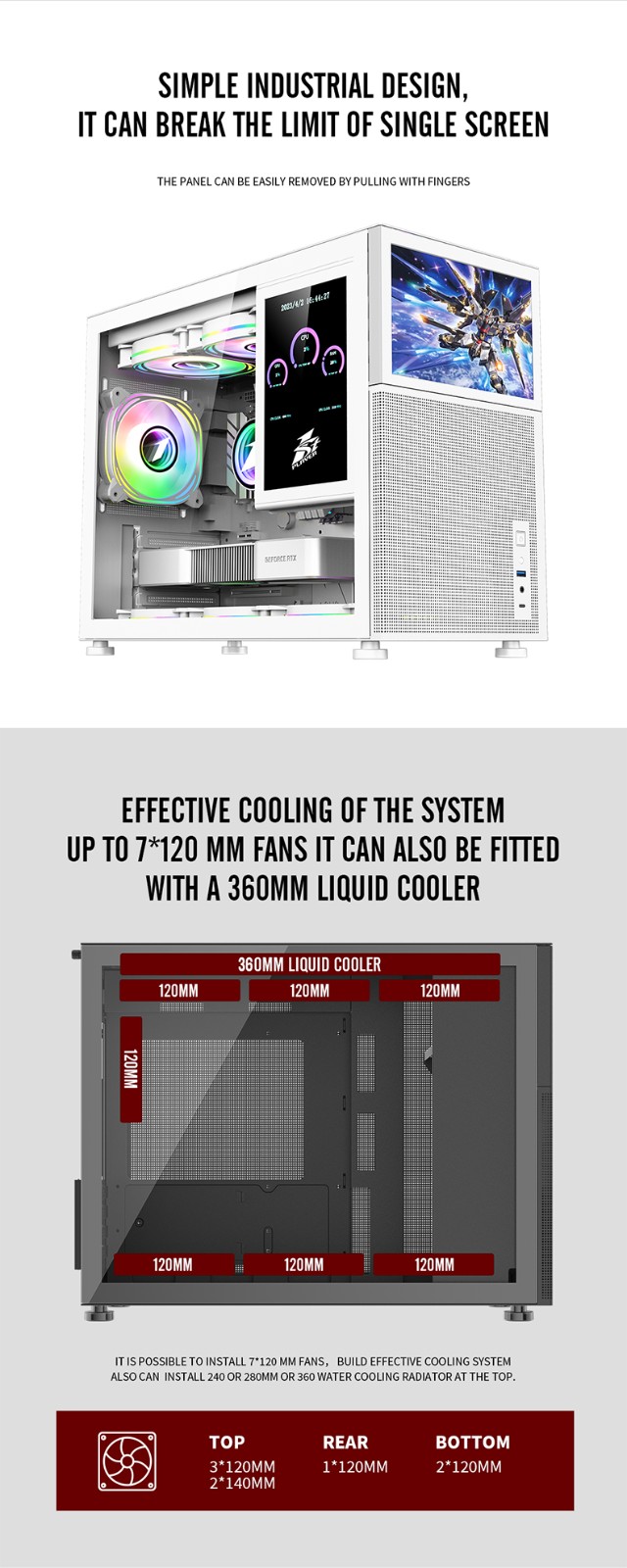

FAN SUPPORT

Top: 3 x 12 cm / 2 x 14 cm

Rear: 1 x 12 cm

Bottom: 2 x 12 cm

LIQUID COOLING SUPPORT

Top: 24 cm / 28 cm / 36 cm

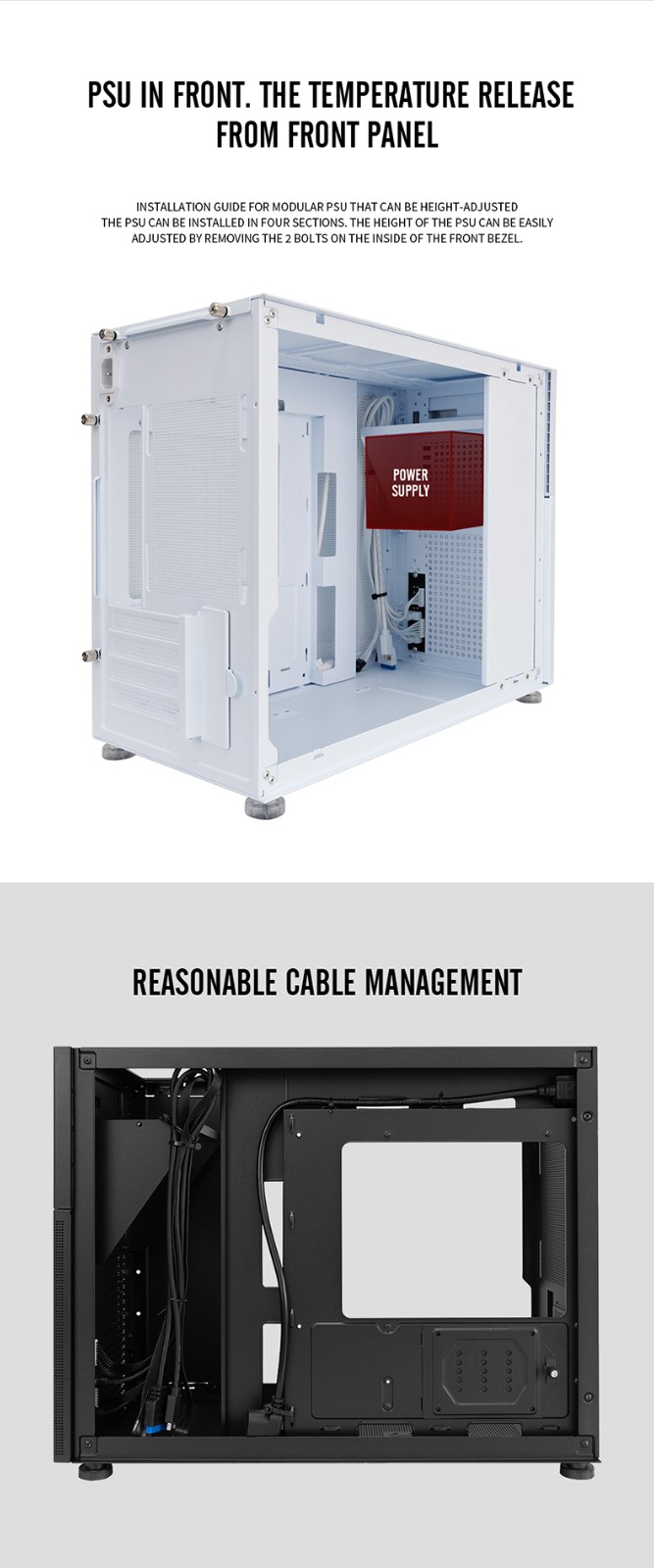

POWER SUPPLY SUPPORT

Top mount

NET WEIGHT

N.W.: 6.0 kg

GROSS WEIGHT

G.W.: 7.2 kg
