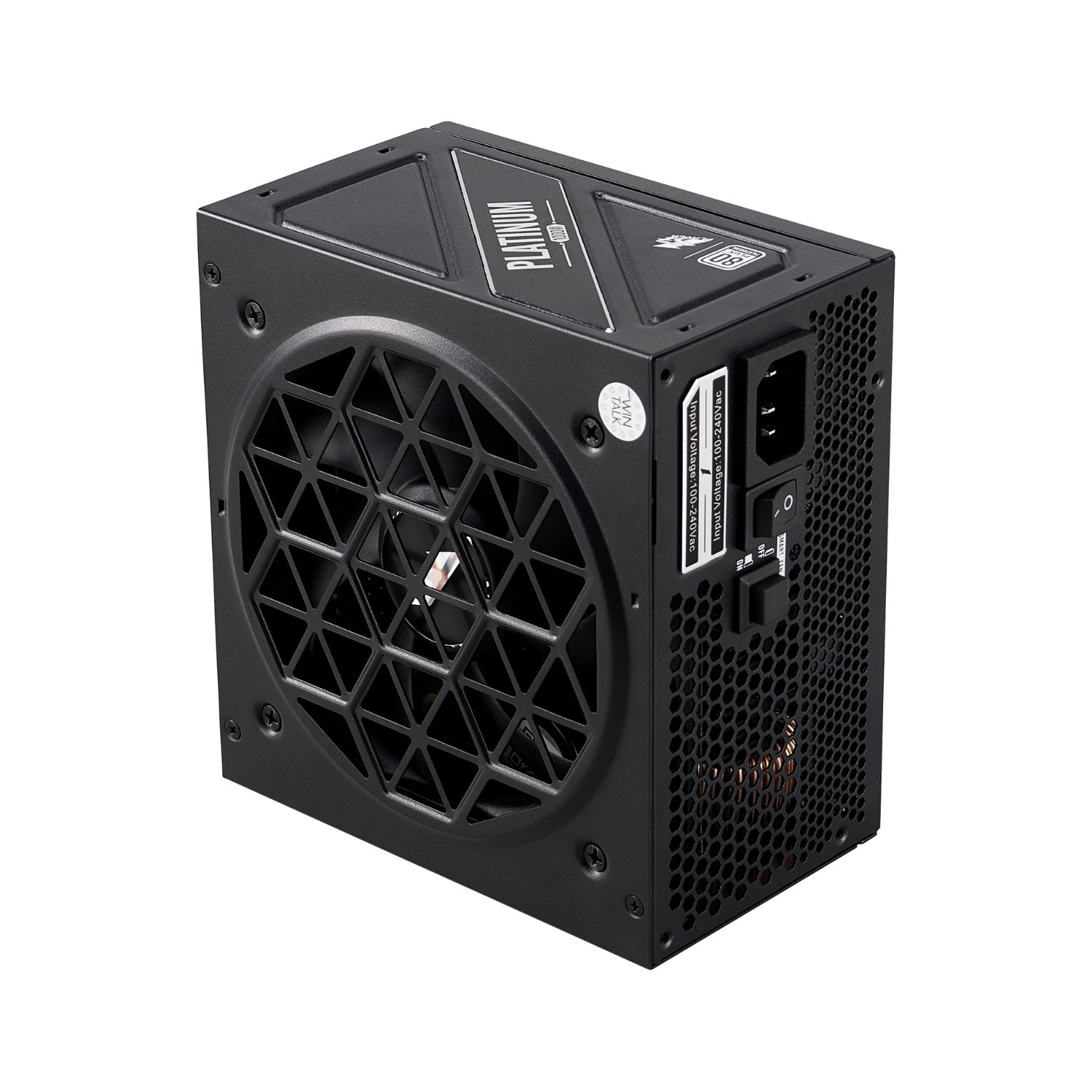

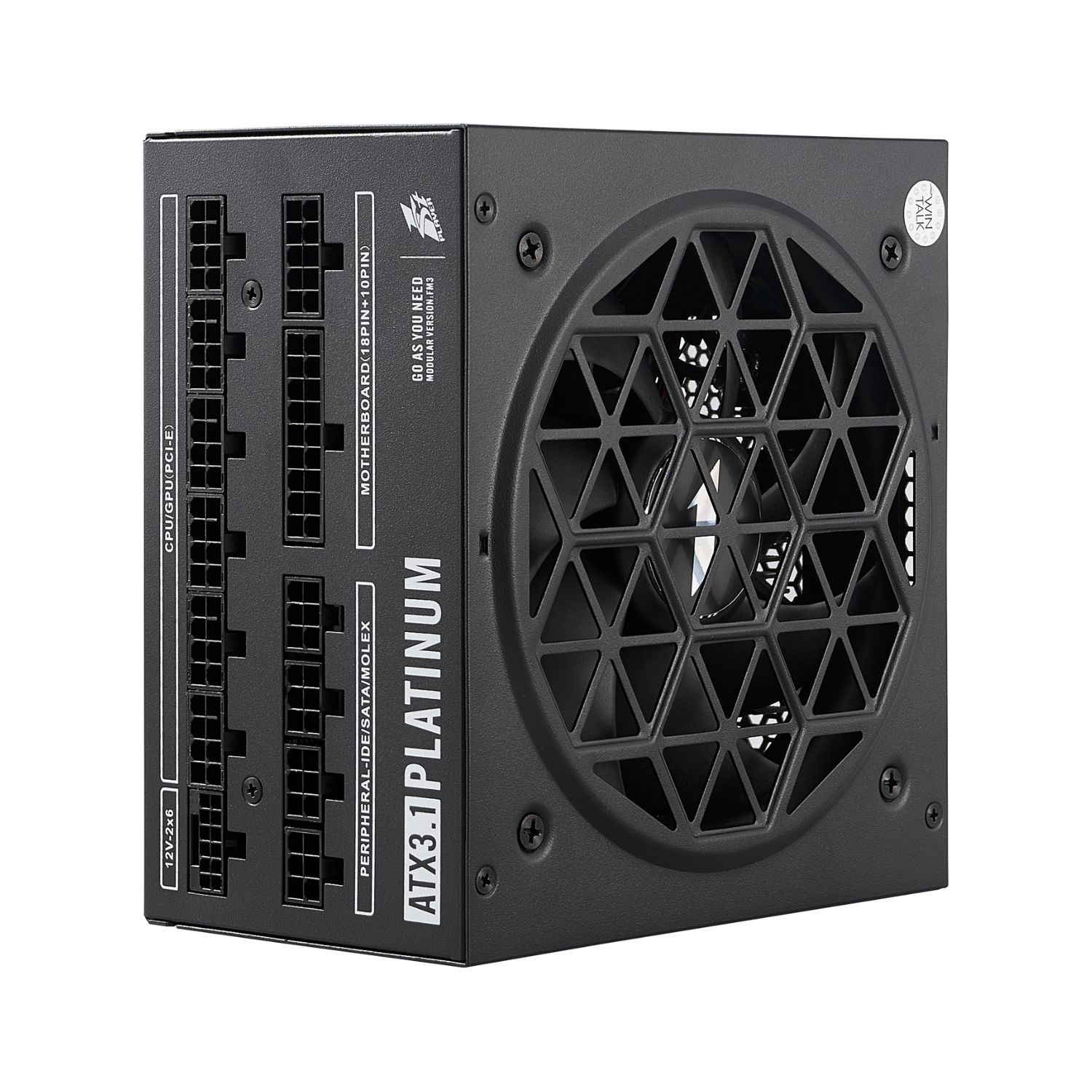

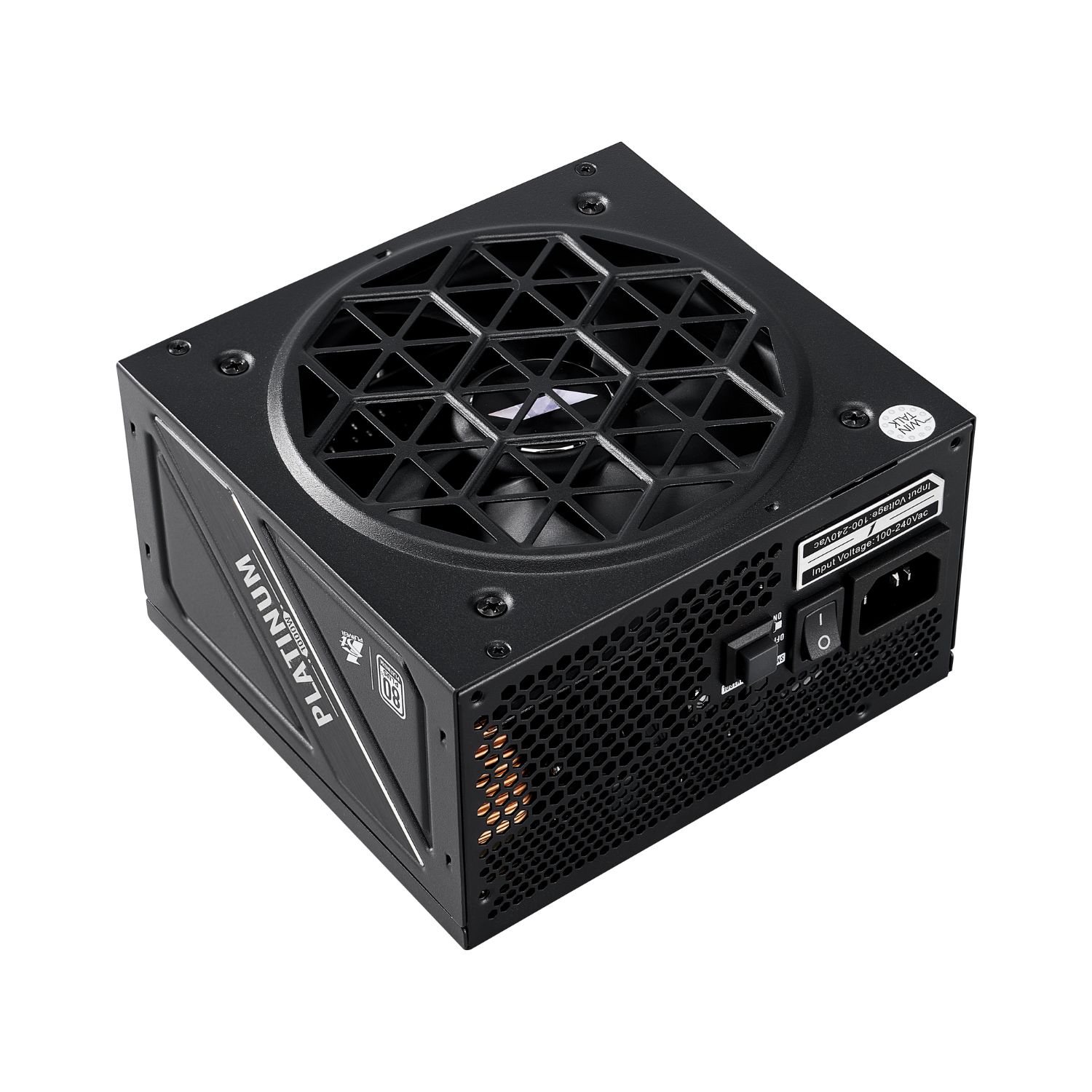

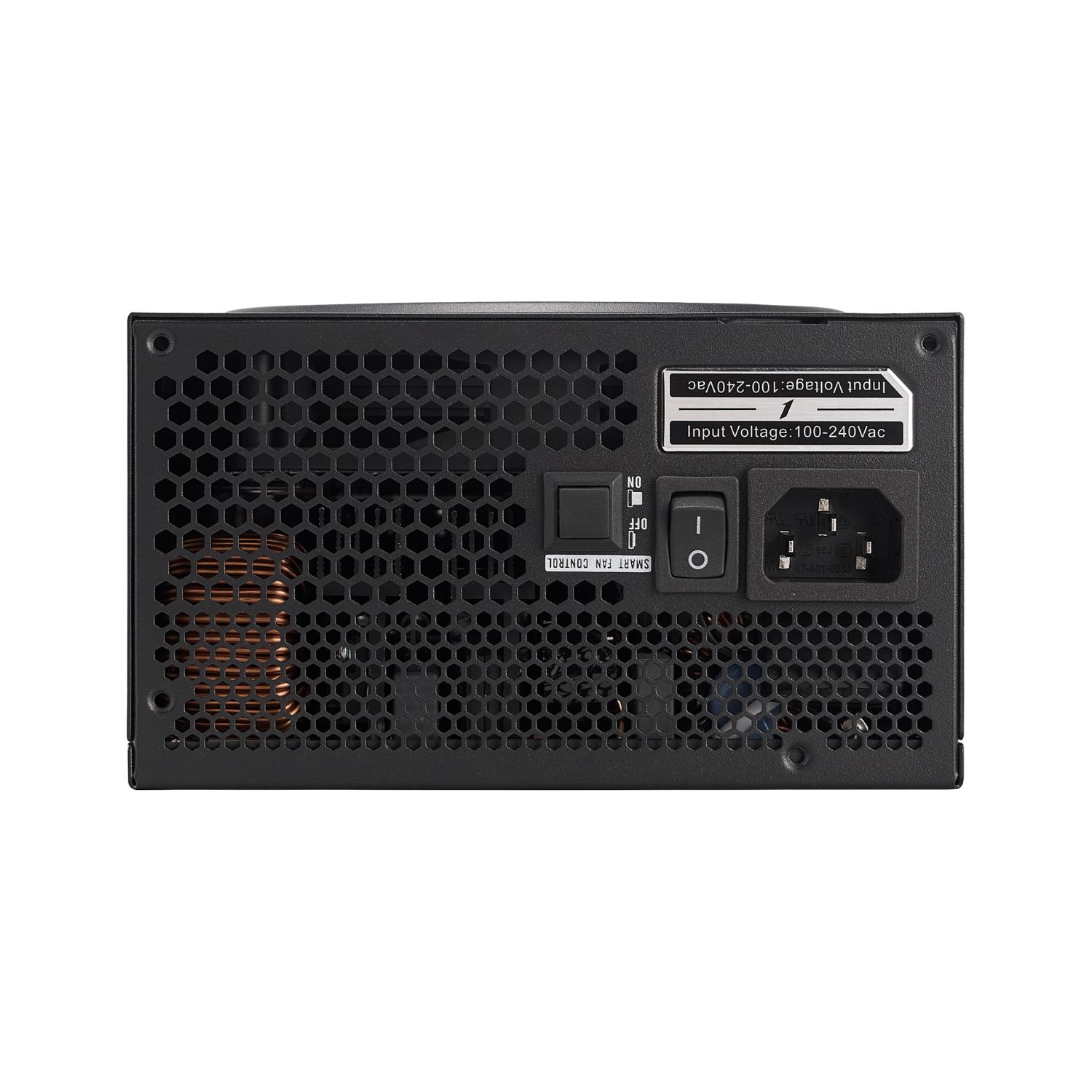

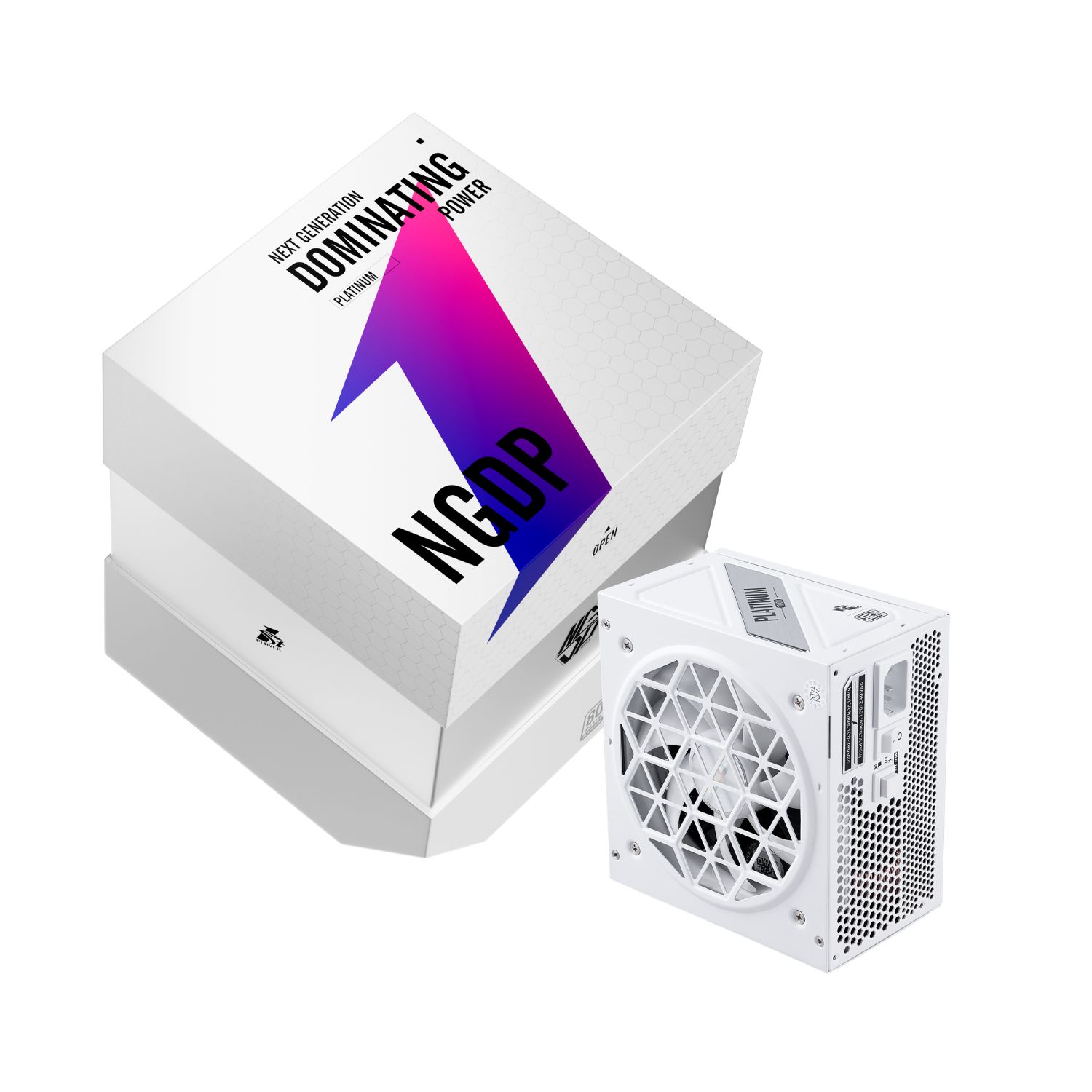

NGDP ATX 3.1 PLATINUM

  • 120 mm FDB fan that supports 0 RPM mode

  • Embossed Cable: Stylish, durable, and flexible

  • Fully Modular: Detachable cables for easy management

  • 80 PLUS and Cybenetics Platinum Certified: 91.01% efficiency at full load

  • Full Japanese electrolytic capacitors: Ensures reliability and longevity

  • Test report download via MES ID, quick access to individual test report

  • ATX 3.1 and PCIe 5.1 ready: Ensuring reliable power delivery to your high-performance graphics card

  • 10-year warranty

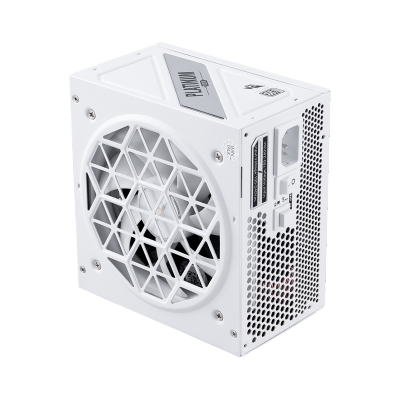

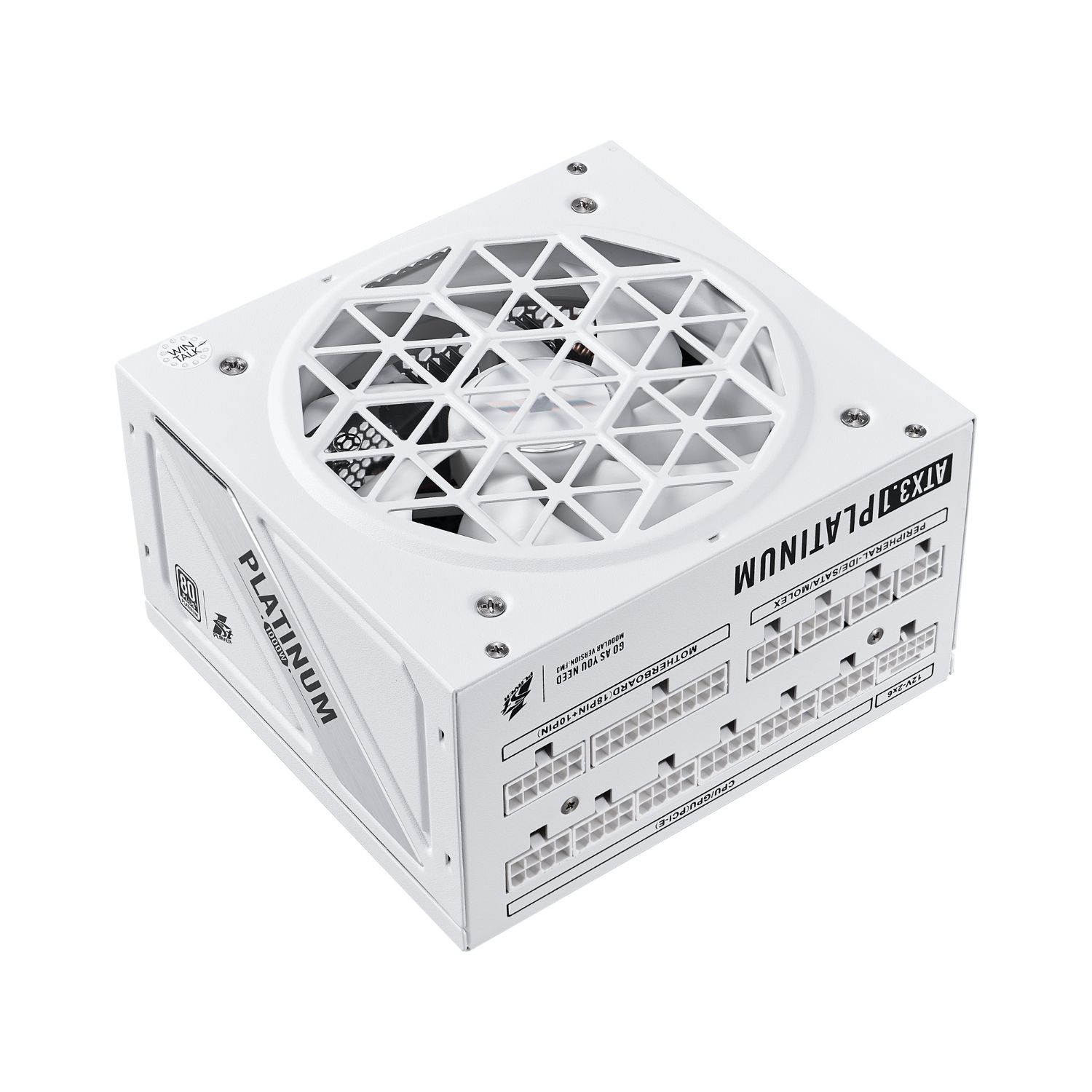

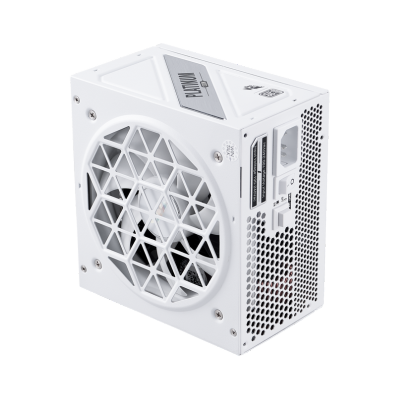

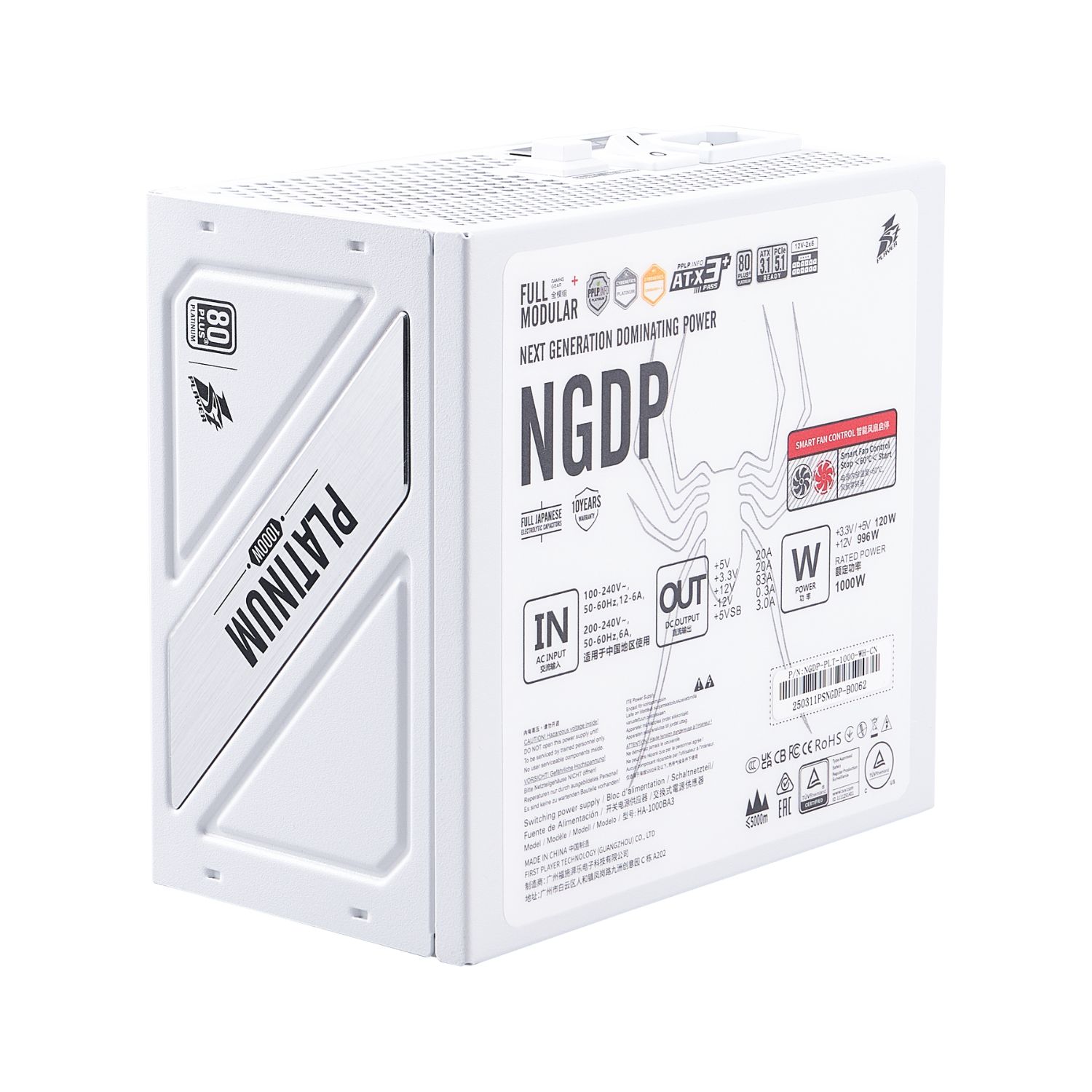

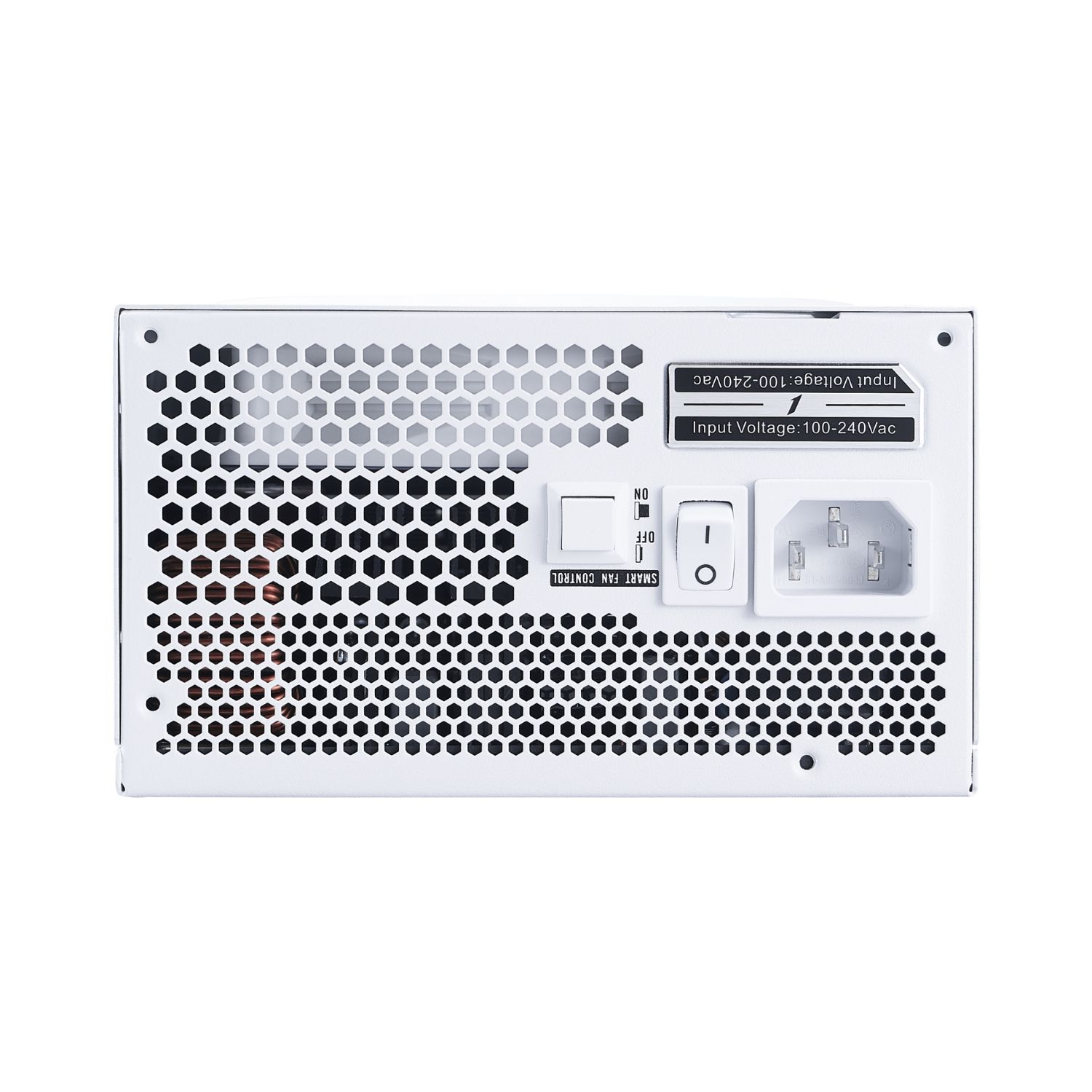

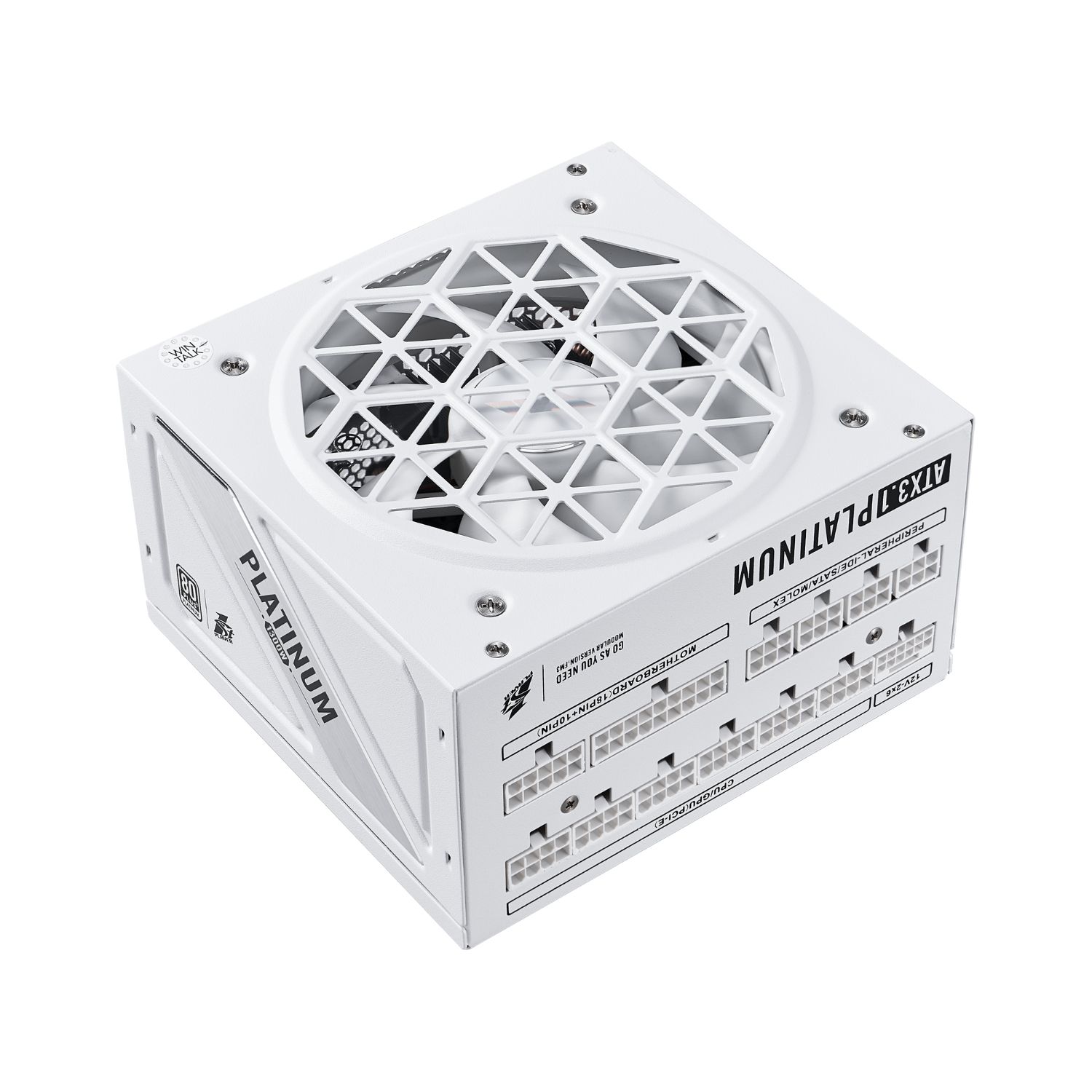

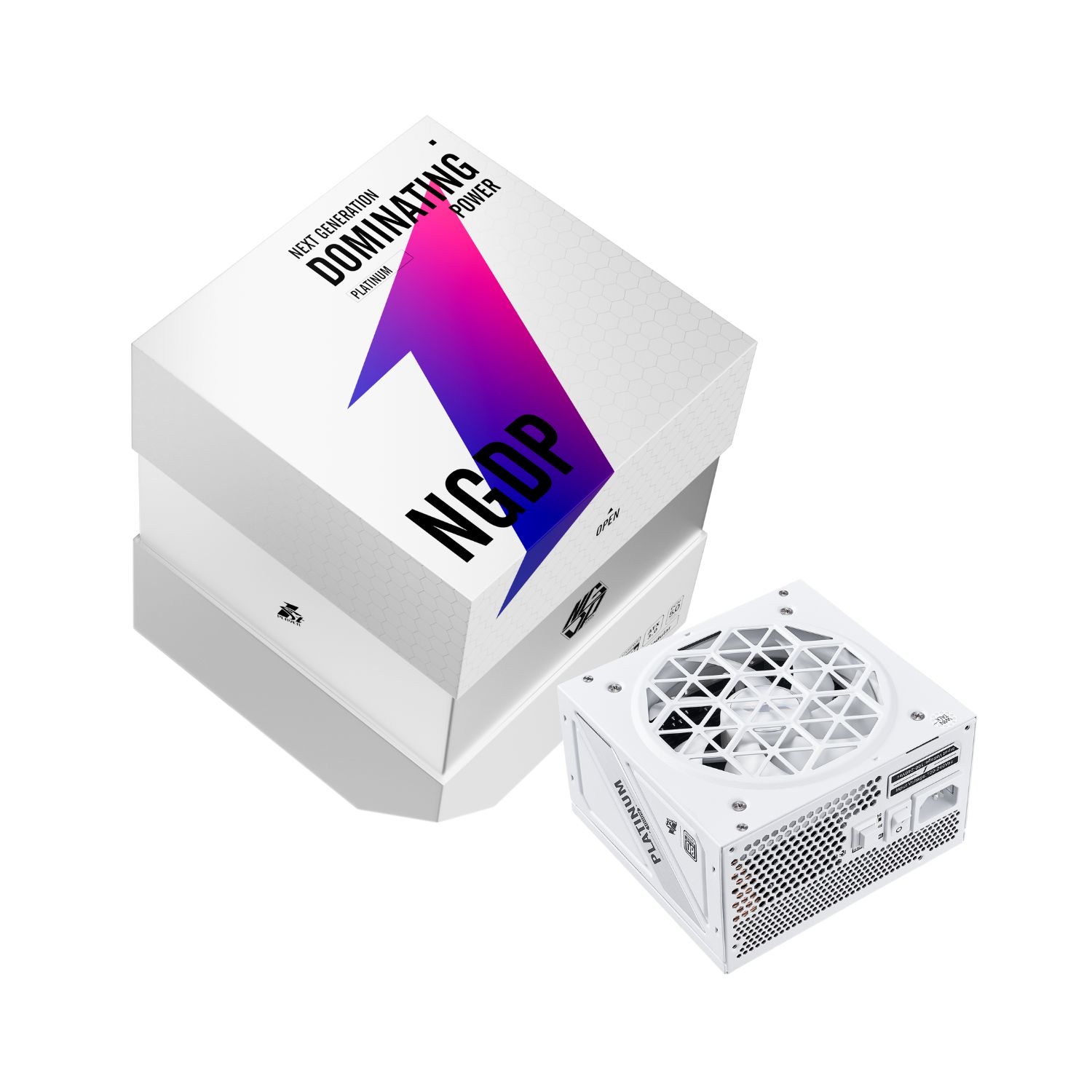

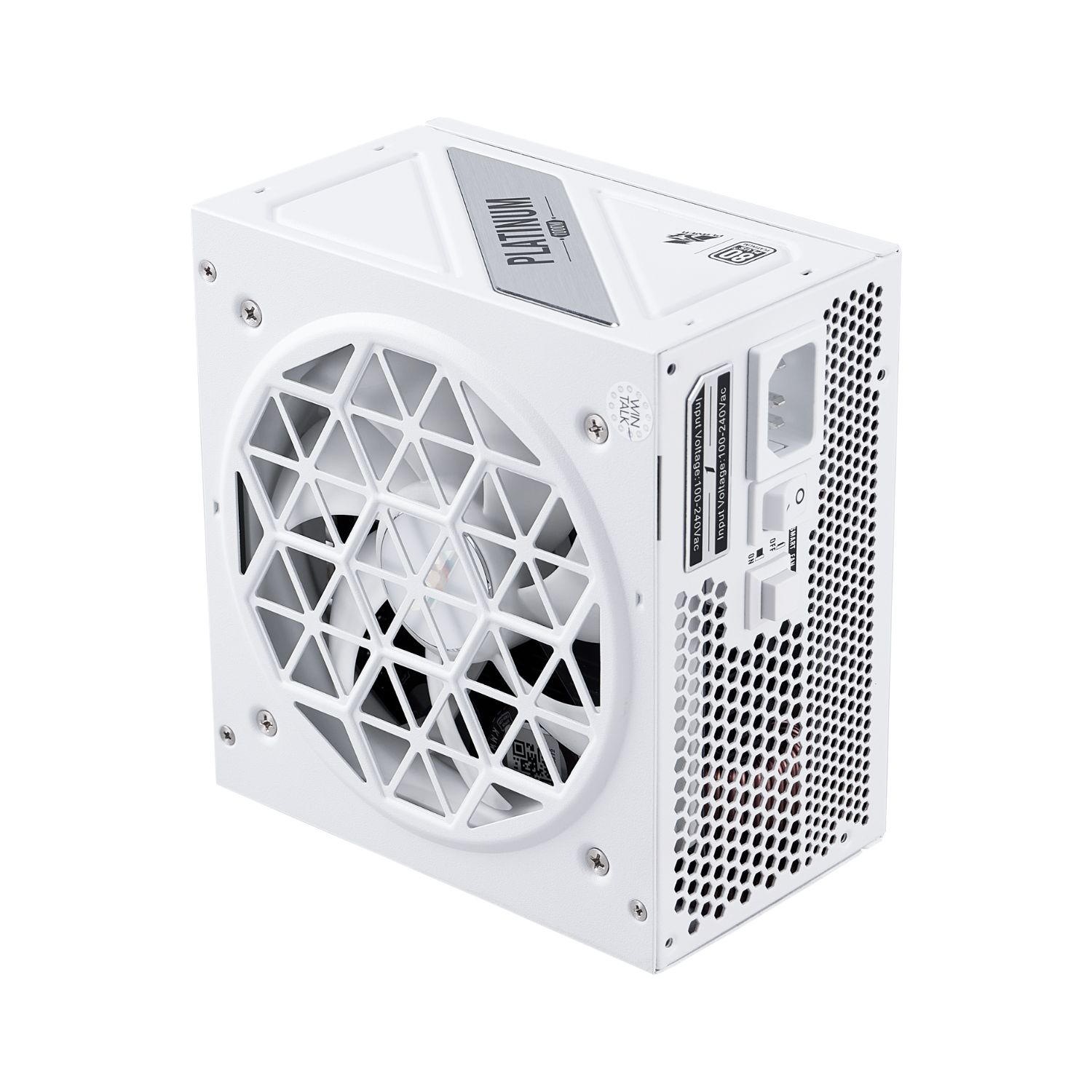

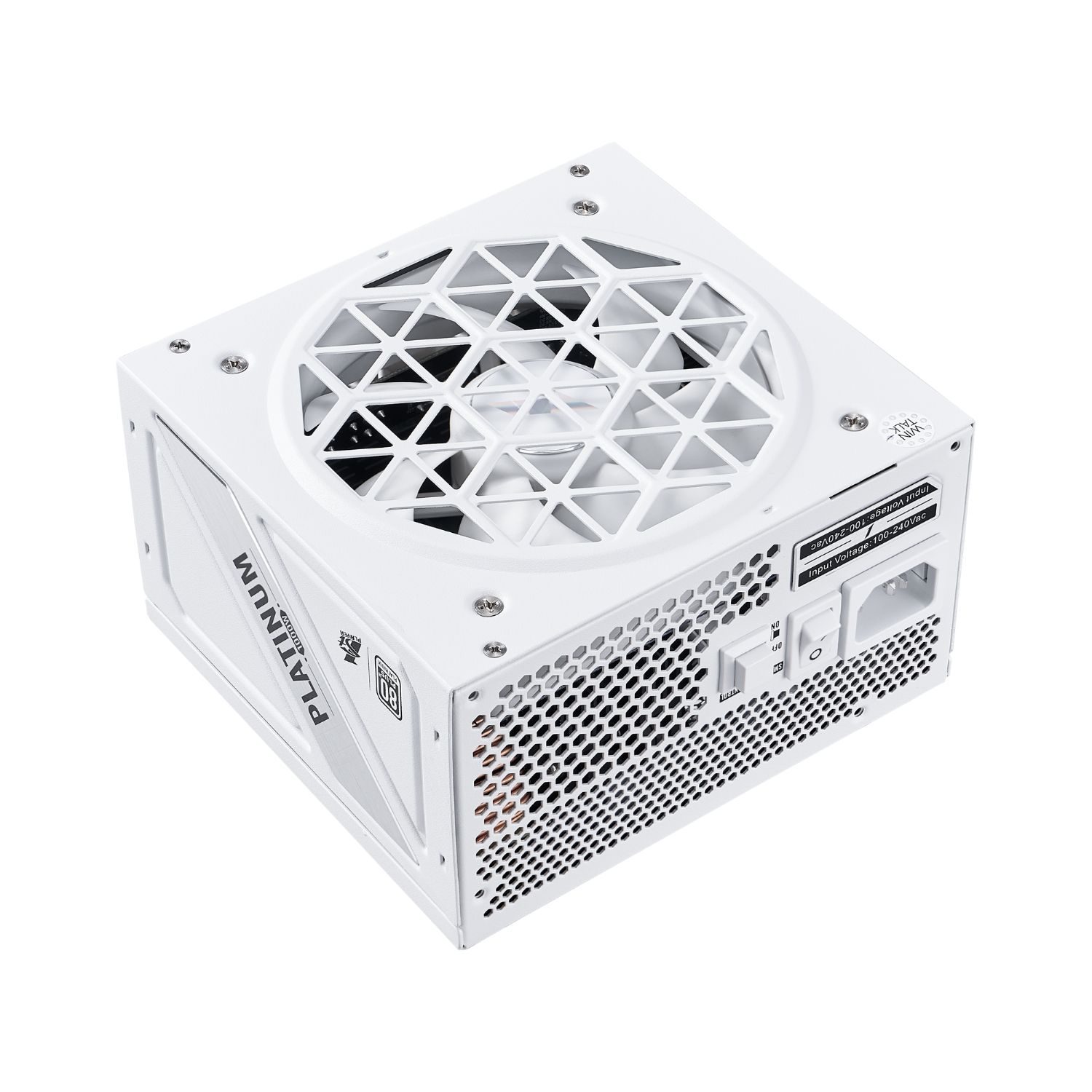

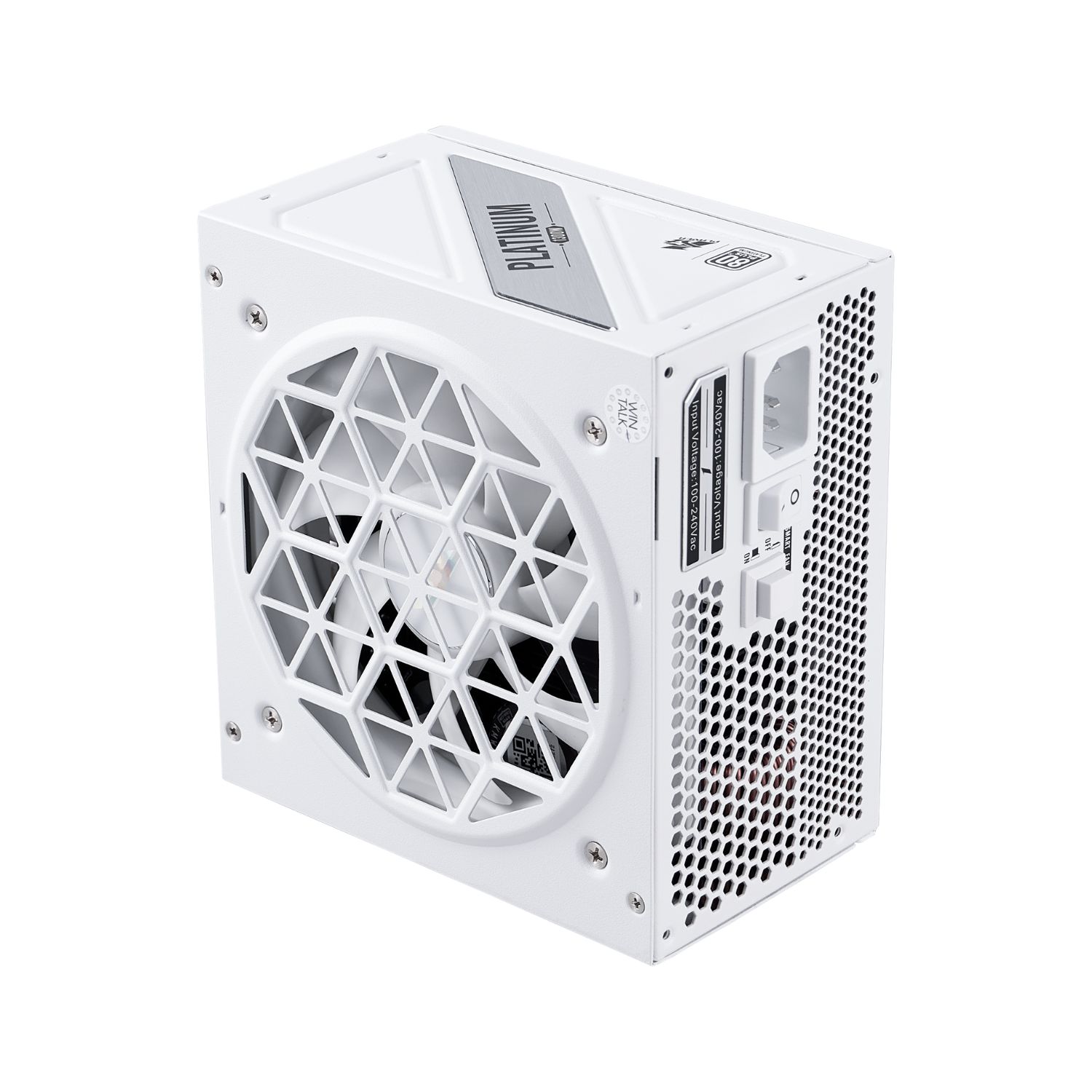

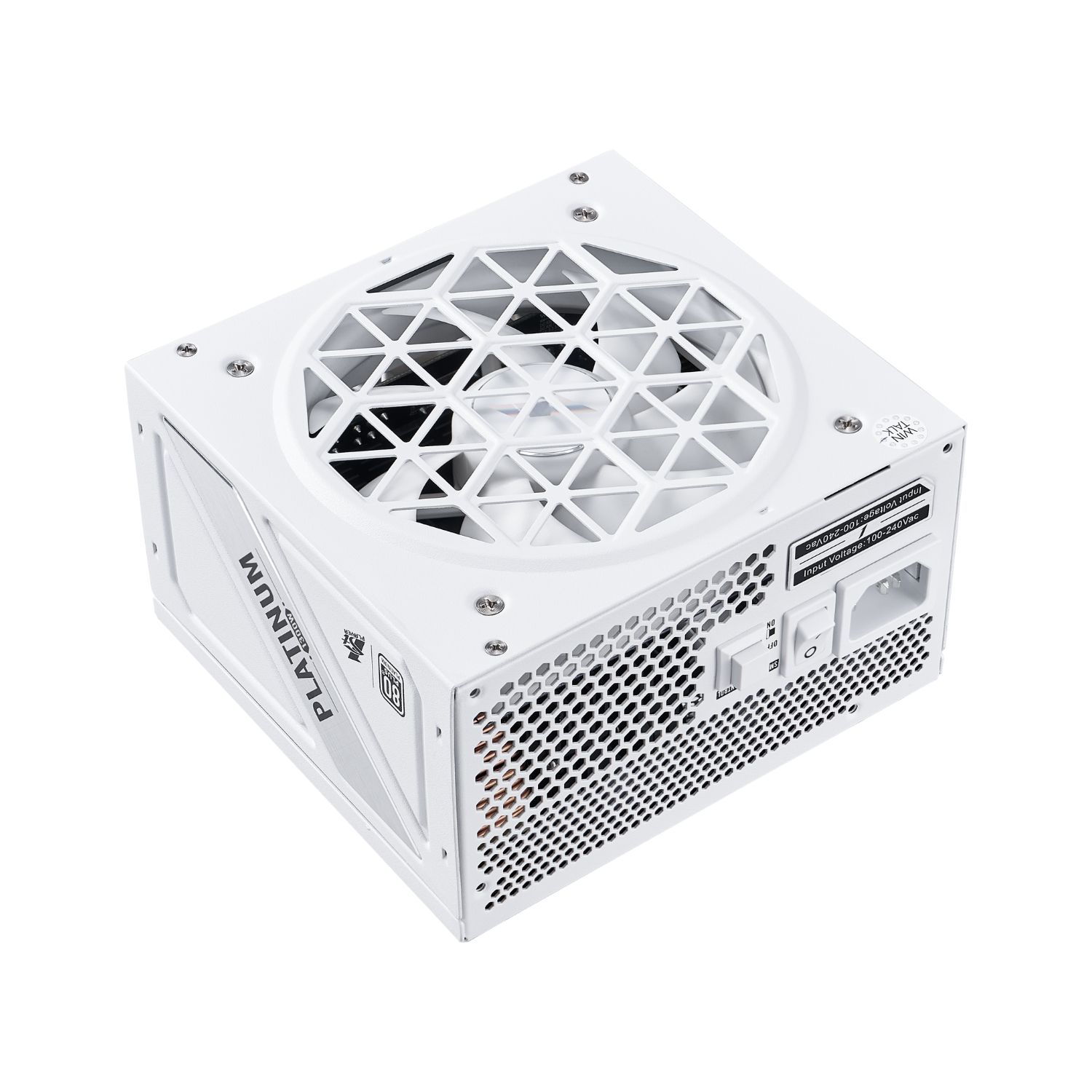

1000W Platinum White

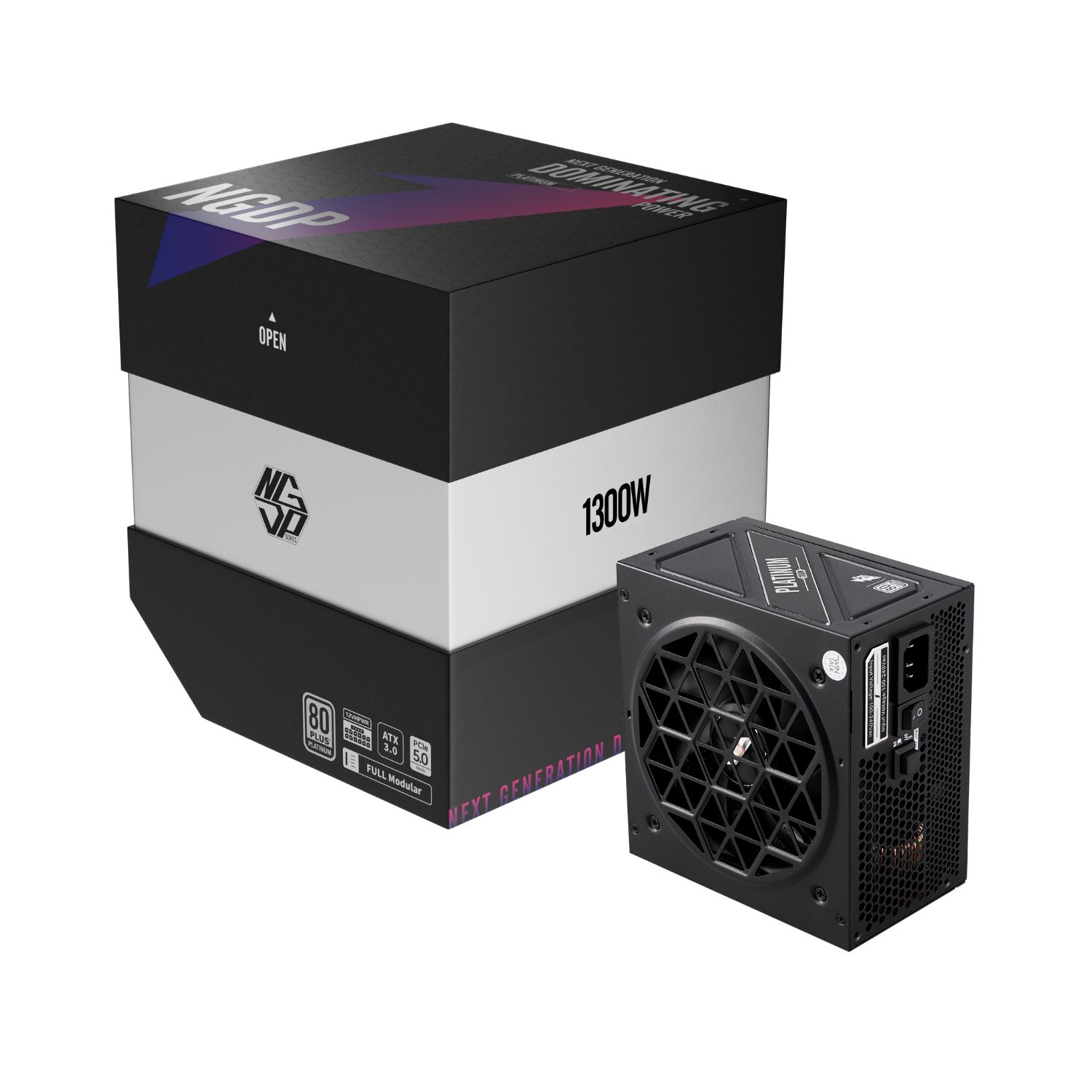

NGDP 1000W/1300W

Watch Video

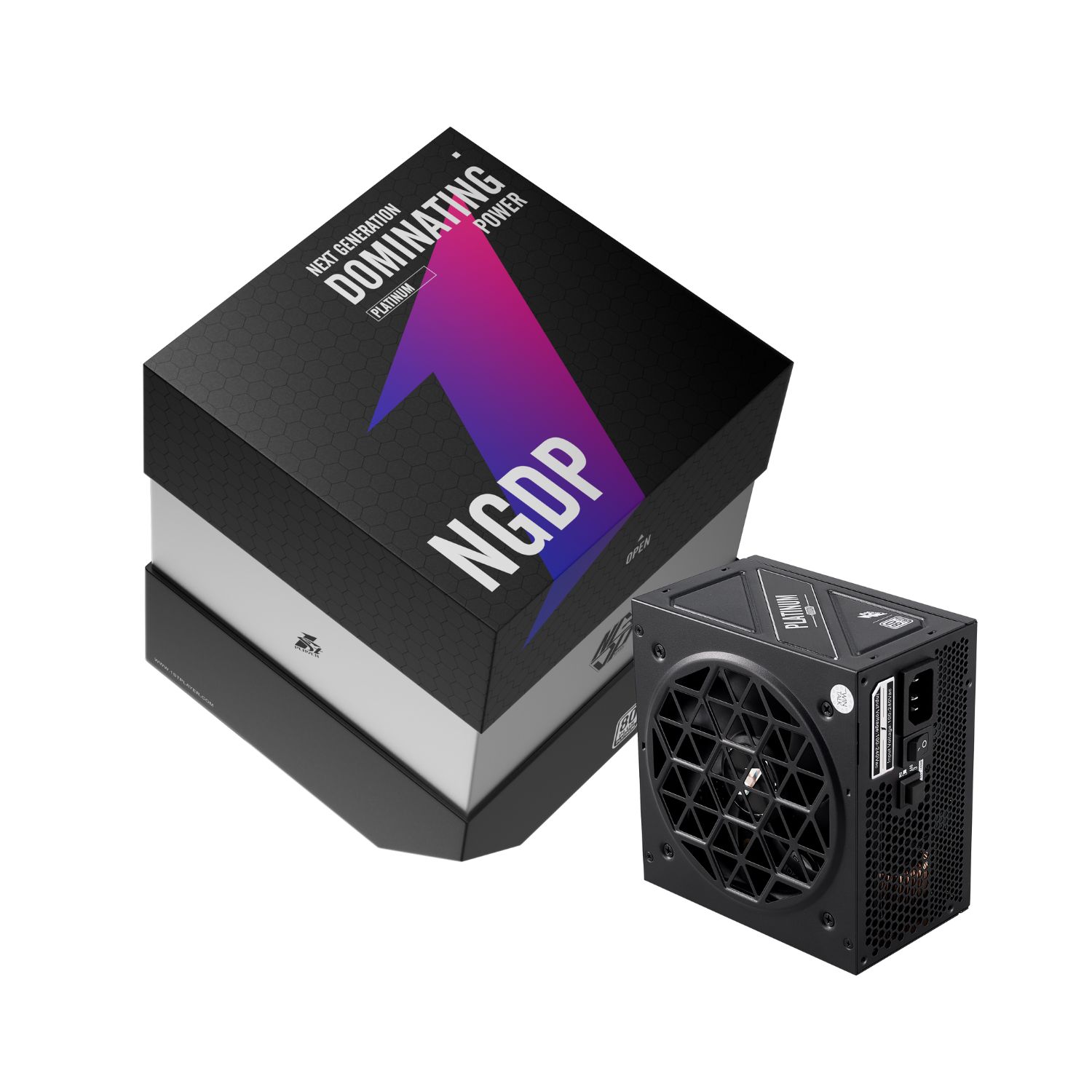

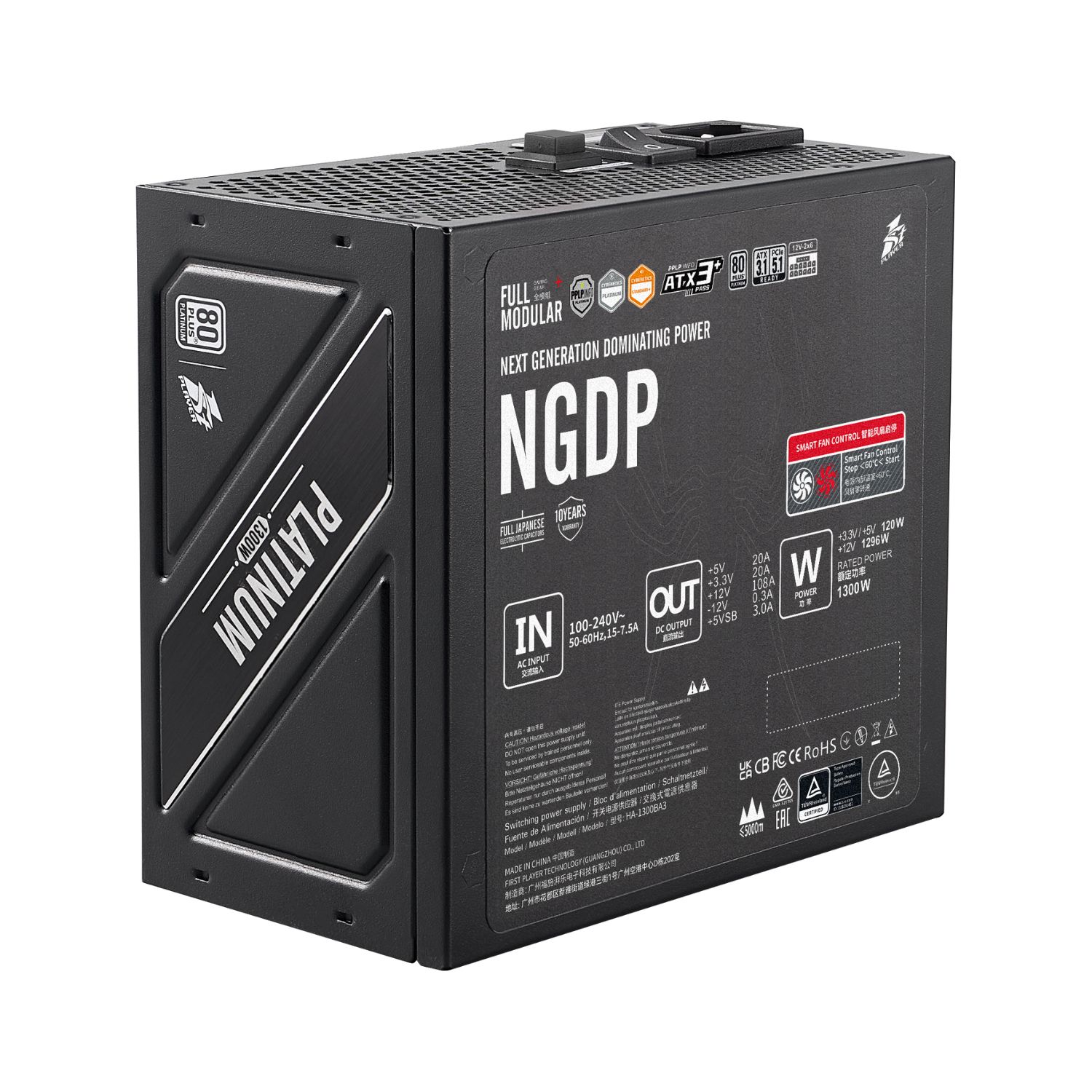

Next Generation Dominating Power

NGDP 1000W/1300W

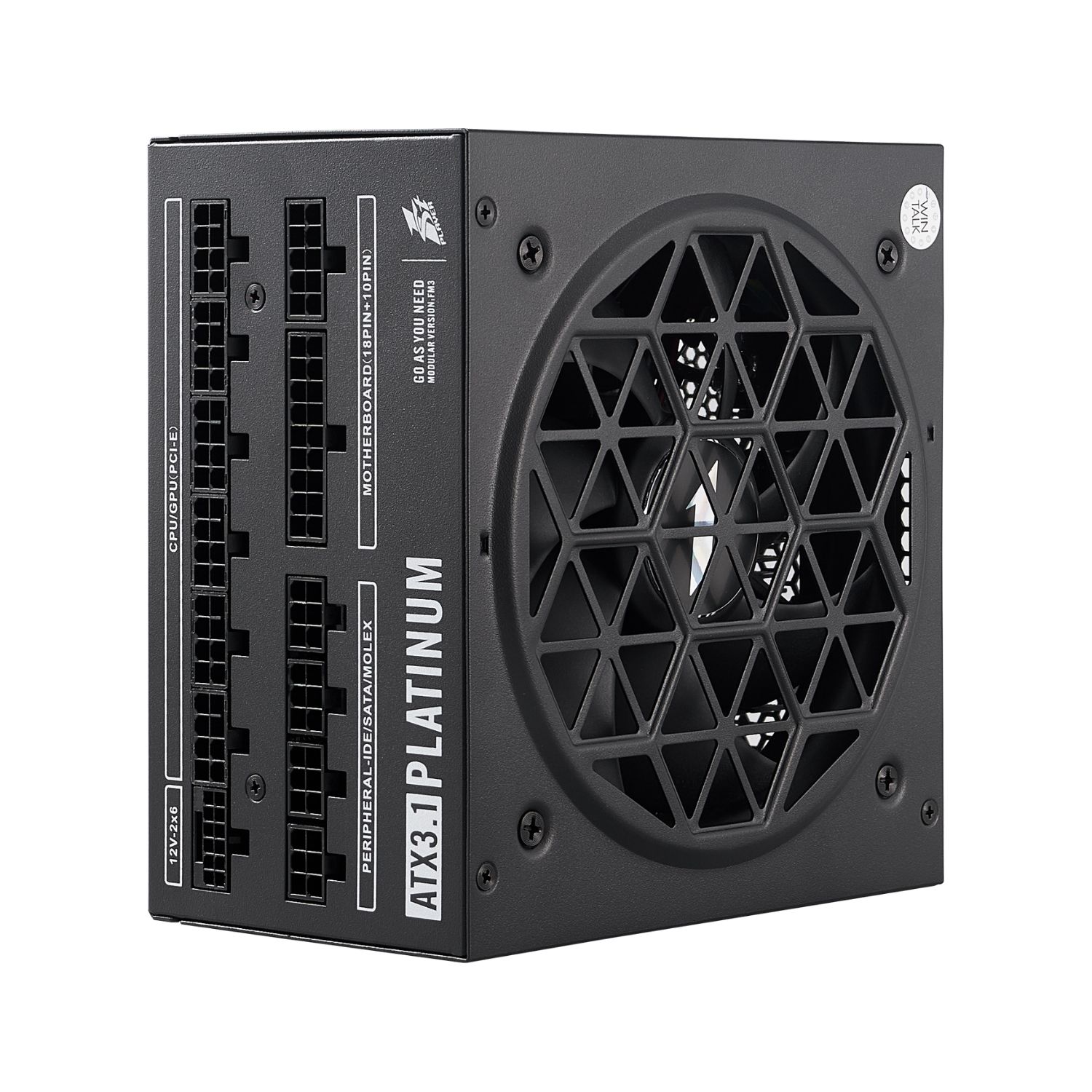

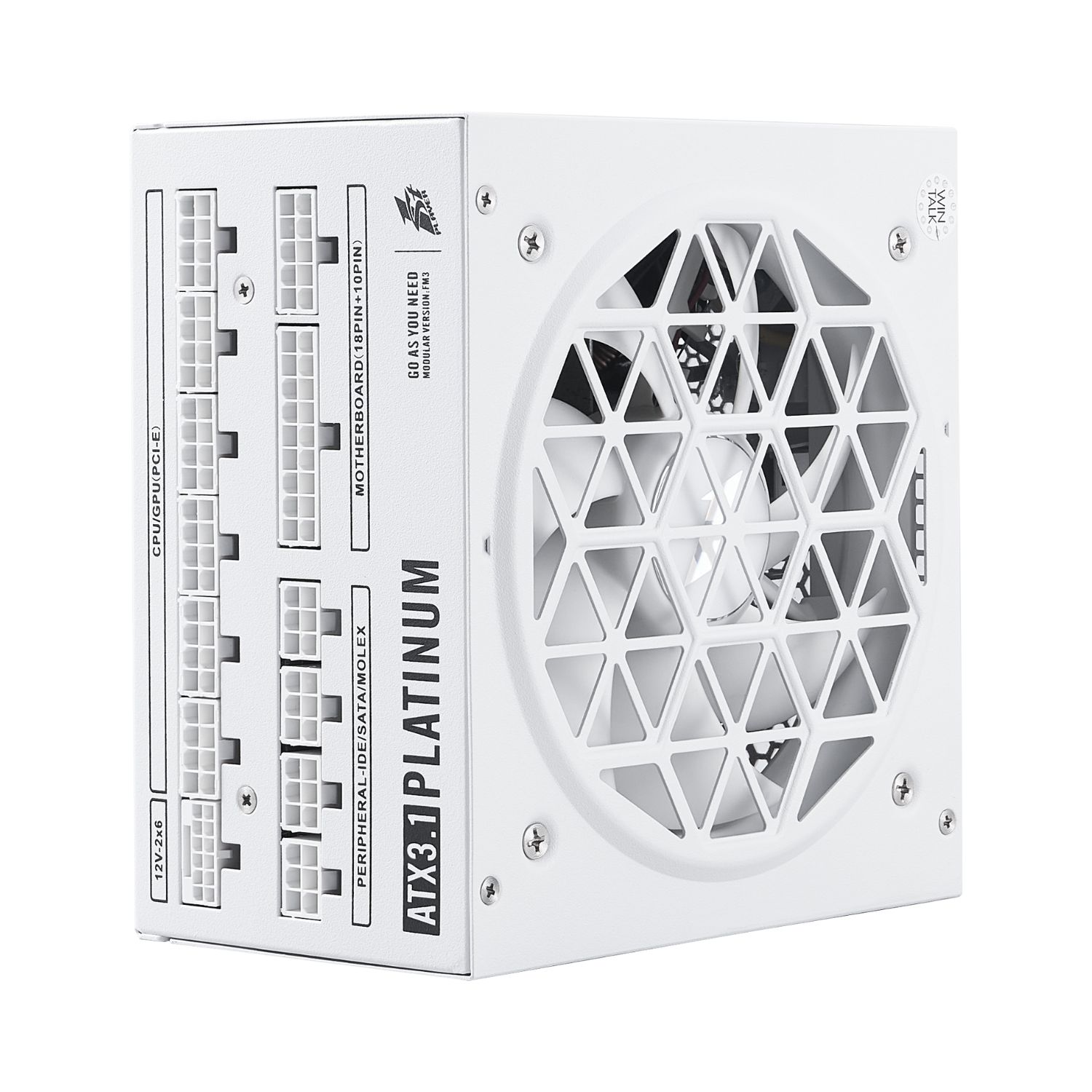

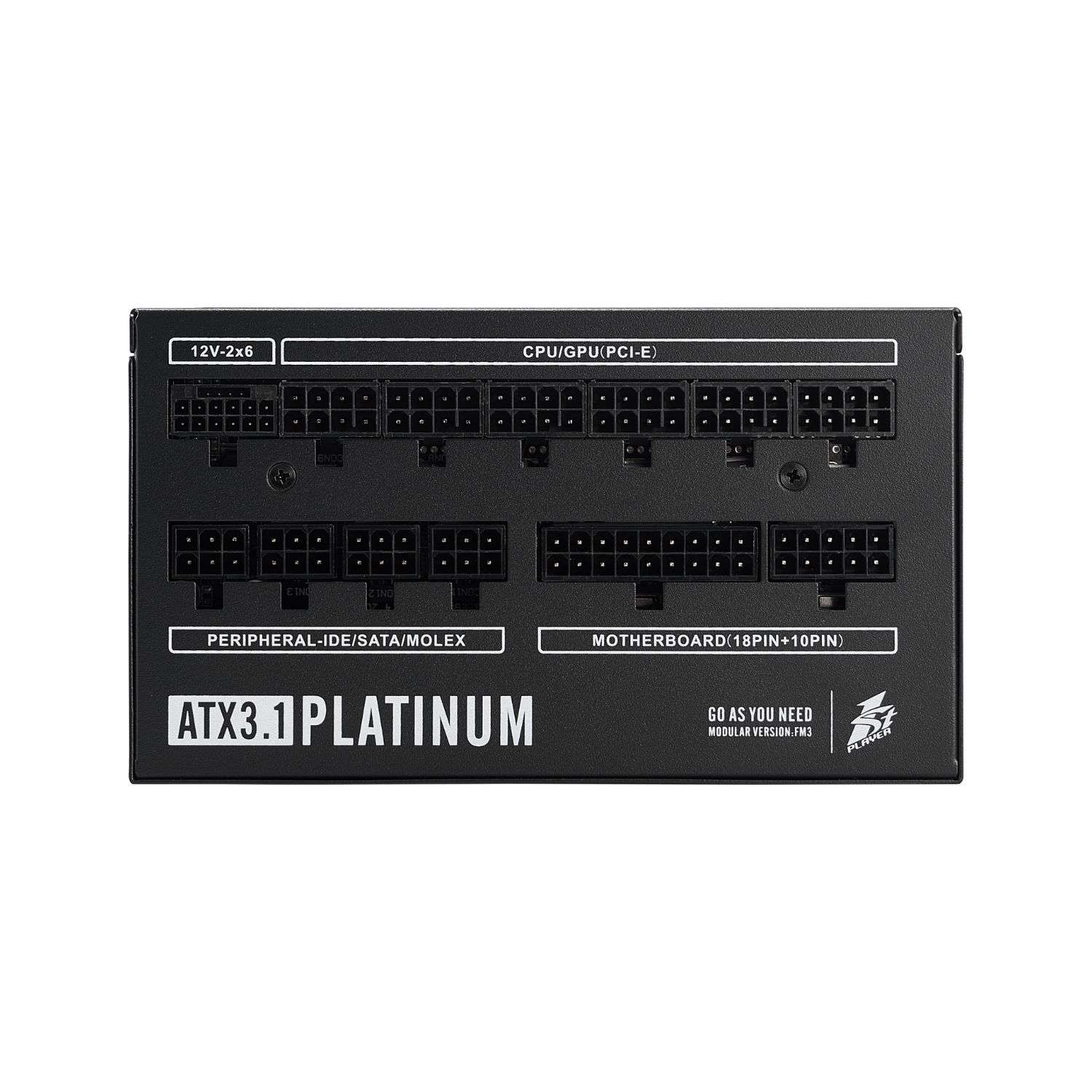

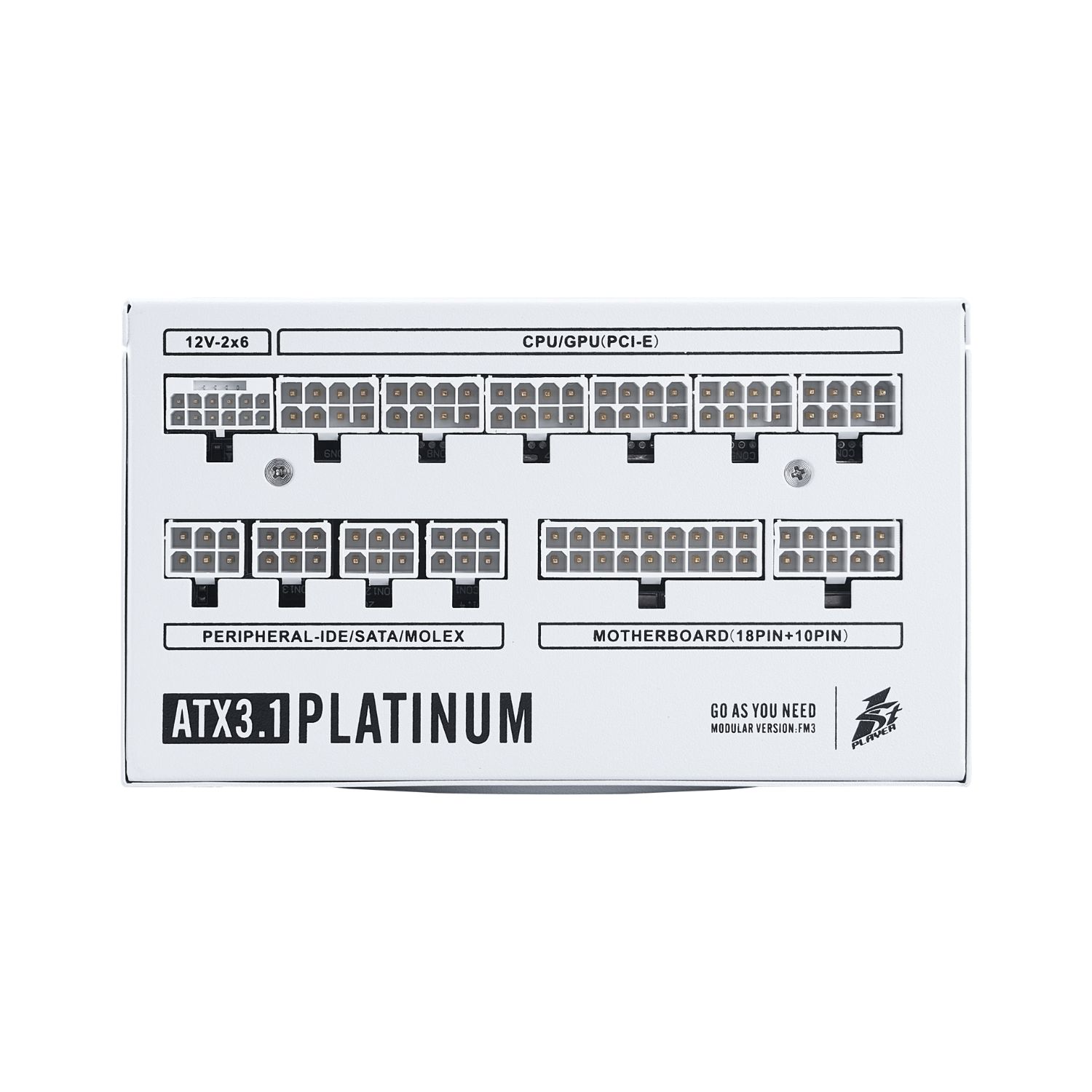

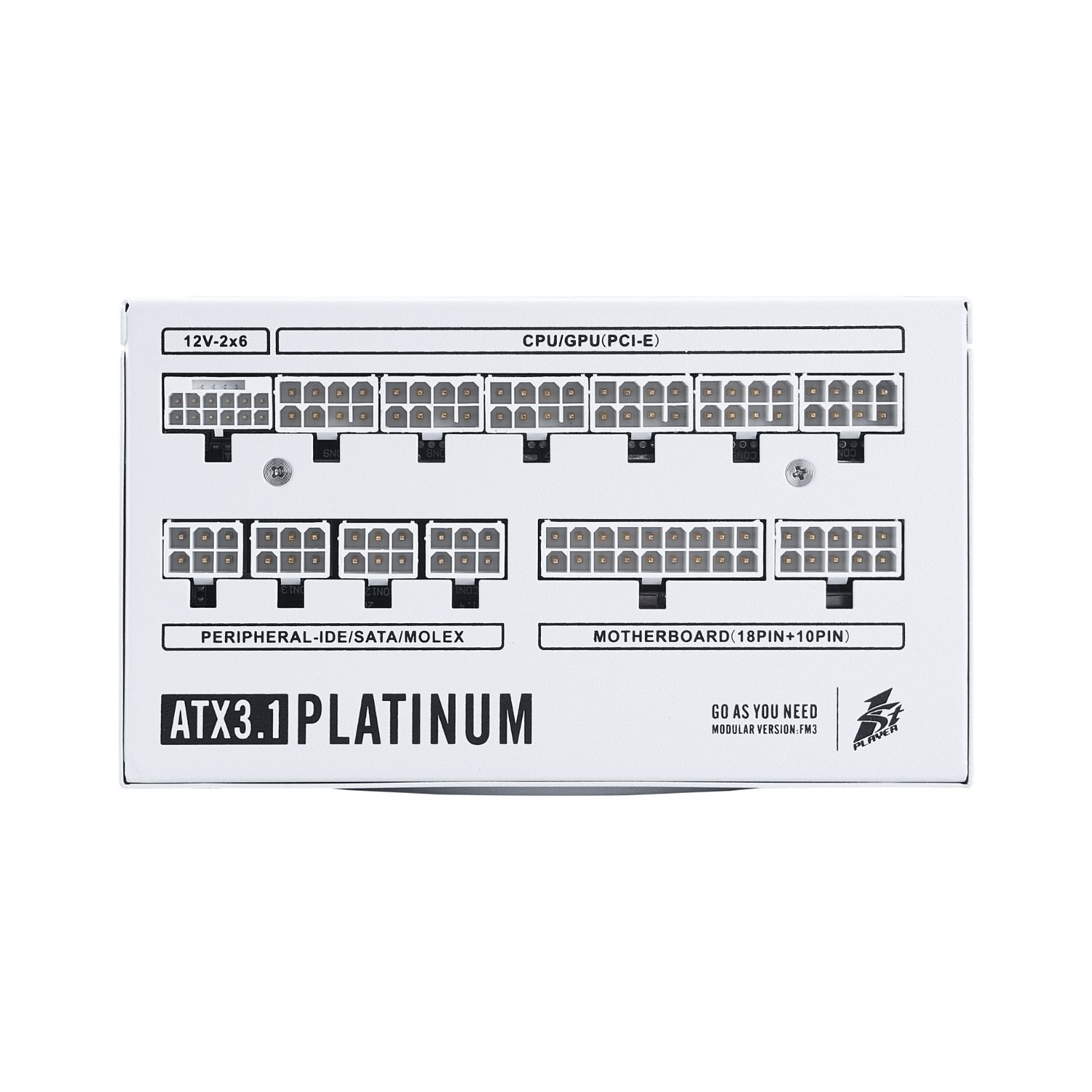

Fully Modular PSU

Our fully modular power supply maximizes customization and efficiency. Streamline cable management for a clean build, enhancing airflow and optimizing cooling for peak performance and aesthetics.

Embossed Cables

Crafted with robust 16AWG wire, our embossed 12V power cables not only look great, but also ensure reliable power delivery and enhanced durability for your PC's performance.

DC-DC Structure

Utilizing advanced DC-DC architecture, our power supplies ensure stable and safe output. Featuring LLC full-bridge resonant DC-DC converters with synchronous rectification at 12V, we guarantee optimal efficiency and reliability for your system's power needs.

SILENT

The NGDP Series PSU combines a 120mm fluid dynamic bearing (FDB) fan with Zero RPM mode, ensuring prolonged fan durability and near-silent operation. The fan remains inactive during low and medium loads, spinning only as required for optimal efficiency and minimal noise.

105°C-Rated Capapcitors

Built with 100% industrial-grade Japanese capacitors rated for 105°C, ensuring unwavering power delivery and reliability.

2% Of Max-Rated Capacity are Higher Than 70% Efficiency

Exceeding Standards: Our NGDP 1000W achieves an impressive 71.854% efficiency at just 20W load, surpassing the ATX 3.1 requirement of 60% for low-load efficiency.

  • ATX 3.1 Standard & PCIe 5.1

    Equipped with a 12V-2x6 pin connector, providing up to 600W for power-hungry graphics cards. The power supply supports up to 2x total power excursion and 3x GPU power excursion, ensuring compatibility with future high-performance components.

  • Compact Design

    Its compact size ensures compatibility with most cases on the market, offering more flexible build options.

  • 80 Plus Platinum Certified

    Our NGDP 1000W/1300W power supply unit boasts 80 Plus Platinum certification, achieving 93% or higher efficiency under typical loads.

MODEL
HA-1000BA3 / HA-1300BA3
DIMENSIONS (L x W x H)
140 x 150 x 86 mm

MODULAR

Full-Modular

CERTIFICATIONS

80 PLUS Platinum
WARRANTY
10 years
INPUT VOLTAGE
100 - 240 Vac
INPUT CURRENT
15 - 7.5A
EFFICIENCY

91.01% at full load (1000W) / 90.62 % at full load (1300W)

(Date from 80  PLUS Testing Report)

OUTPUT CAPACITY
1000 W / 1300 W
INPUT FREQUENCY
50 - 60 Hz
PFC
Active PFC

FAN SIZE

120 mm FDB
PROTECTIONS
UVP, OVP, OPP, SCP, OCP, OTP
PROTECTION TEMPERATURE
0 - 40℃
MTBF
100,000 hours
CIRCUIT STRUCTURE
LLC + DC-DC
REGULATORY
CE / FCC / C-Tik / ROHS / CCC / cTUVus / IEC / EAC
