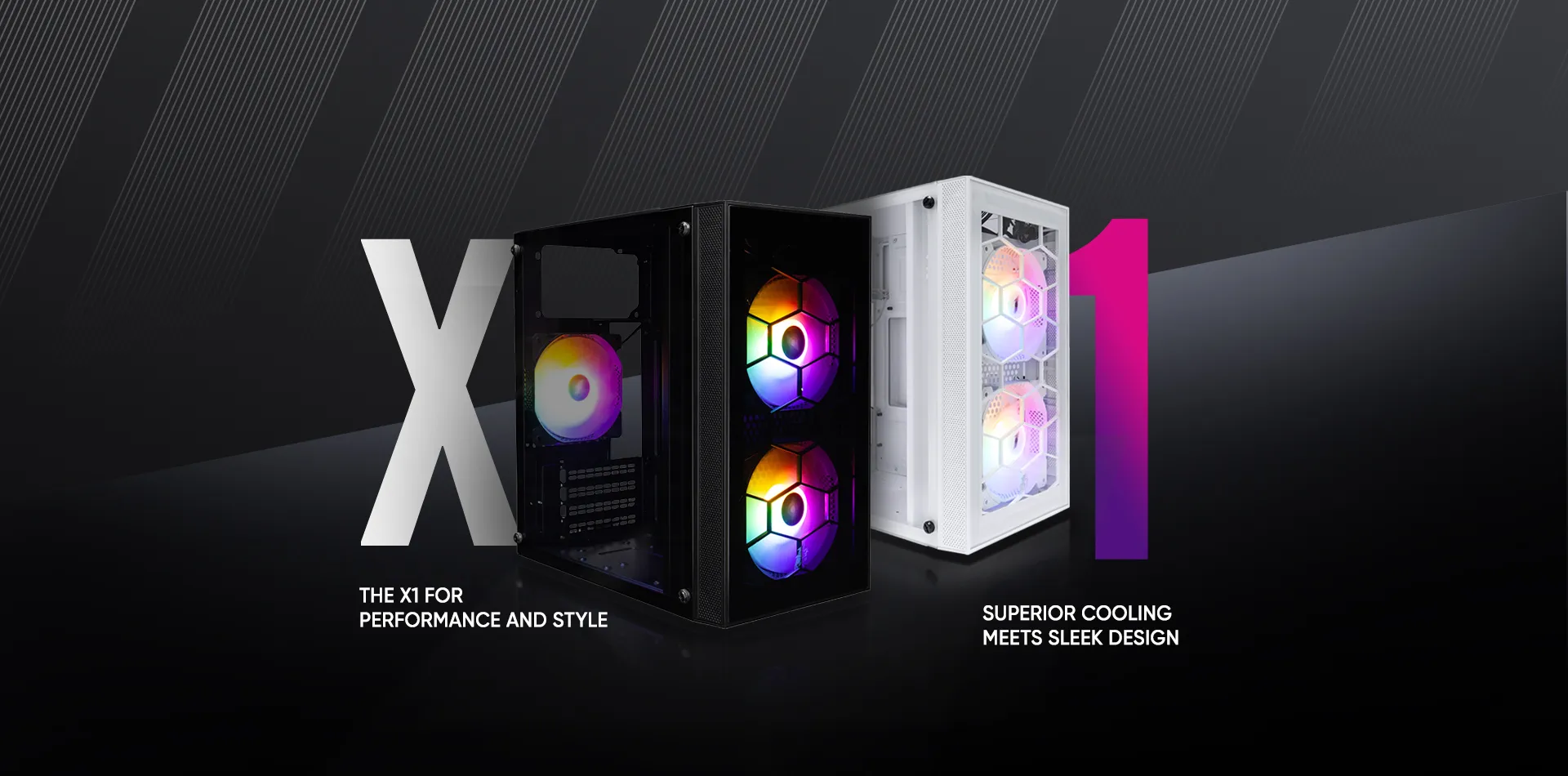

X1

FIREBASE

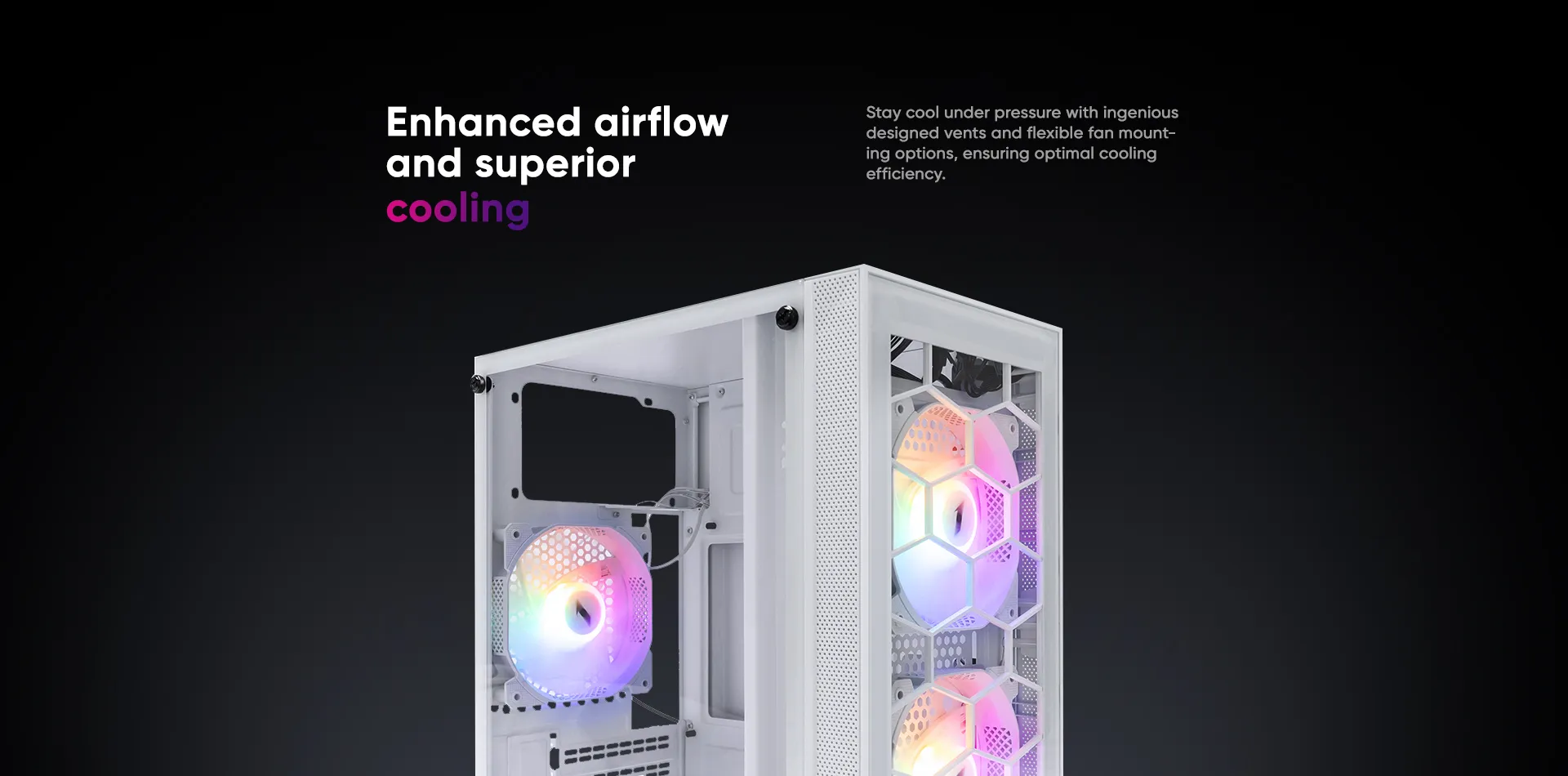

  • Support installation of up to 3 fans

  • Support CPU cooler height up to 165 mm

  • Support GPU length up to 280 mm

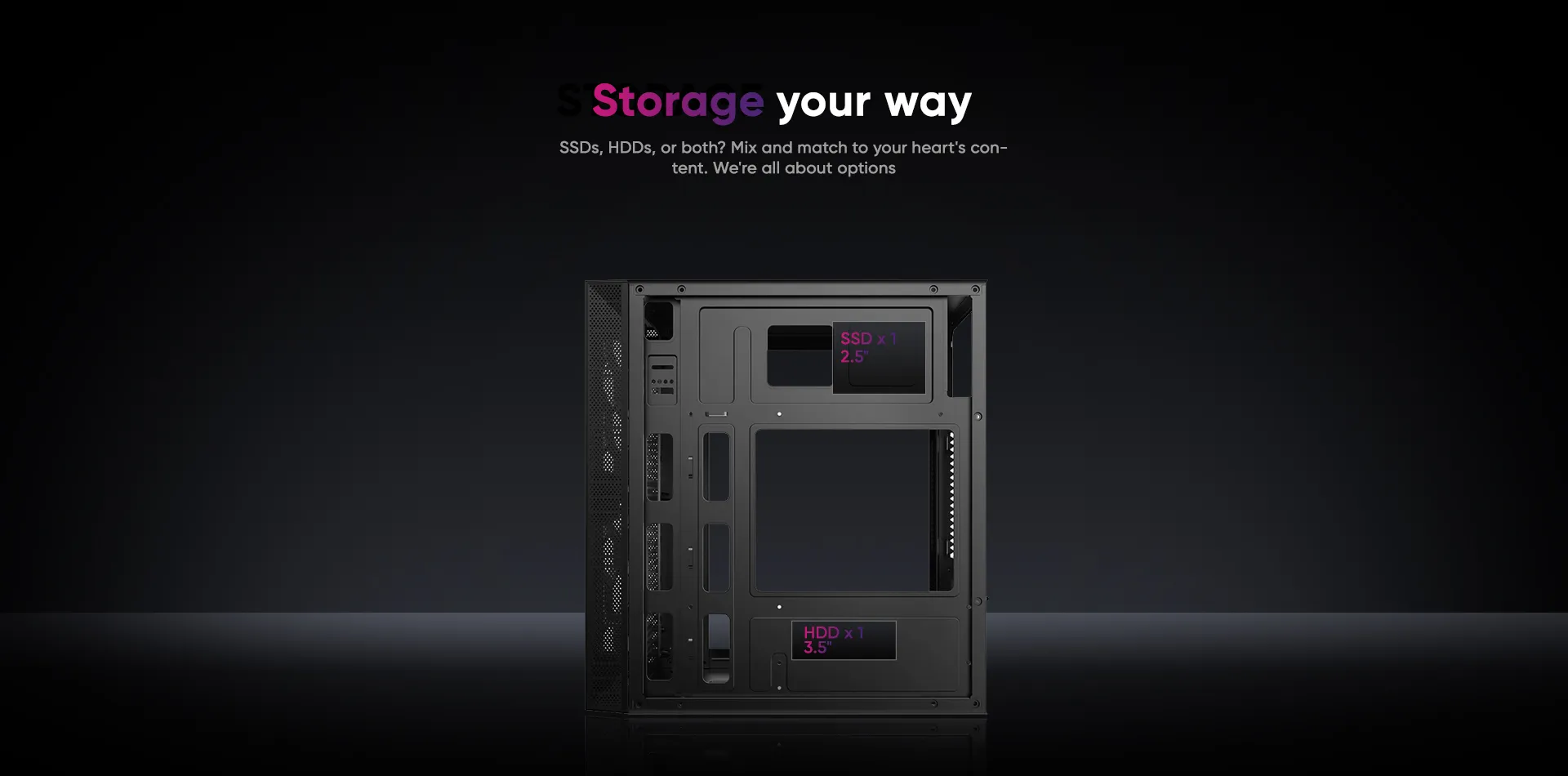

  • Support up to 2 drive bays: 1 x 3.5" HDD + 1 x 2.5" SSD

    *Computer parts are not included. Cooling fan may vary among different countries/regions.


Black

Model

X1

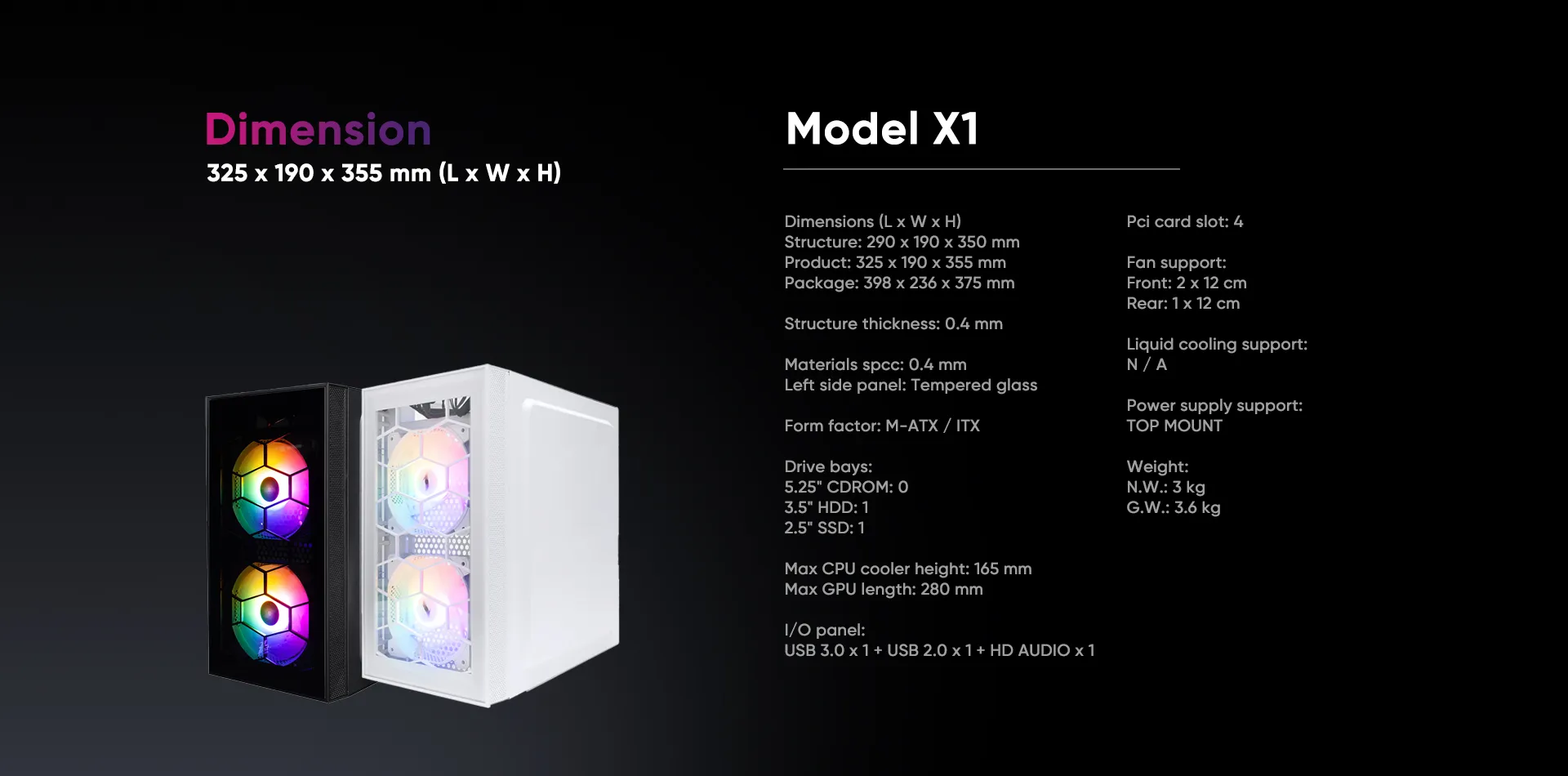

Structure Dimensions(L*W*H)

290*190*350MM

Product Dimensions(L*W*H)

325*190*355MM

Package Dimensions(L*W*H)

398*236*375MM

Structure Thickness

0.4MM

Materials

SPCC 0.4MM

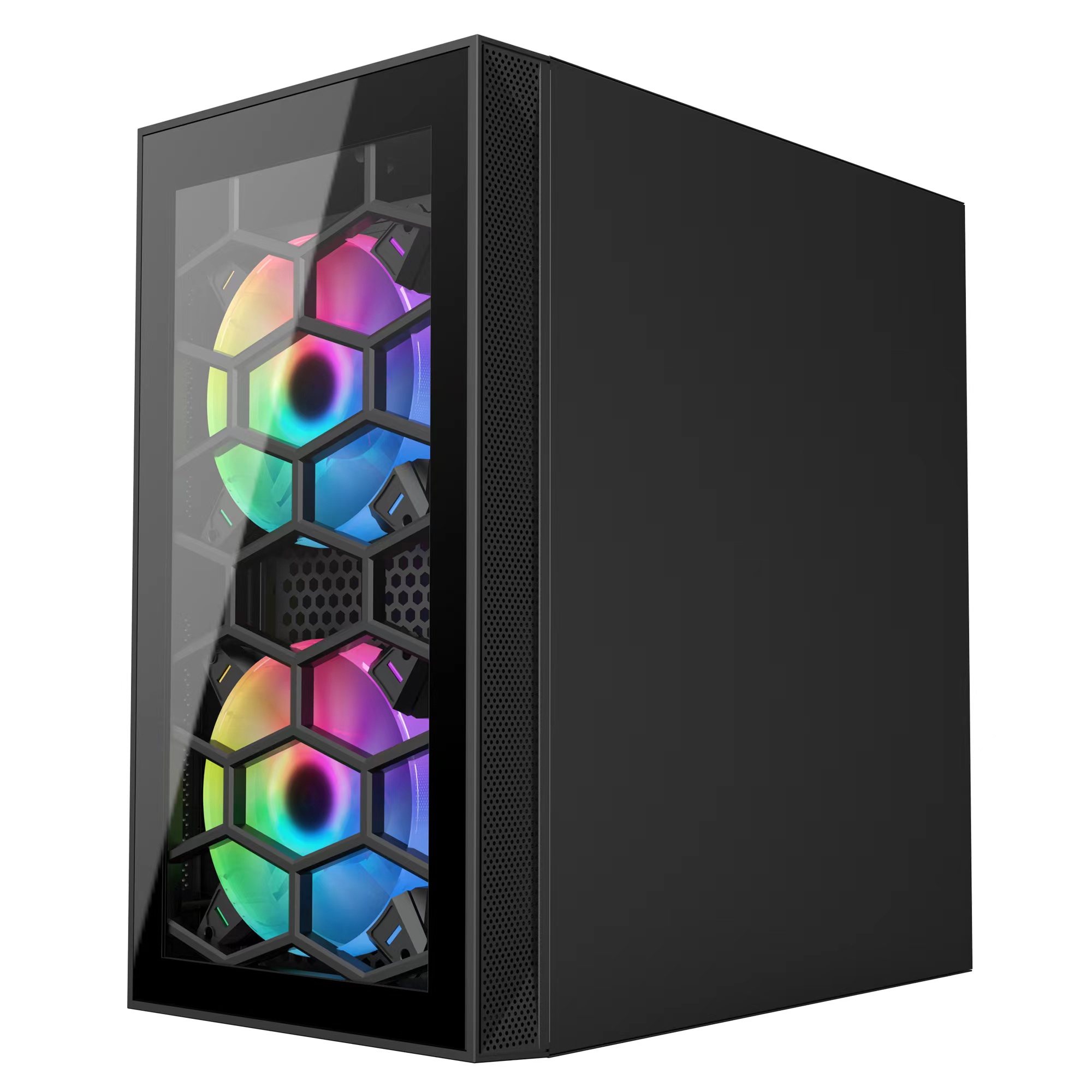

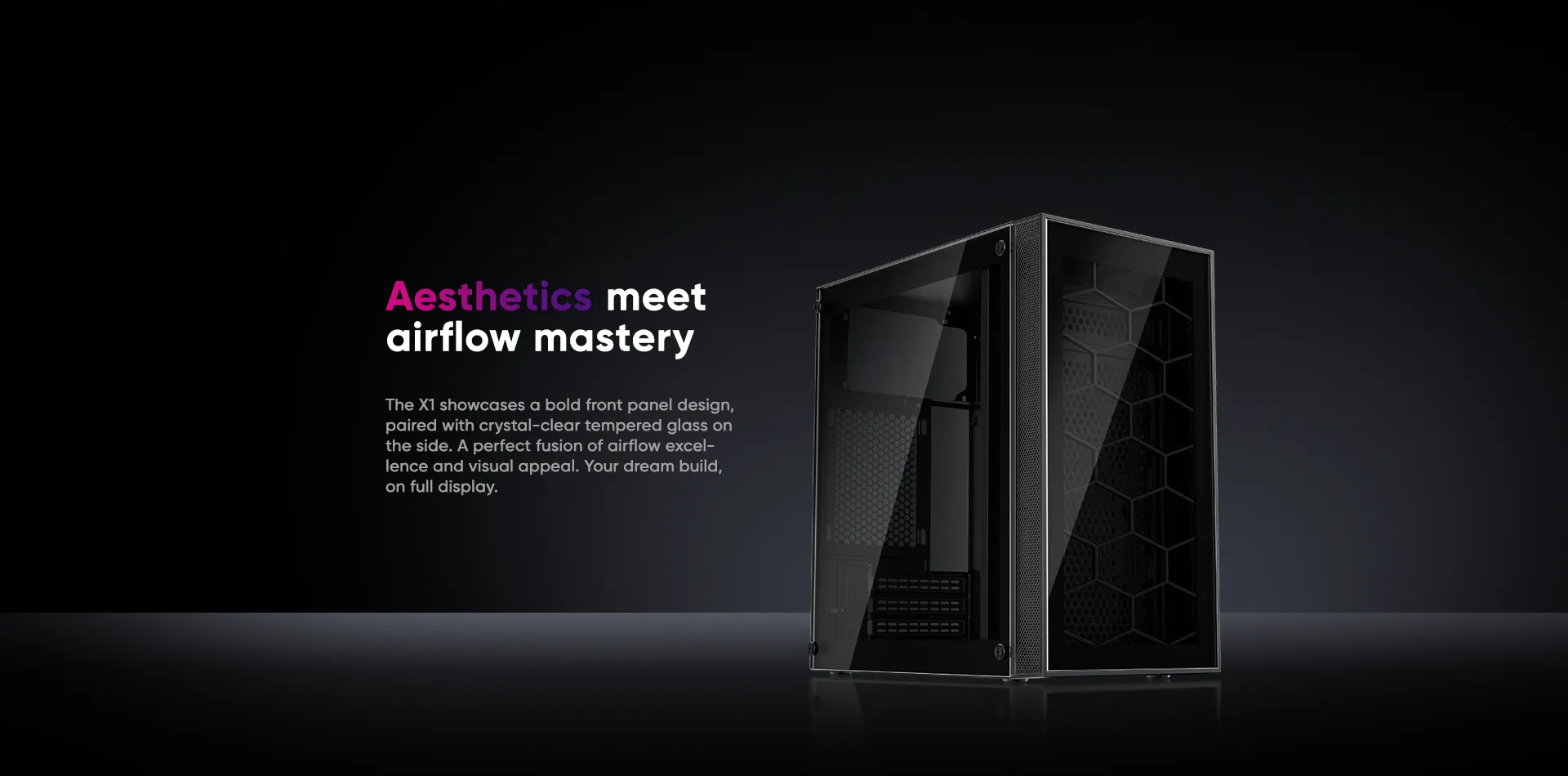

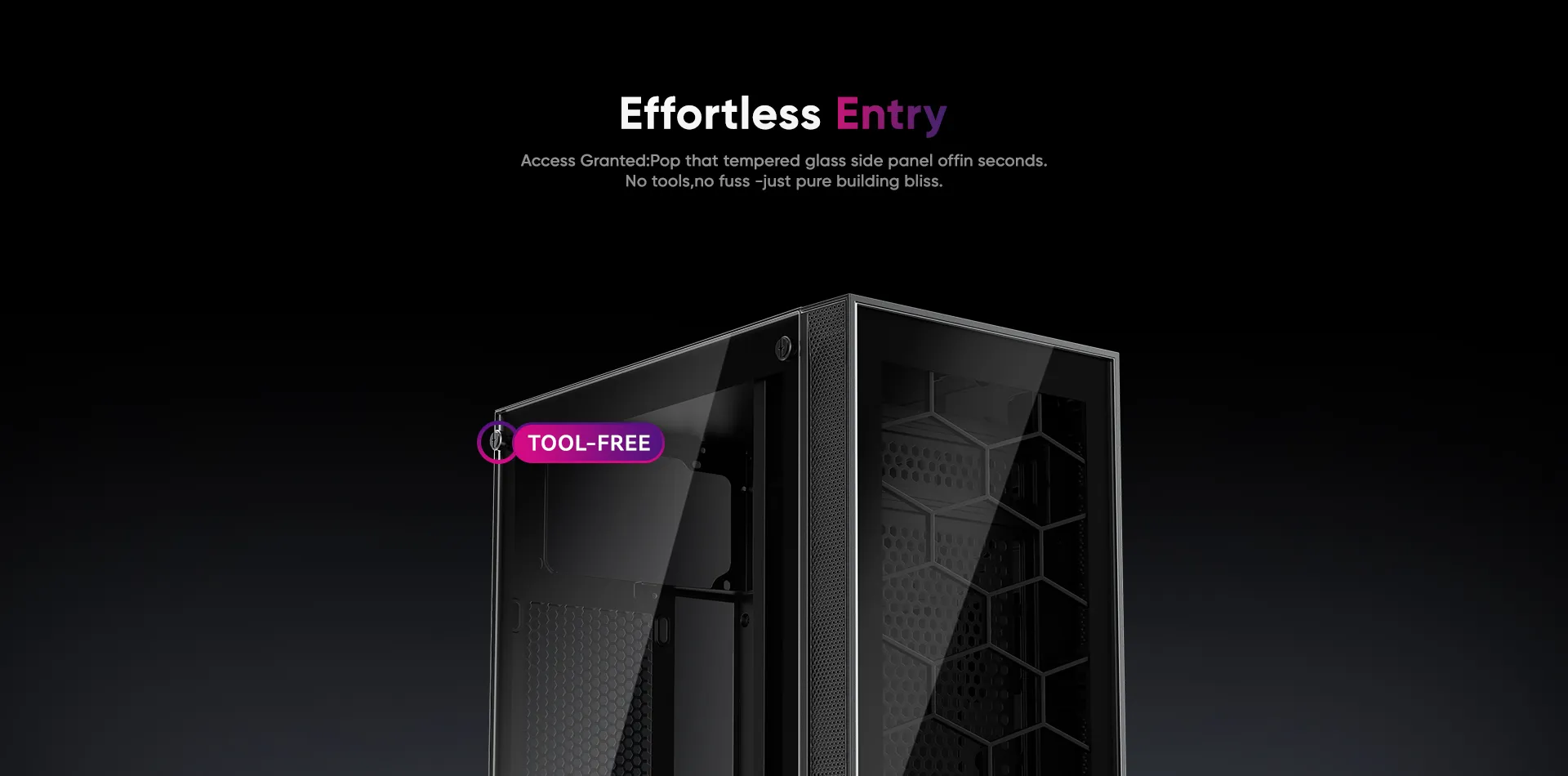

FRONT & LEFT SIDE PANEL:TEMPERED GLASS

Form Factor

M-ATX

Drive Bays

5.25" CD ROM: 0

3.5" HDD: 1+2.5" SSD: 1

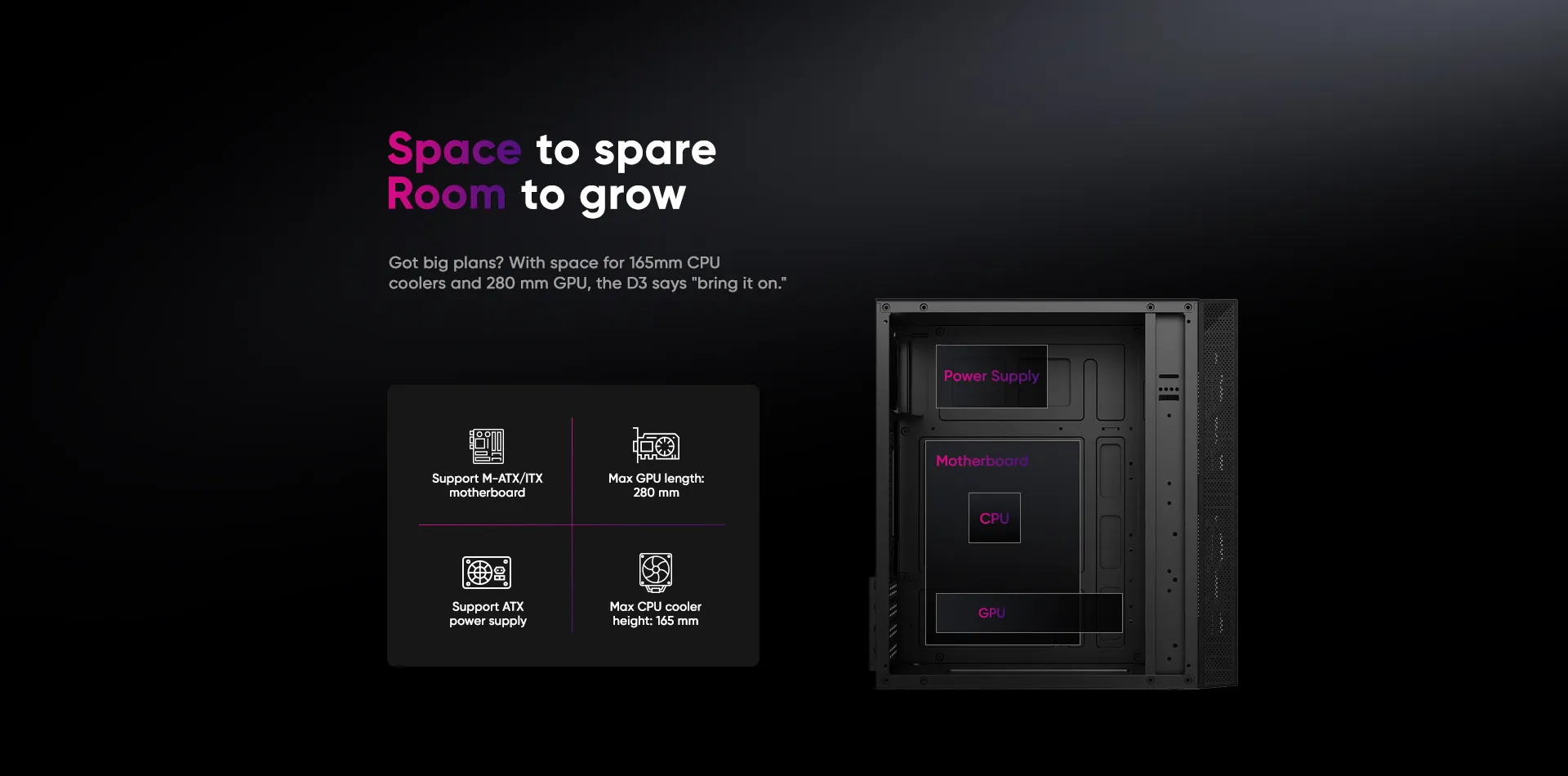

CPU MAX Height

165MM

VGA MAX Length

280MM

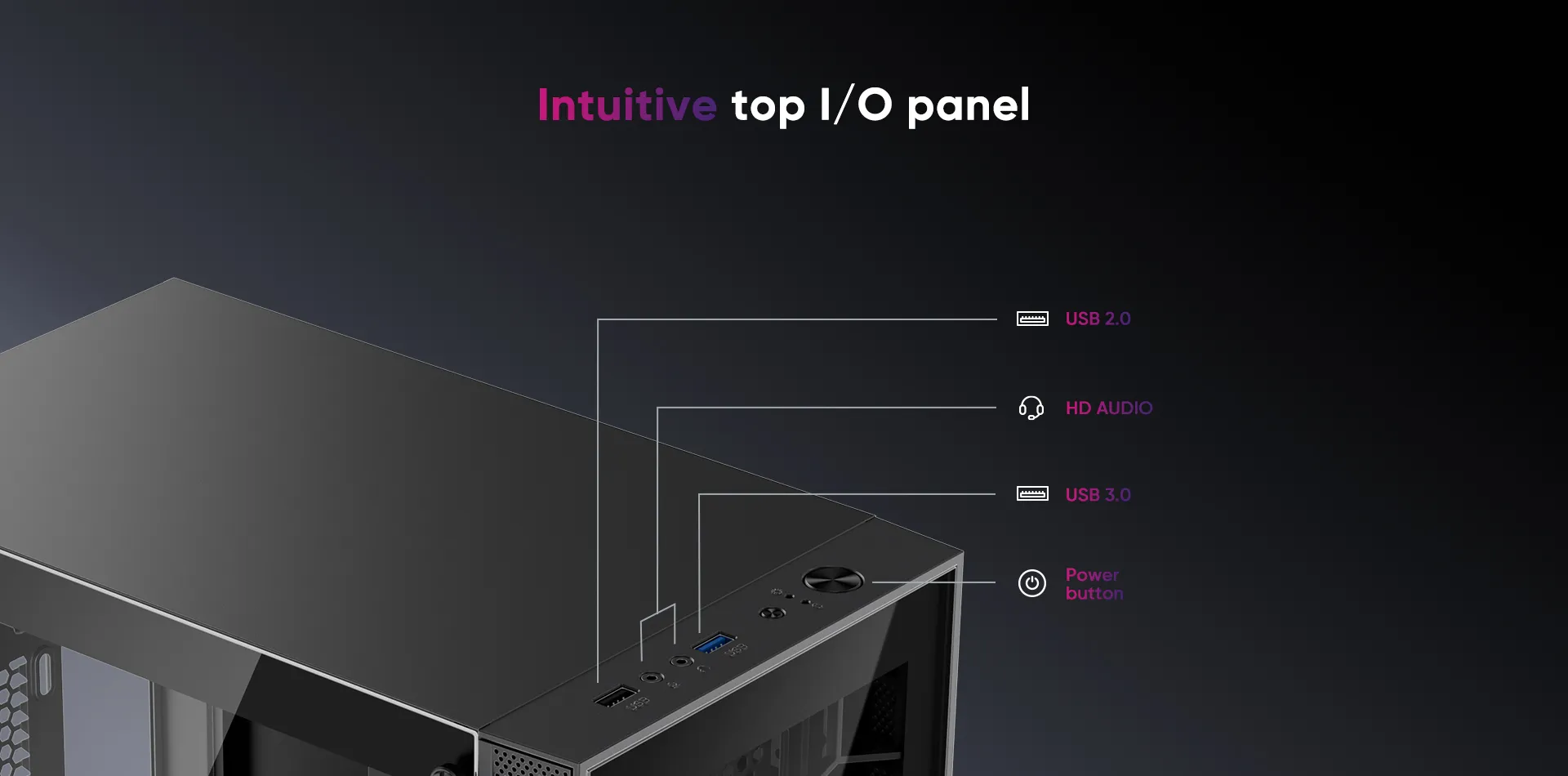

I/O Panel

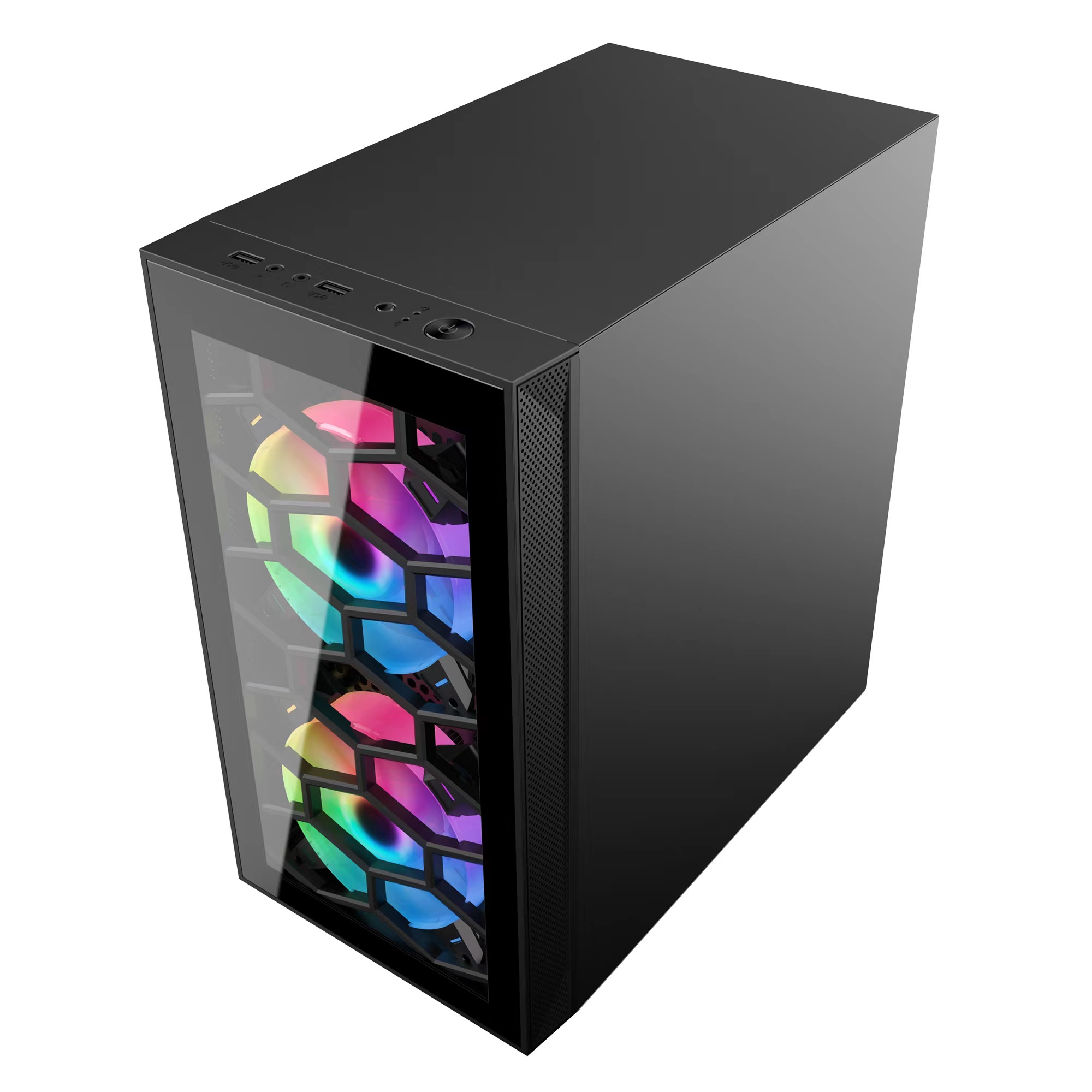

USB3.0*1+USB2.0*1+HD AUDIO

PCI Card Slot

4

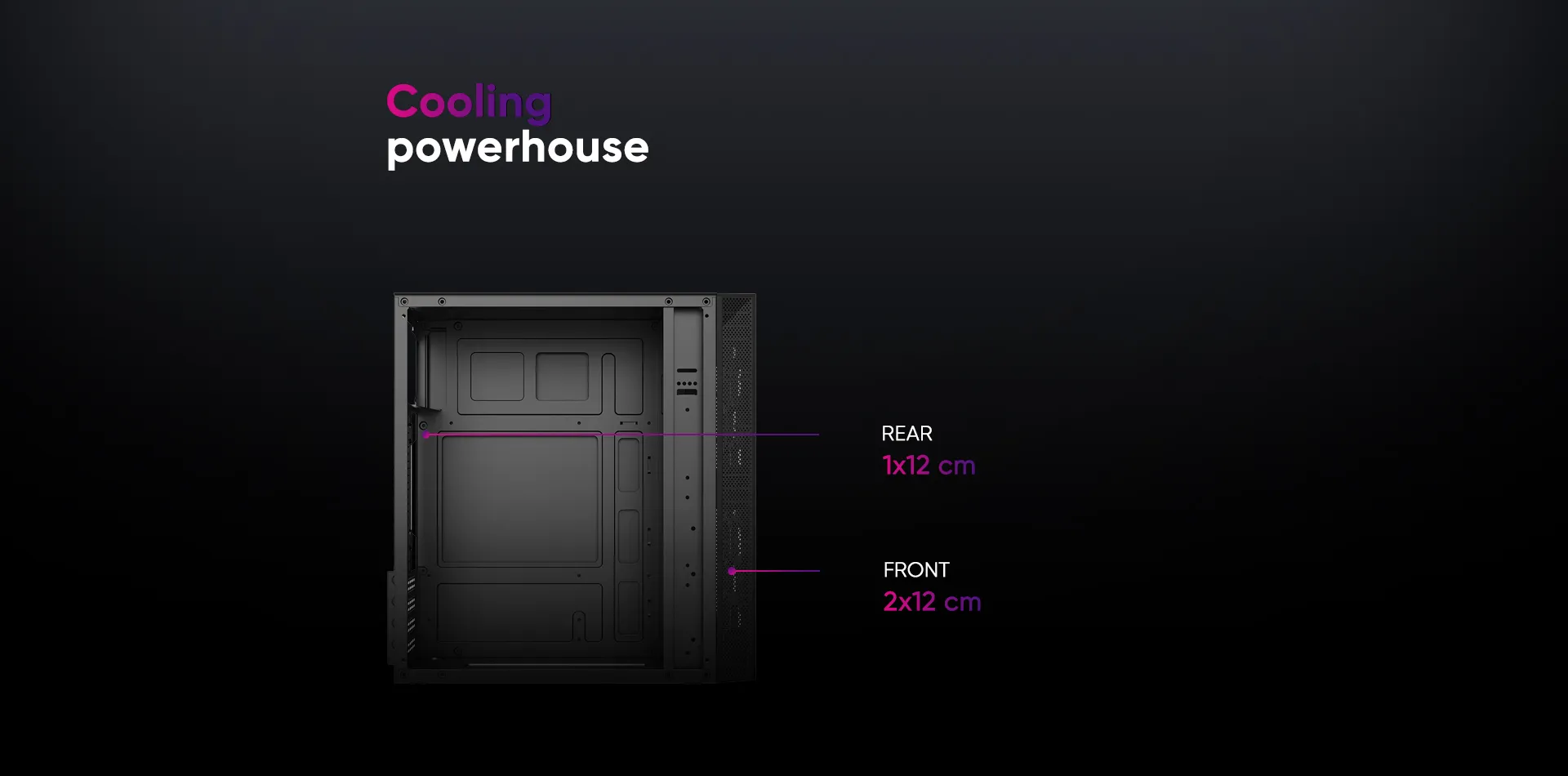

Fan Support

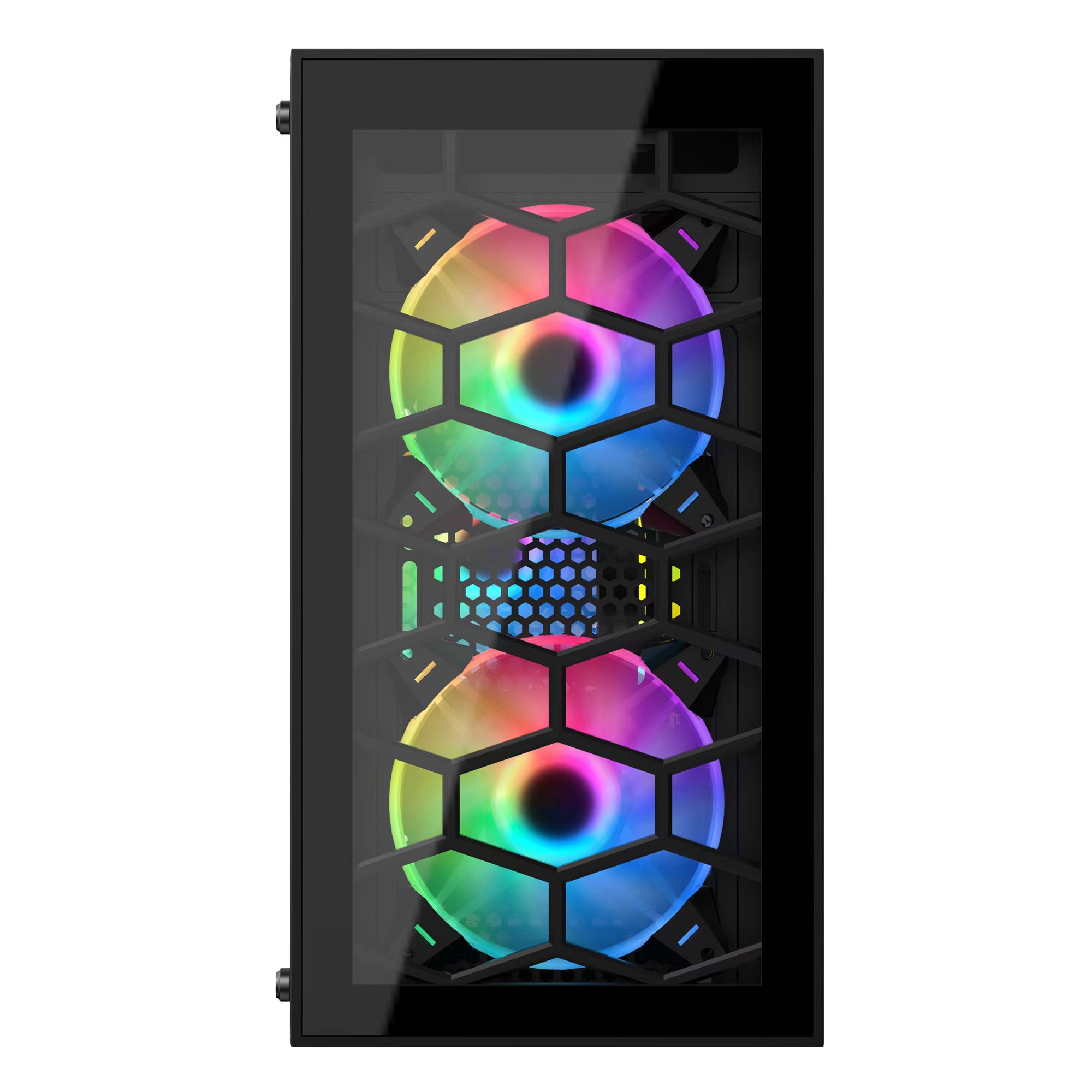

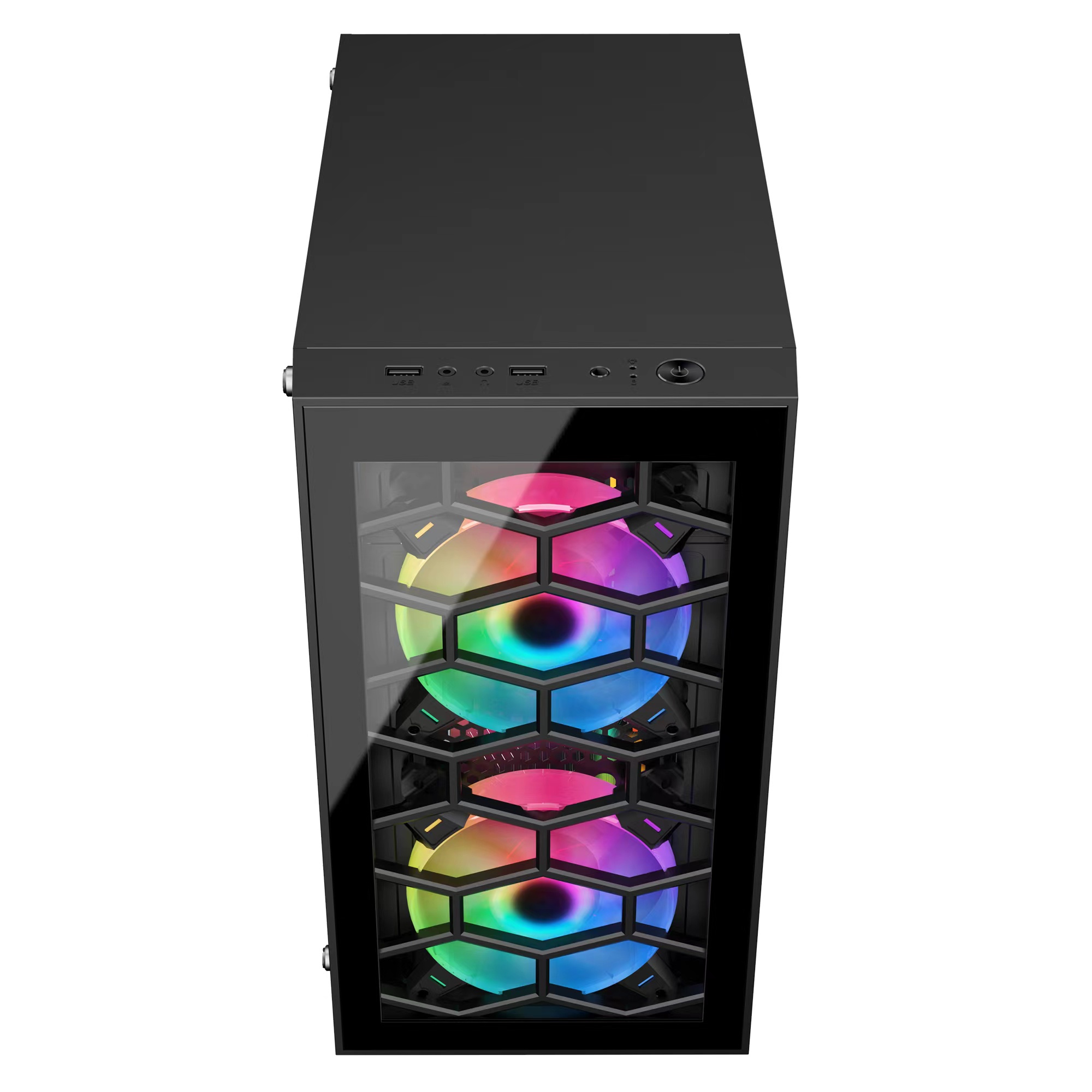

FRONT: 2*12CM

REAR: 1*12CM

Liquid Cooling Support

N/A

Power Supply Support

TOP MOUNT(ATX)

Net Weight

N.W.: 3KG

Gross Weight

G.W.: 3.6KG
