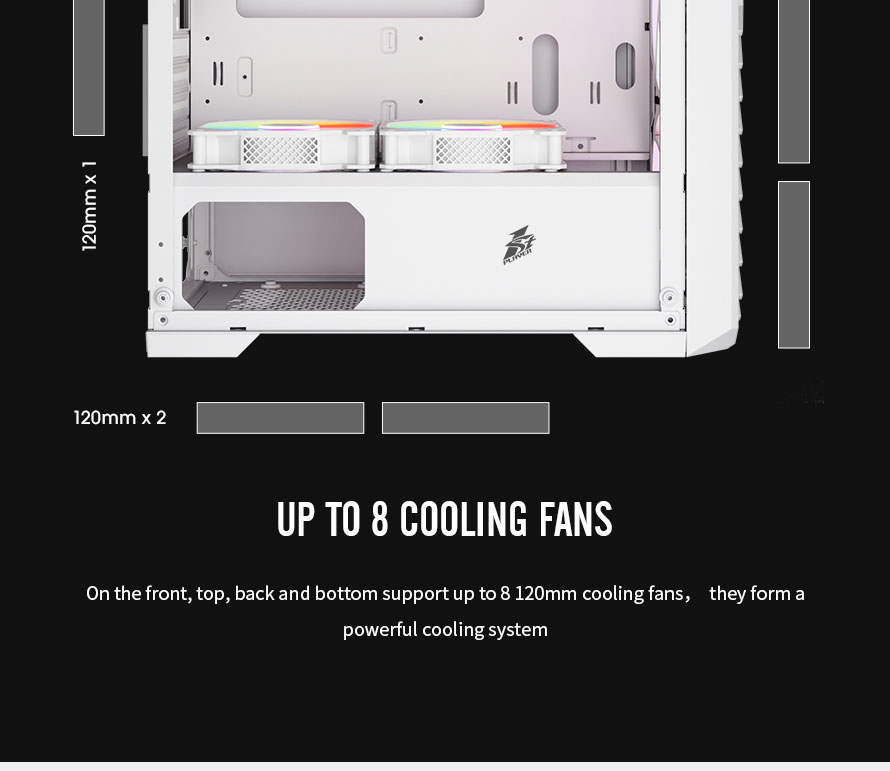

Support installation of up to 8 fans

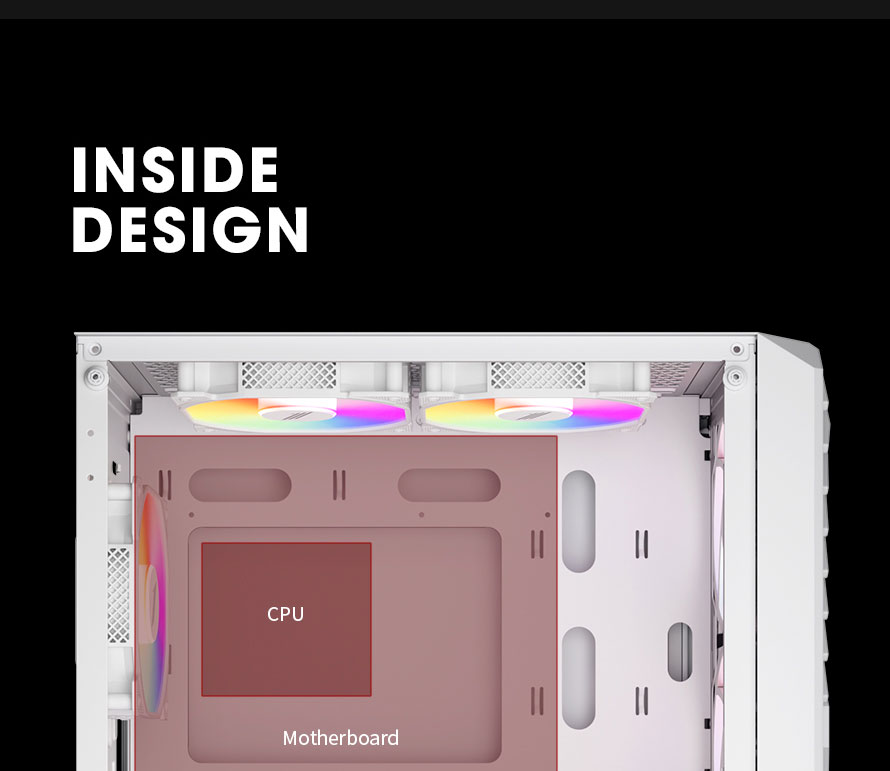

Support CPU cooler height up to 165 mm

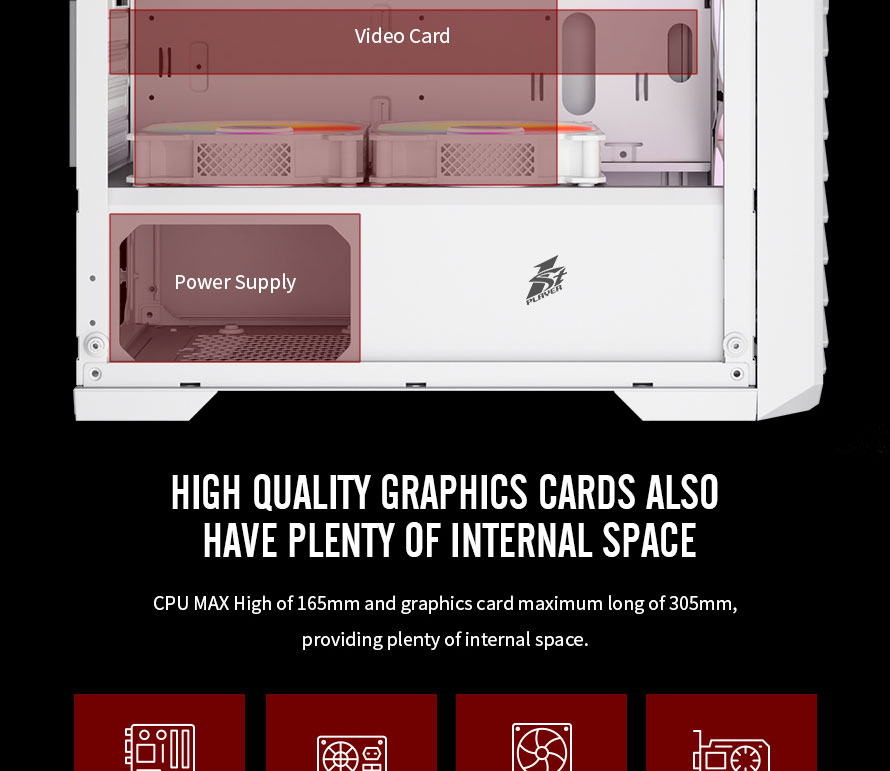

Support GPU length up to 330 mm
Support a 240 mm radiator at the top

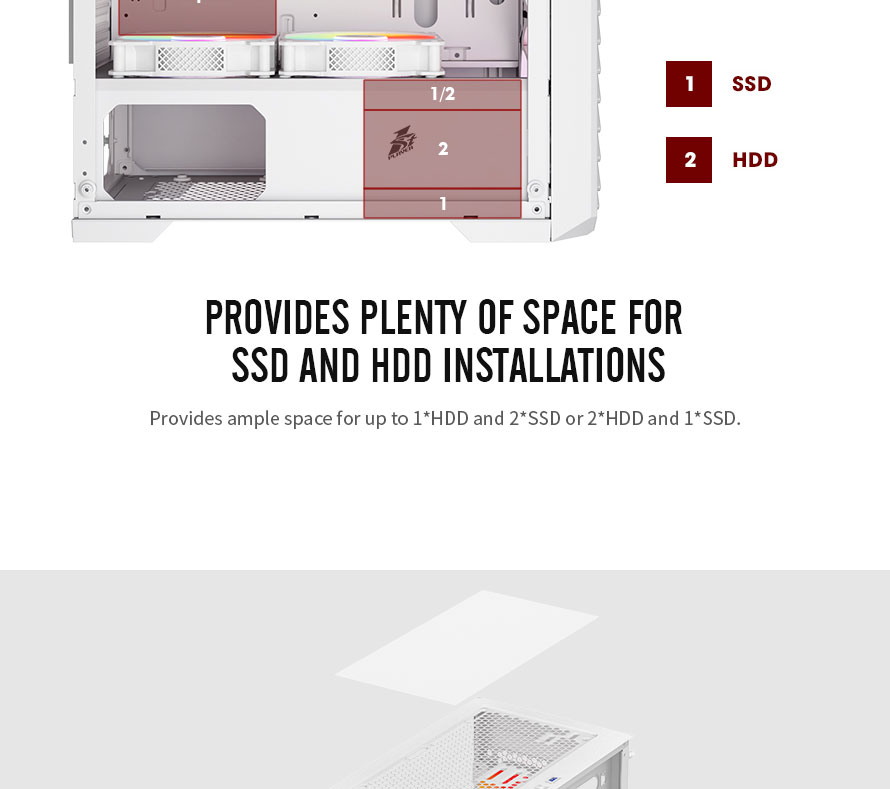

Support up to 3 drive bays: 2 x 3.5" HDD + 1 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.

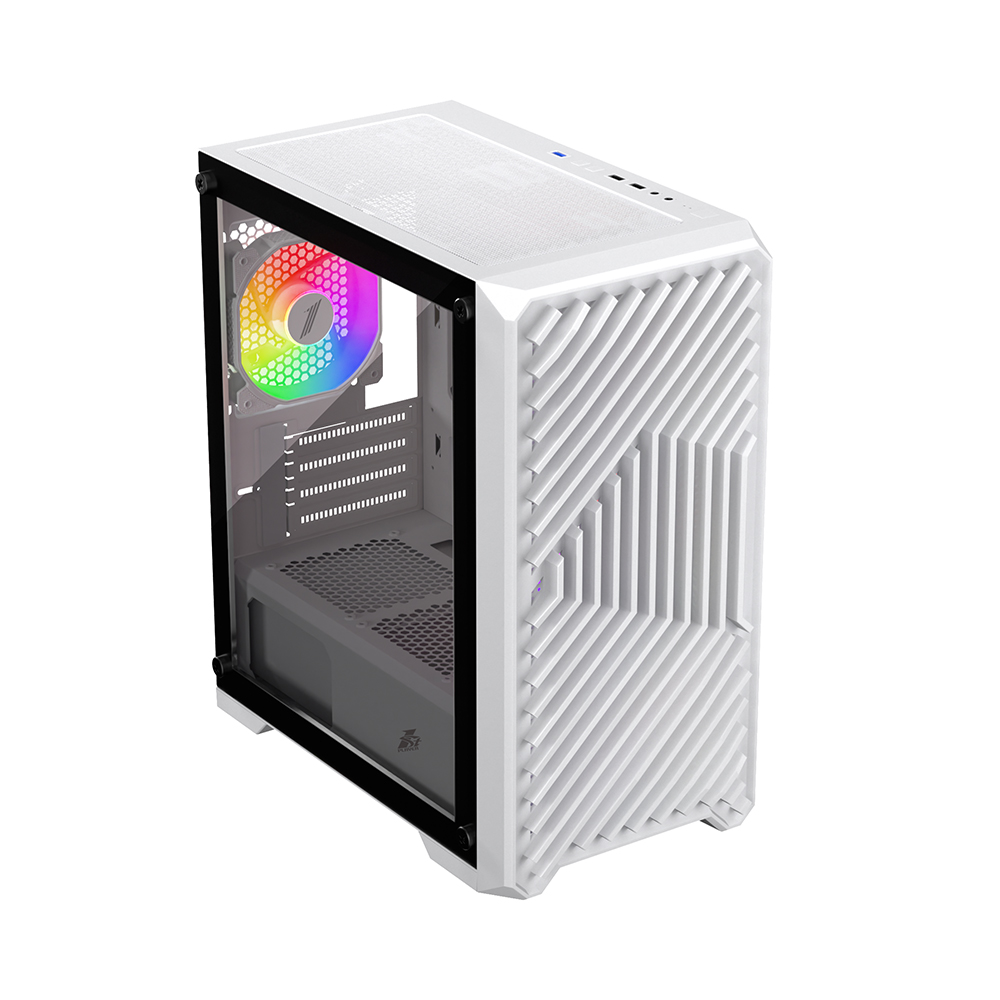

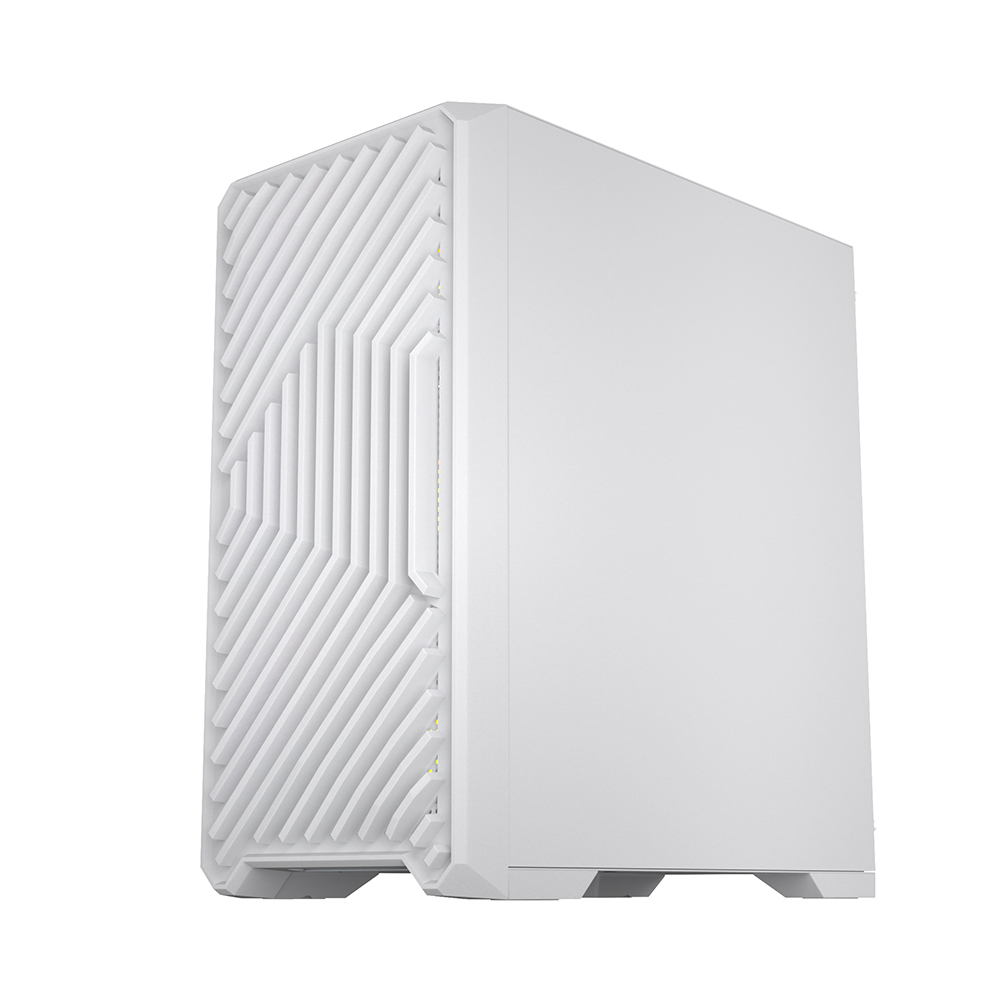

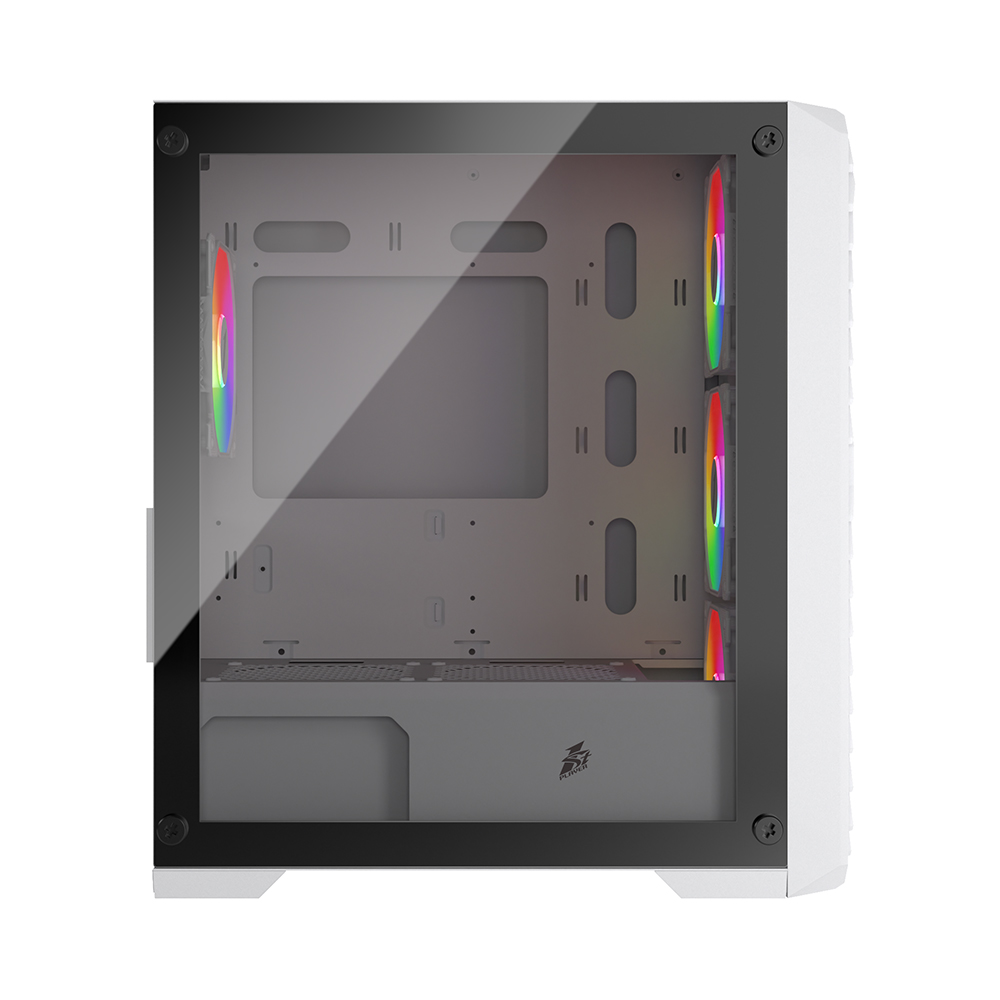

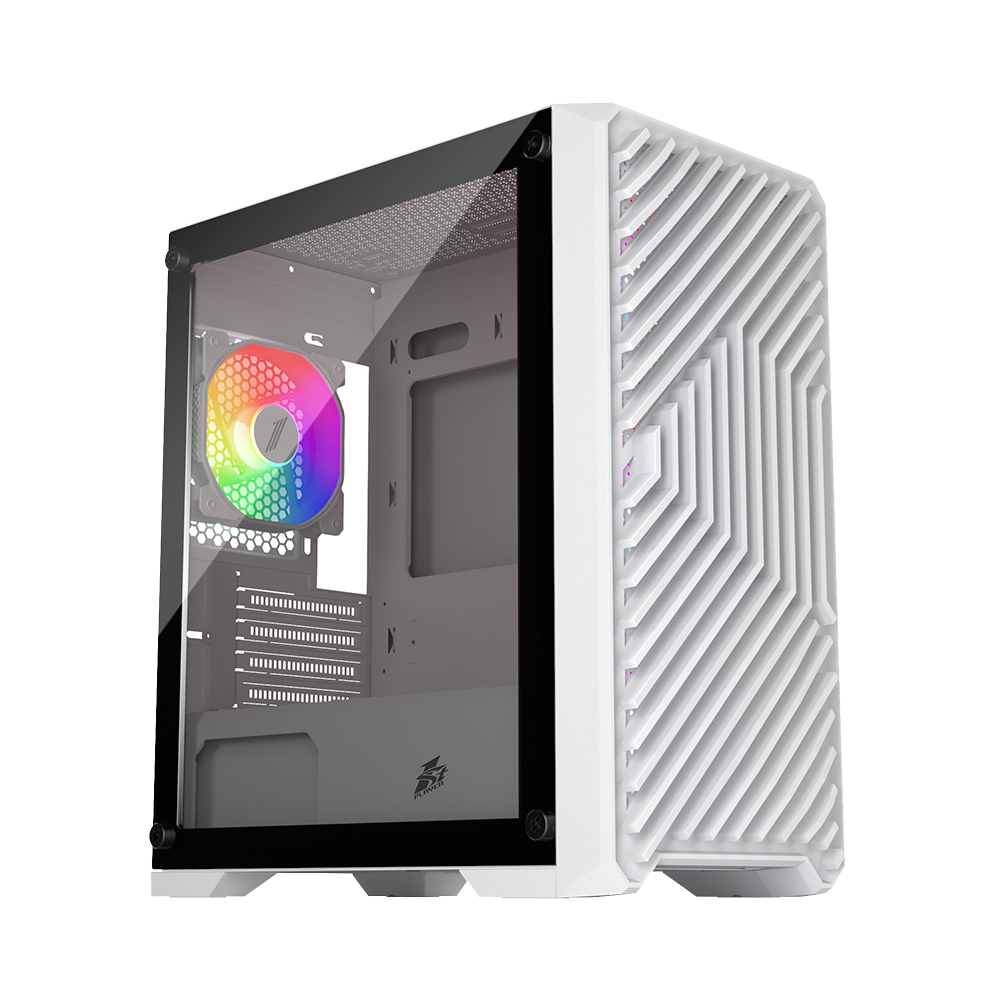

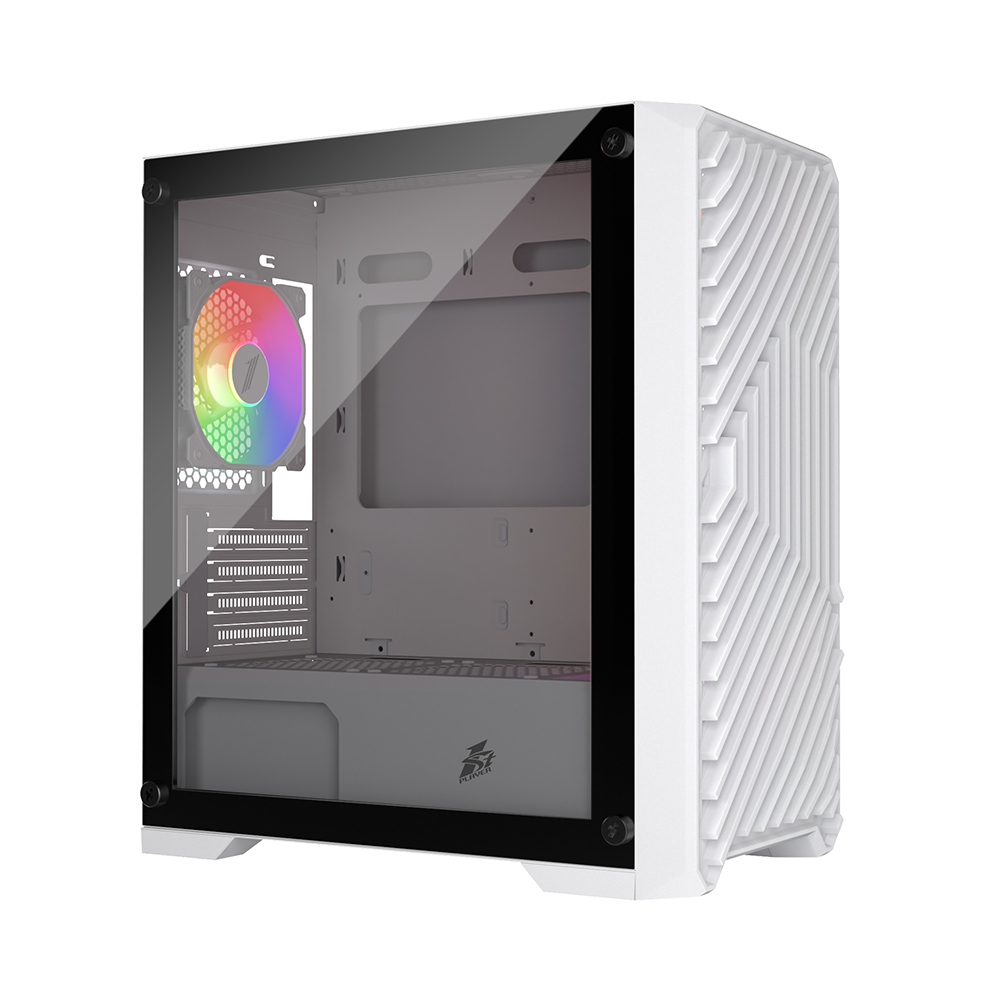

White

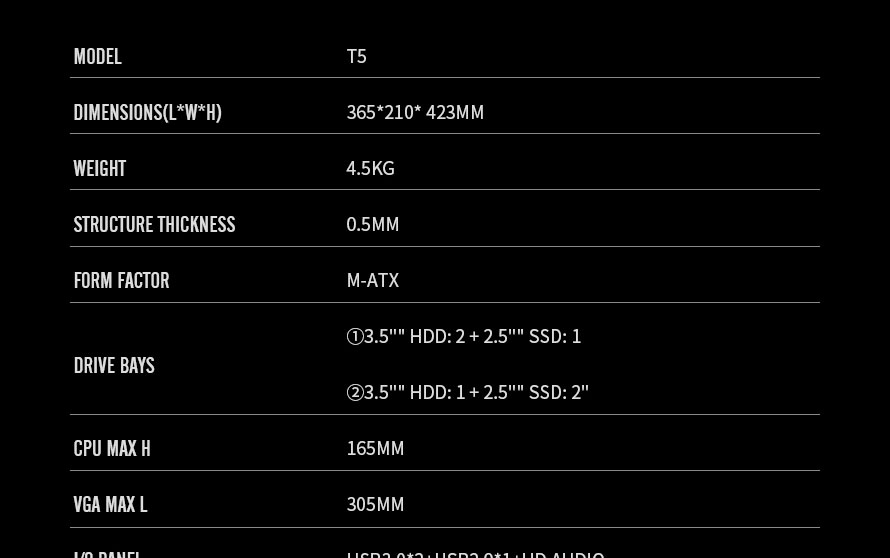

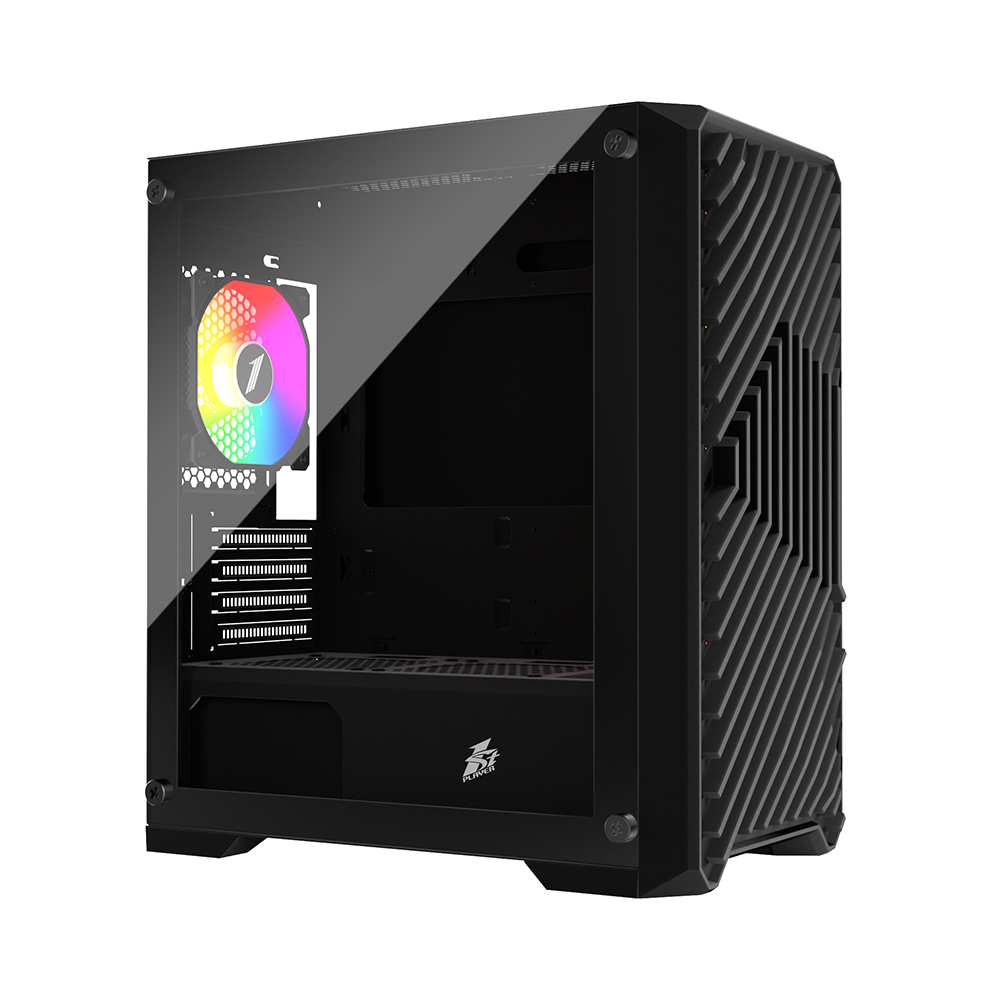

MODEL
T5

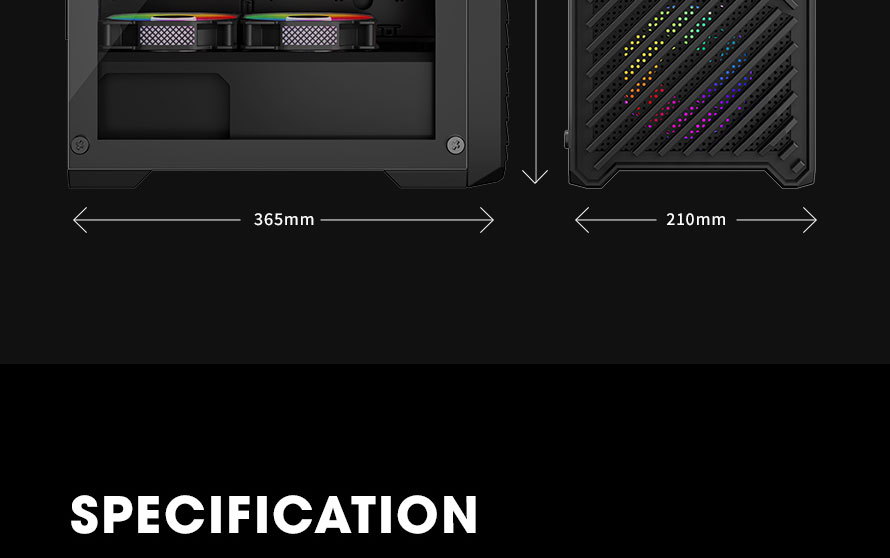

STRUCTURE DIMENSIONS (L x W x H)
335 x 210 x 407 mm

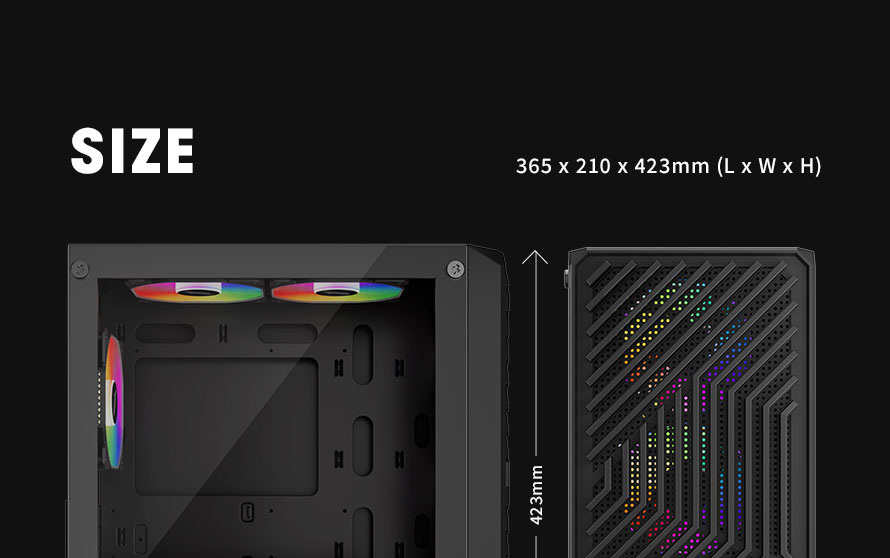

PRODUCT DIMENSIONS (L x W x H)
377 x 210 x 422 mm
PACKAGE DIMENSIONS (L x W x H)
478 x 265 x 433 mm
STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC 0.5 mm

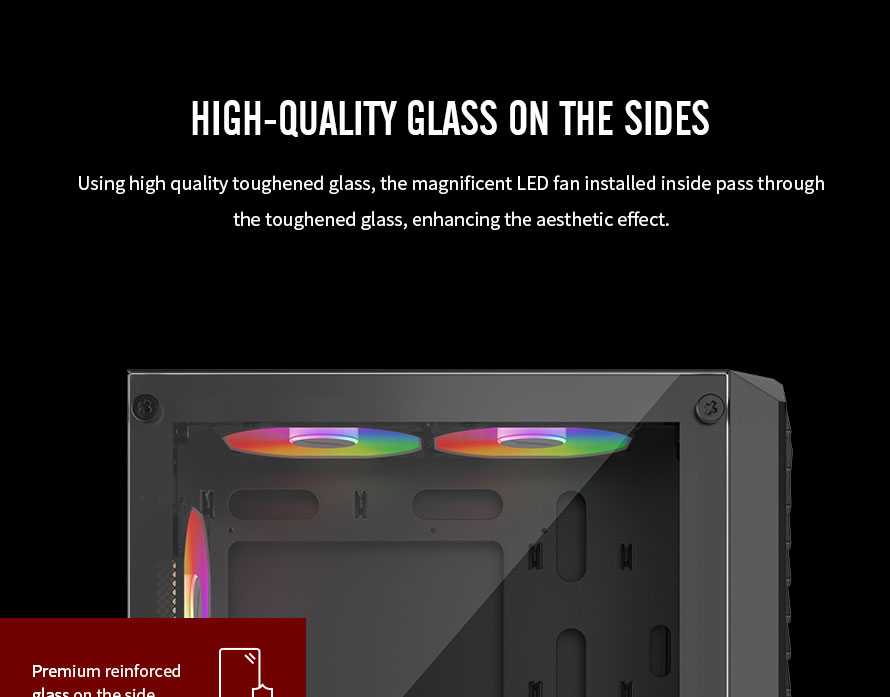

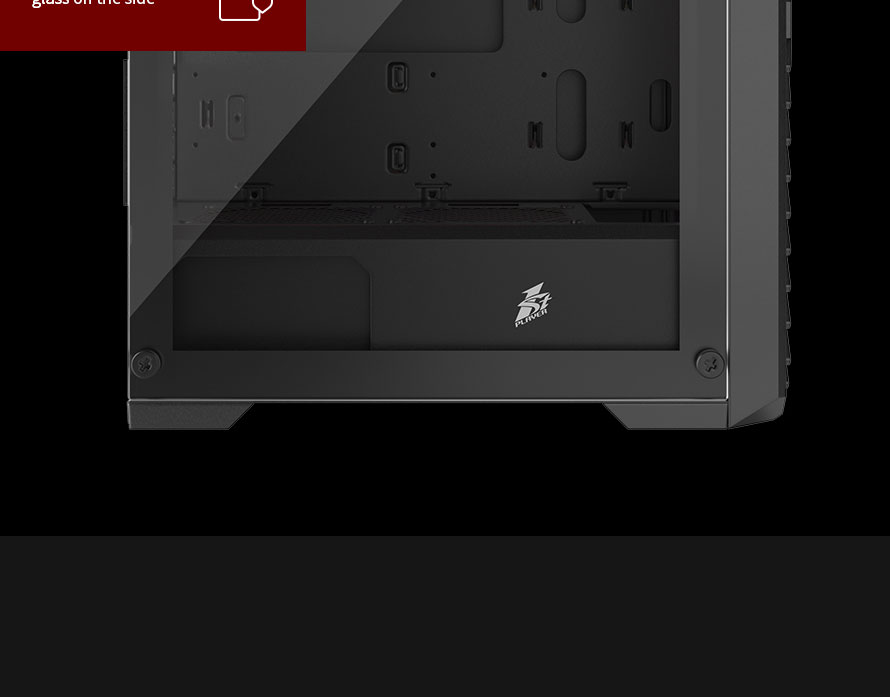

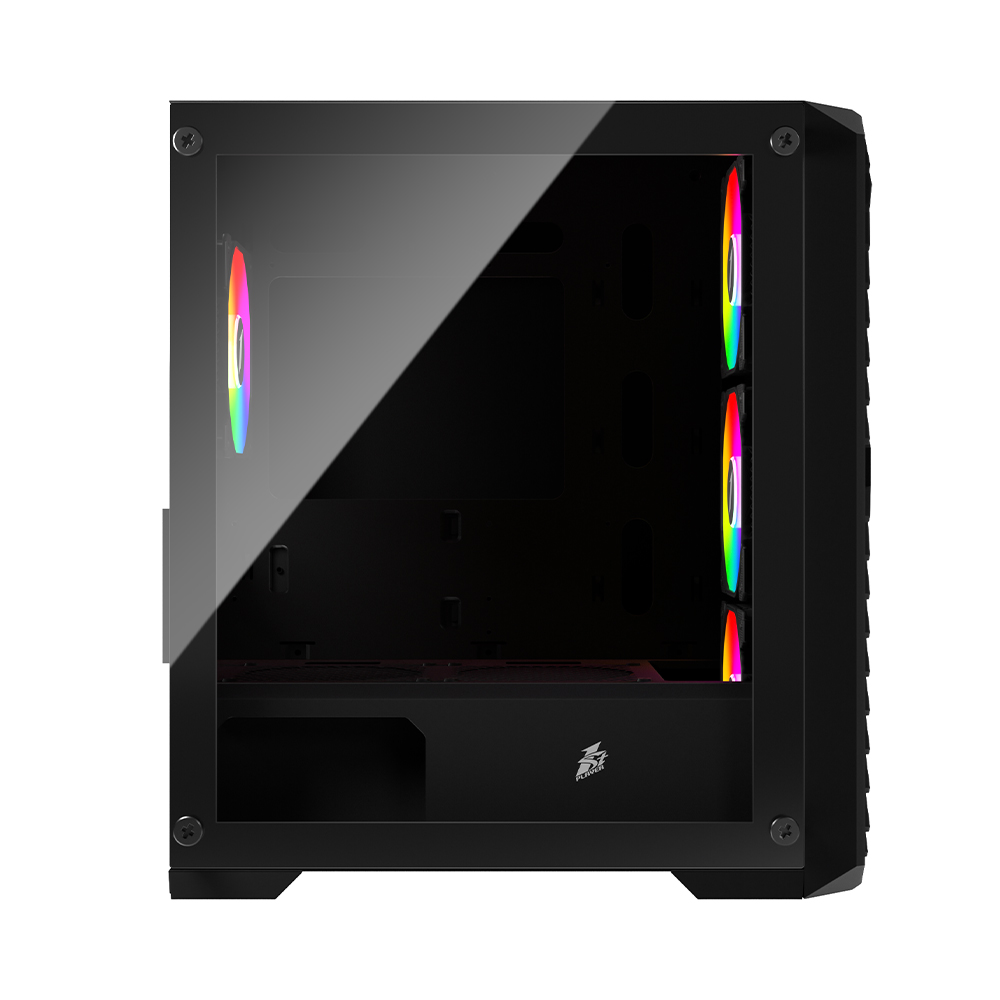

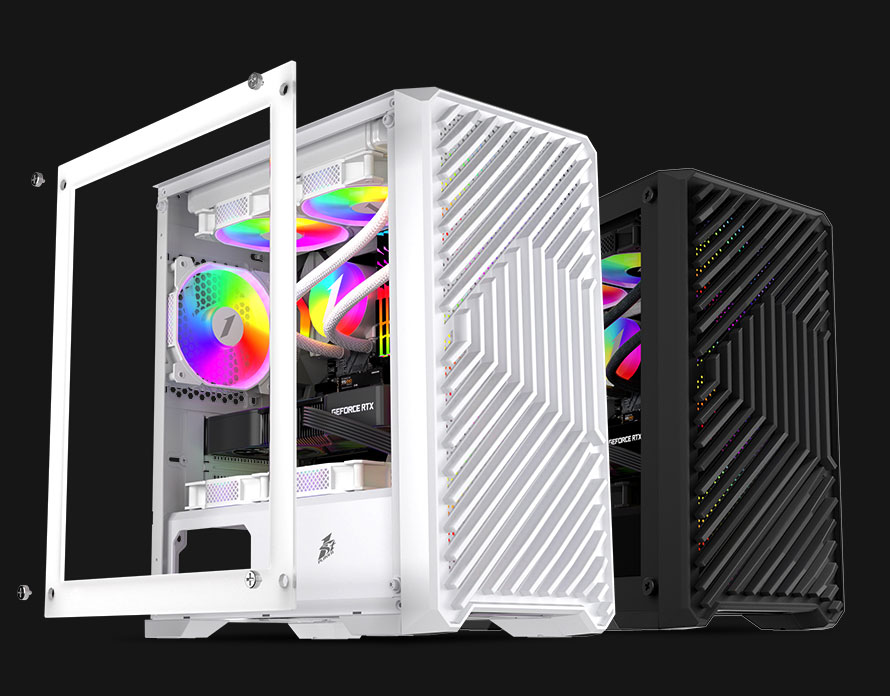

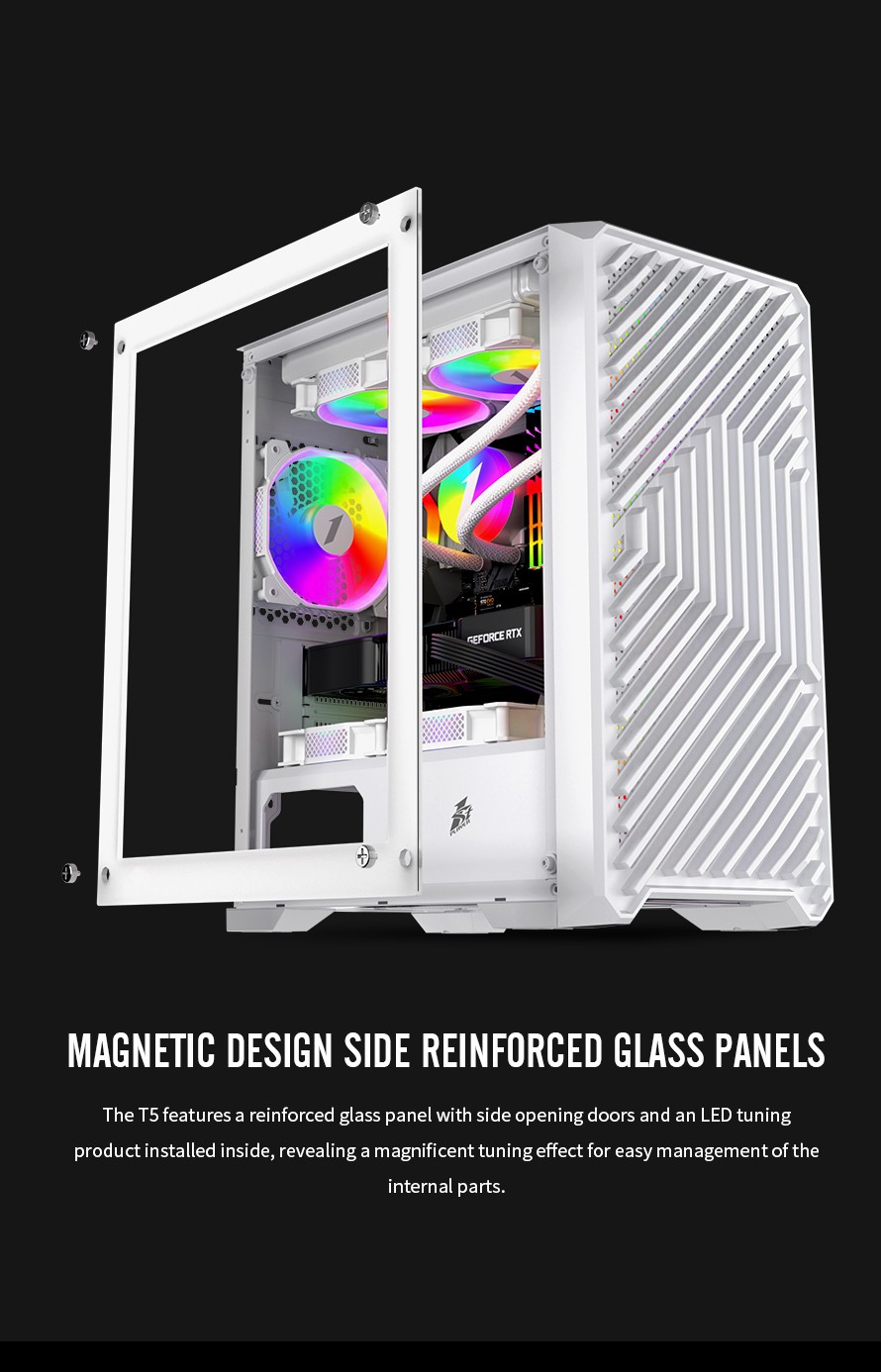

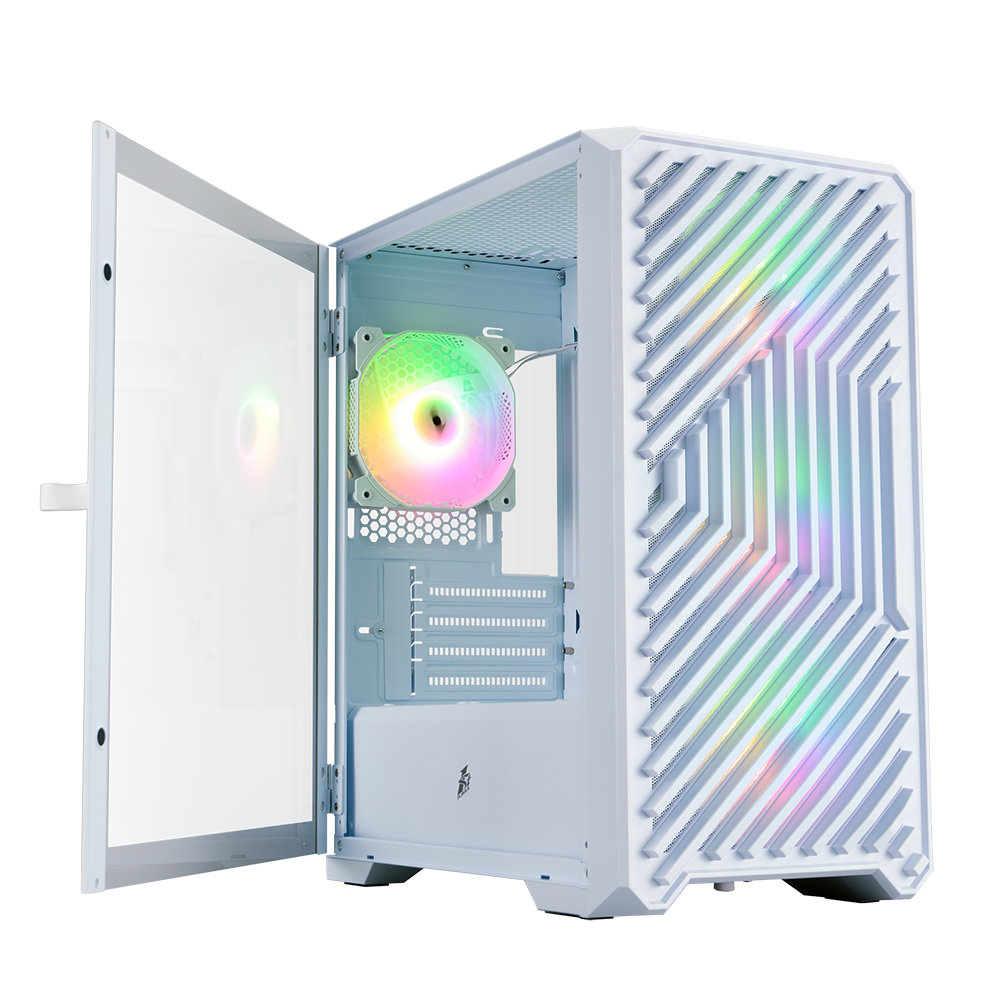

Left Panel: Tempered glass

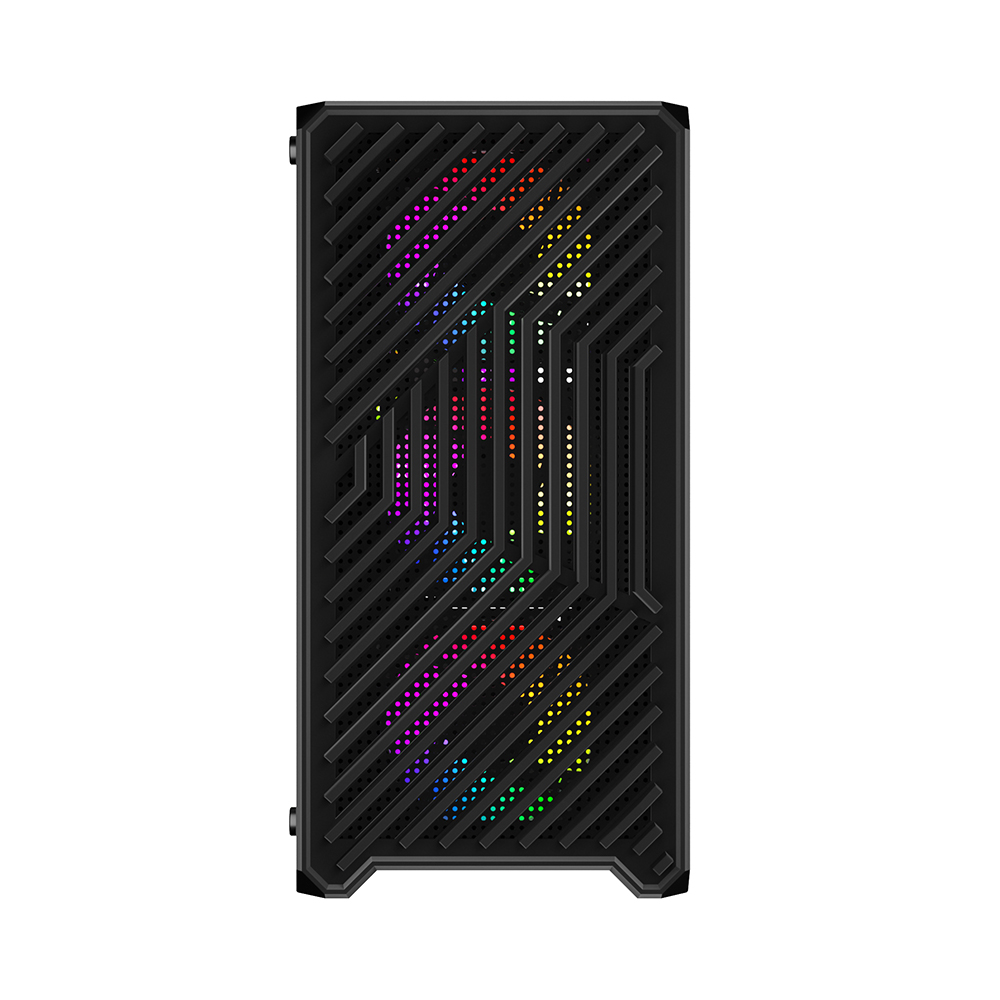

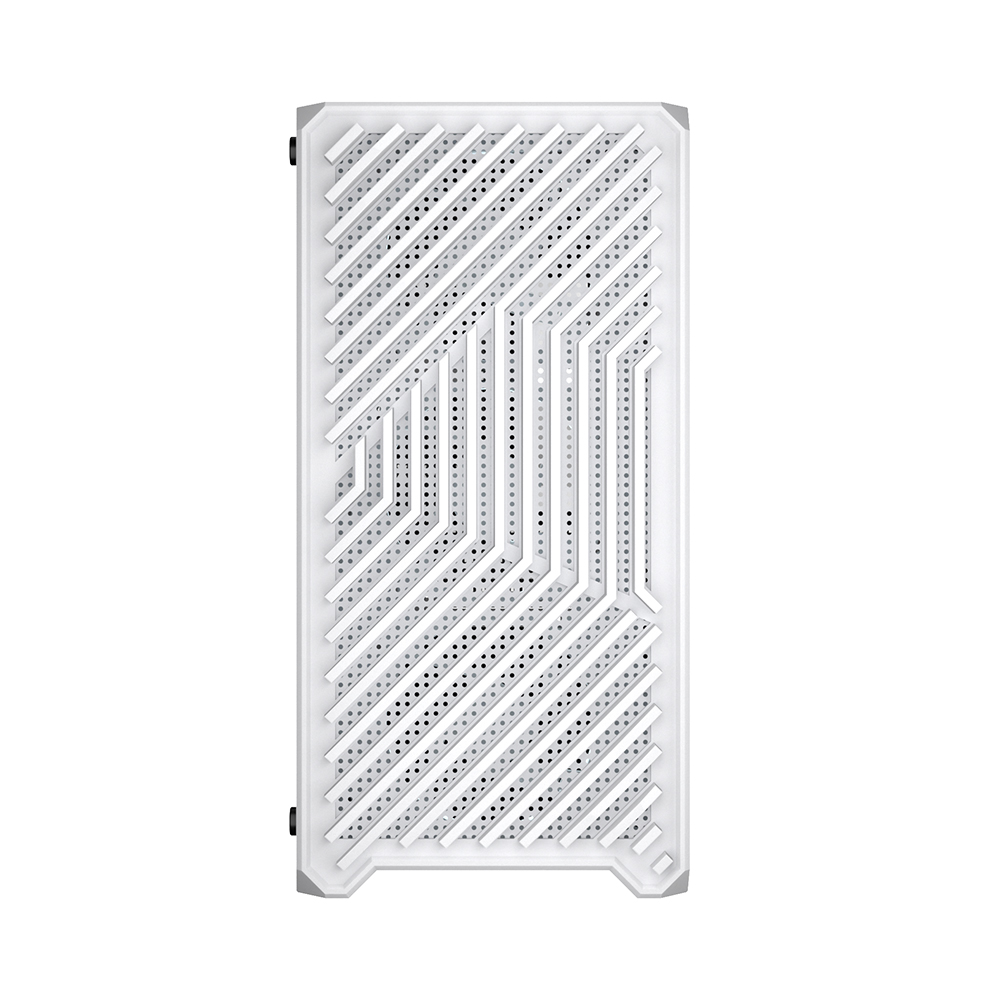

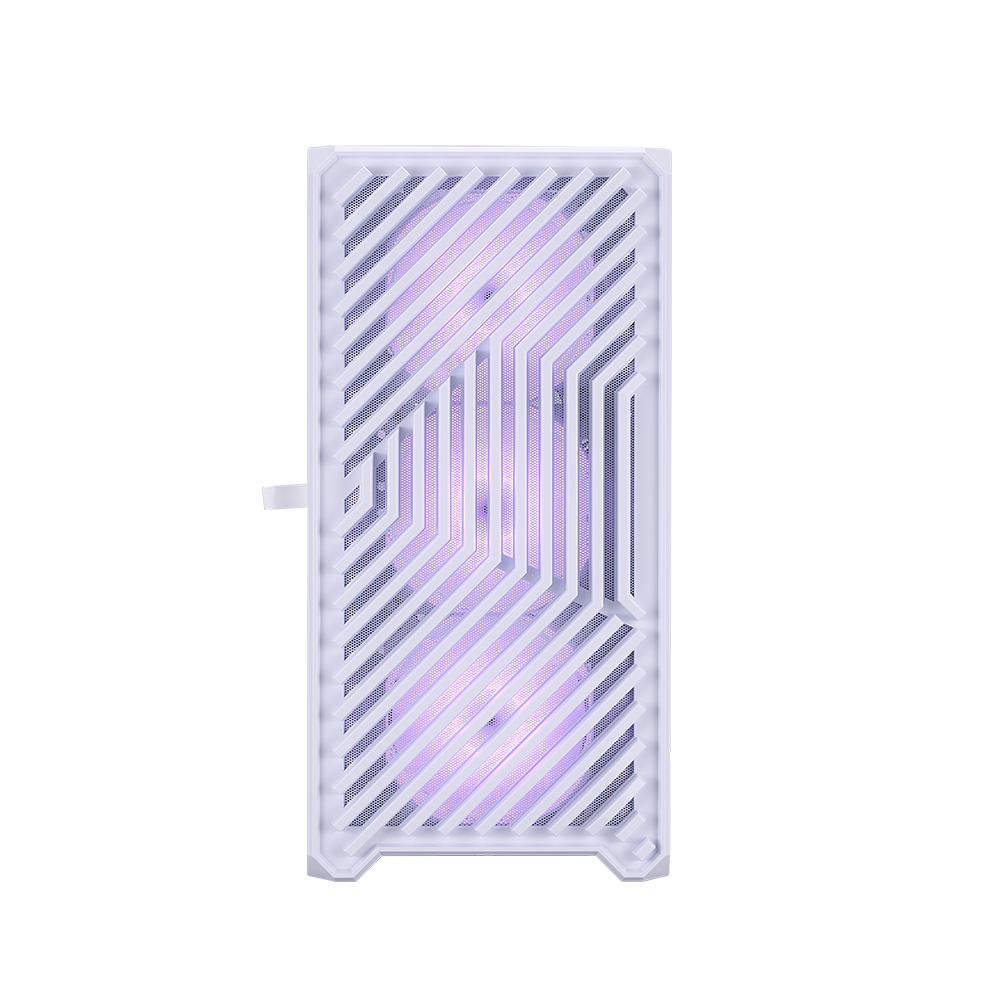

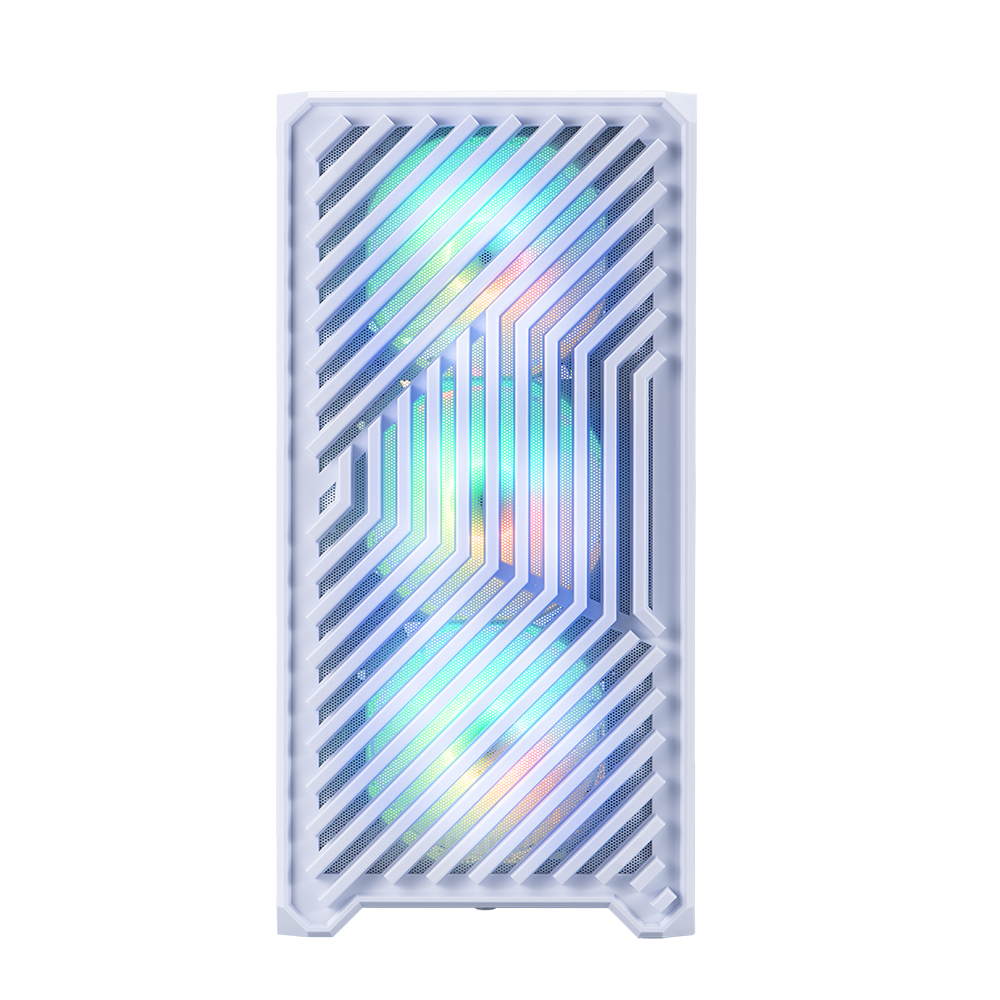

Front Panel: Plastic net
FORM FACTOR
M-ATX
5.25"CD ROM:0
3.5"" HDD: 2+2.5"" SSD: 1
3.5"" HDD: 1+2.5"" SSD: 2
CPU MAX HEIGHT
165 mm
GPU MAX LENGTH
330 mm

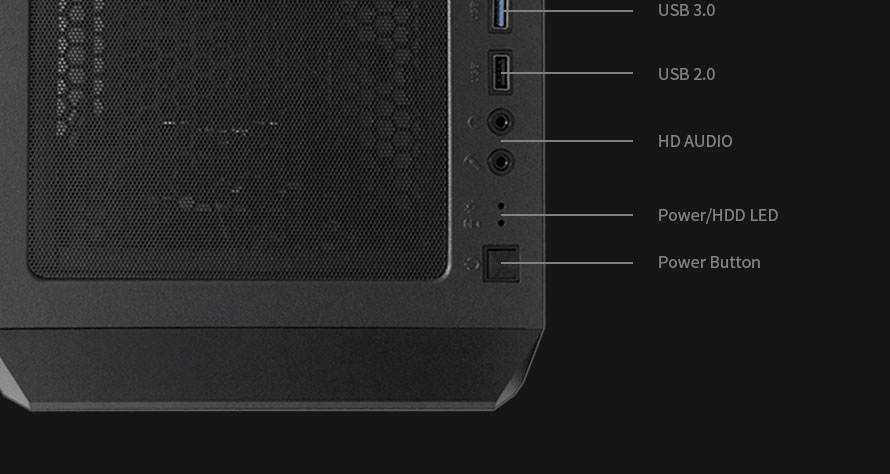

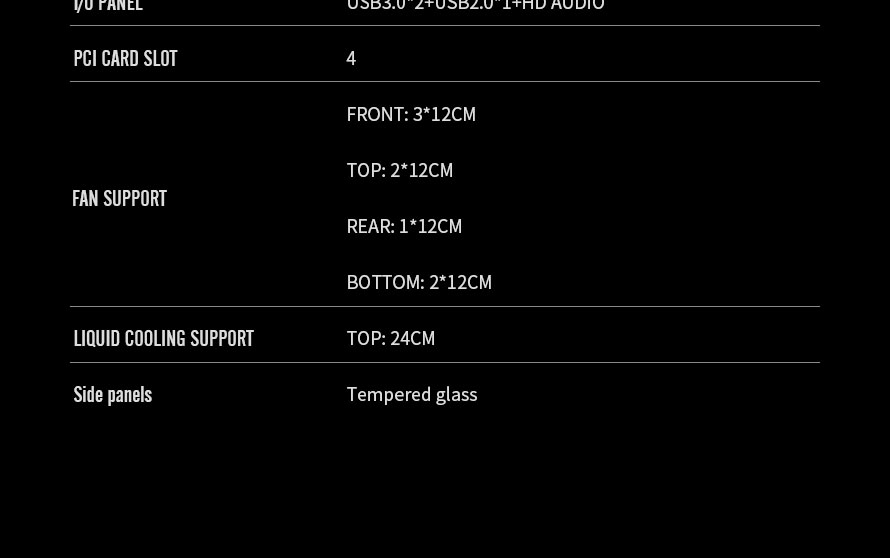

I/O PANEL
HD AUDIO + USB 3.0 x 2 + USB 2.0 x 1
PCI CARD SLOT
4

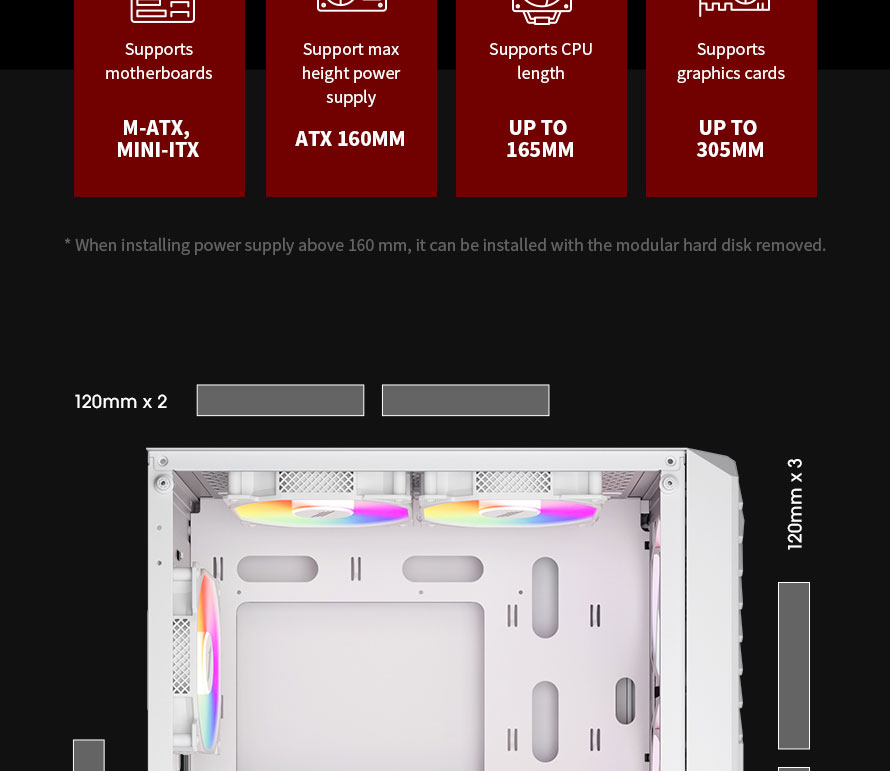

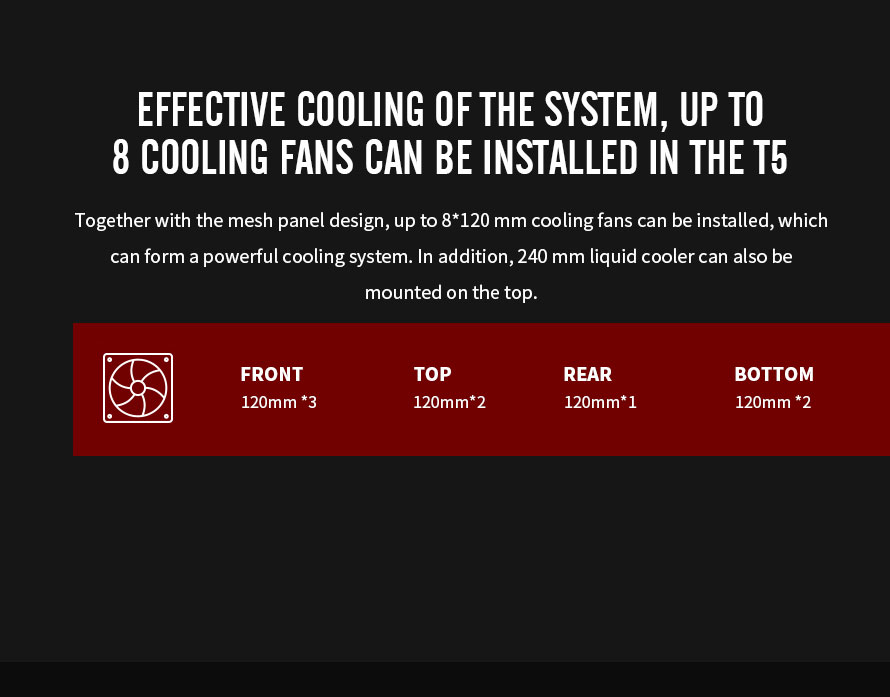

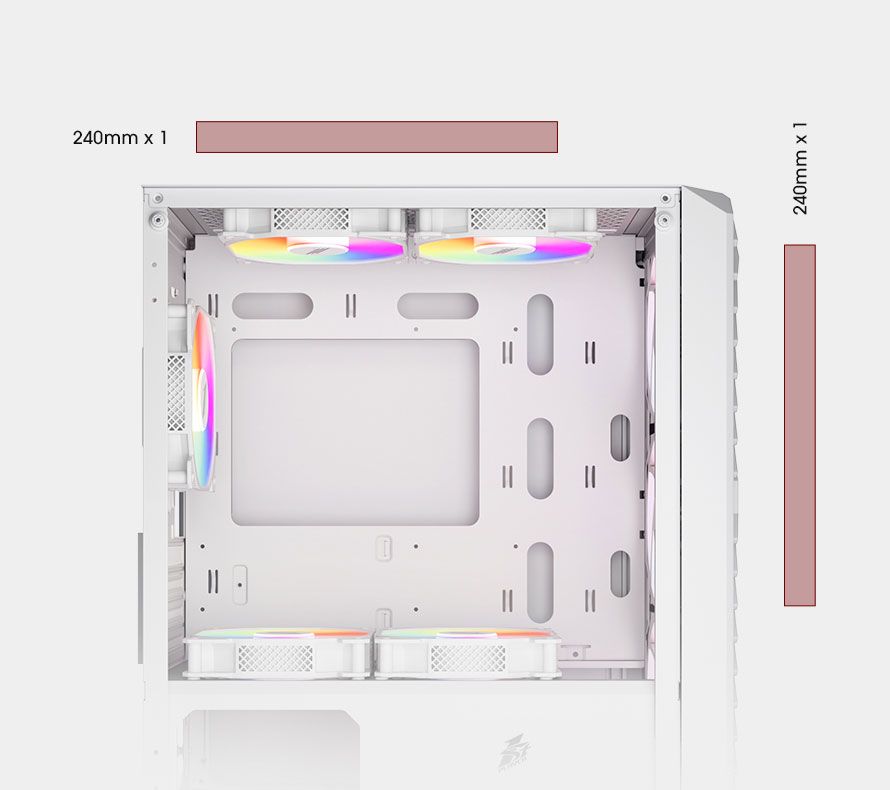

FAN SUPPORT

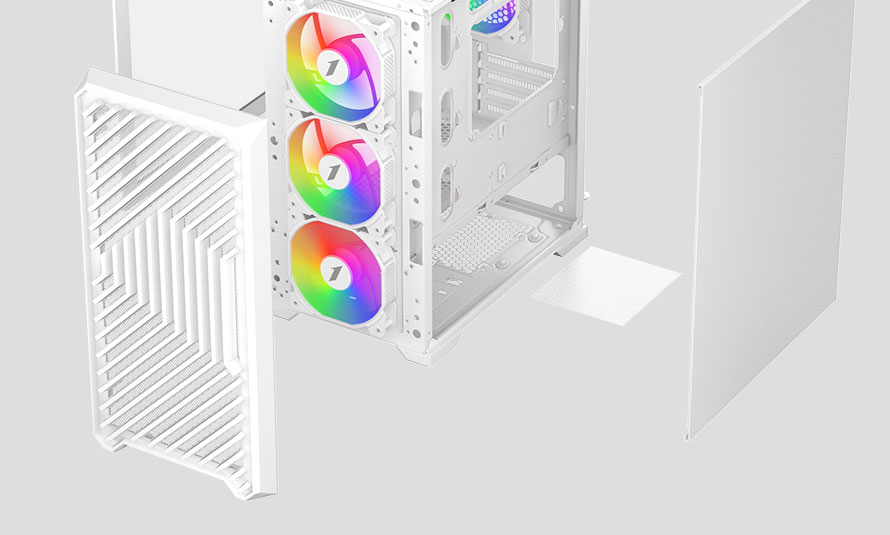

Front: 3 x 120 mm
Rear: 1 x 120 mm
Top: 2 x 120 mm
Bottom: 2 x 120 mm

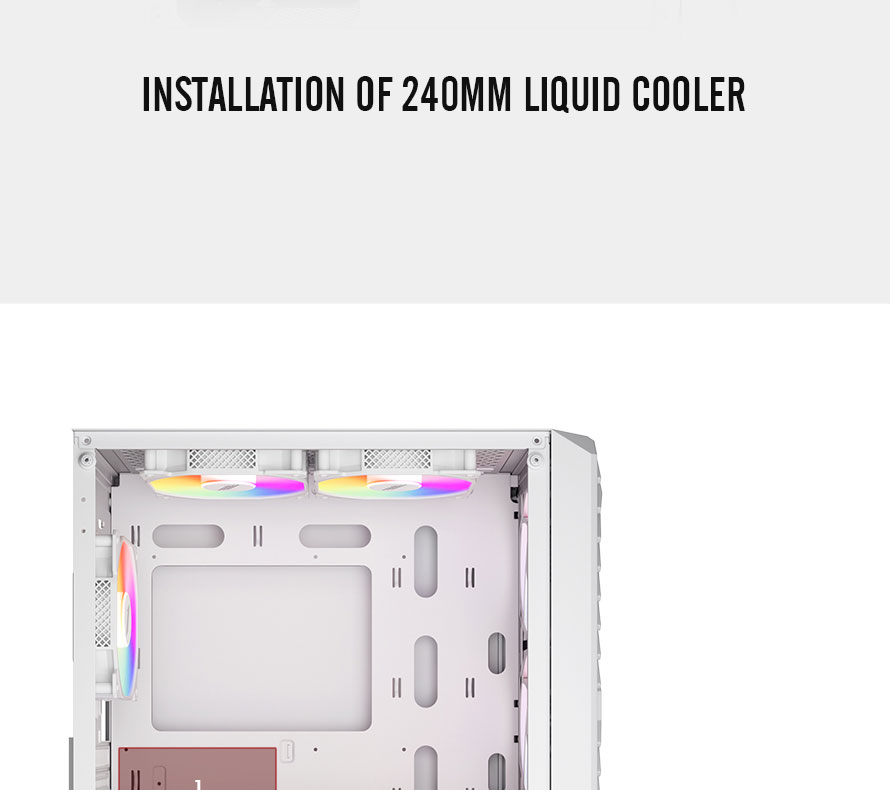

LIQUID COOLING SUPPORT
Top: 240 mm
POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
4.63 kg / 10.20 lb
5.55 kg / 12.23 lb
