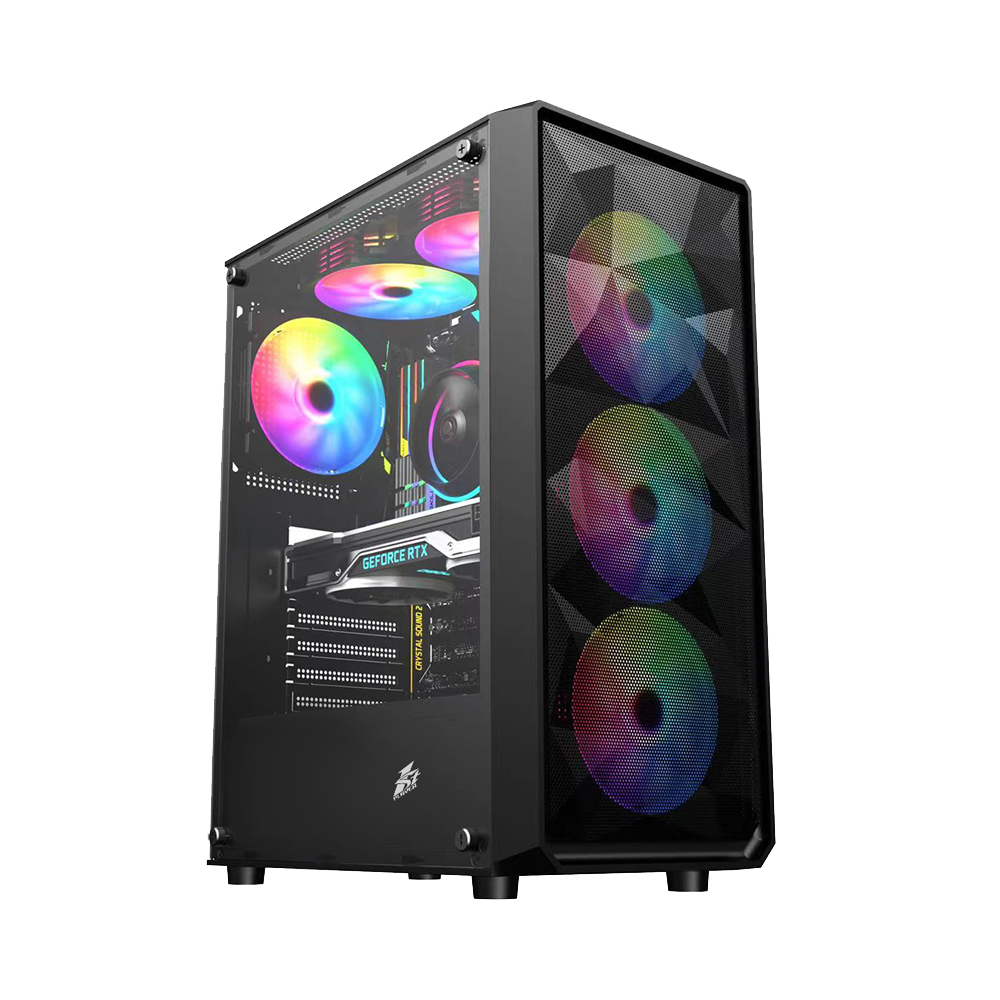

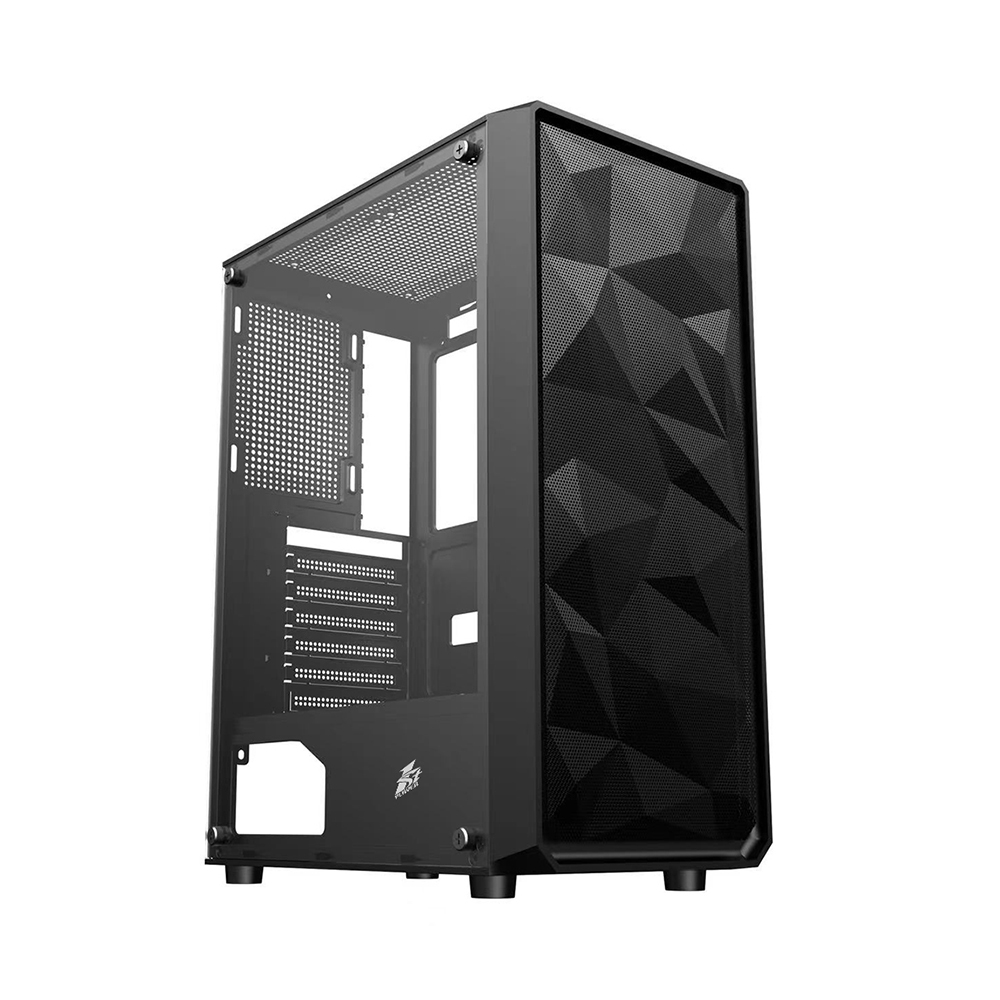

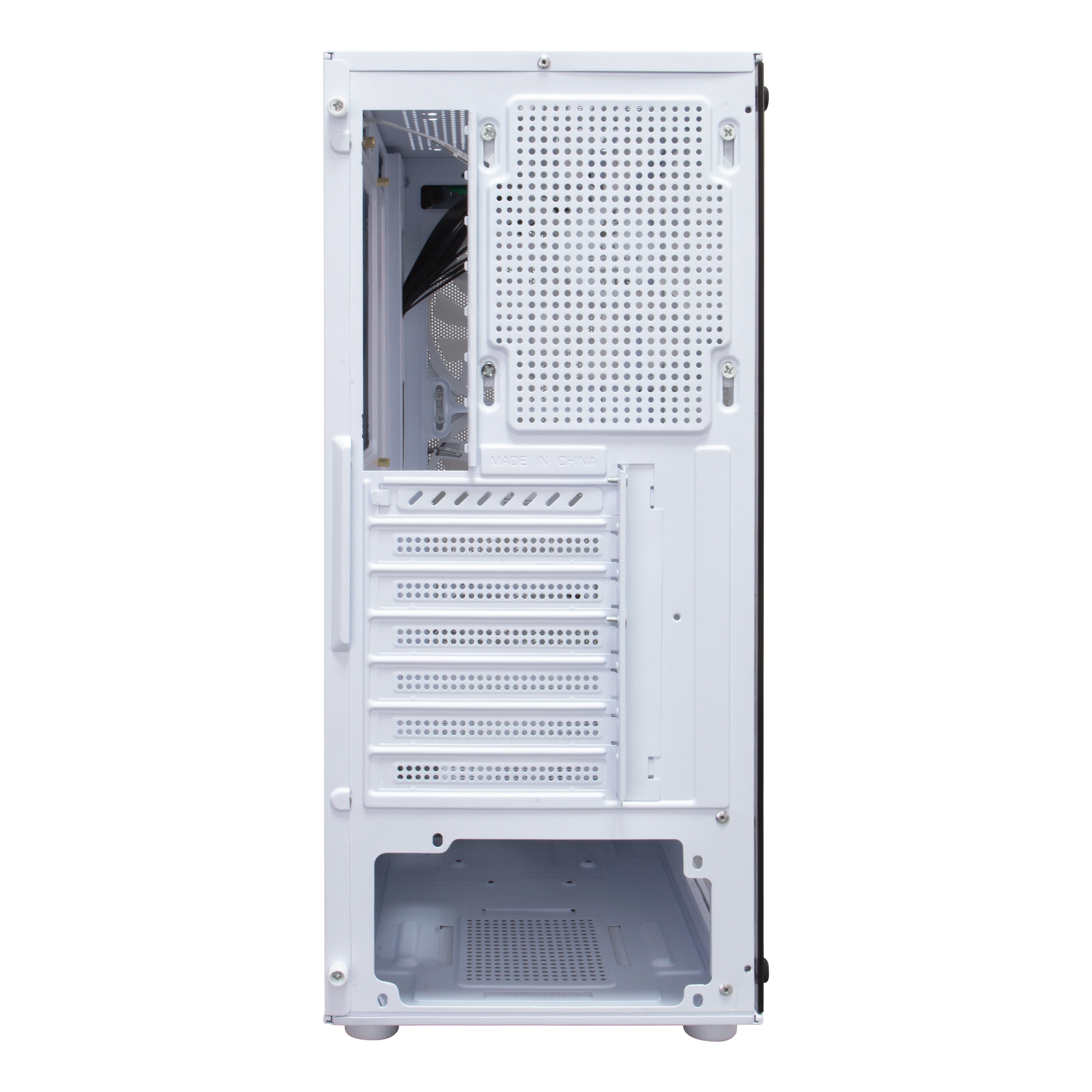

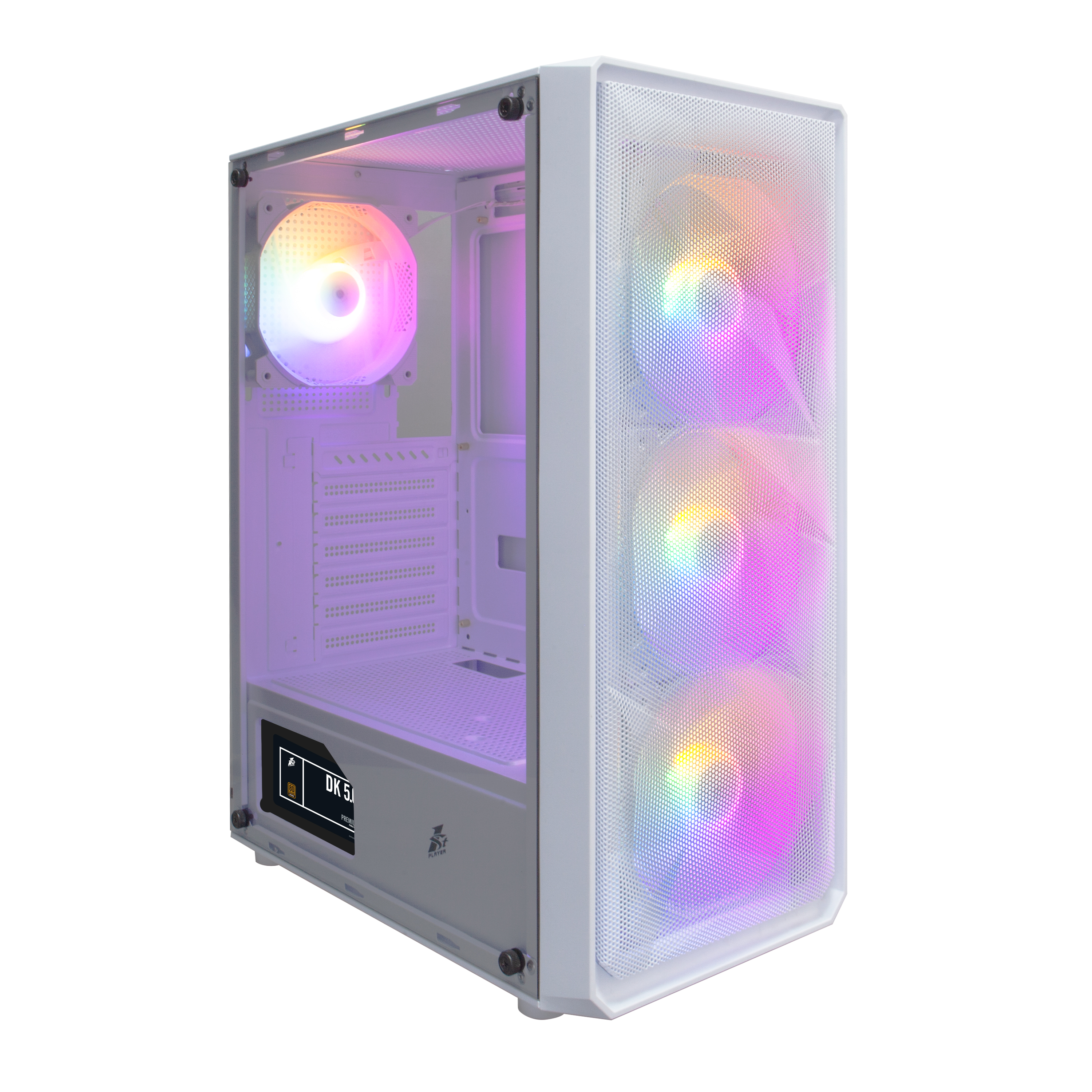

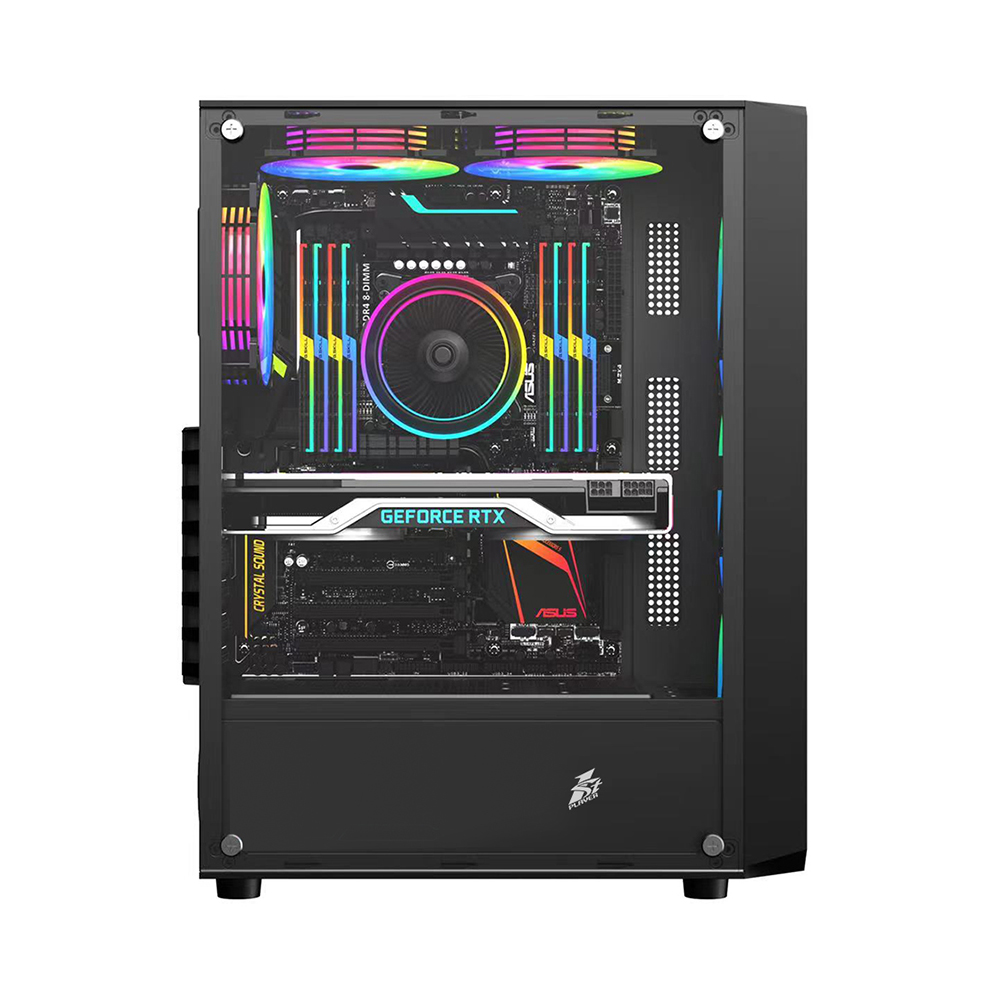

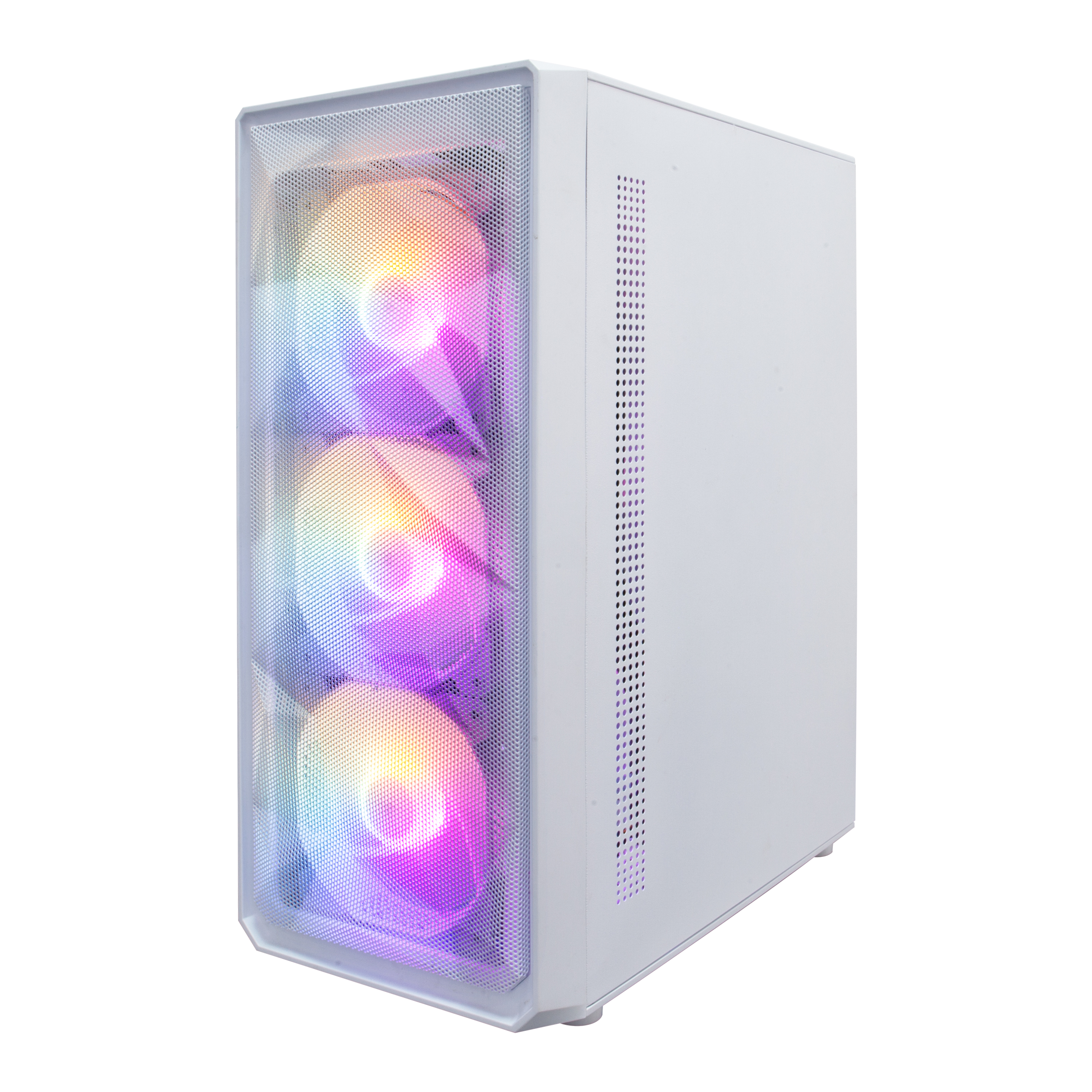

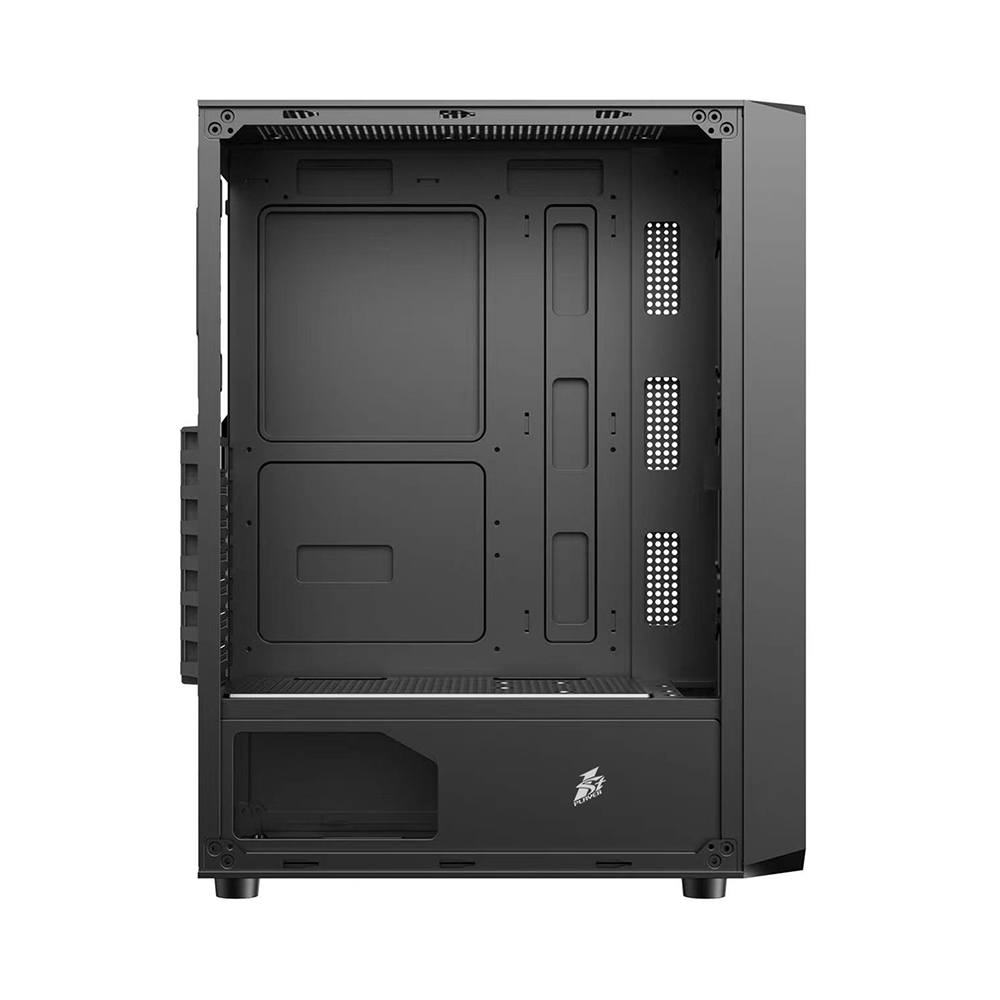

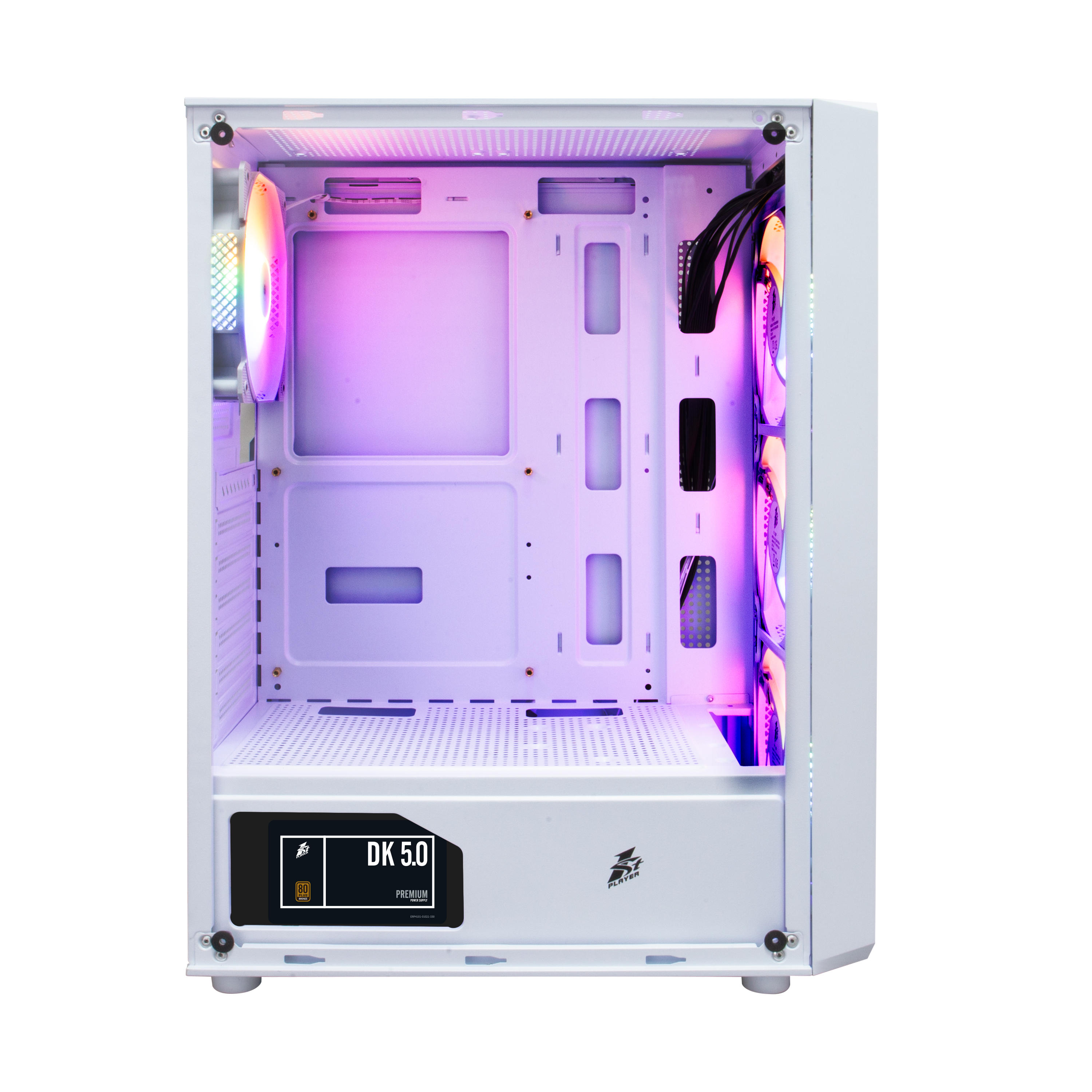

FD3

  • Support installation of up to 6 fans

  • Support CPU cooler height up to 155 mm

  • Support GPU length up to 290 mm

  • Support up to 2 drive bays: 1 x 3.5" HDD + 1 x 2.5" SSD

    *Computer parts are not included. Cooling fan may vary among different countries/regions.


Black

MODEL

FD3

STRUCTURE DIMENSIONS (L x W x H)

305 x 192 x 435 mm

PRODUCT DIMENSIONS (L x W x H)

338 x 192 x 447 mm

PACKAGE DIMENSIONS (L x W x H)

480 x 237 x 393 mm

STRUCTURE THICKNESS

0.45 mm

MATERIALS

SPCC 0.45 mm

Left Panel: Tempered glass

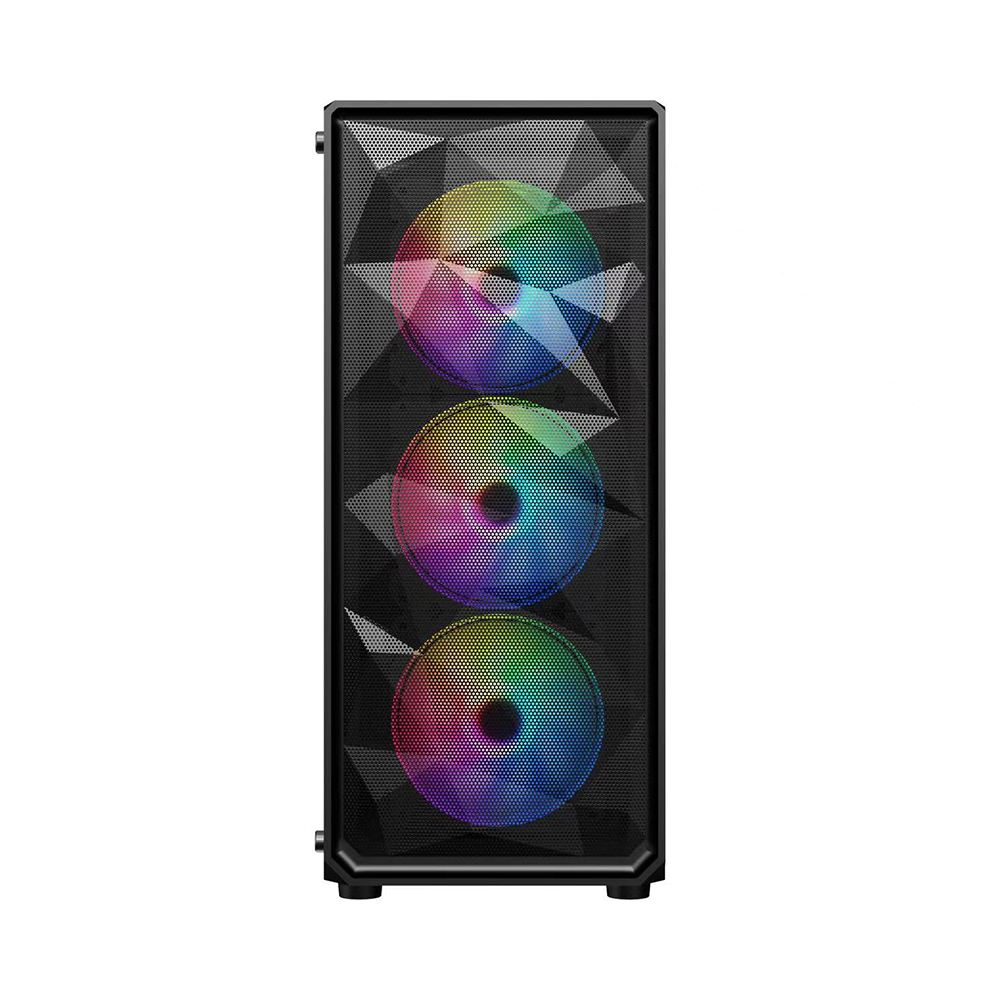

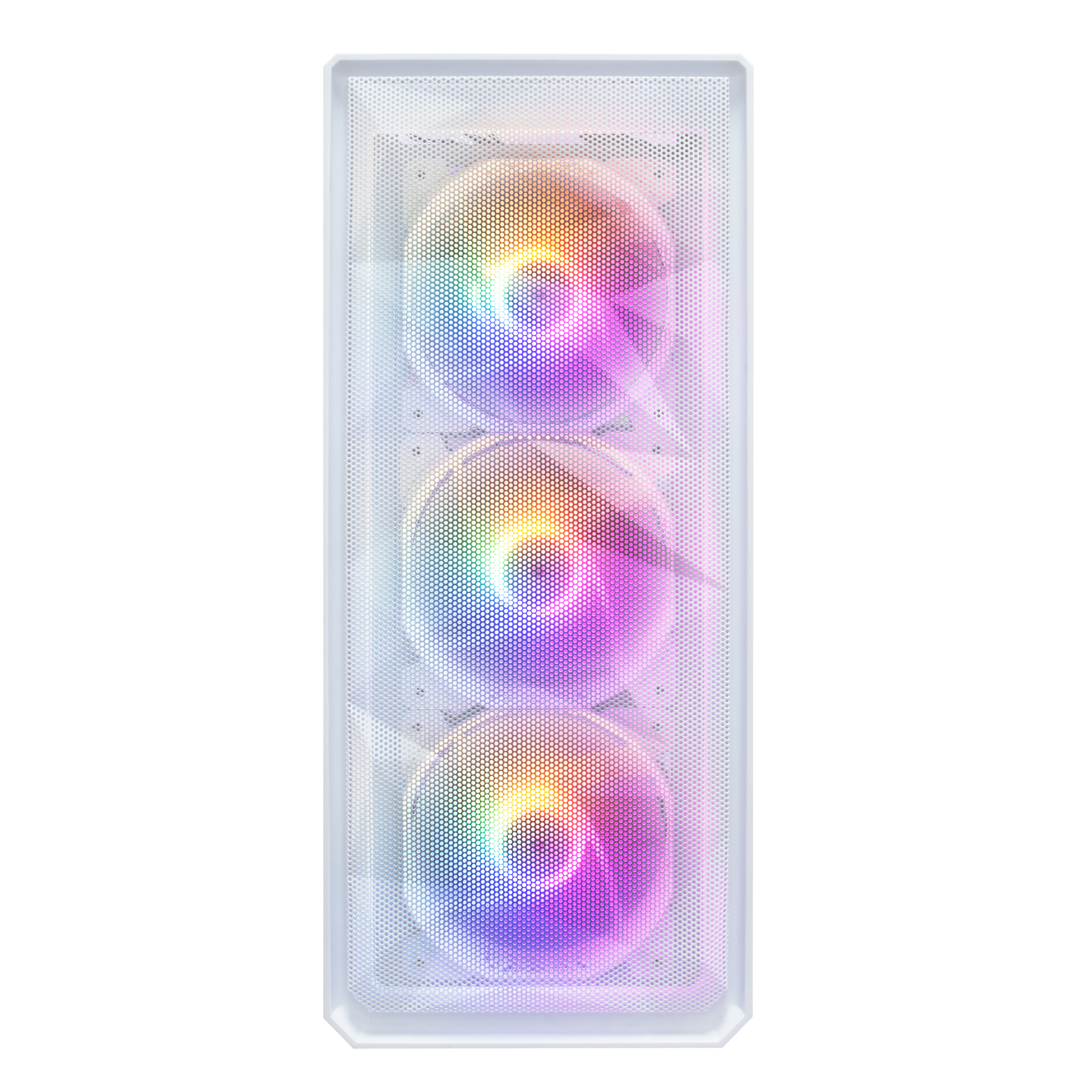

Front Panel: Metal mesh

FORM FACTOR

ATX / M-ATX

DRIVE BAYS

5.25" CD ROM: 0

3.5" HDD: 1 + 2.5''SSD: 1

3.5" HDD: 0 + 2.5''SSD: 2

3.5" HDD: 2 + 2.5''SSD: 0


CPU MAX HEIGHT

155 mm

GPU MAX LENGTH

290 mm

I/O PANEL

USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO

PCI CARD SLOT

7

FAN SUPPORT

Front: 3 x 12 cm

Rear: 1 x 12 cm

Bottom: 2 x 12 cm

LIQUID COOLING SUPPORT

N/A

POWER SUPPLY SUPPORT

Bottom mount

NET WEIGHT

N.W.: 3.4 kg

GROSS WEIGHT

G.W.: 3.75 kg
