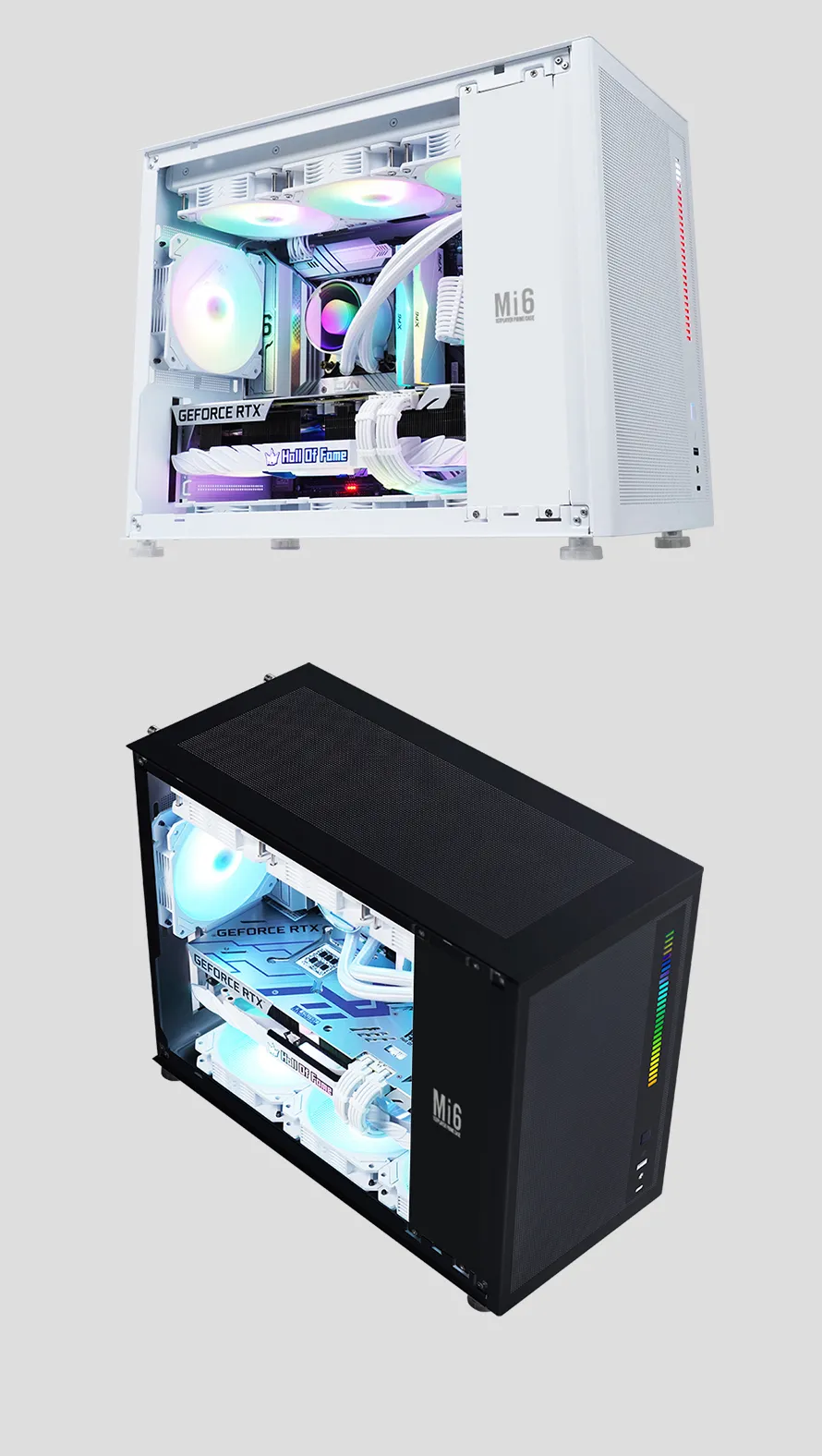

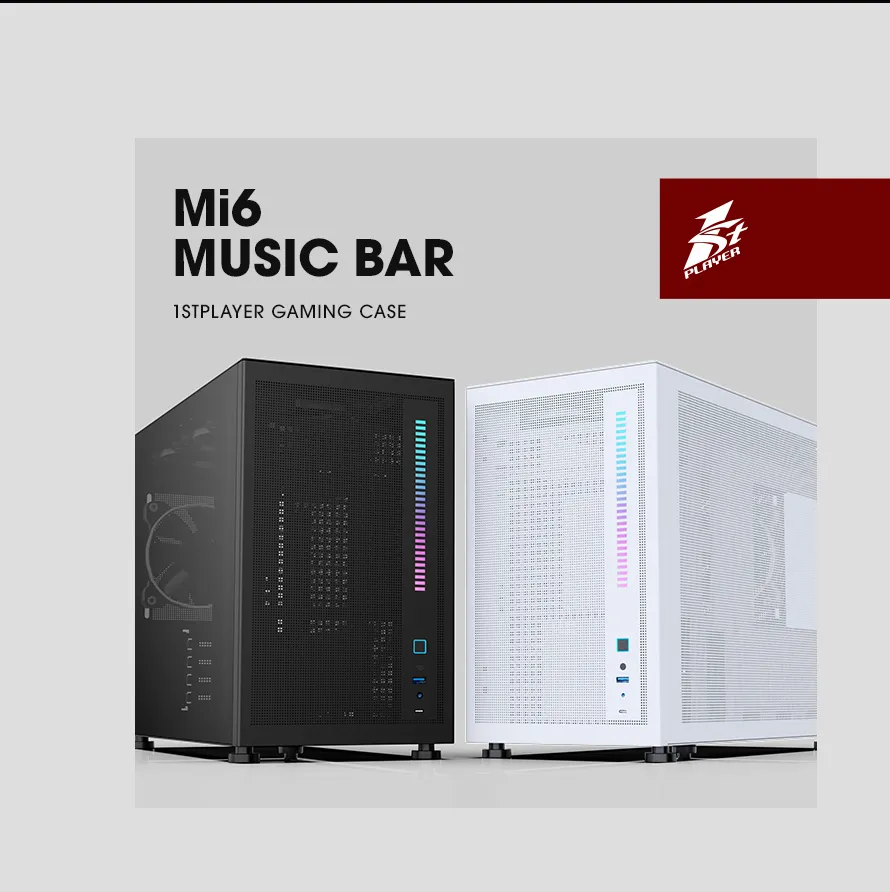

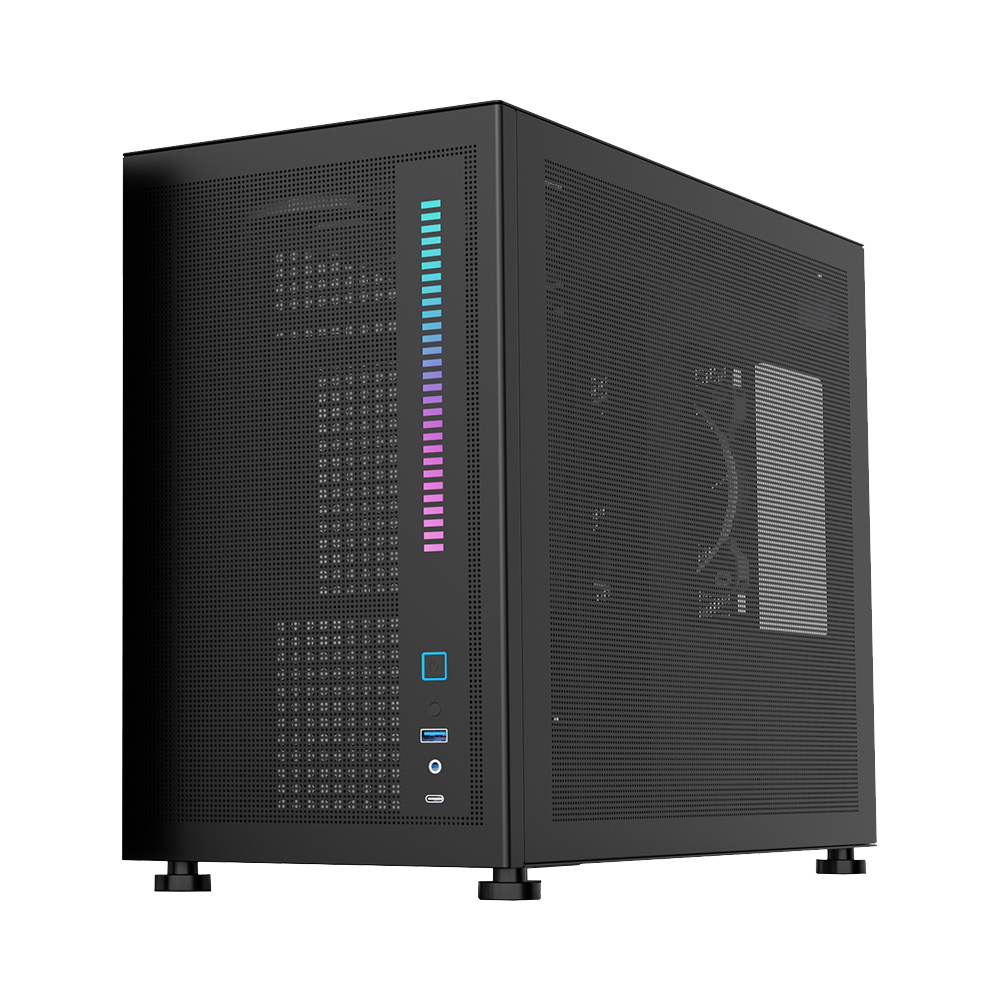

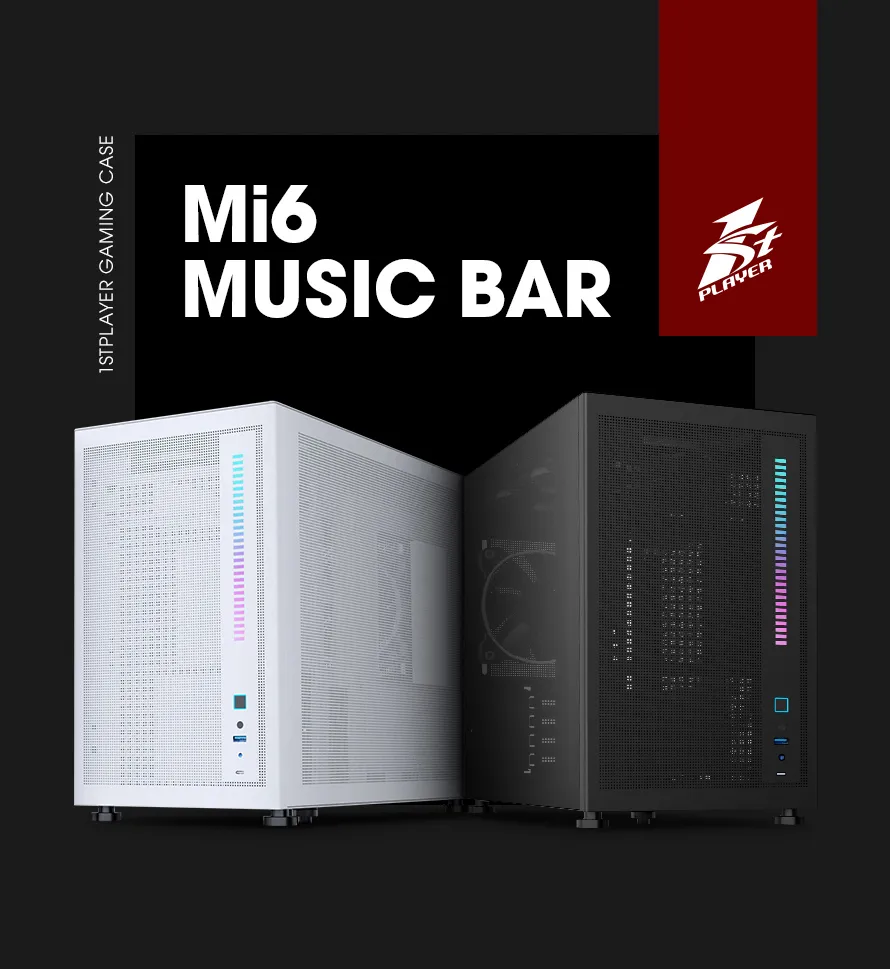

Mi6

MIKU

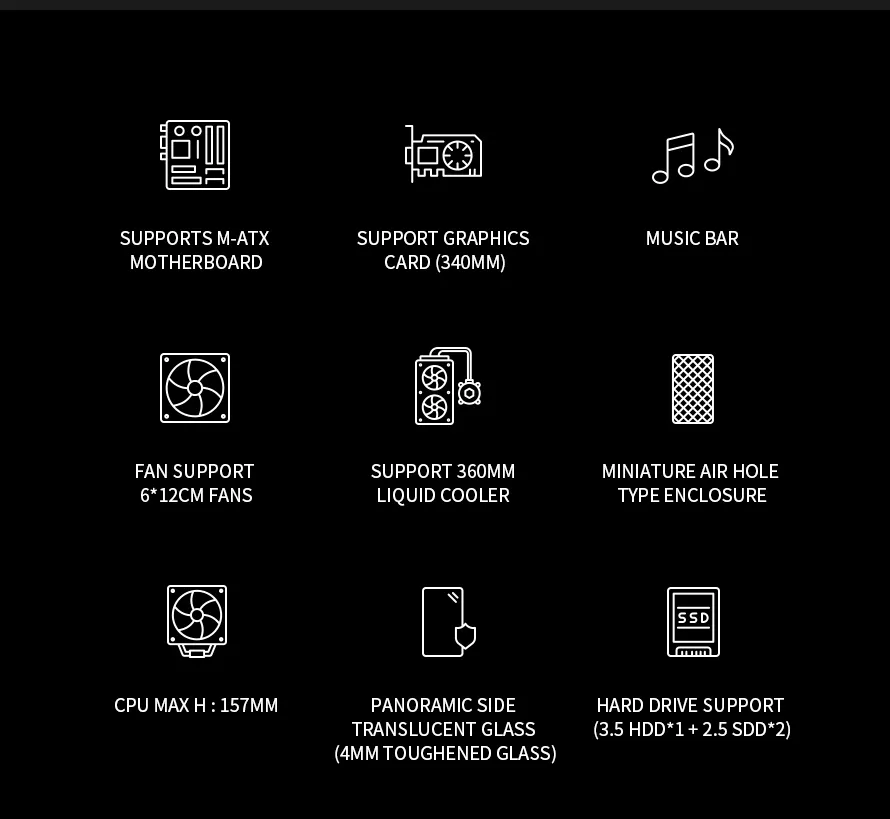

  • Support installation of up to 6 fans

  • Support CPU cooler height up to 165 mm

  • Support GPU length up to 410 mm

  • Support a 360 mm radiator at the top

  • Support up to 2 drive bays: 1 x 3.5" HDD + 1 x 2.5" SSD

    *Computer parts are not included. Cooling fan may vary among different countries/regions.

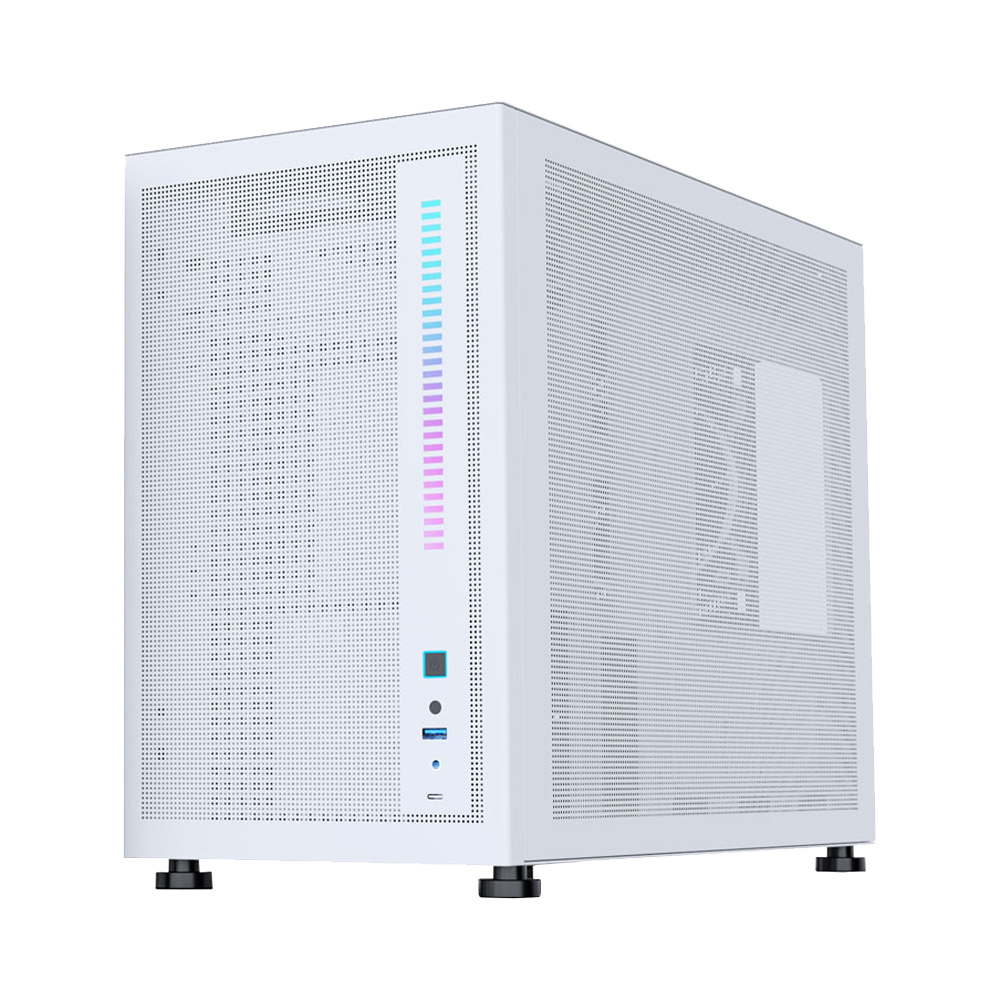

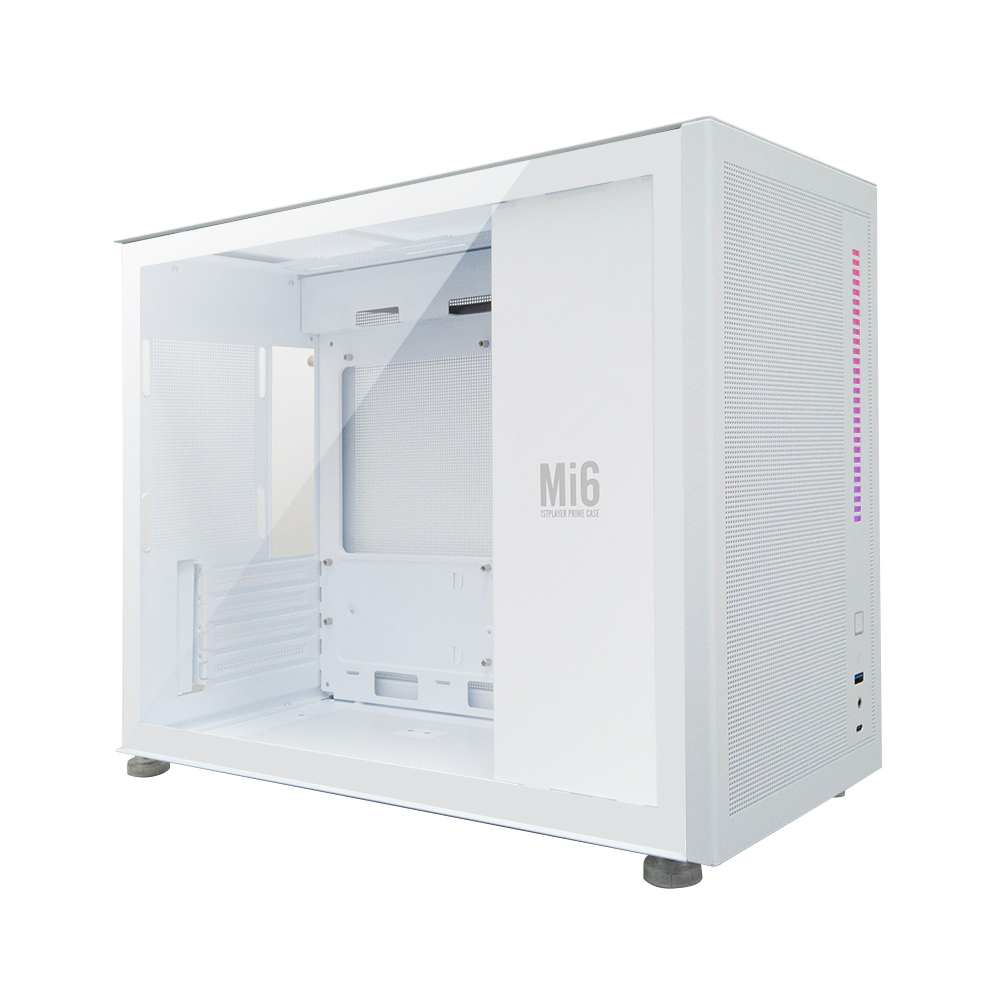

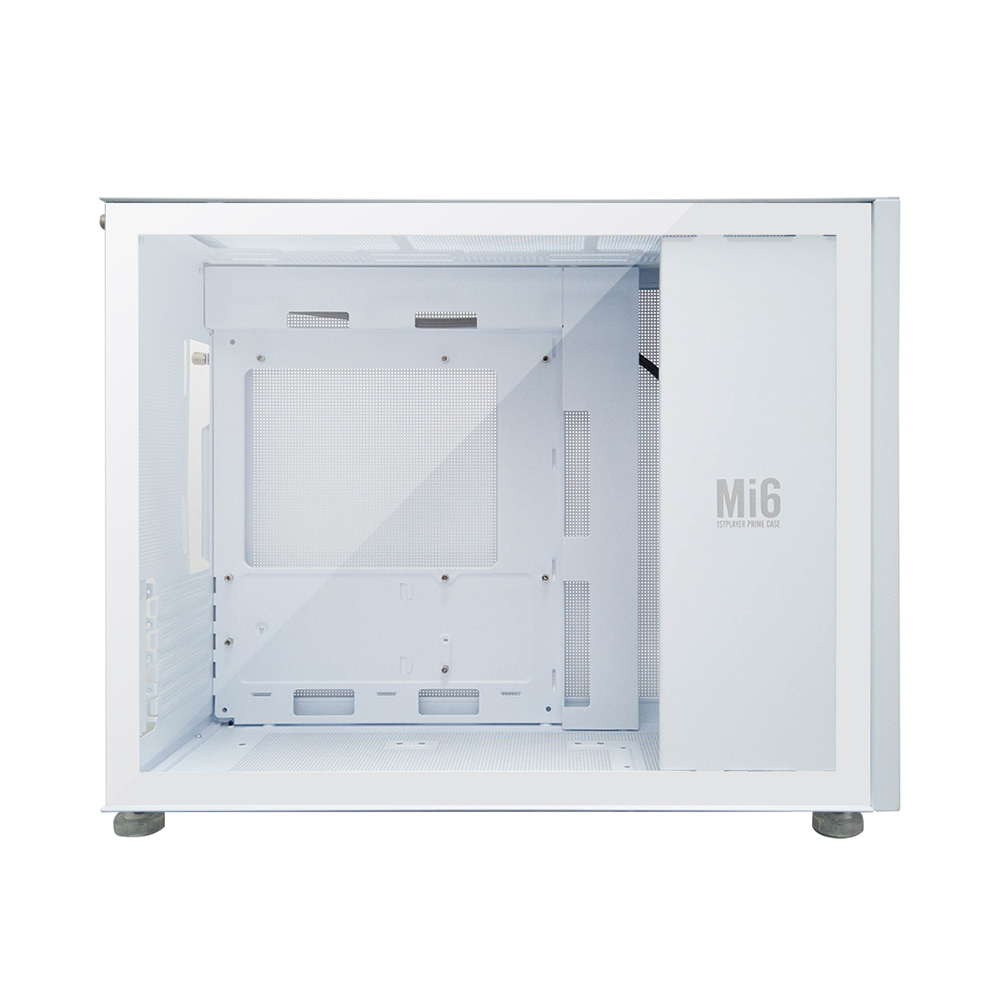

White

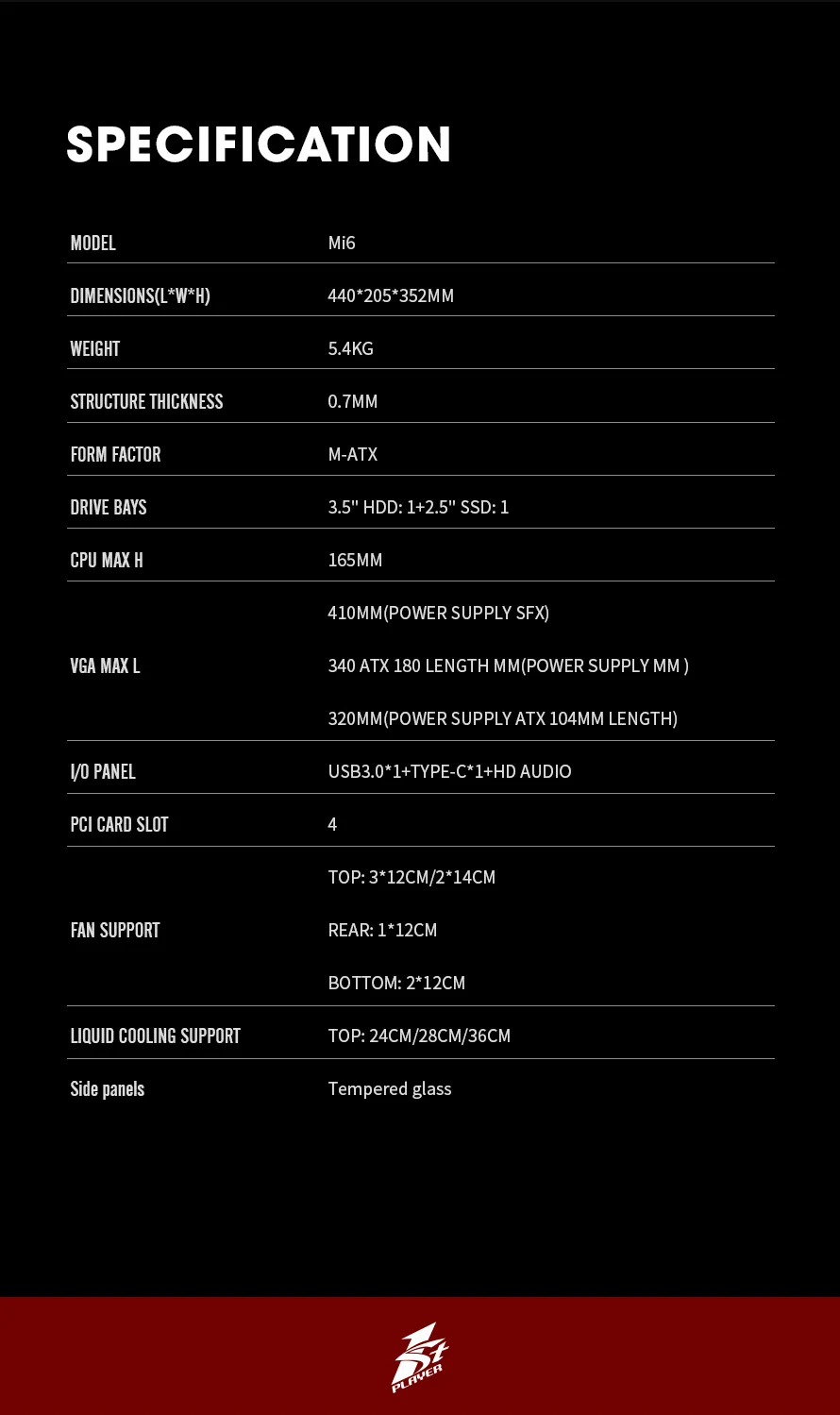

MODEL

Mi6

STRUCTURE DIMENSIONS (L x W x H)

425 x 205 x 352 mm

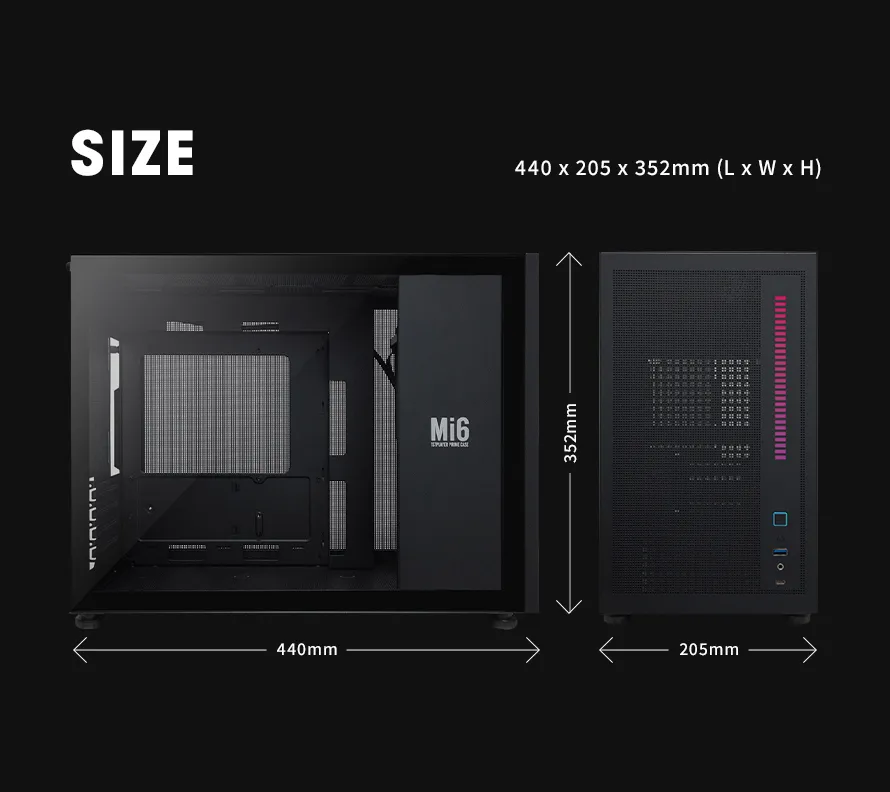

PRODUCT DIMENSIONS (L x W x H)

440 x 205 x 352 mm

PACKAGE DIMENSIONS (L x W x H)

410 x 270 x 510 mm

STRUCTURE THICKNESS

0.7 mm

MATERIALS

SPCC 0.7 mm

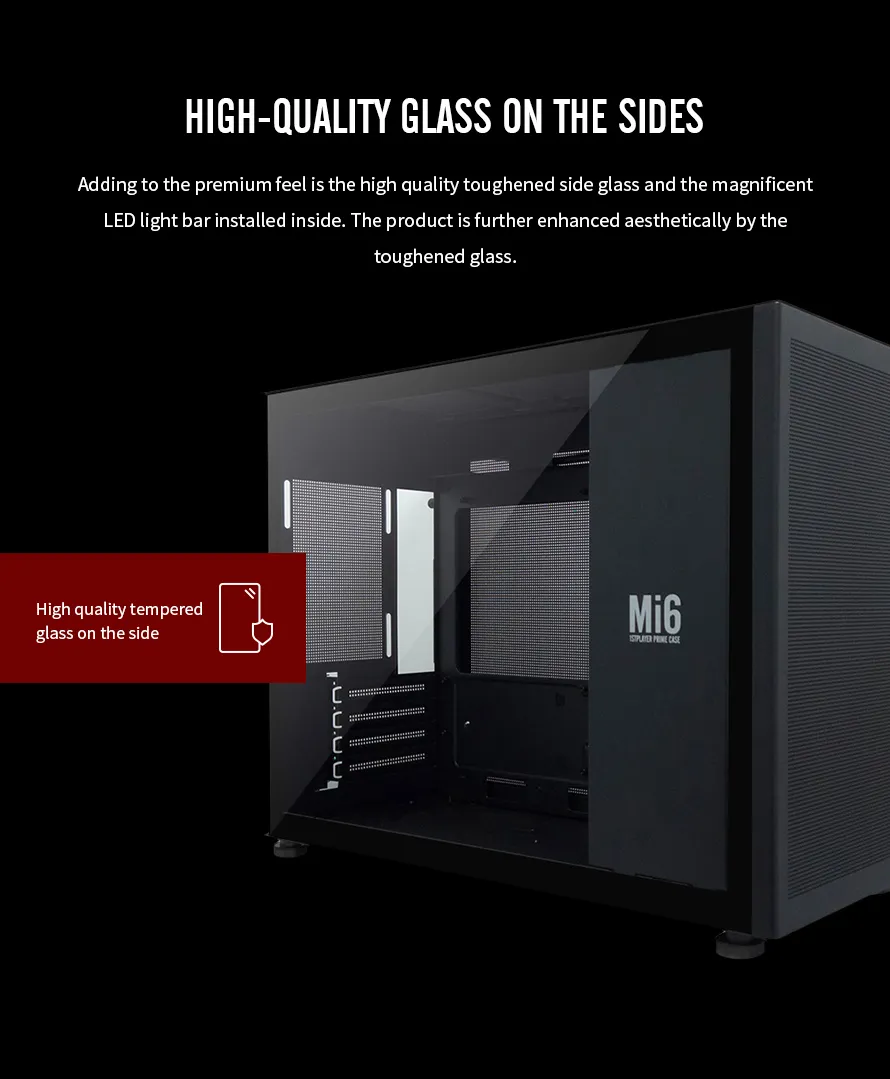

Left  Panel: Tempered glass

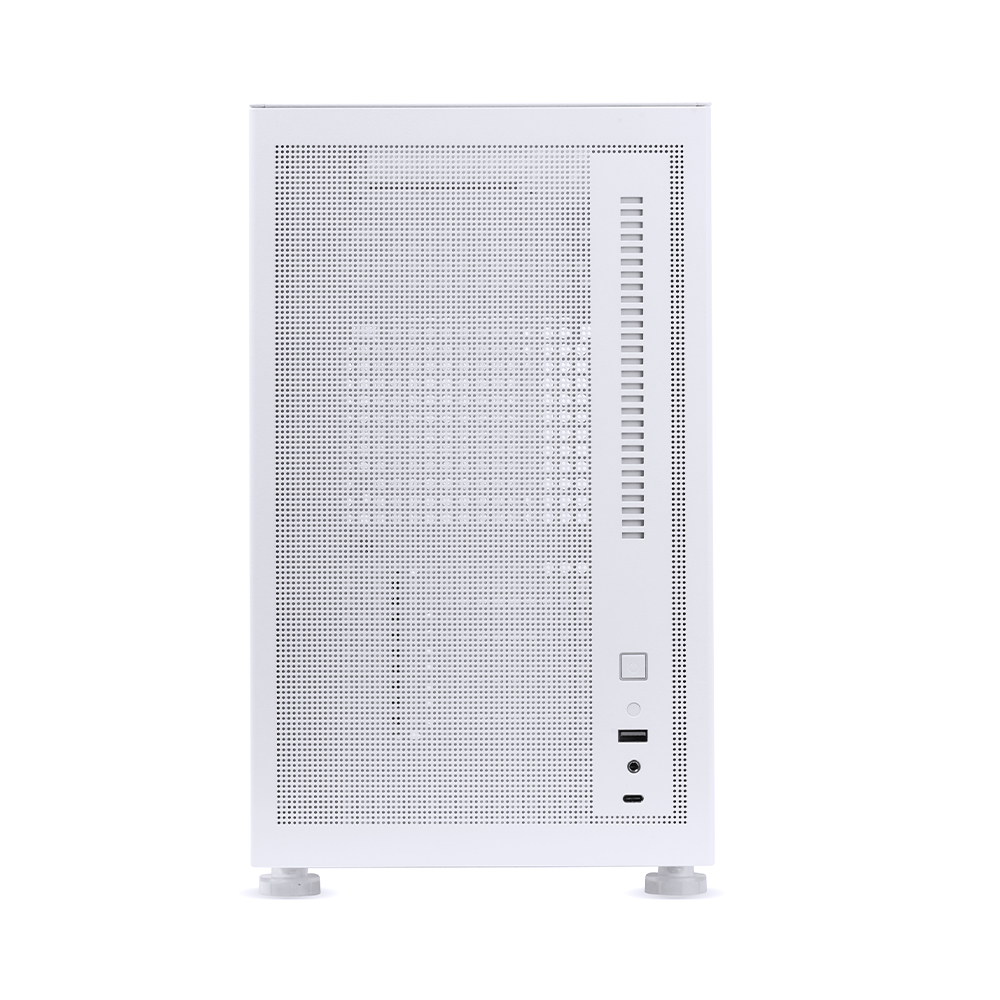

Front Panel: Metal mesh

FORM FACTOR

M-ATX / Mini-ITX

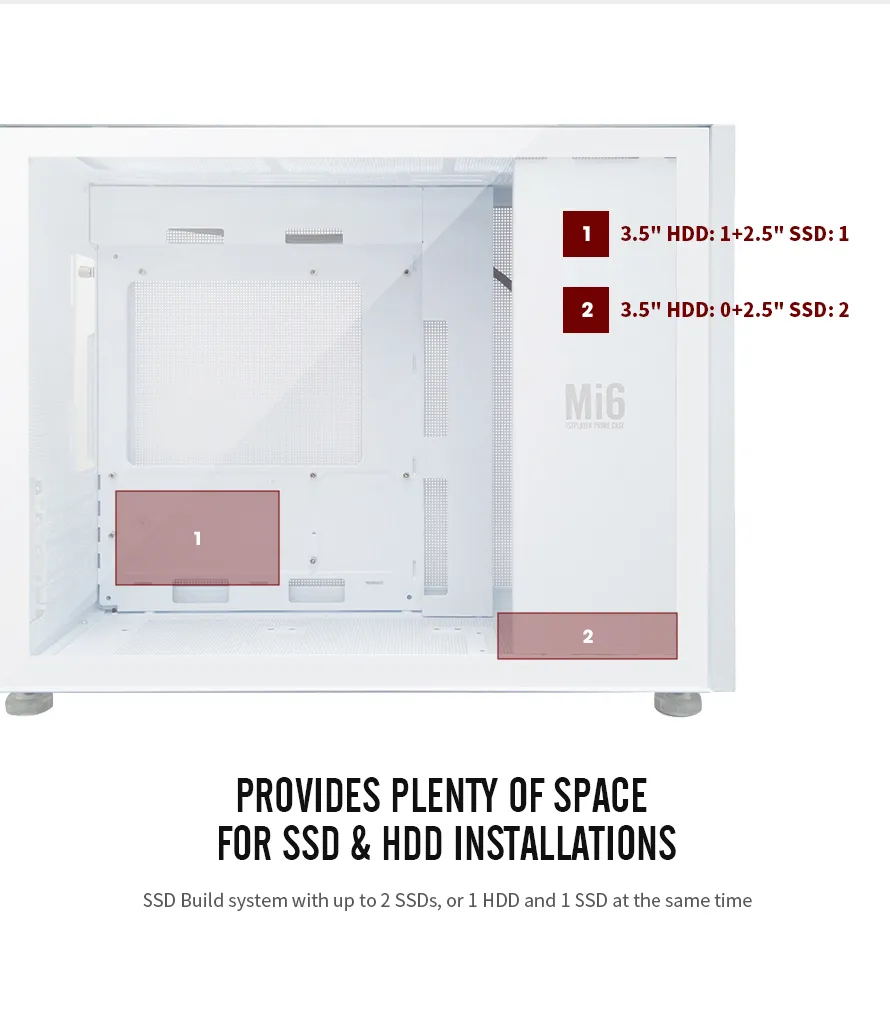

DRIVE BAYS

5.25" CD ROM: 0

3.5" HDD: 1 + 2.5" SSD: 1

3.5" HDD: 0 + 2.5" SSD: 2

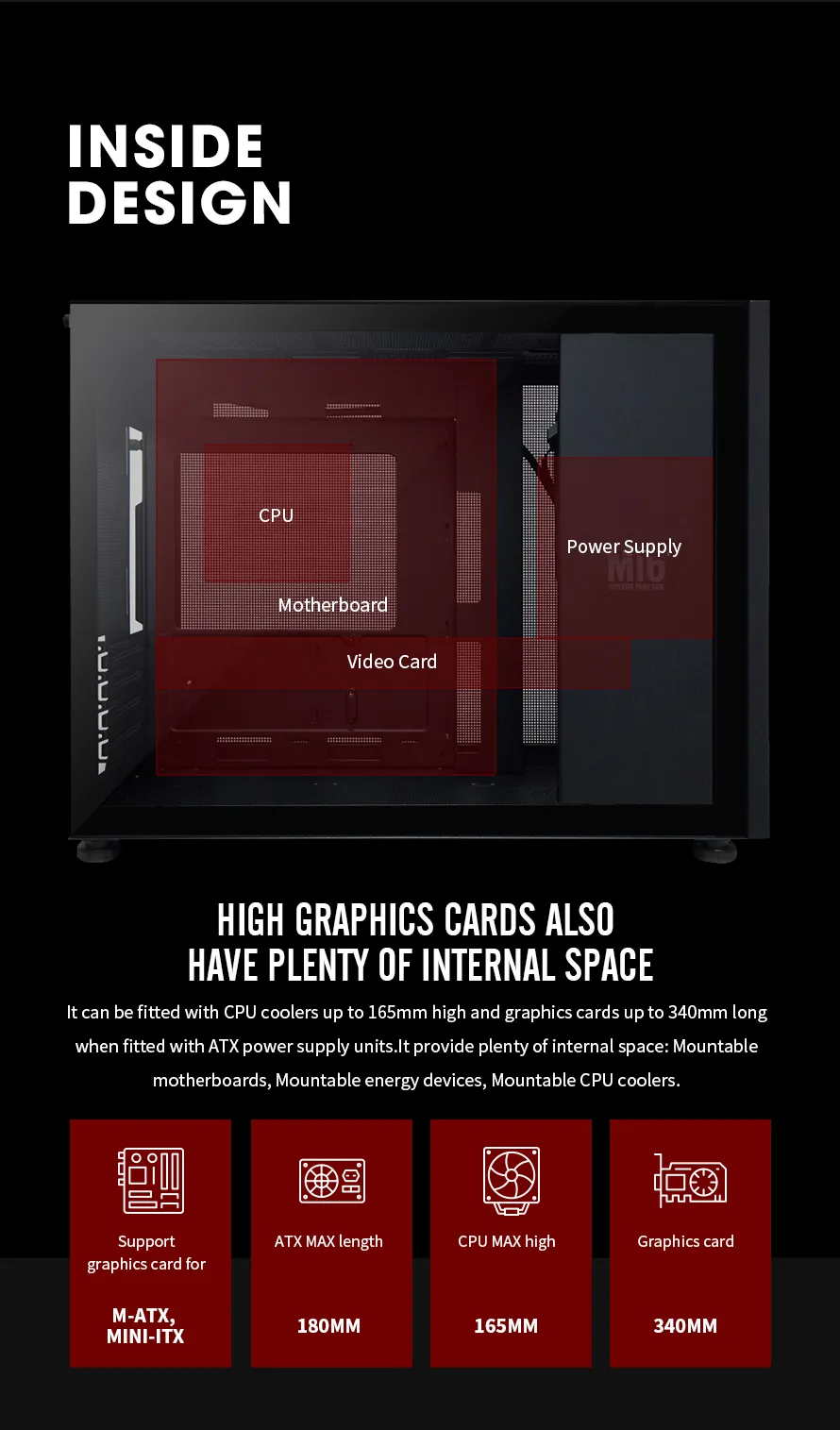

CPU MAX HEIGHT

165 mm

GPU MAX LENGTH

410MM (w/ SFX PSU)

340MM (w/ 180 mm ATX PSU)

320MM (w/ 140 mm ATX PSU)

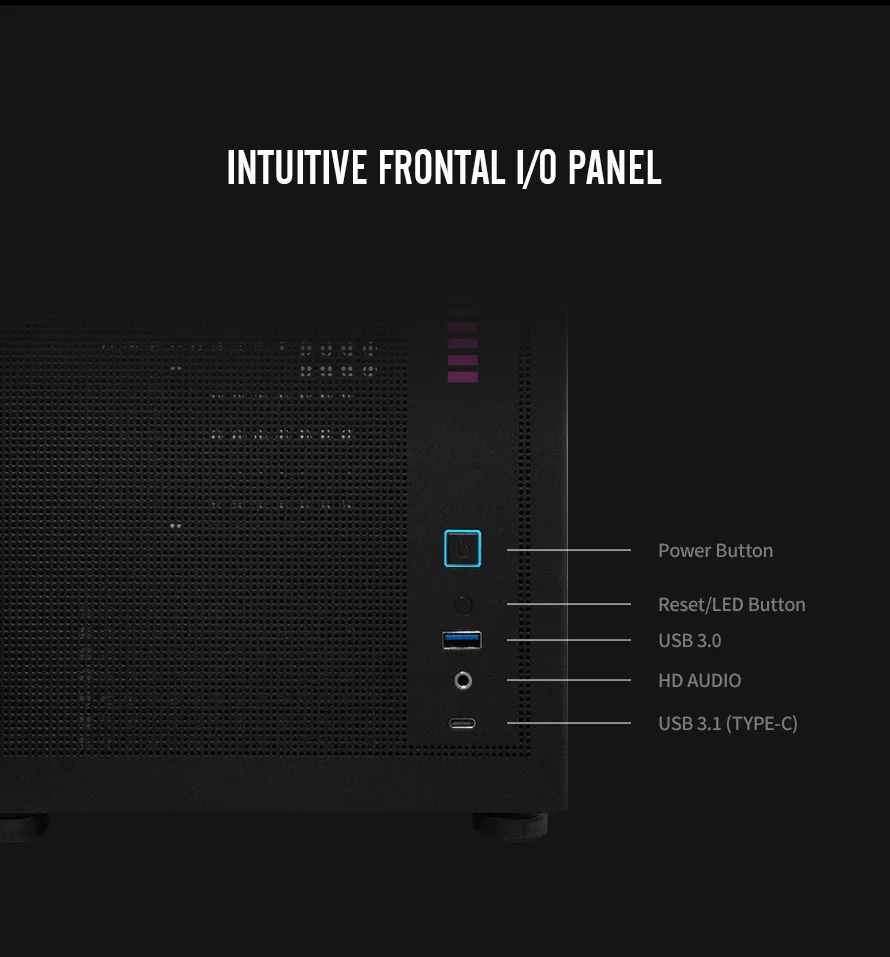

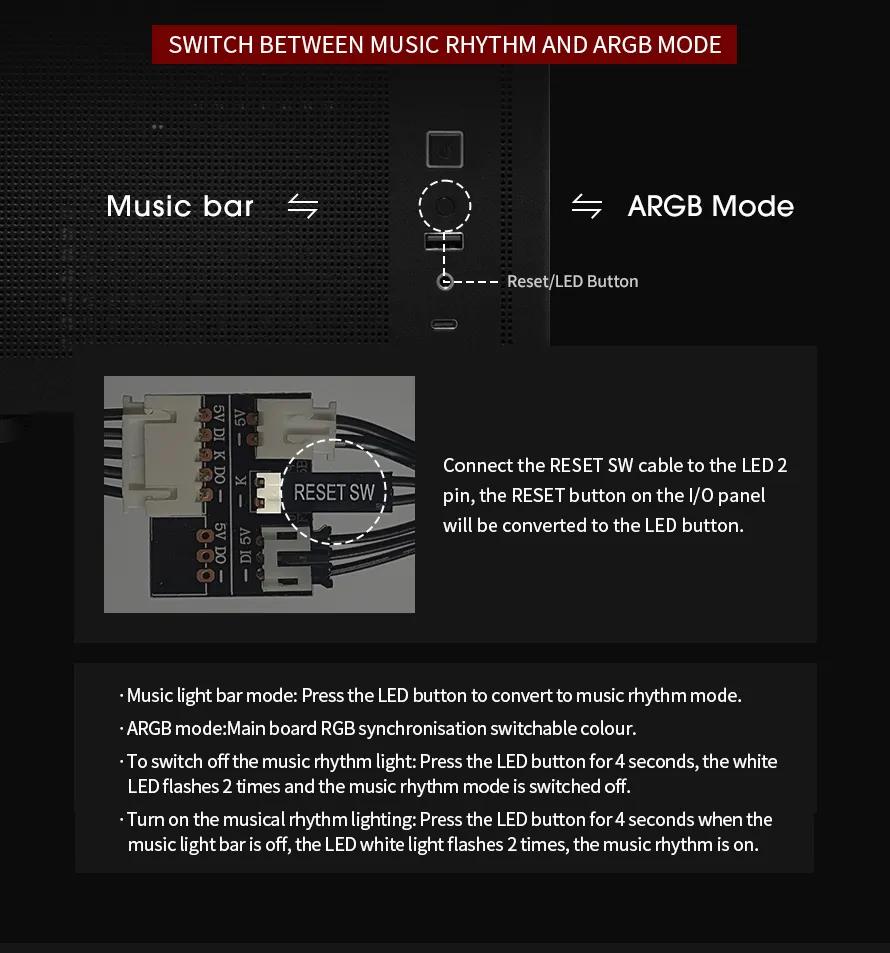

I/O PANEL

USB 3.0 x 1 + TYPE-C x 1 + HD AUDIO

PCI CARD SLOT

4

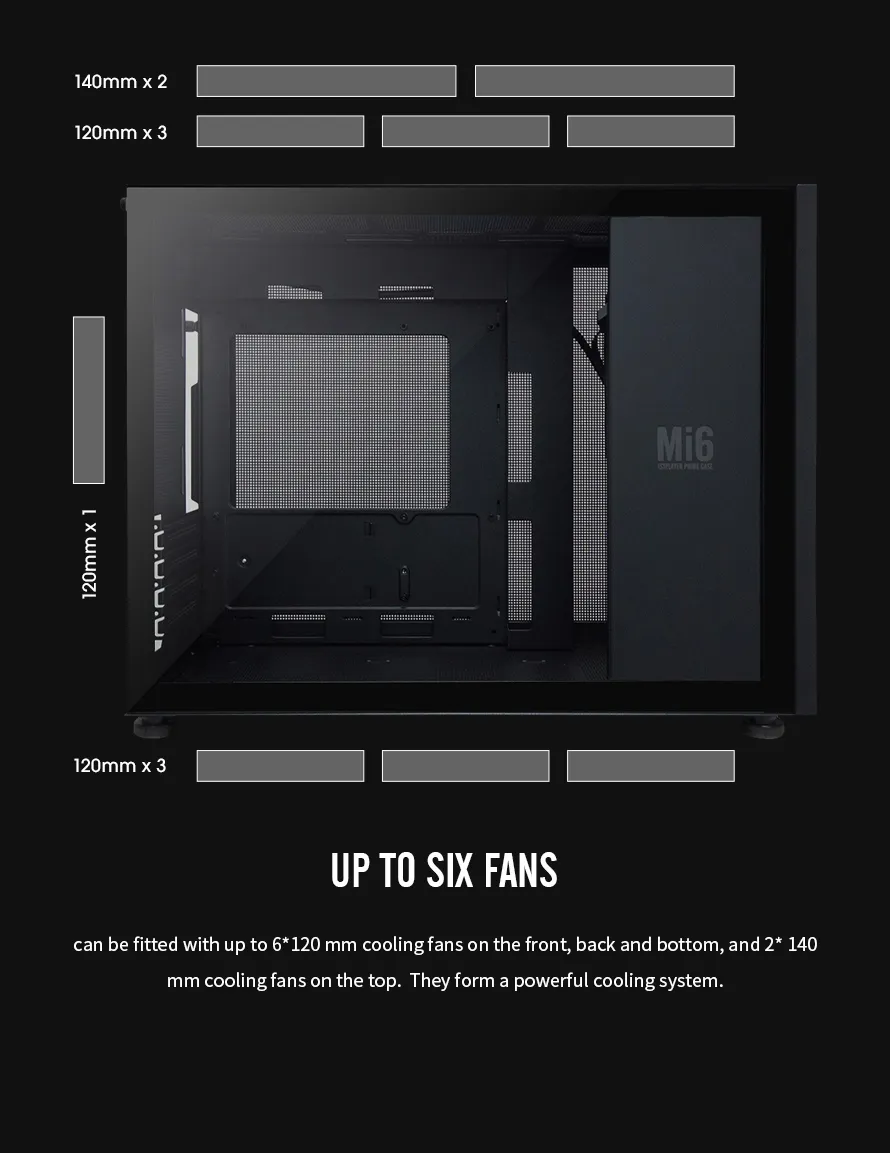

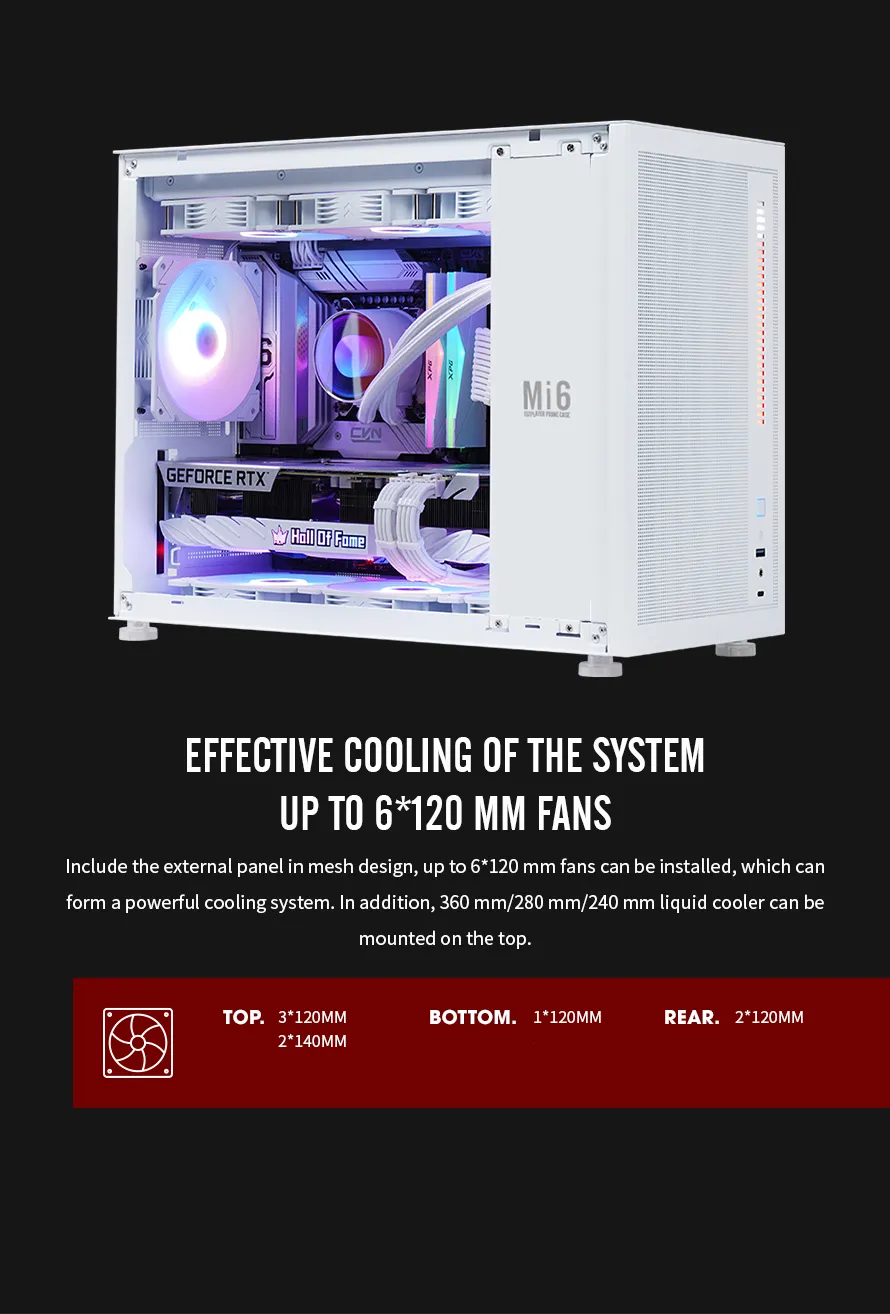

FAN SUPPORT

Top: 3 x 12 cm / 2 x 14 cm

Rear: 1 x 12 cm

Bottom: 2 x 12 cm

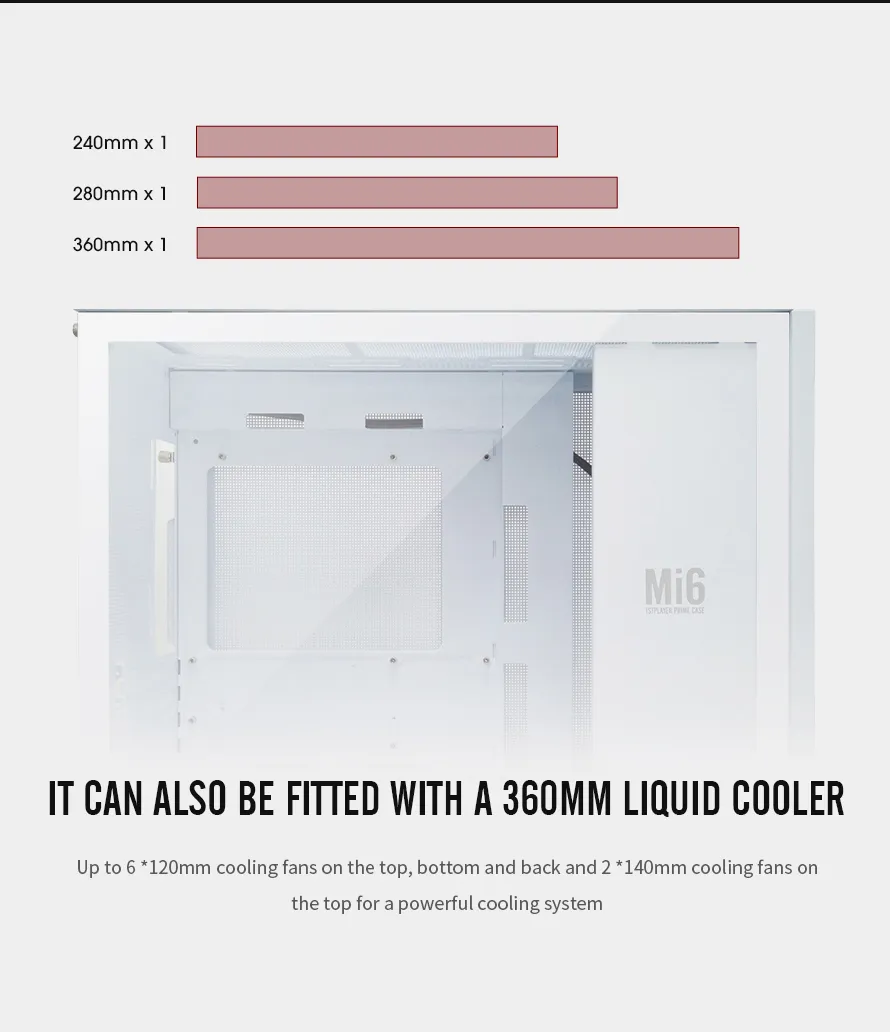

LIQUID COOLING SUPPORT

Top: 24 cm / 28 cm / 36 cm

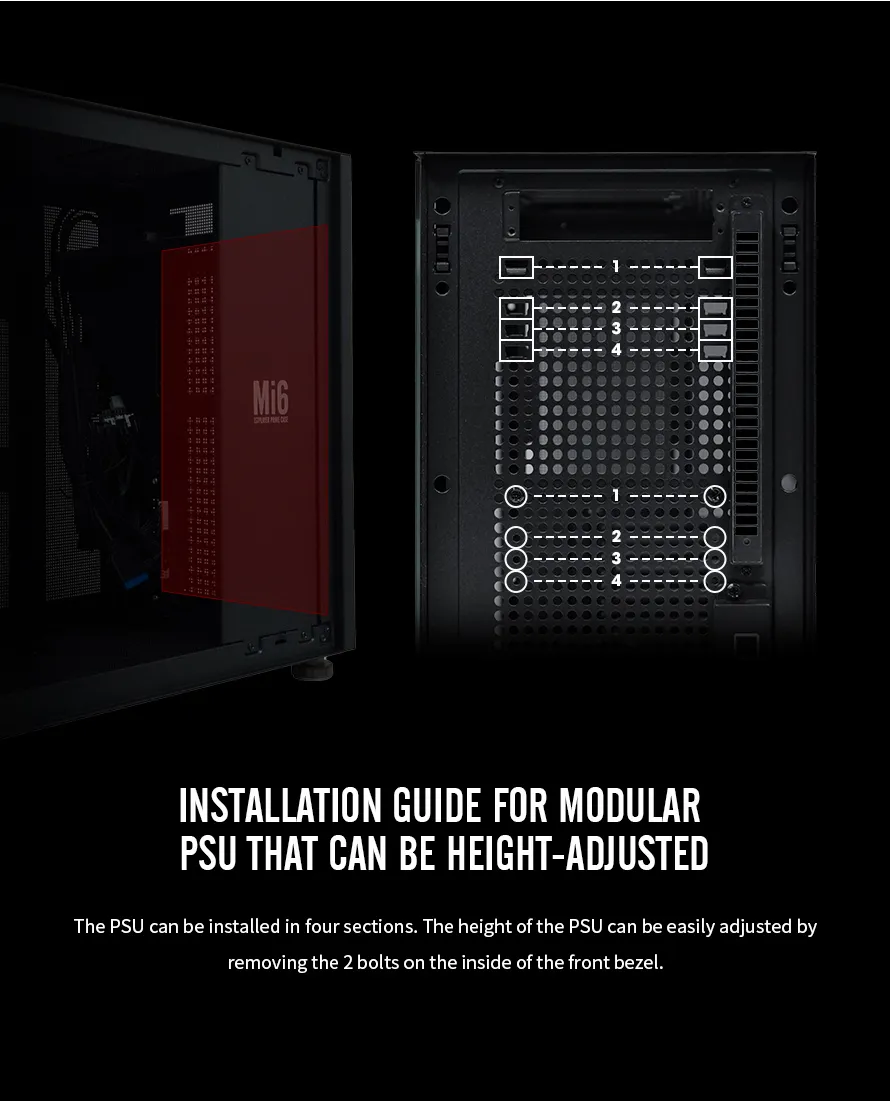

POWER SUPPLY SUPPORT

Top mount

NET WEIGHT

N.W.: 5.4 kg

GROSS WEIGHT

G.W.: 6 kg
