Support installation of up to 5 fans

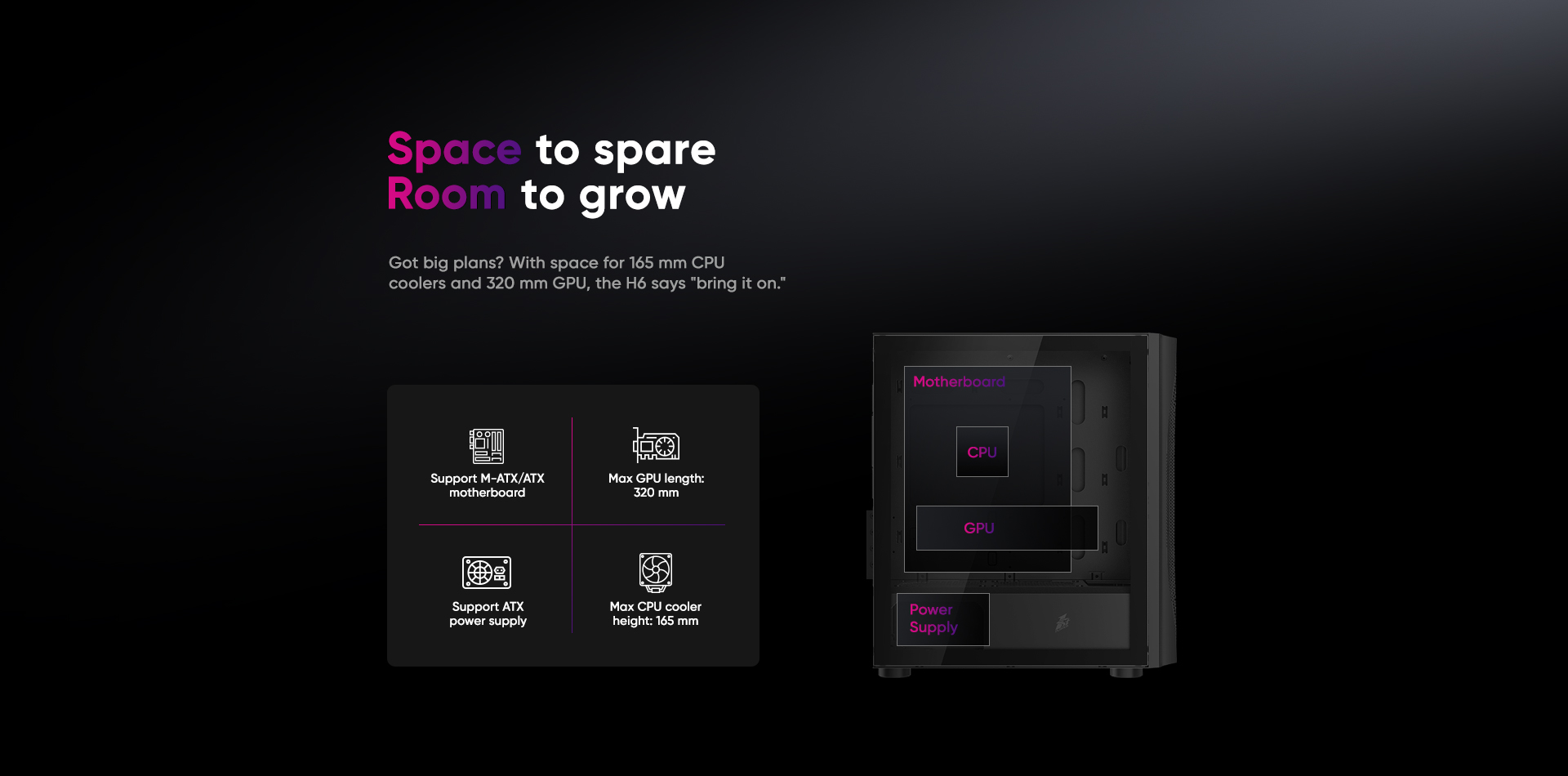

Support CPU cooler height up to 165 mm
Support GPU length up to 320 mm
Support a 240 mm radiator at the top and a 360 mm radiator at the front

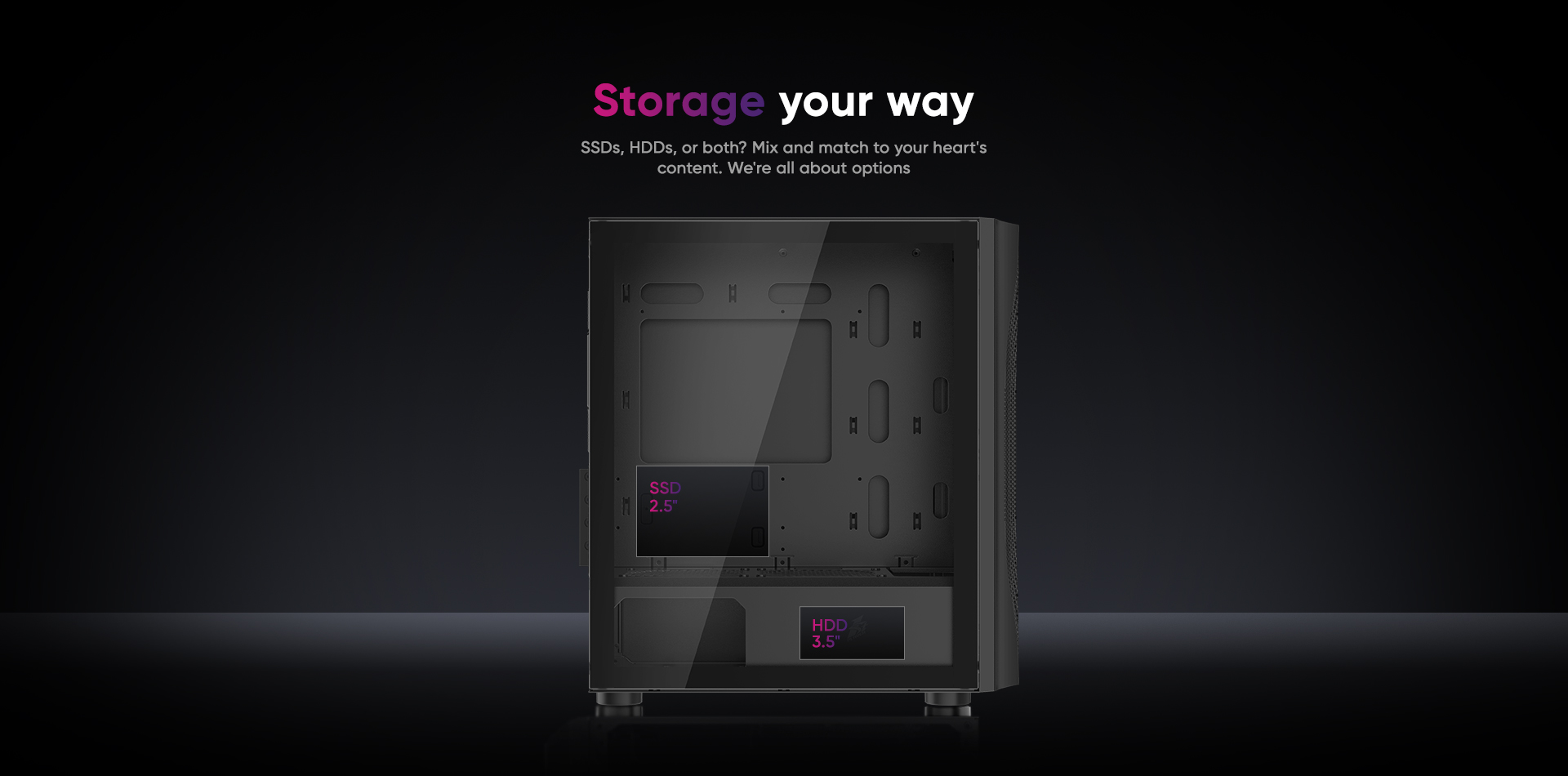

Support up to 2 drive bays: 1 x 3.5" HDD + 1 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.
Black

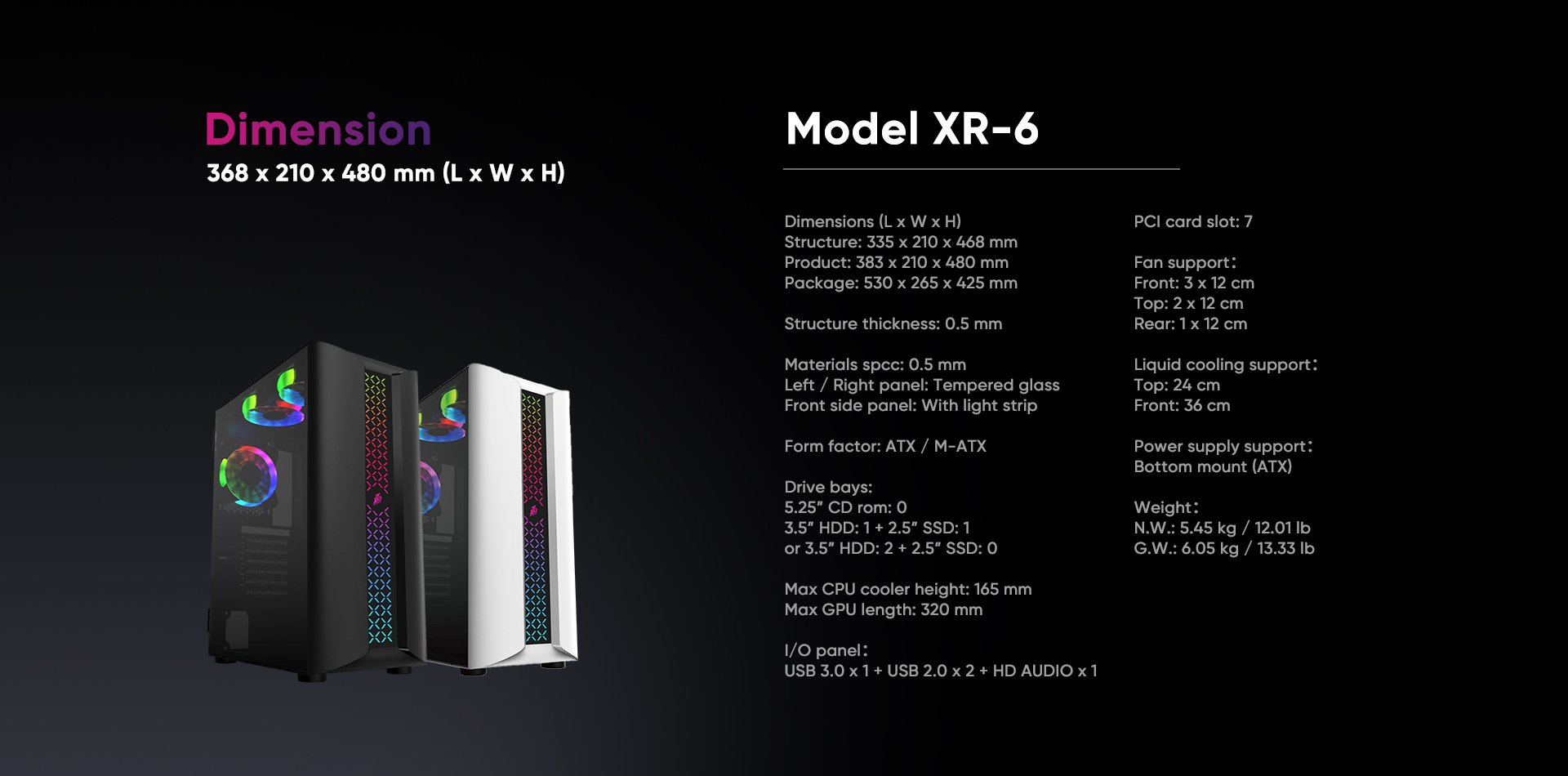

Model
XR-6
Structure Dimensions(L*W*H)
335*210*468MM
Product Dimensions(L*W*H)
368*210*480MM
Package Dimensions(L*W*H)
530*265*425MM
Structure Thickness
0.5MM
Materials
SPCC 0.5MM

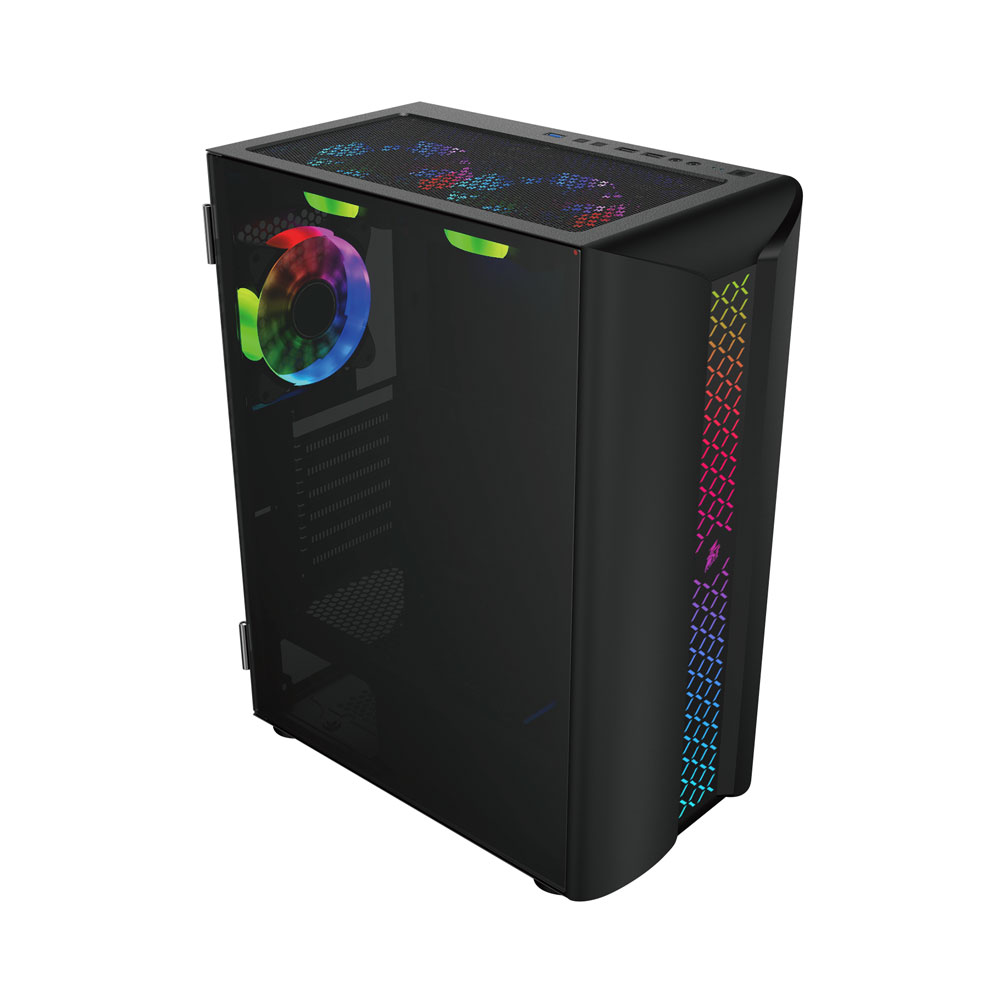

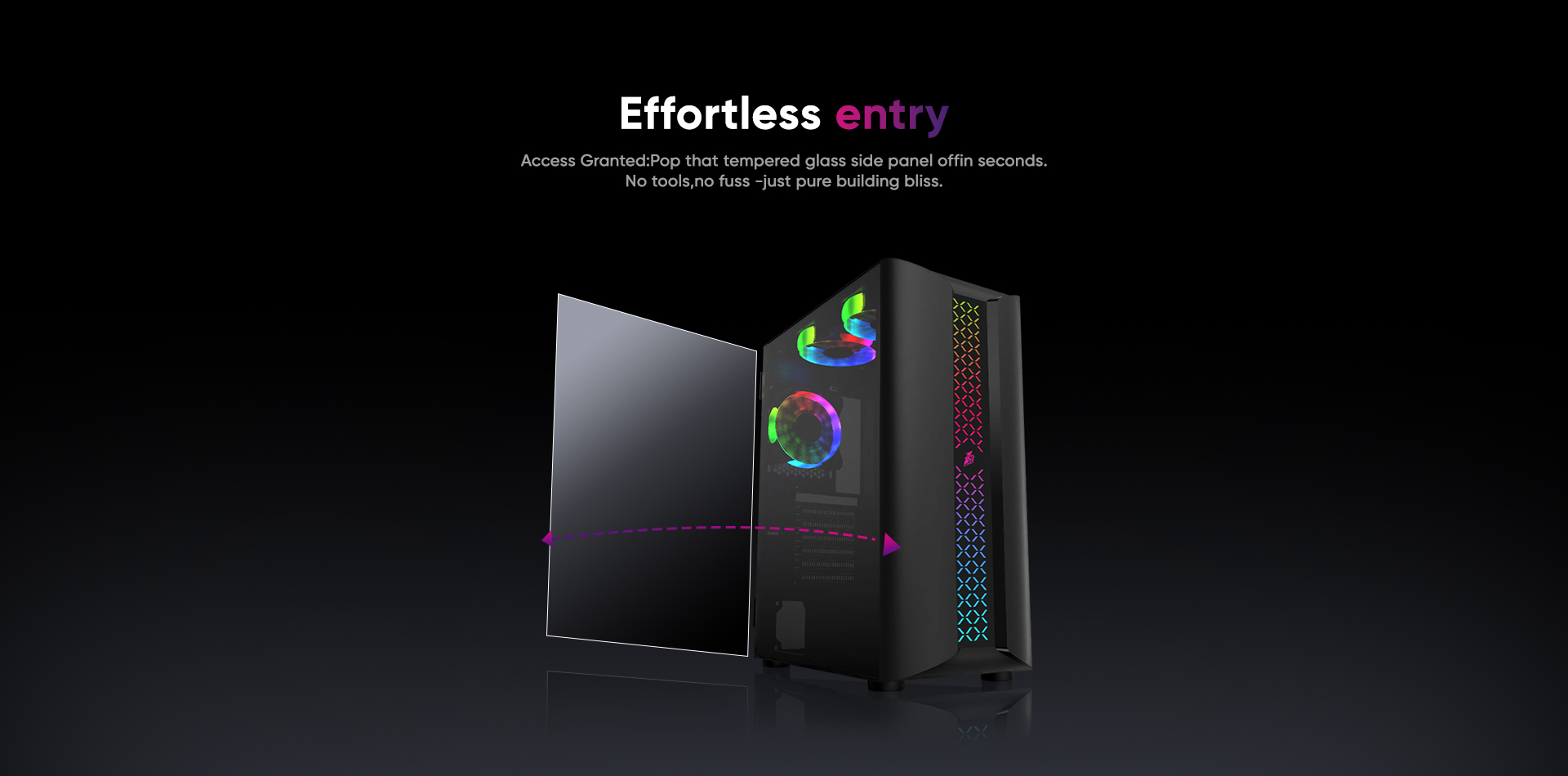

LEFT SIDE PANEL：TEMPERED GLASS

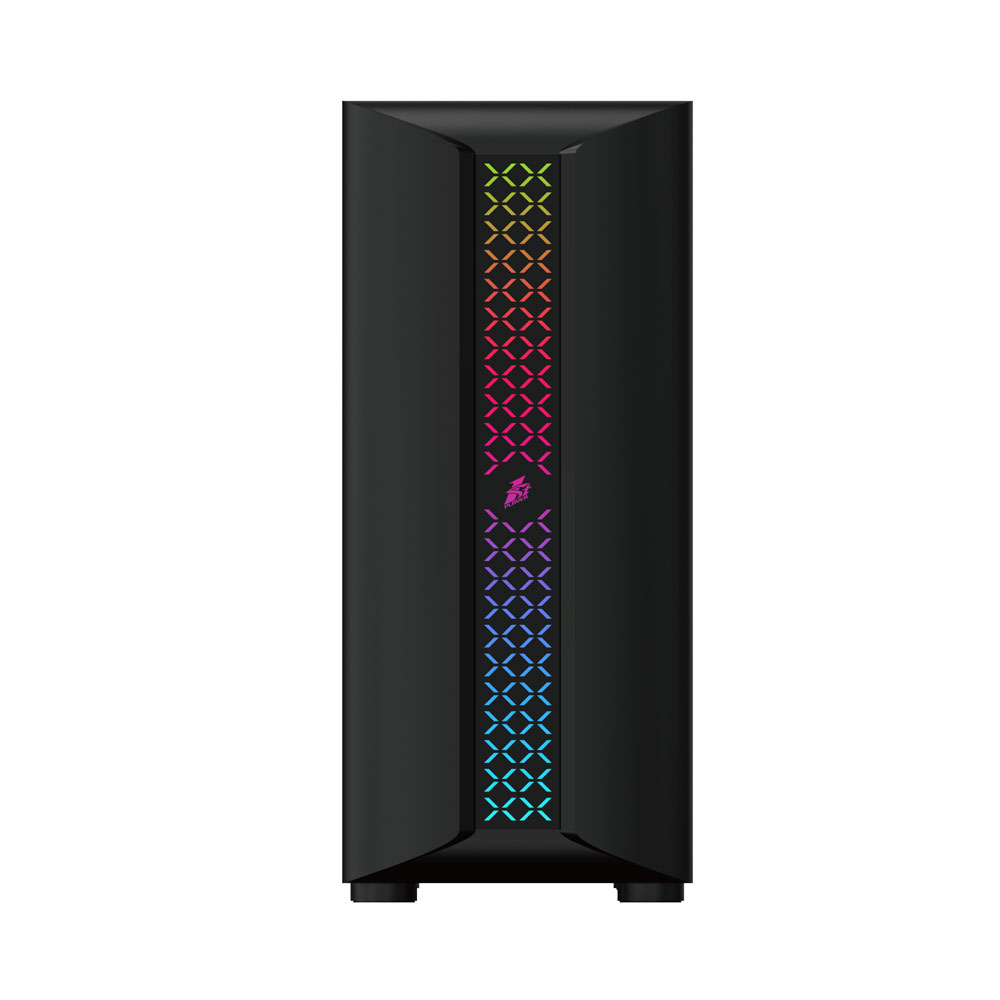

FRONT SIDE PANEL：With Light Strip
Form Factor
ATX/M-ATX
5.25""CD ROM:0
①3.5""HDD:1 + 2.5""SSD: 1
②3.5""HDD:2 + 2.5""SSD:0
CPU MAX Height
165MM
VGA MAX Length
320MM

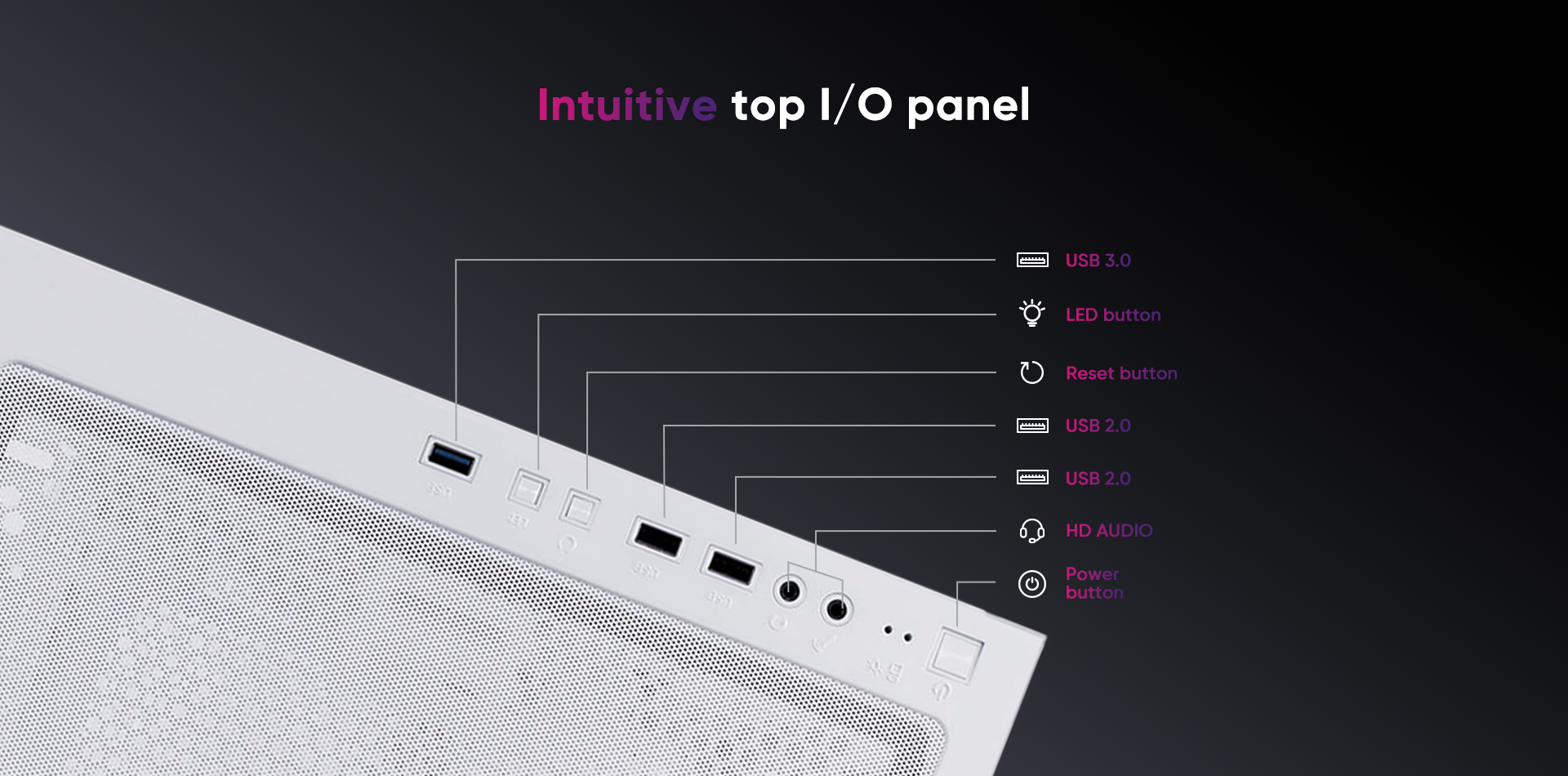

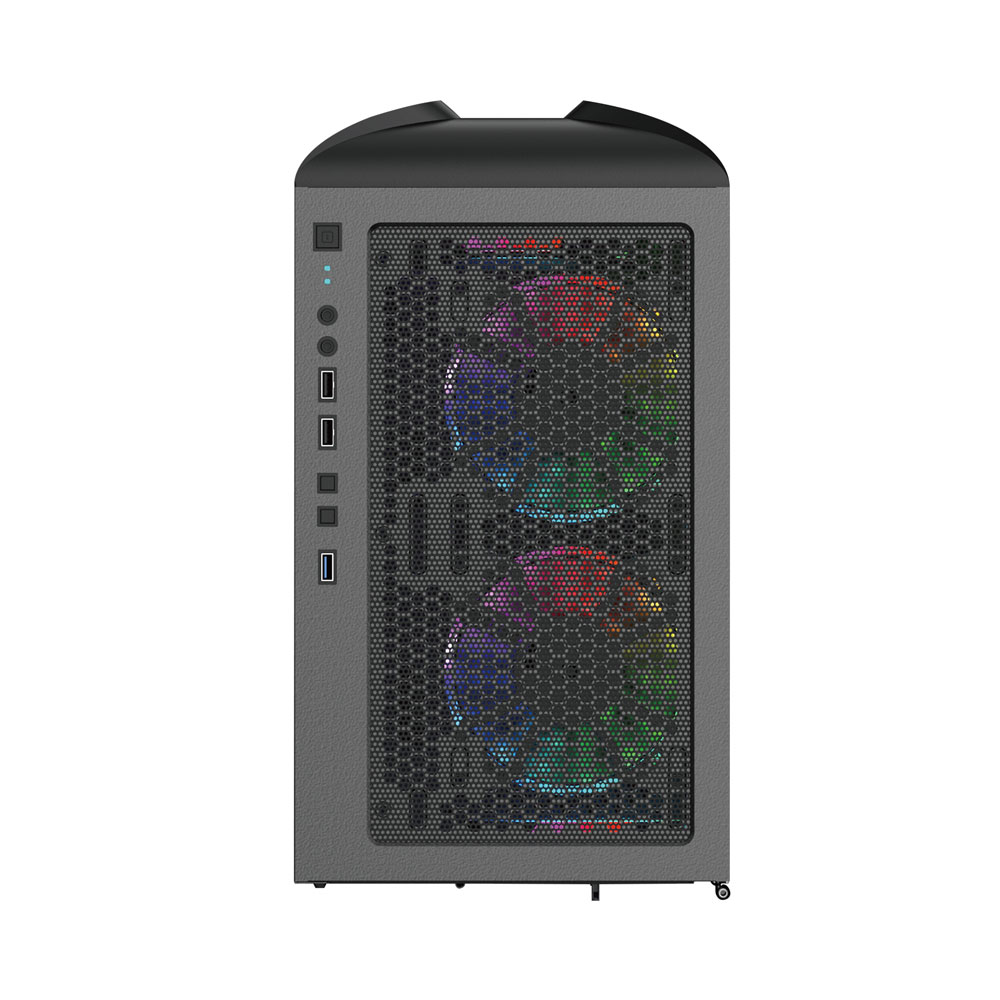

I/O Panel
USB3.0*1+USB2.0*2+HD AUDIO
PCI Card Slot
7

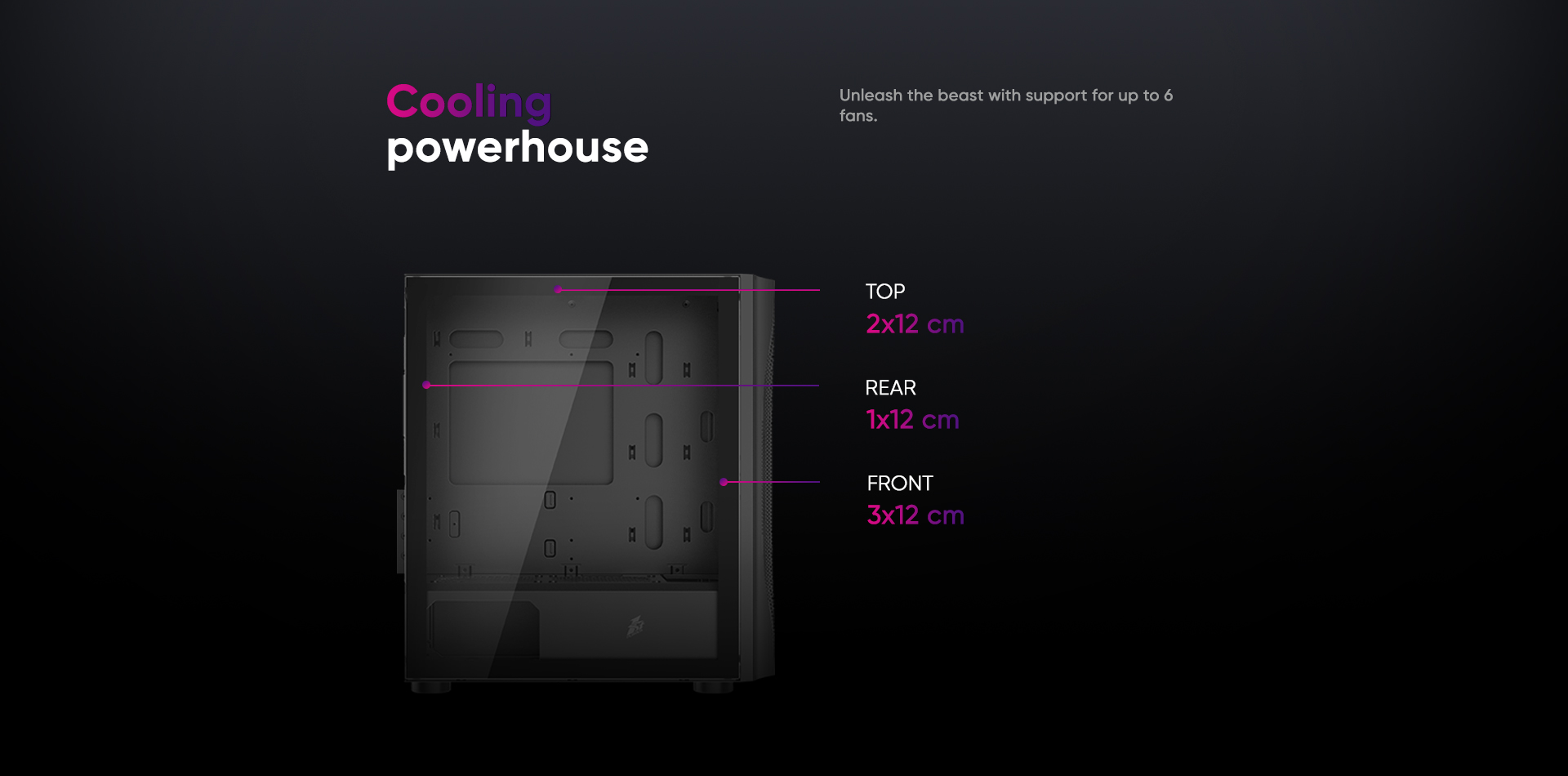

Fan Support
FRONT:3*12CM
TOP:2*12CM
REAR:1*12CM
Liquid Cooling Support
TOP:240MM
FRONT:360MM
Power Supply Support
BOTTOM MOUNT(ATX)
Net Weight
