Support installation of up to 6 fans
Support CPU cooler height up to 160 mm
Support GPU length up to 305 mm

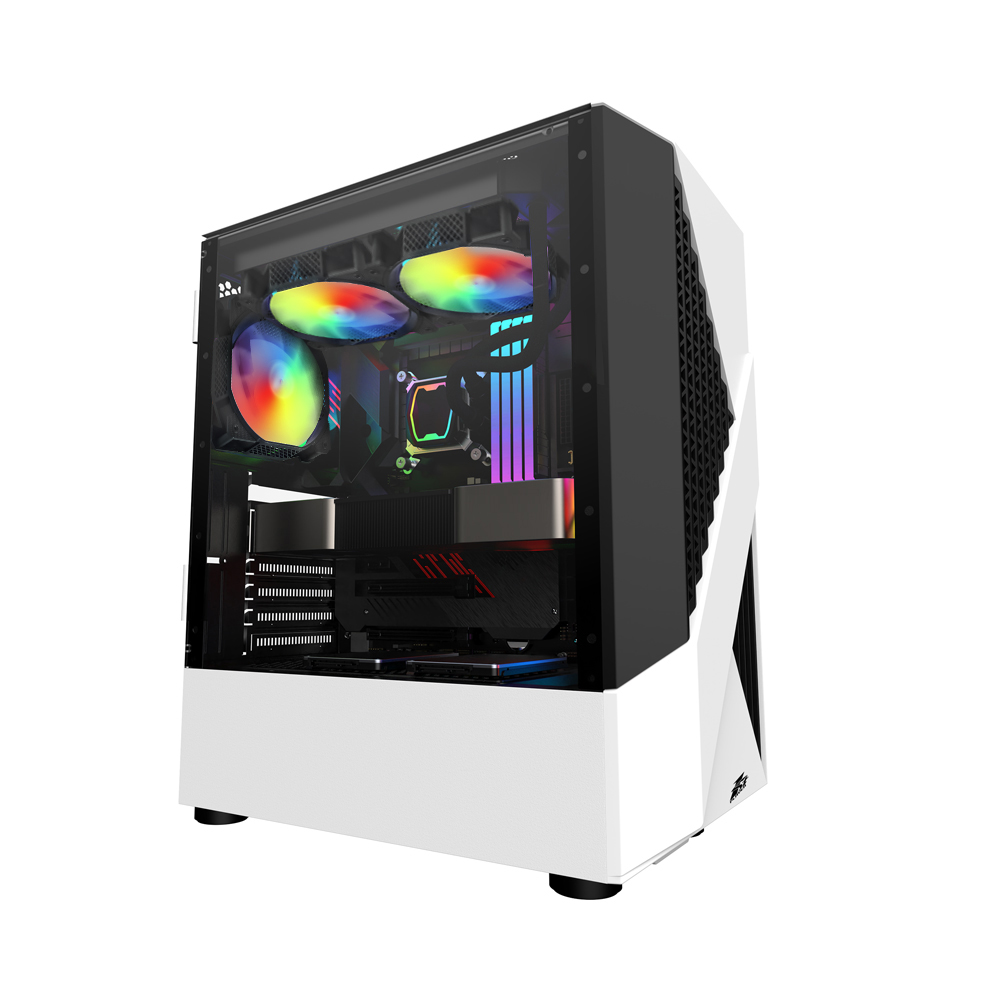

Support a 240 mm radiator at the top
Support up to 4 drive bays: 2 x 3.5" HDD + 2 x 2.5" SSD
*Computer parts are not included. Cooling fan may vary among different countries/regions.

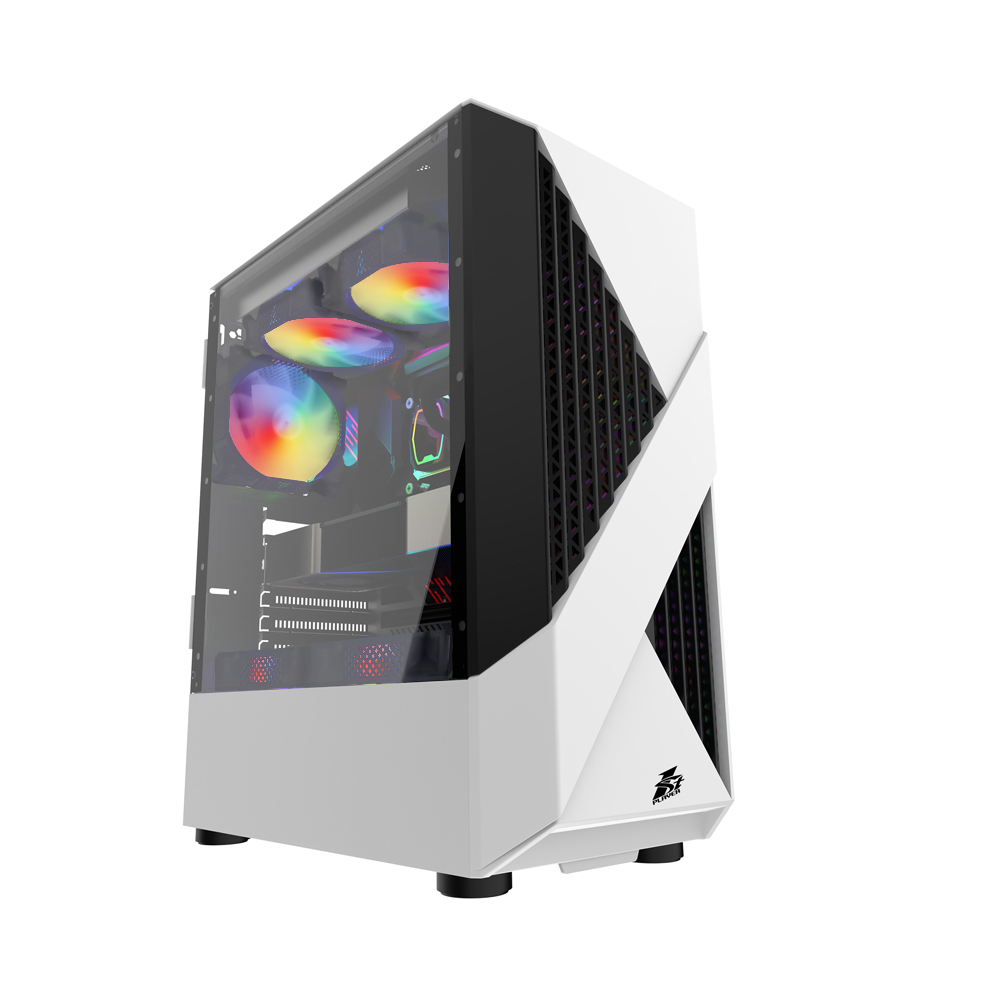

White

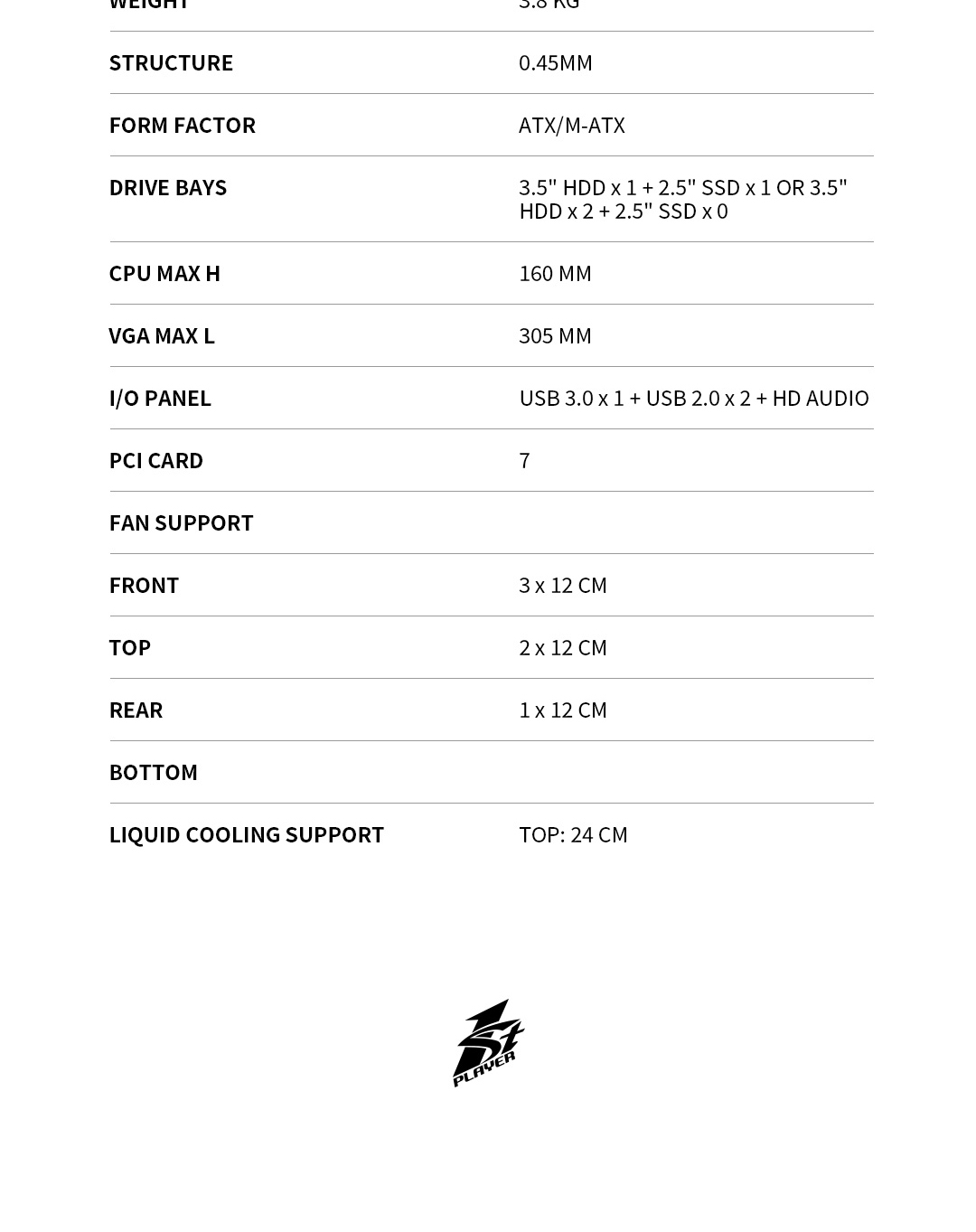

MODEL
F3-A
STRUCTURE DIMENSIONS (L x W x H)
335 x 190 x 435 mm

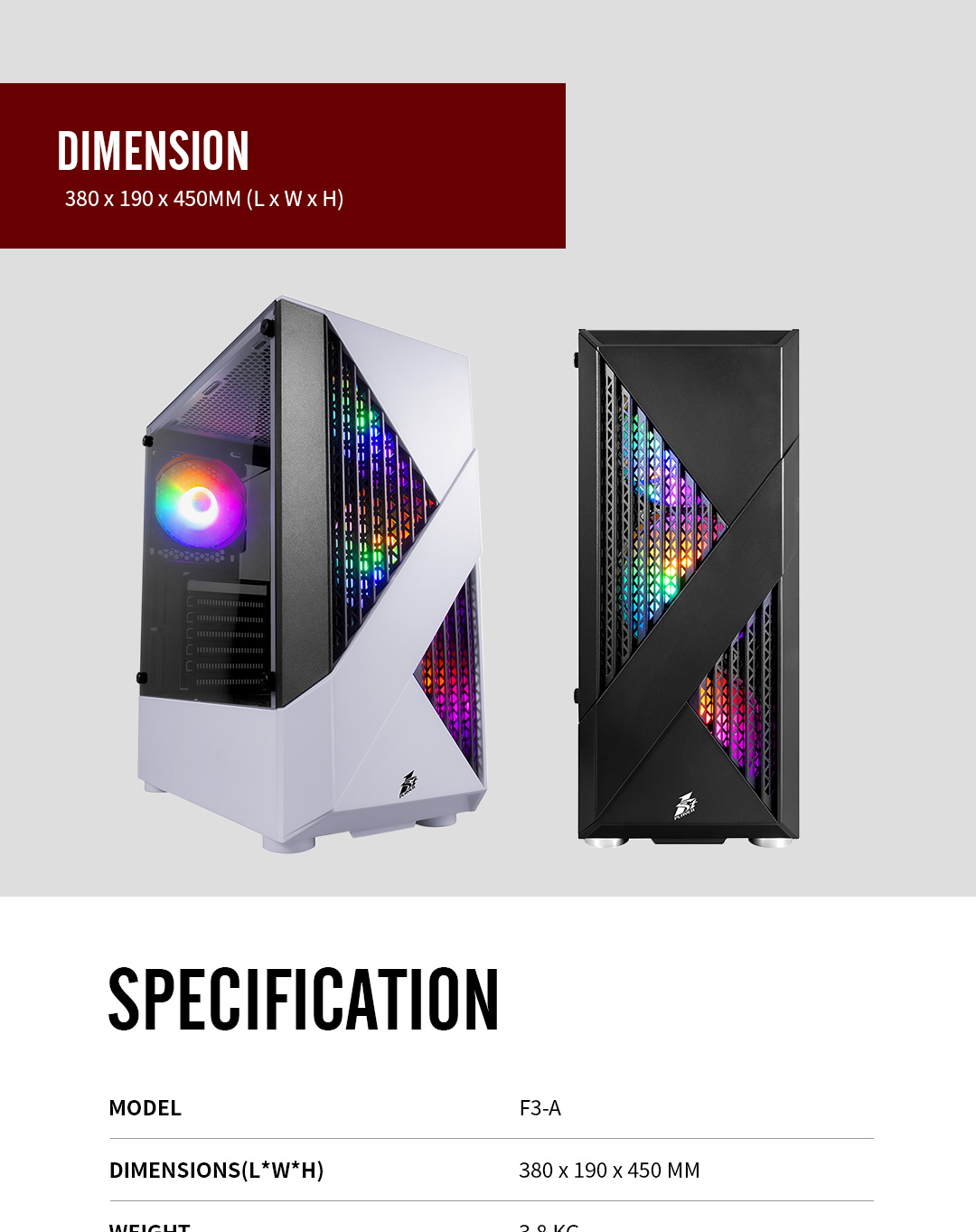

PRODUCT DIMENSIONS (L x W x H)
380 x 190 x 450 mm
PACKAGE DIMENSIONS (L x W x H)
500 x 245 x 445 mm
STRUCTURE THICKNESS
0.45 mm
MATERIALS
SPCC 0.45 mm

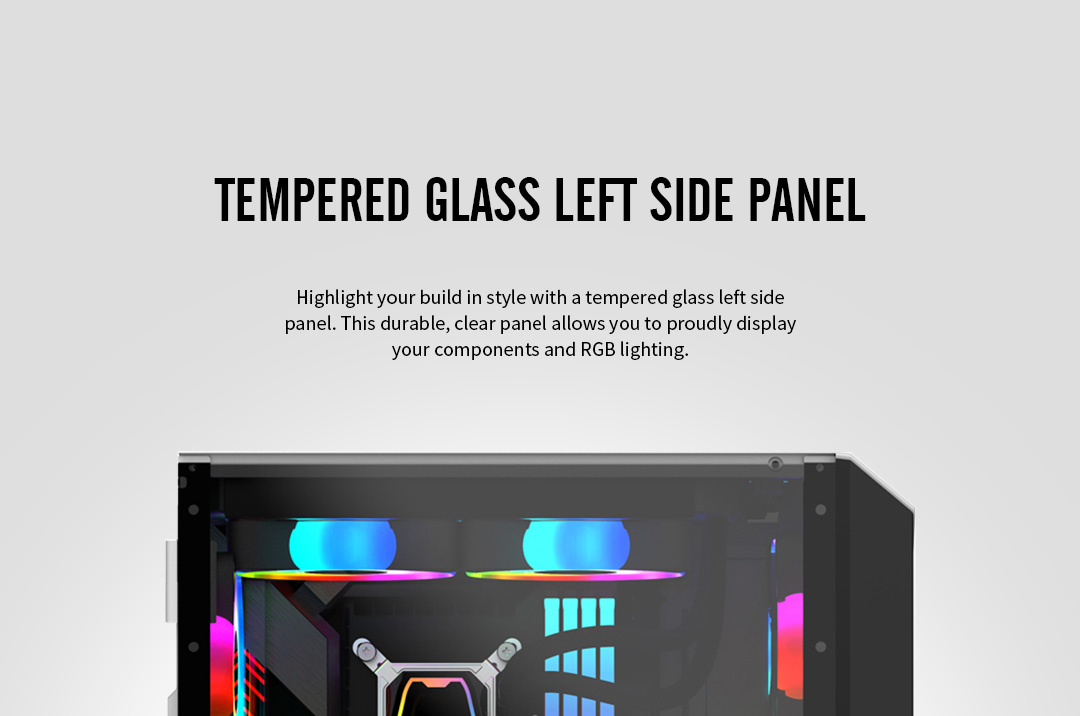

Left Panel: Plastic mesh

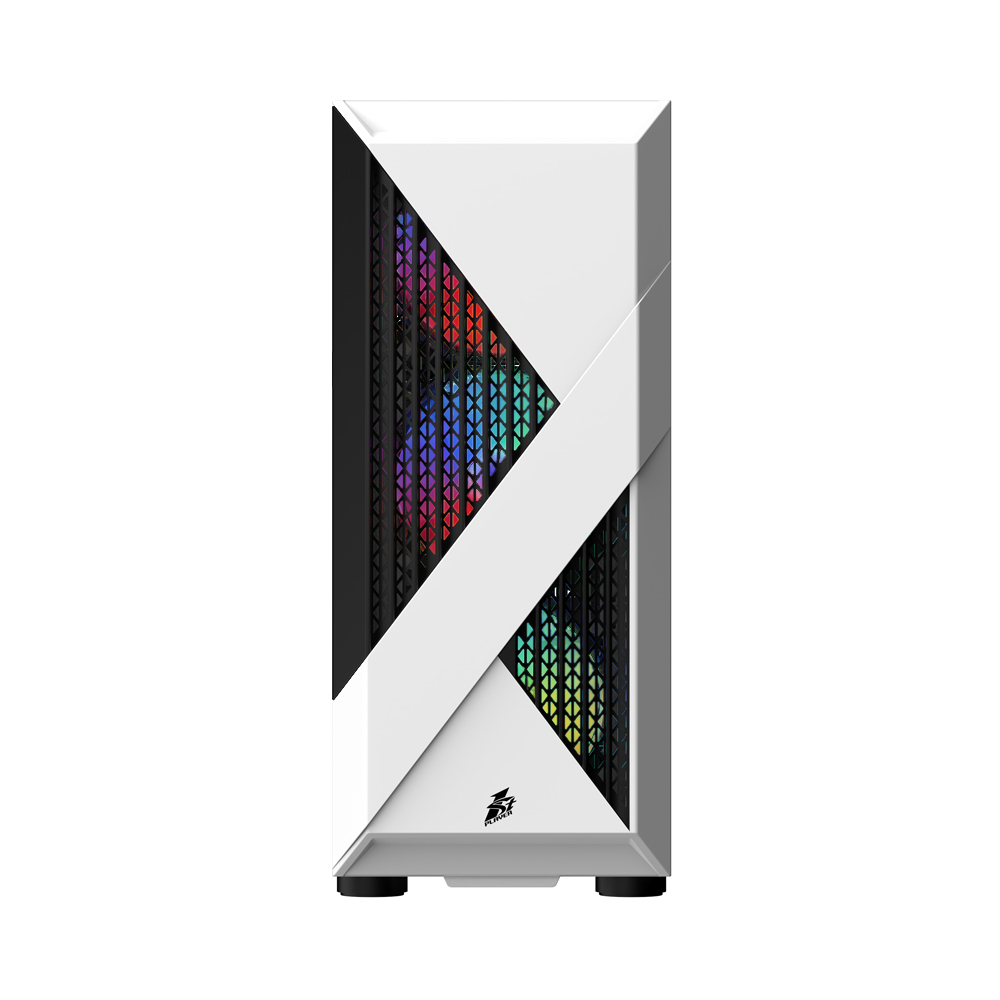

Front Panel: Tempered glass

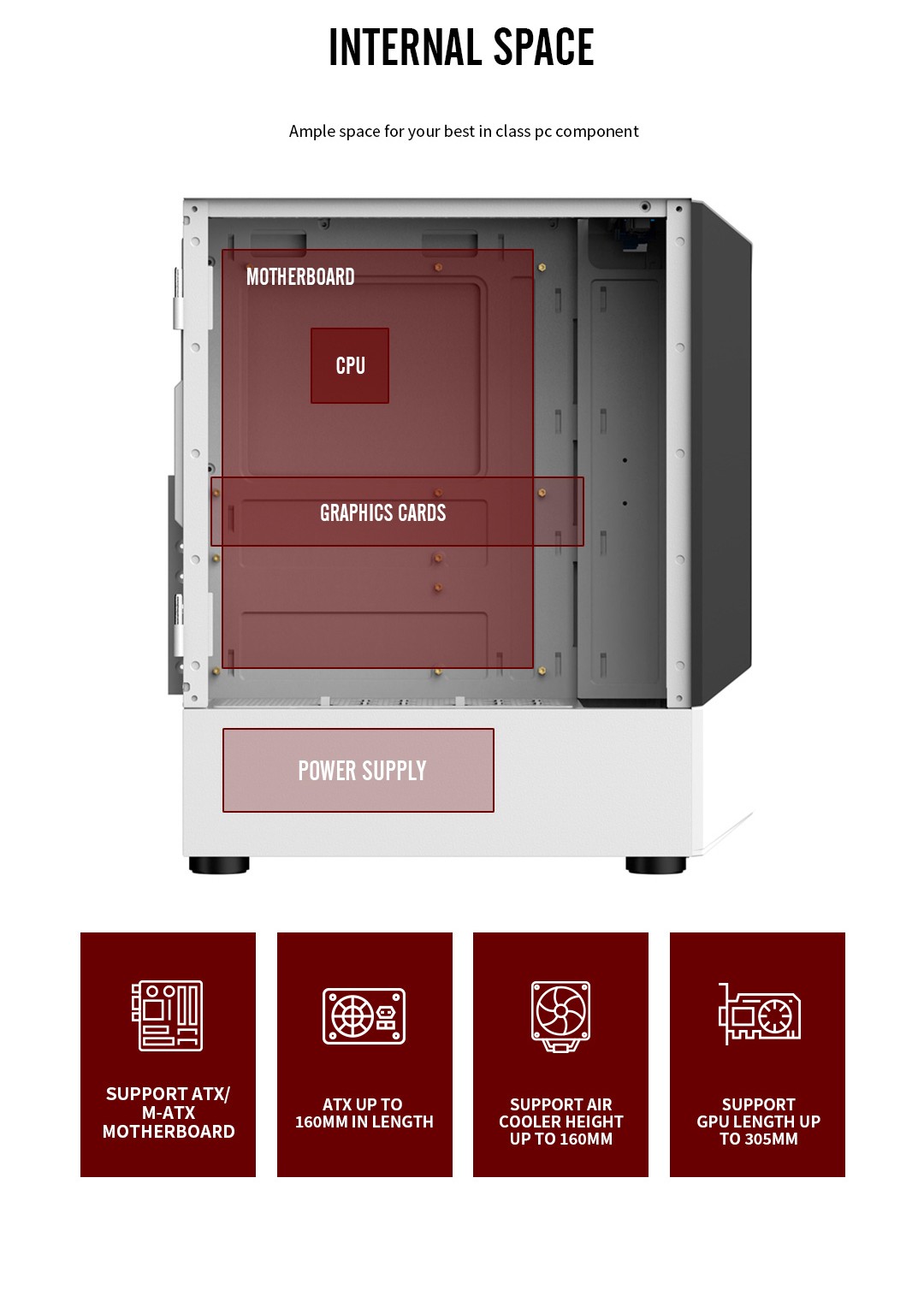

FORM FACTOR
ATX / M-ATX
5.25" CD ROM: 0
3.5" HDD: 2 + 2.5" SSD: 2
3.5" HDD: 1 + 2.5" SSD: 3
CPU MAX HEIGHT
160 mm
GPU MAX LENGTH
305 mm

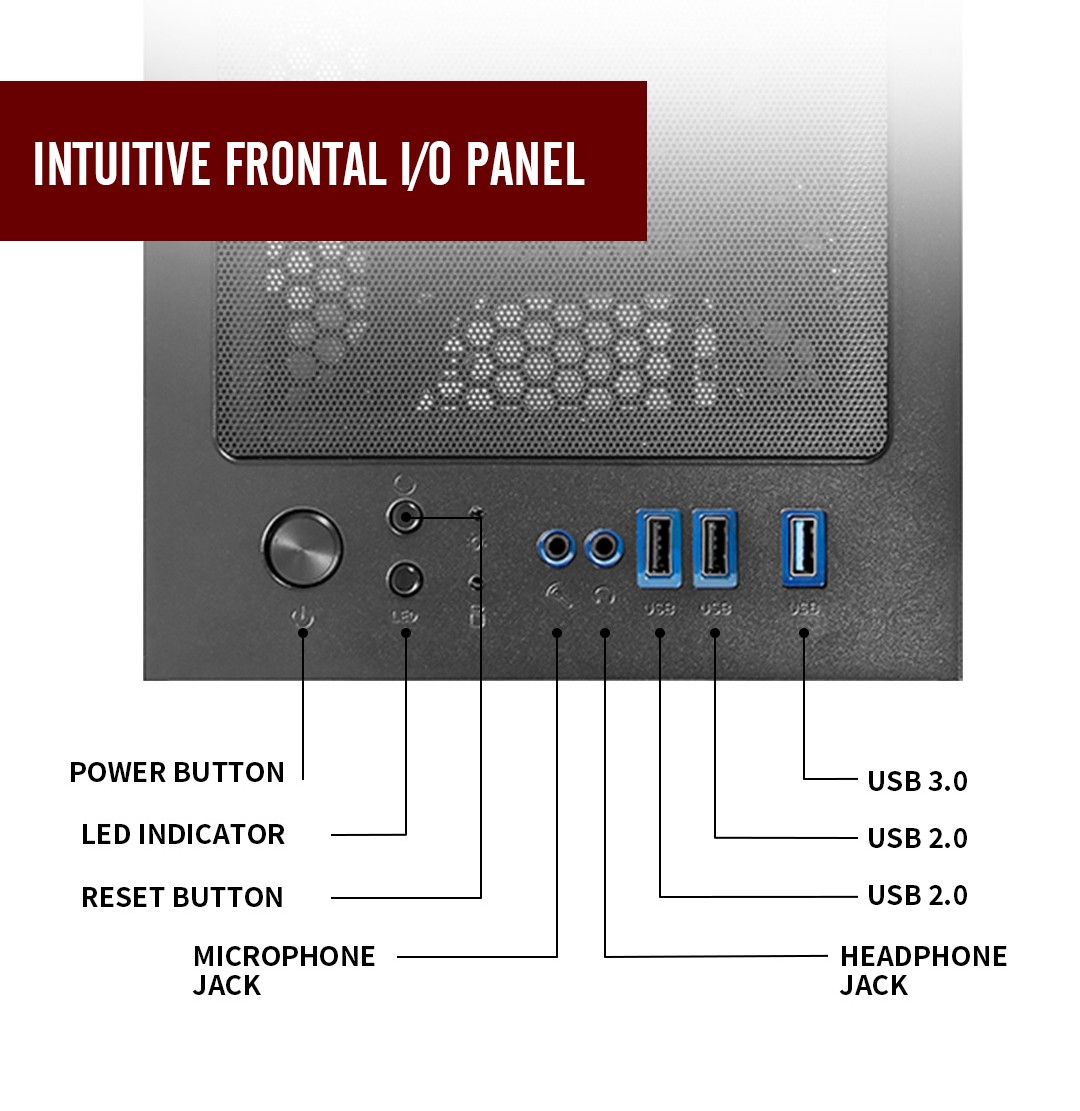

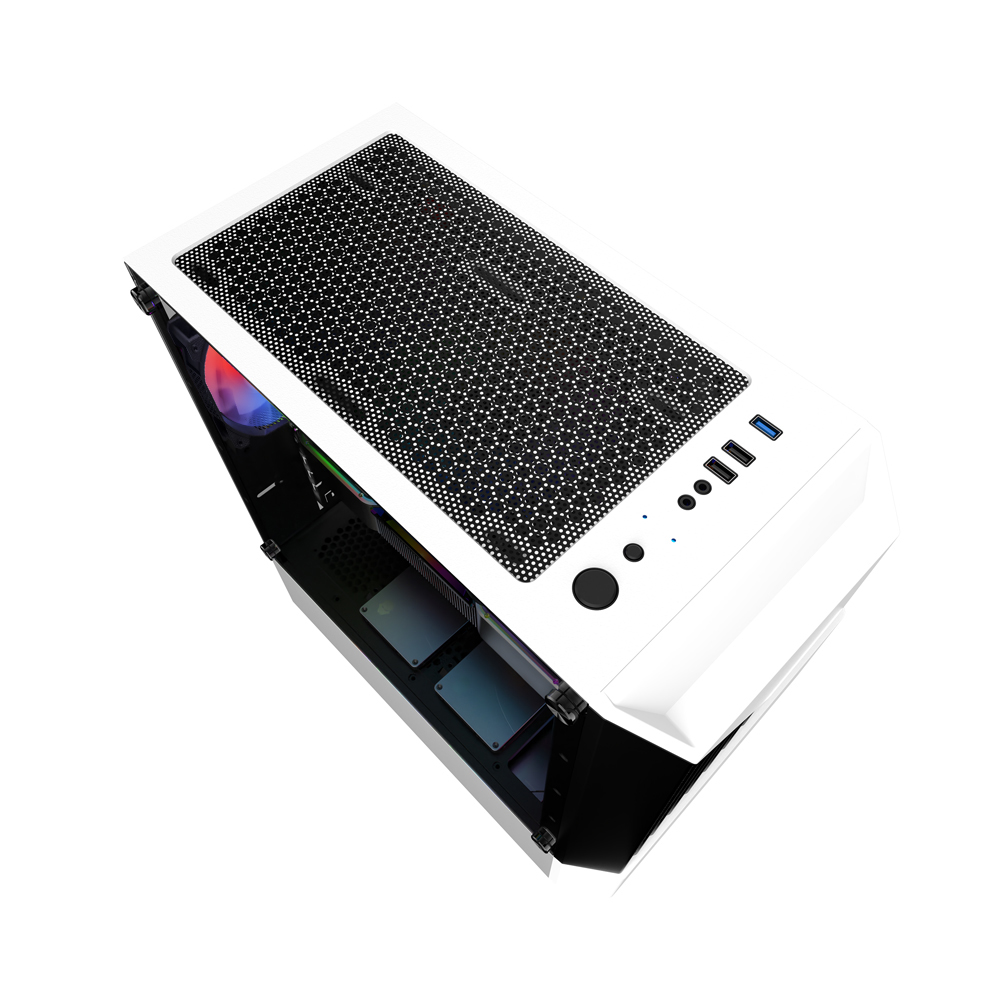

I/O PANEL
USB 3.0 x 1 + USB 2.0 x 2 + HD AUDIO

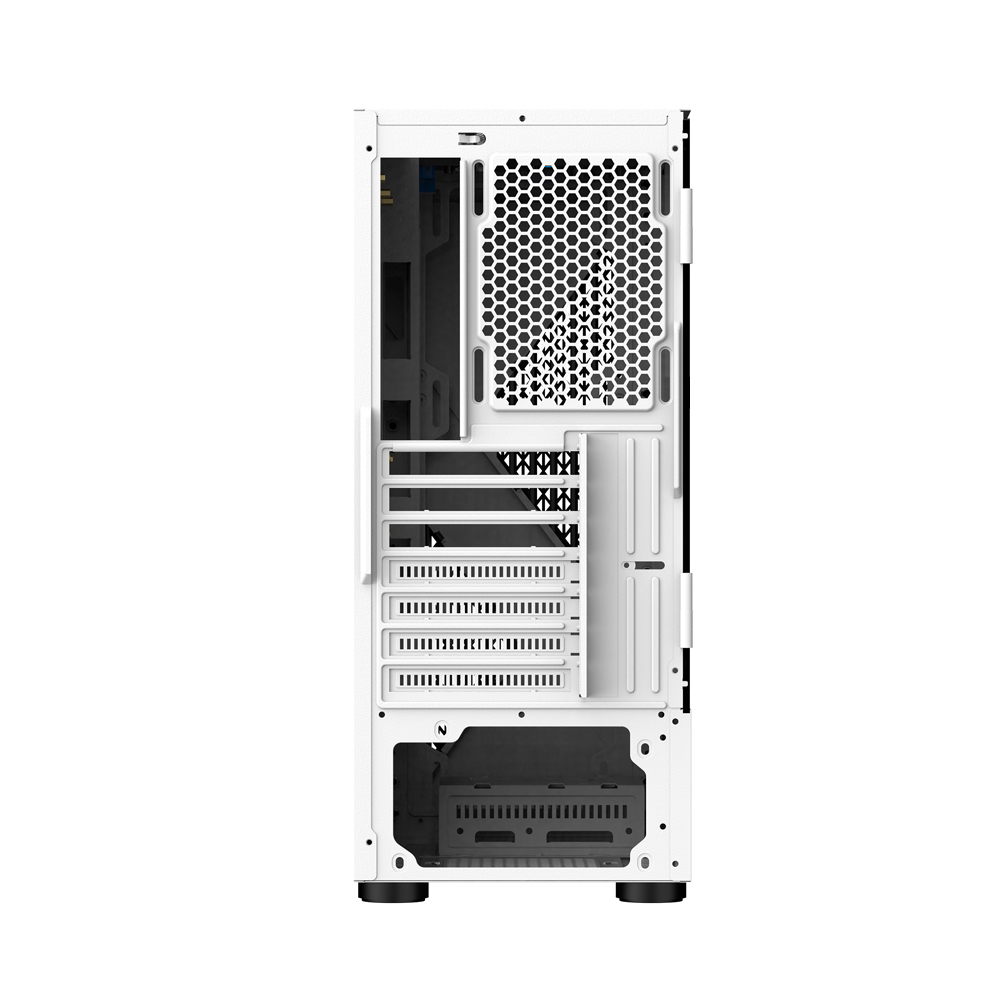

PCI CARD SLOT
7

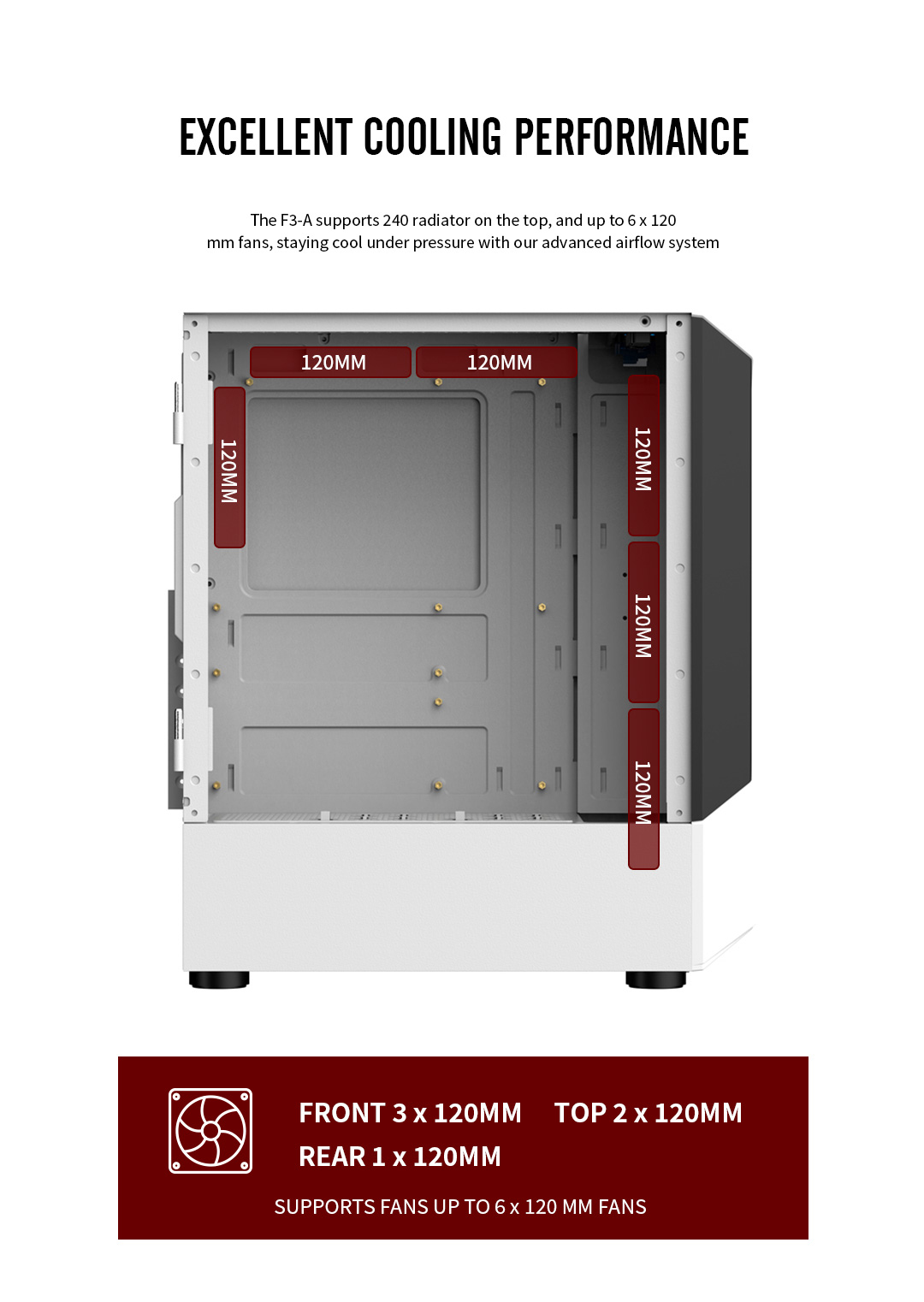

FAN SUPPORT
Front: 3 x 12 cm
Top: 2 x 12 cm
Rear: 1 x 12 cm
LIQUID COOLING SUPPORT
Top: 240 mm

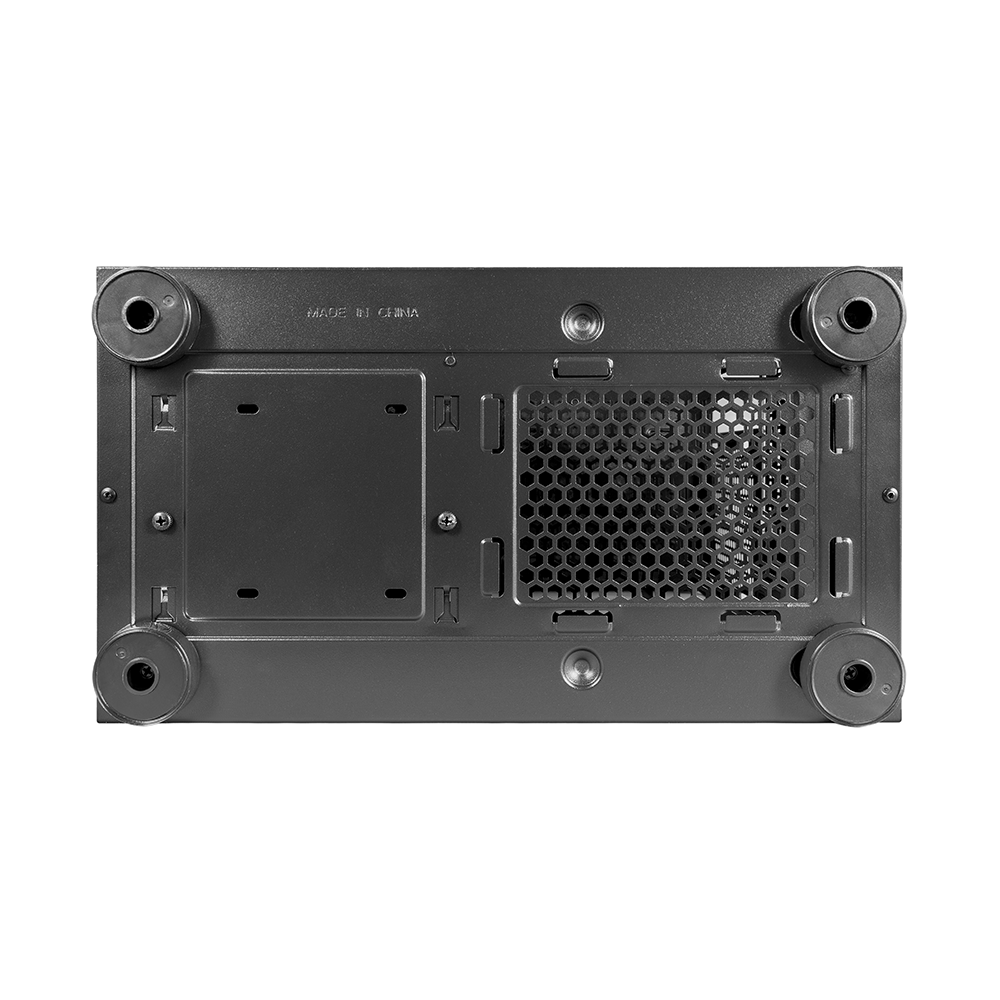

POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
3.8 kg / 8.37 lb
4.6 kg / 10.14 lb
