Support up to 9 fans
Support CPU cooler height up to 185 mm
Support GPU length up to 400 mm when mounted vertically
RGB LED bar that dynamically synchronizes with music rhythm

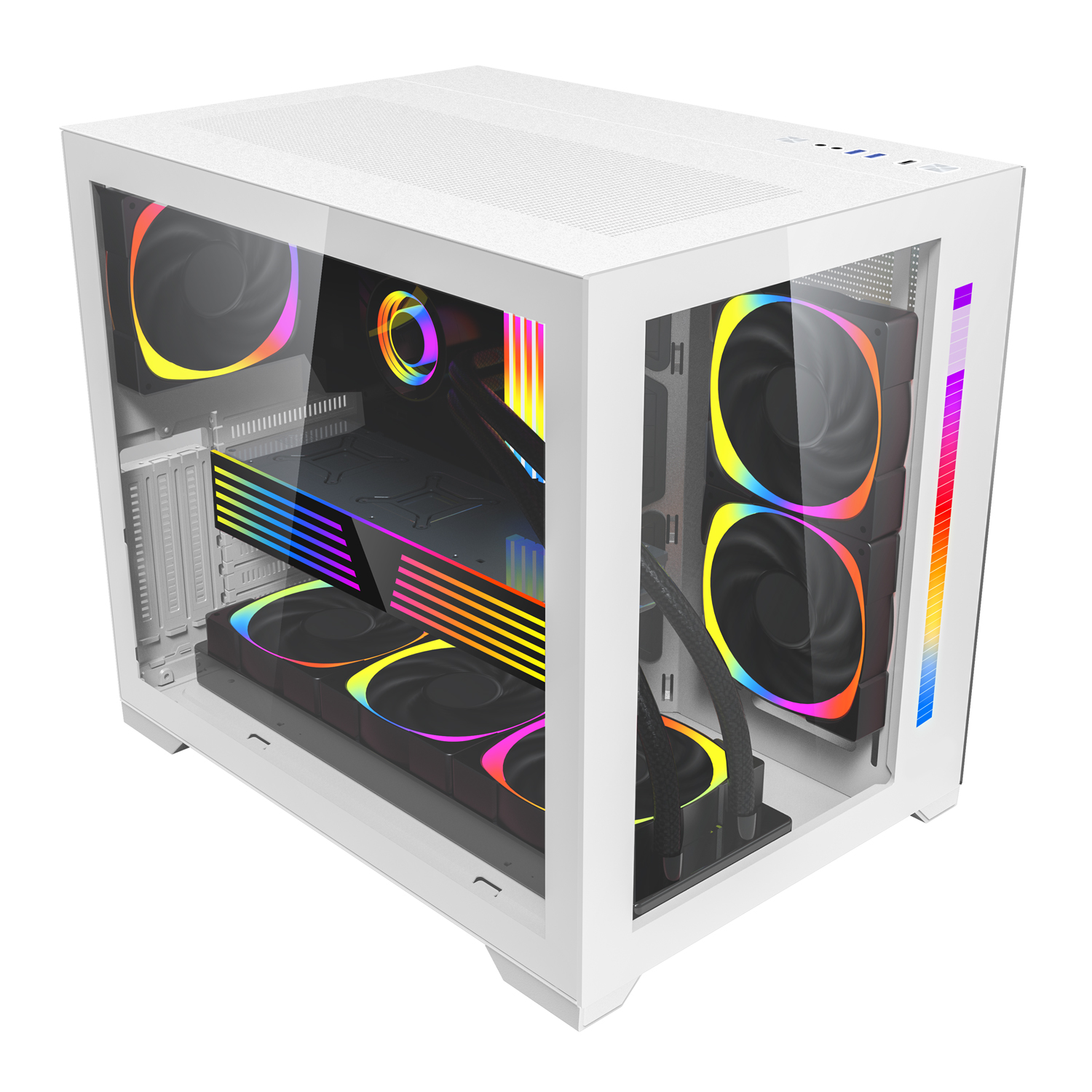

Tempered glass on the front and left offer a clear view of components
Support 360 mm radiator at the top and bottom, 240 mm radiator at the front
*Computer parts are not included. Cooling fan may vary among different countries/regions.
White

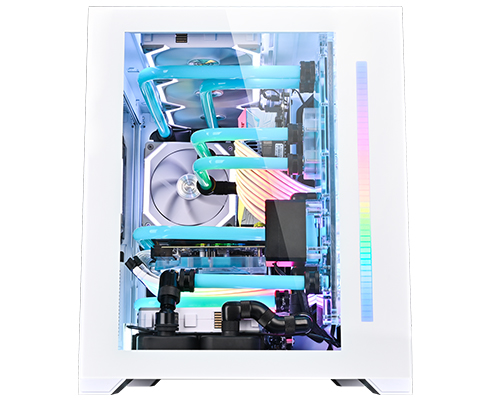

FRONT PANEL WITH ARGB DANCING BAR
Music Rhythm Light Board

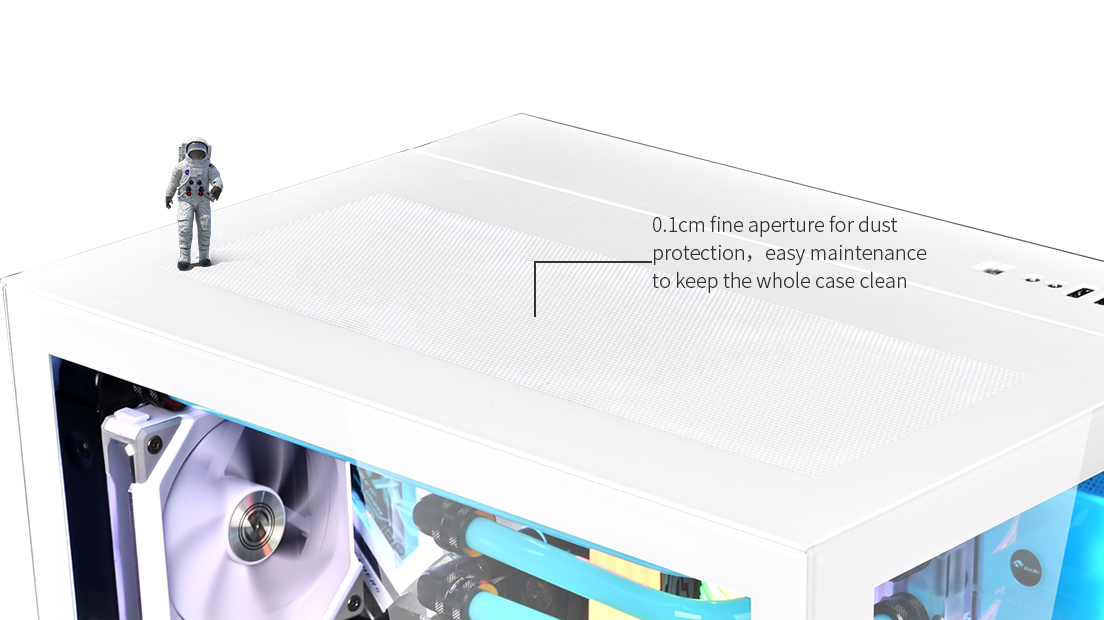

0.1 Aperture Dust Resistant Screen

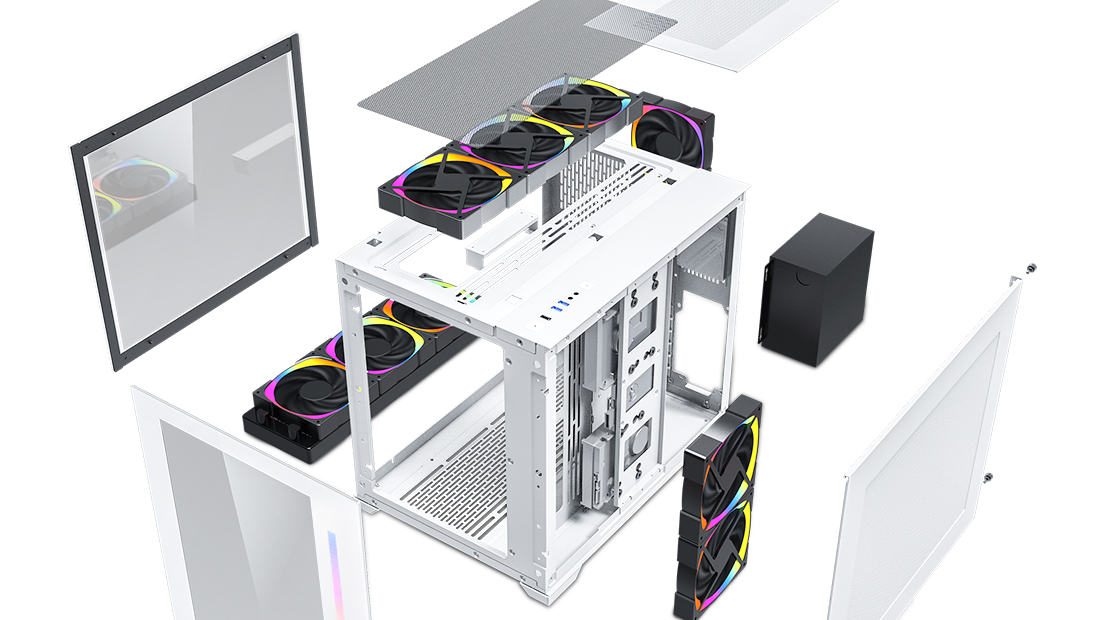

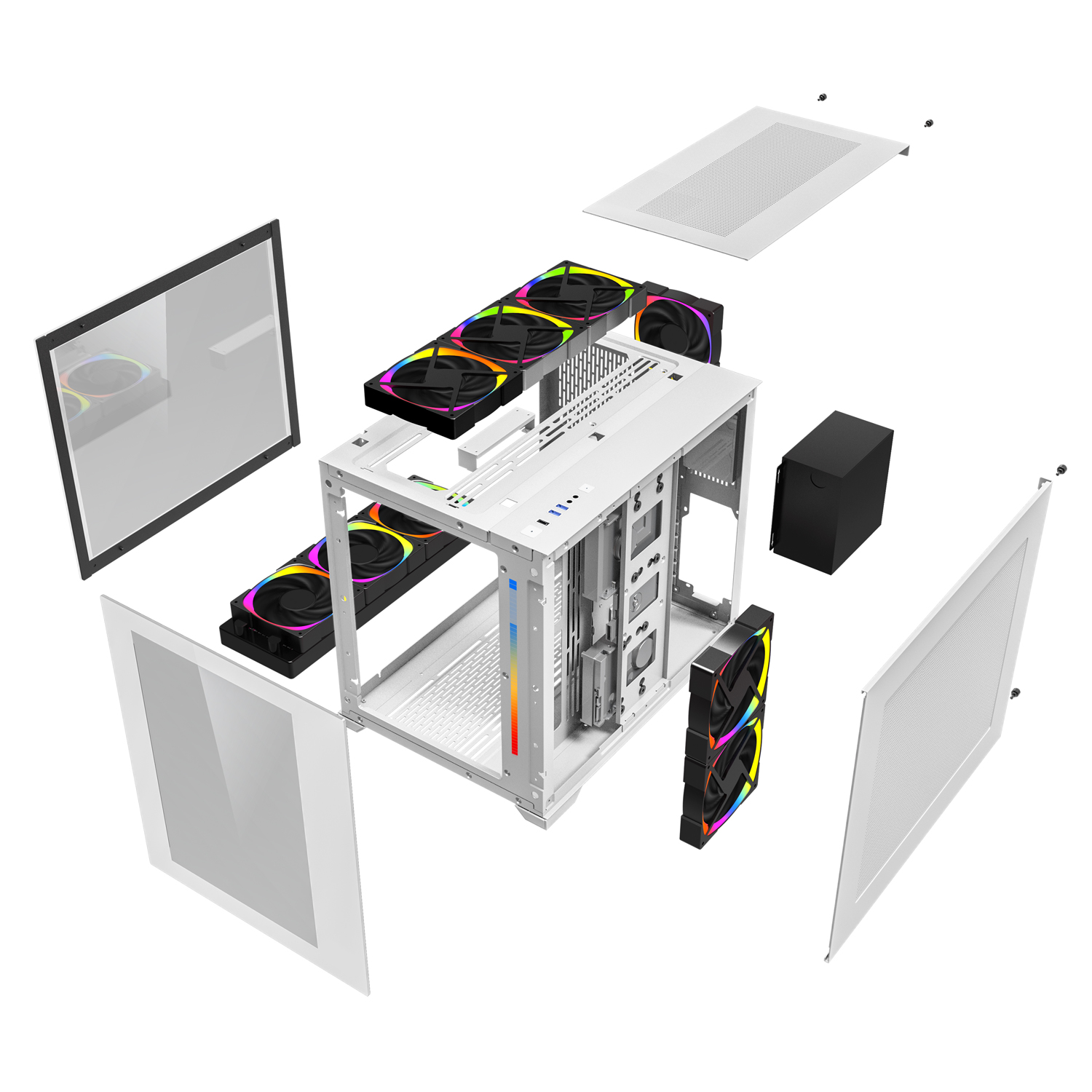

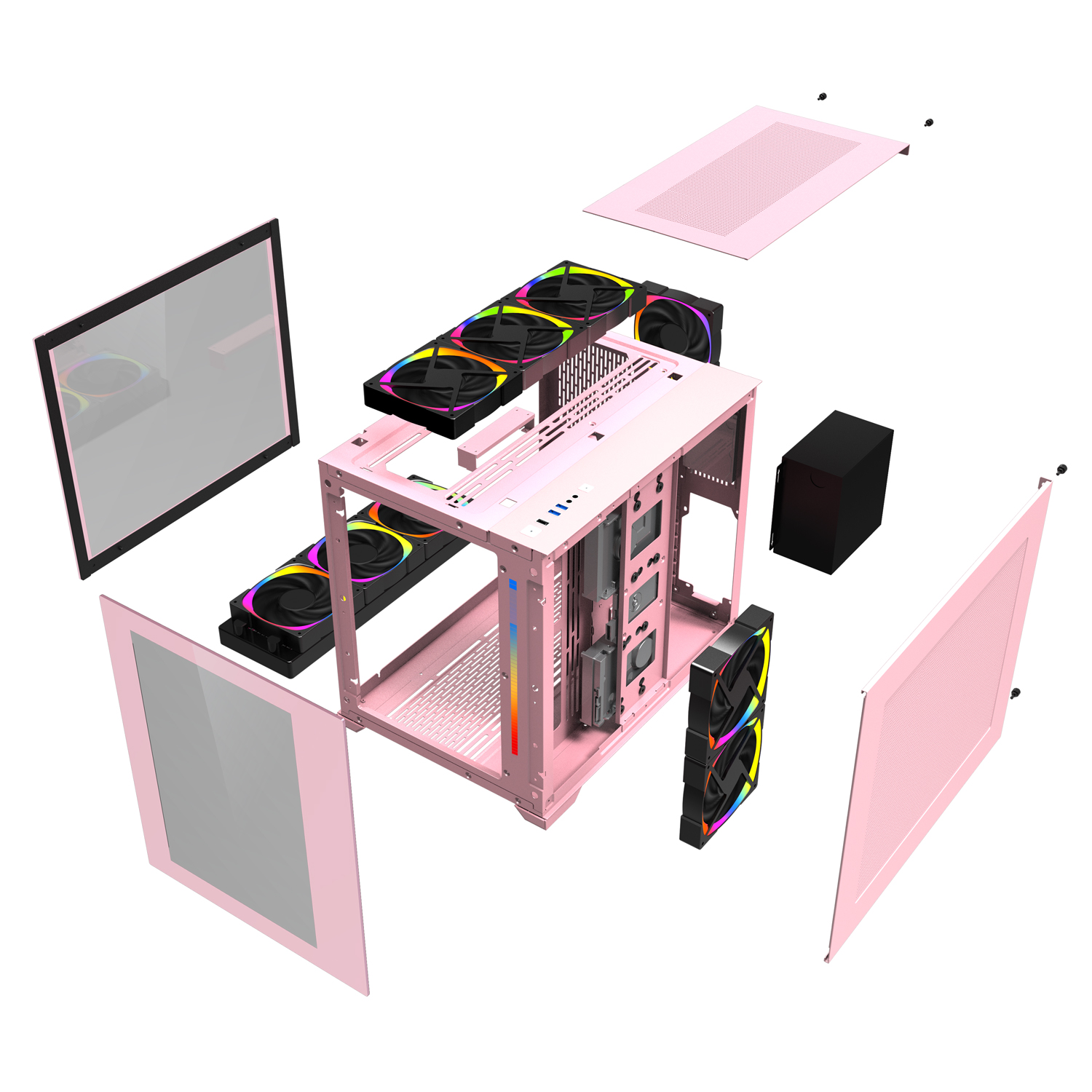

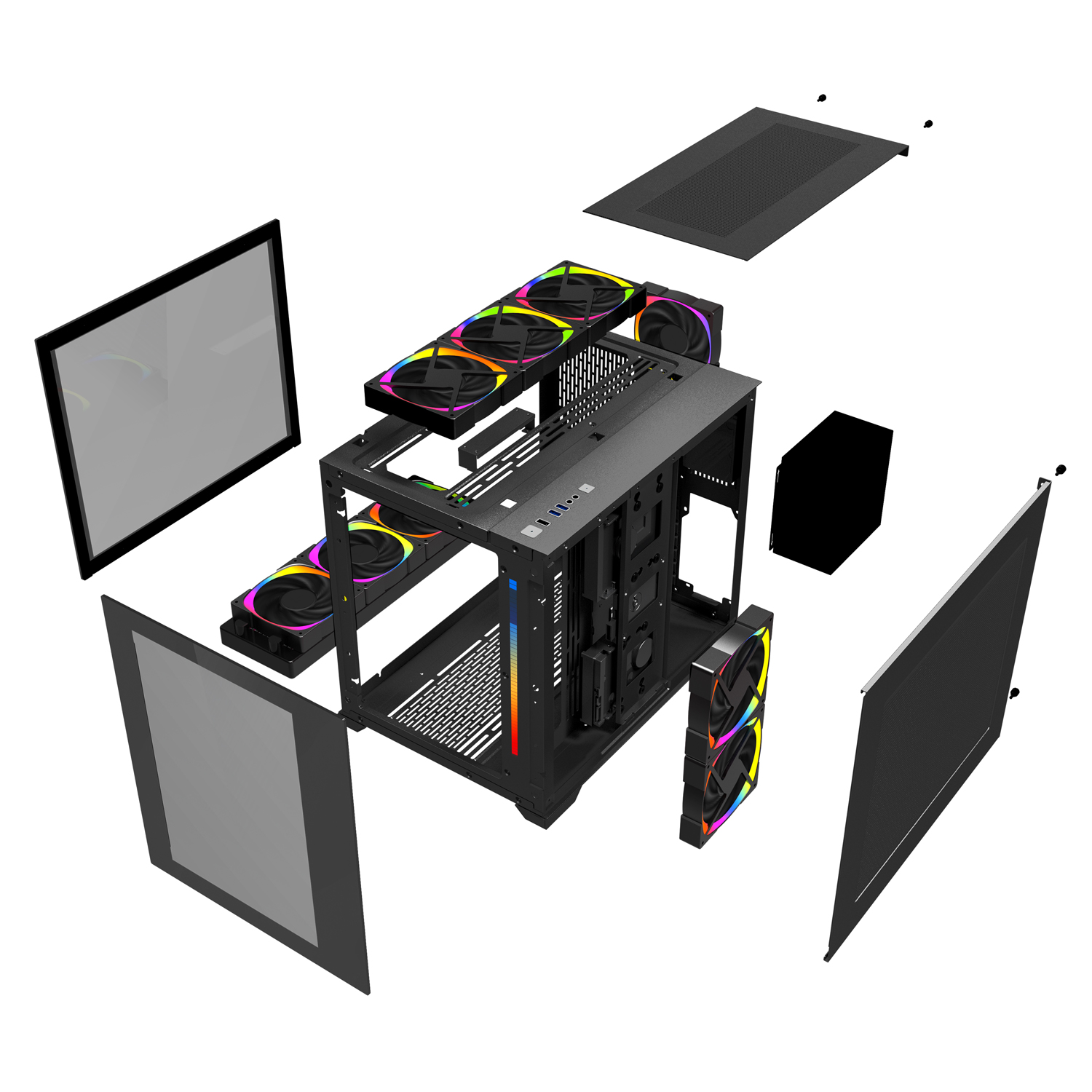

Mortise And Tenon Quick Release Structure
3 seconds, mortise and tenon quick disassembly structure, easy installation.
The front glass and left glass side panel can only be disassembled by opening the top cover or right side panel first

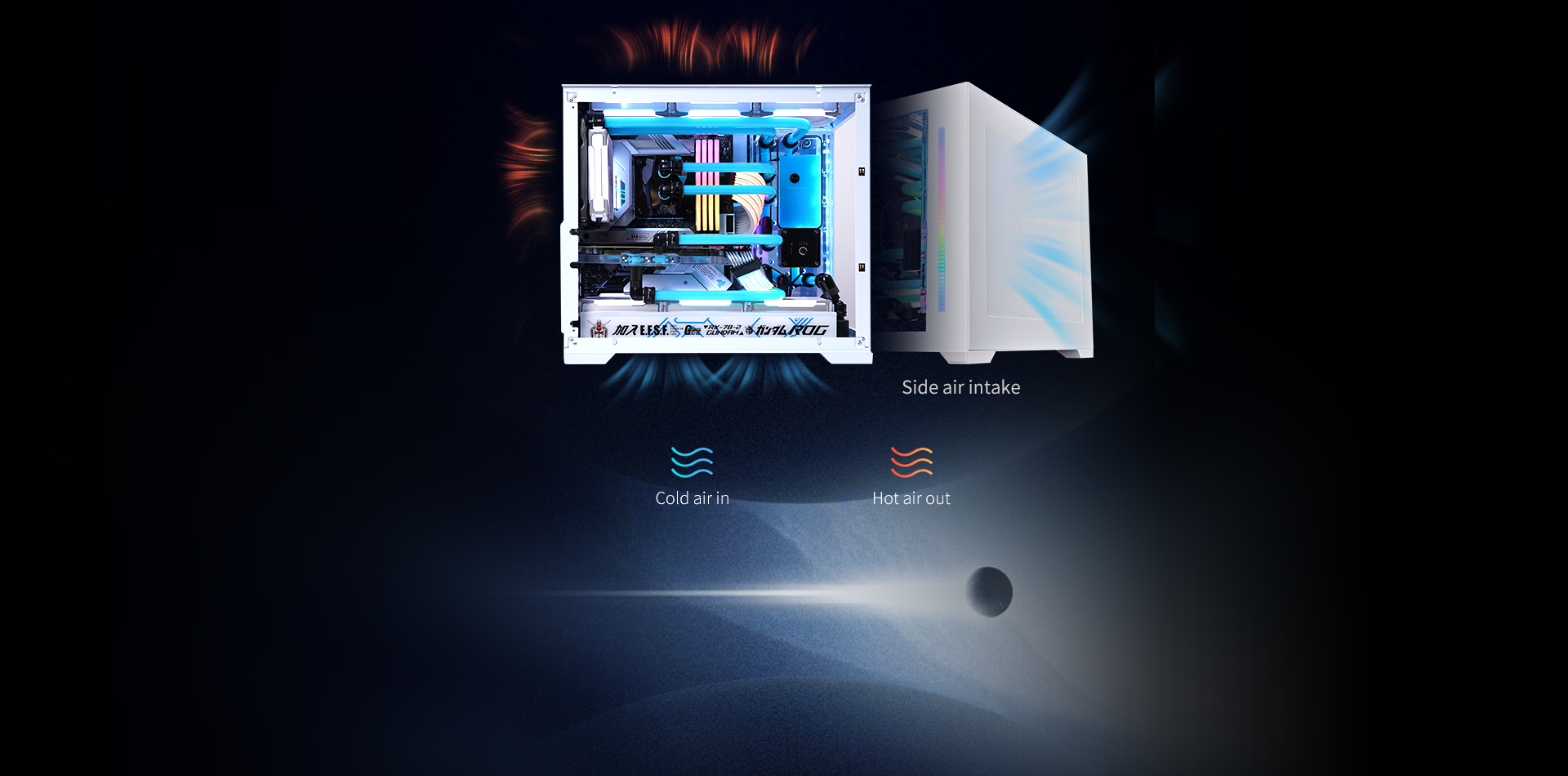

Excellent inlet and outlet convection to accelerate cooling efficiency.
Perfectly designed alignment.

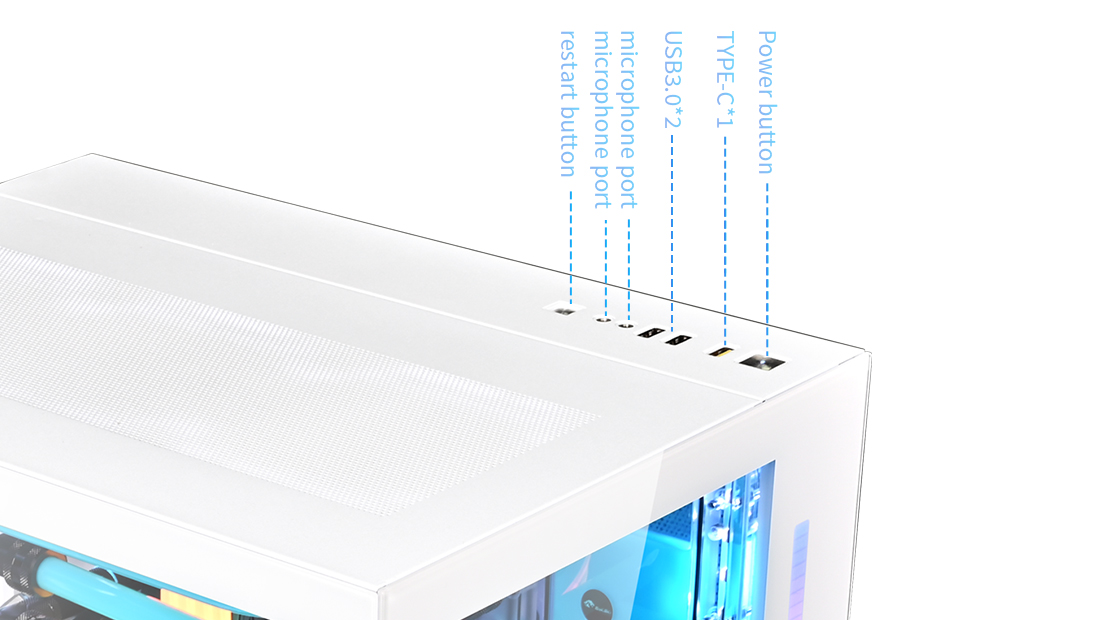

Rich top-mounted terminals to meet daily office and gaming needs.
There is no room for "foreign objects".
Reduced size, not capacity.
①ITX Motherboard
②M-ATX Motherboard
③ATX Motherboard

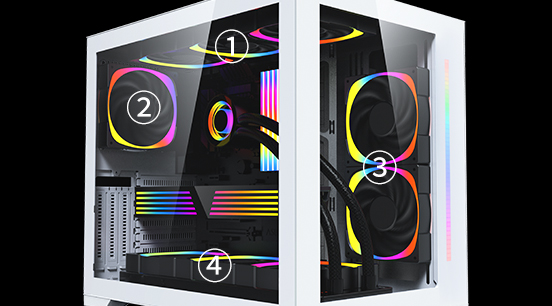

①Roof fan 120mmx3,support 360AIO water cooling.
②Rear fan 120mmx1.
③Front fan 120mmx2, supports 240AIO water cooling.
④Lower air intake fan 120mmx3, supports 360AIO water cooling.
Model
SP7

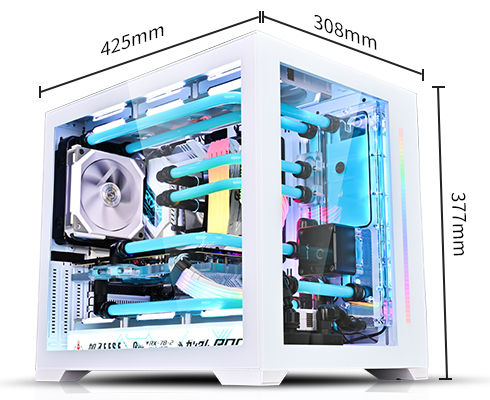

Structure Dimensions(L*W*H)
425*308*362MM
Product Dimensions(L*W*H)
425*308*380MM
Package Dimensions(L*W*H)
435*375*515MM
Structure Thickness
0.8MM
Materials
SPCC 0.8MM
LEFT SIDE PANEL：TEMPERED GLASS
Form Factor
ATX/M-ATX
5.25" CD ROM: 0
3.5" HDD: 2
2.5" SSD: 1
CPU MAX Height
185MM
VGA MAX Length
400MM(DESIGNED FOR MOUNTING GPU'S VERTICALLY)
I/O Panel
USB3.0*2+TYPE-C*1+HD AUDIO
PCI Card Slot
7+3
Fan Support
ON THE LEFT OF THE FRONT SIDE: 2*12CM
TOP: 3*12CM
REAR: 1*12CM
BOTTOM: 3*12CM
Liquid Cooling Support
TOP: 36CM
FRONT: 24CM
BOTTOM: 36CM
Power Supply Support
BOTTOM MOUNT(LIMIT IS 200 MM LONG)
Net Weight
N.W.: 7.6KG
G.W.: 8.2KG
