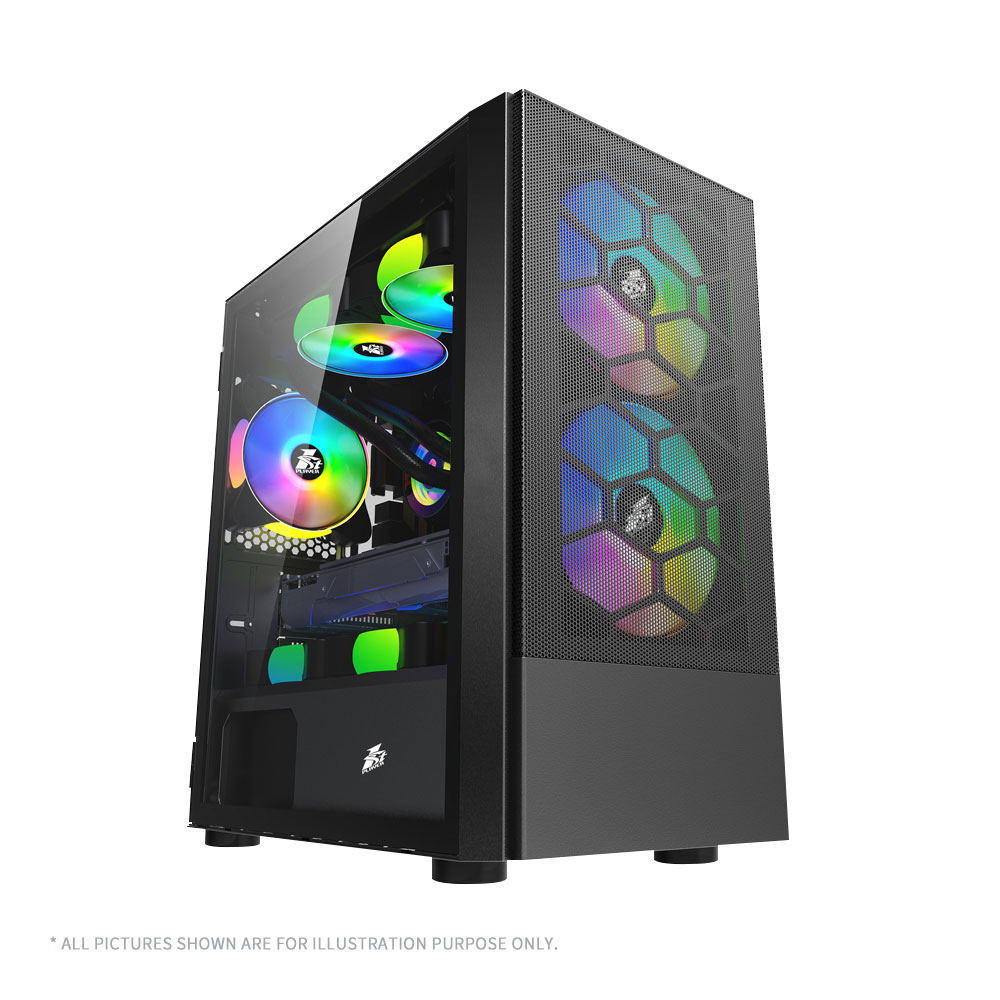

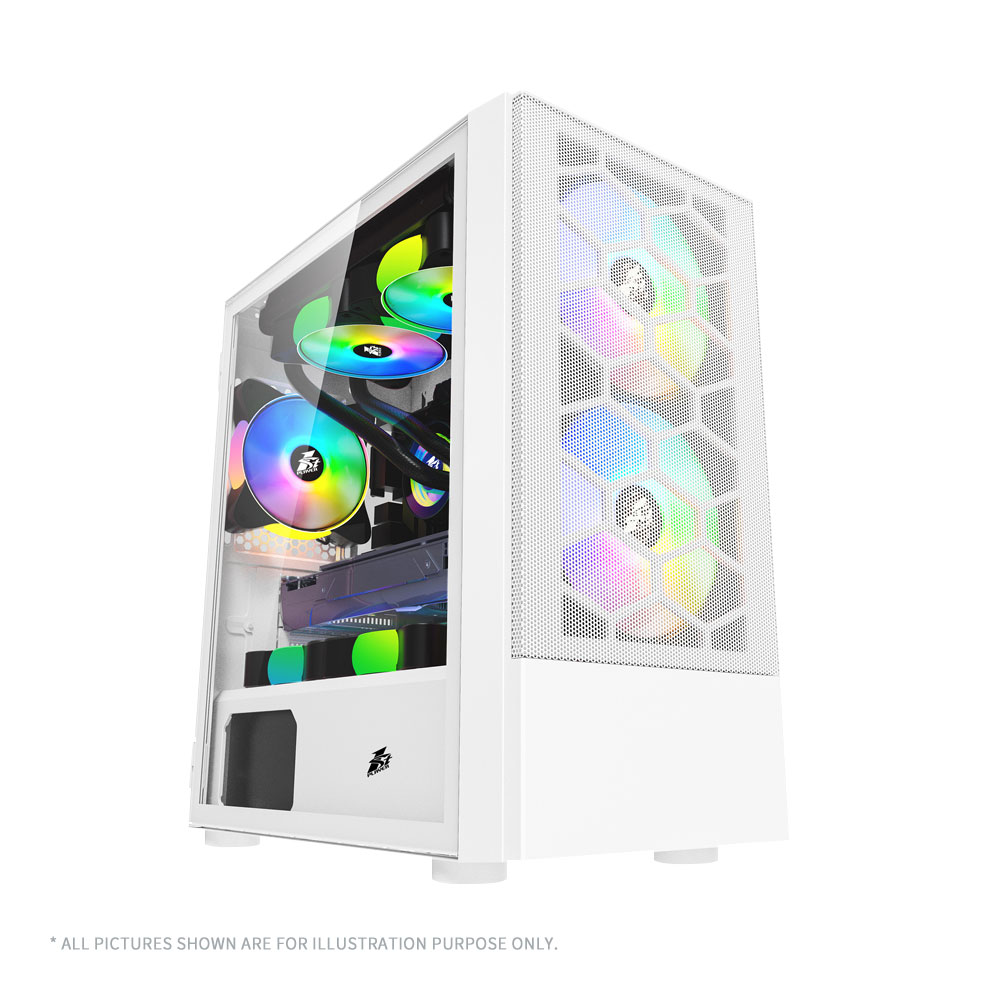

X4-M

1STPLAYER Gaming Case

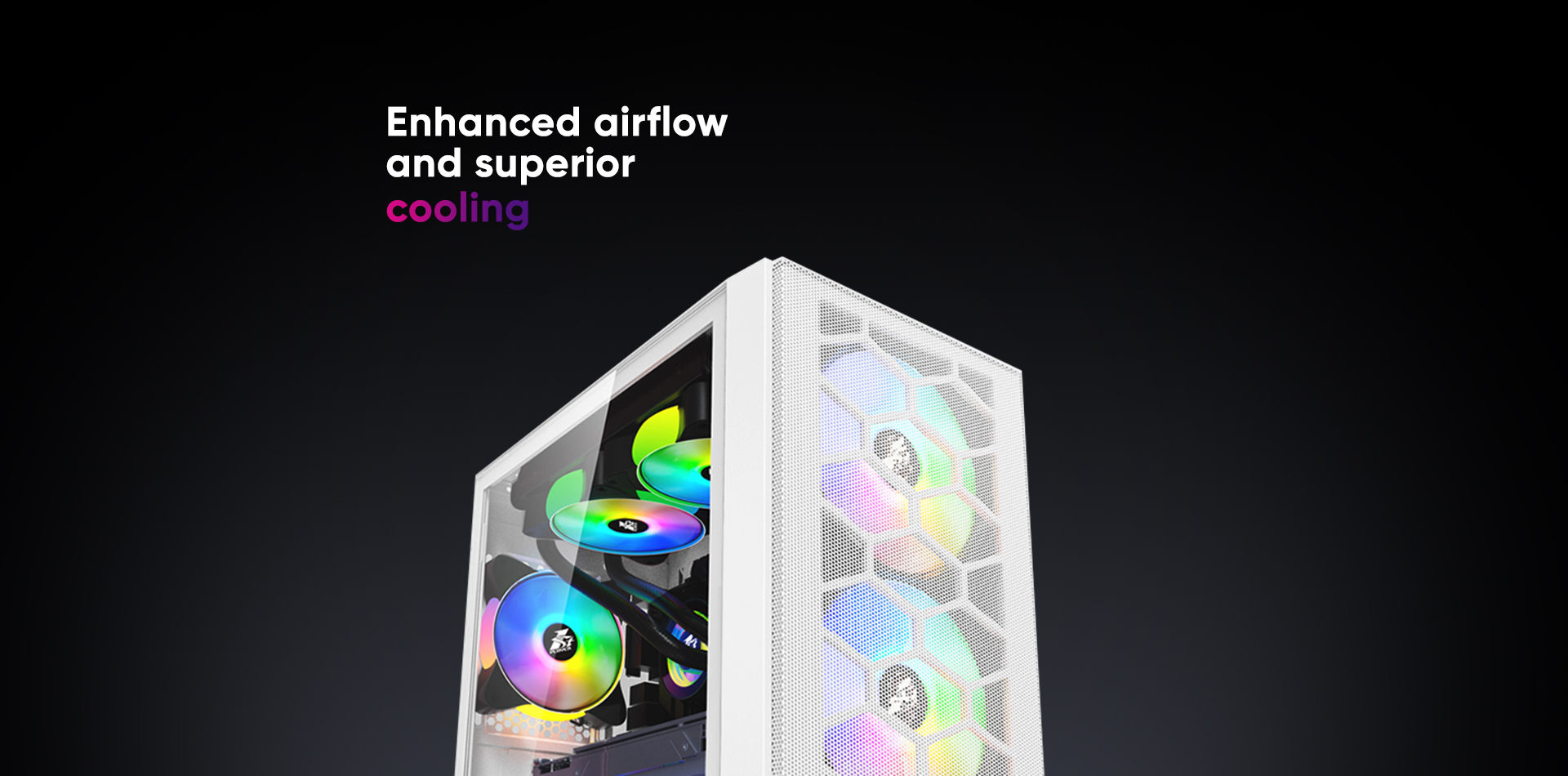

  • Support installation of up to 8 fans

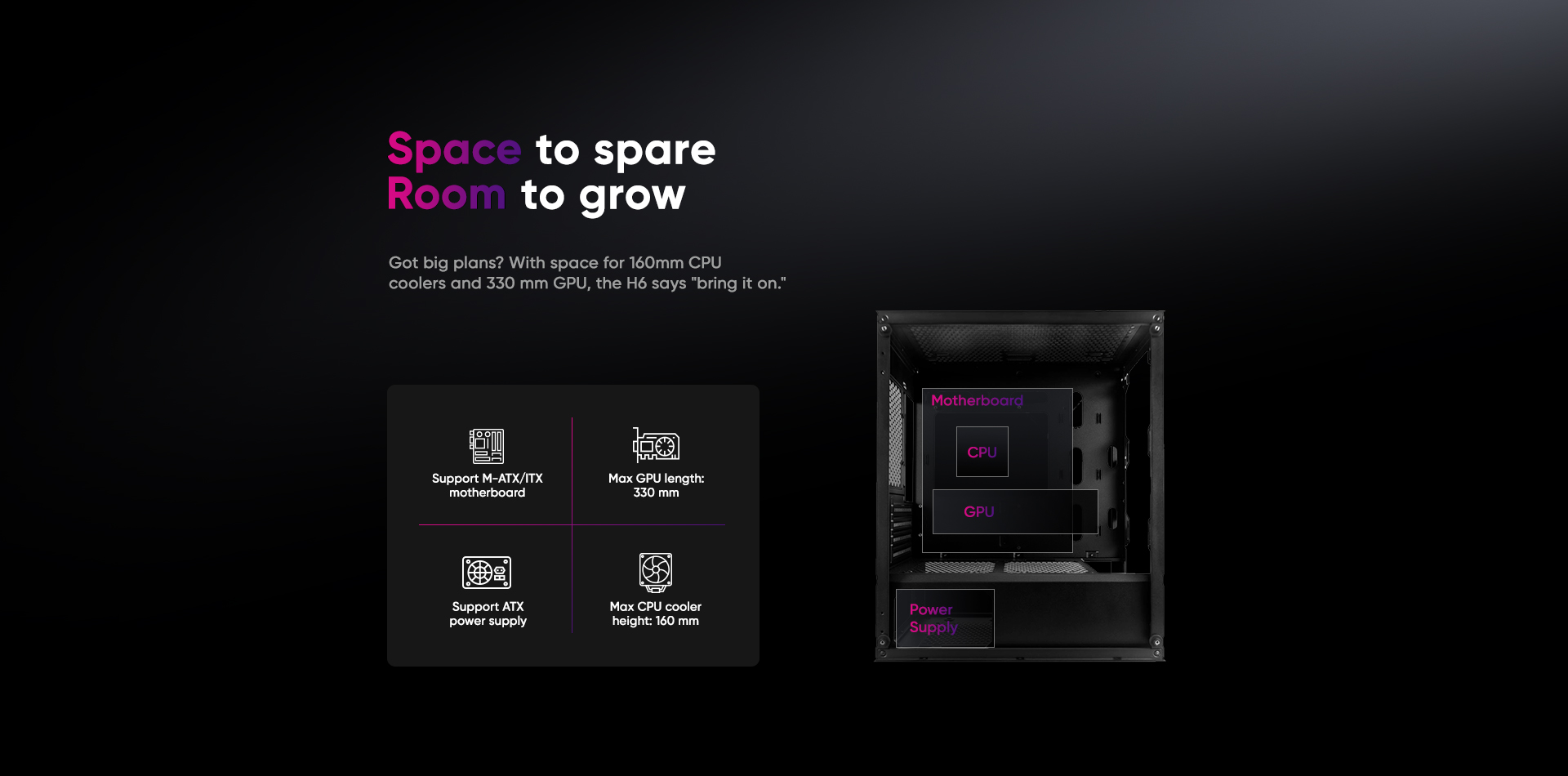

  • Support CPU cooler height up to 160 mm

  • Support GPU length up to 330 mm

  • Support a 240 mm radiator at the top

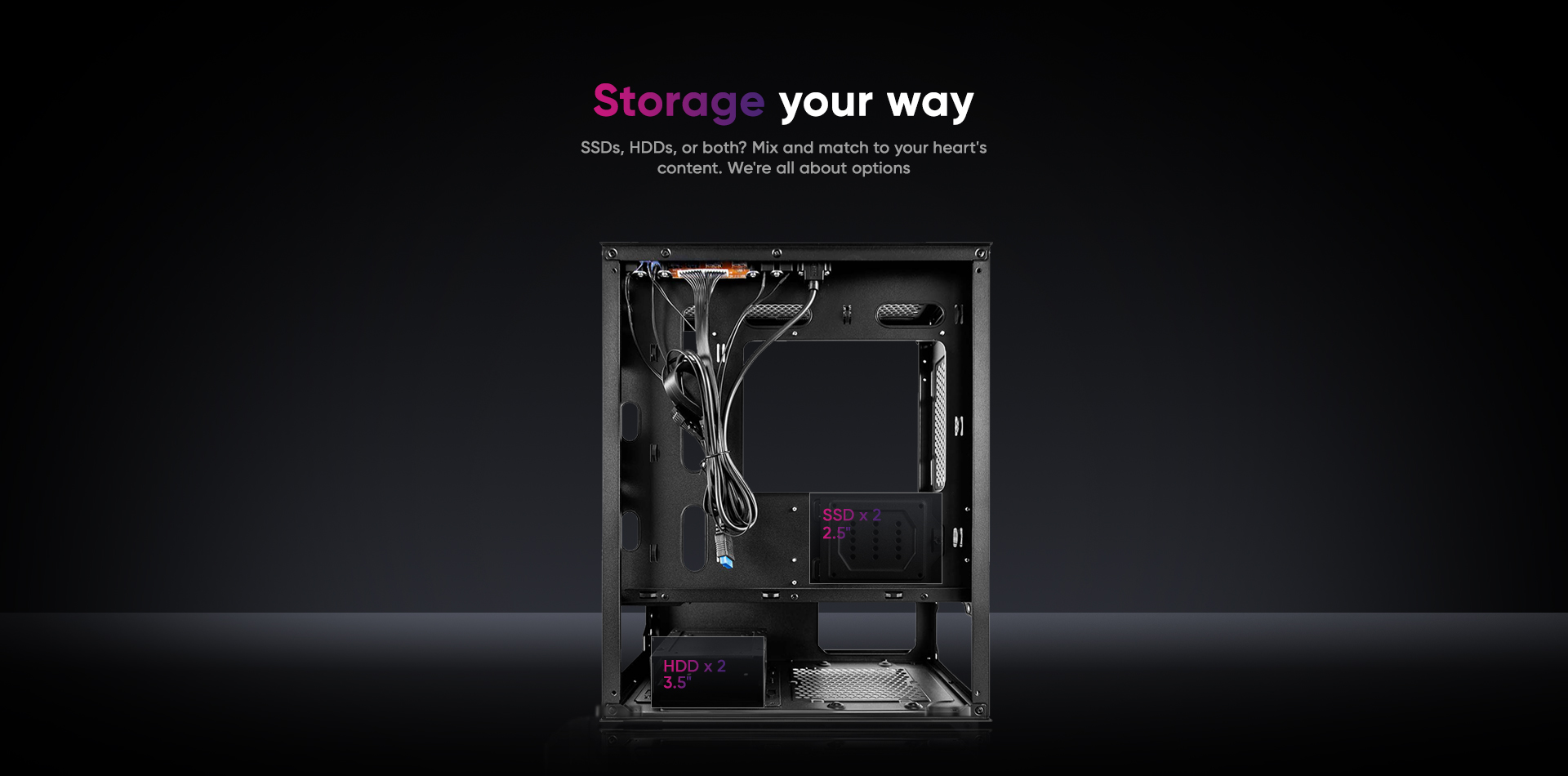

  • Support up to 3 drive bays: 2 x 3.5" HDD + 1 x 2.5" SSD

    *Computer parts are not included. Cooling fan may vary among different countries/regions.


Black

X4-M

1STPLAYER Gaming Case

Watch Video

Model

X4-M

Structure Dimensions(L*W*H)

335*210*404MM

Product Dimensions(L*W*H)

375*210*423MM

Package Dimensions(L*W*H)

470*265*425MM

Structure Thickness

0.5MM

Materials

SPCC 0.5MM

L&R side panel: Tempered Glass

Front side panel: Metal Mesh

Form Factor

M-ATX/ITX

Drive Bays

5.25""CD ROM: 0

①3.5"" HDD: 2+2.5"" SSD: 2

②3.5"" HDD: 1+2.5"" SSD: 3


CPU MAX Height

160MM

VGA MAX Length

330MM

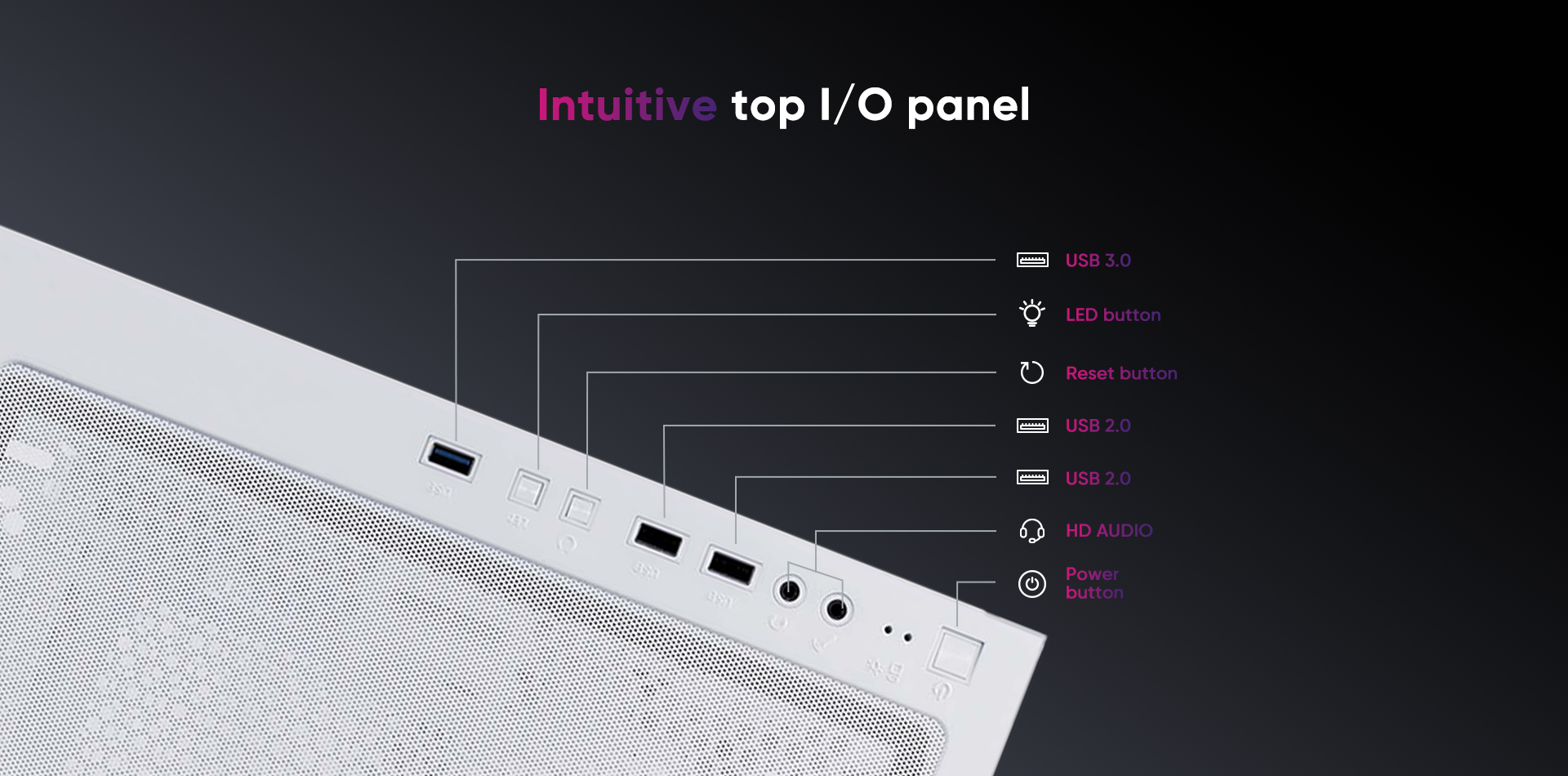

I/O Panel

HD AUDIO+USB3.0*1+USB2.0*2

PCI Card Slot

4

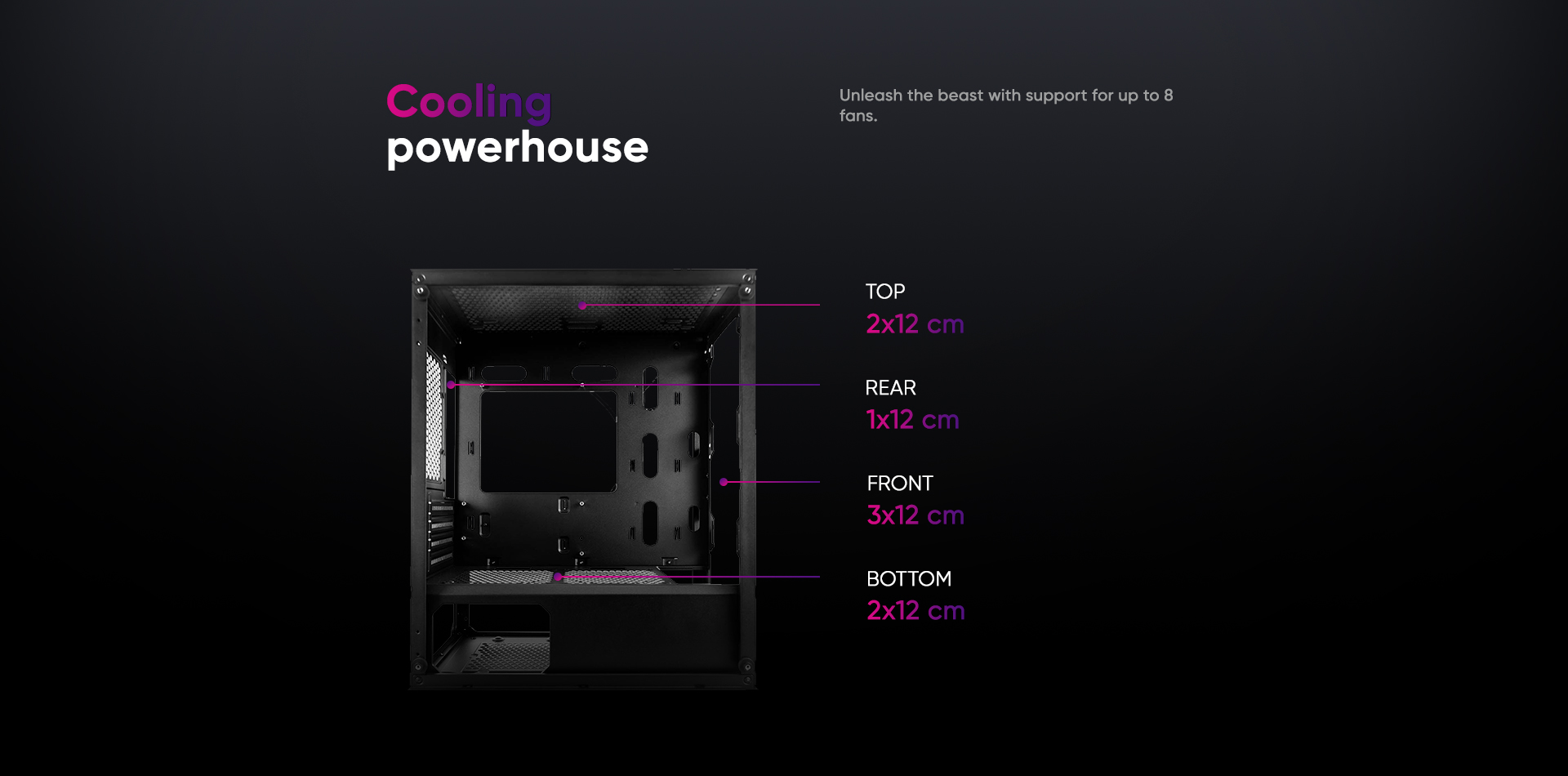

Fan Support

FRONT: 3*120 MM/2*140 MM

REAR: 1*120 MM

TOP: 2*120MM

BOTTOM: 2*120MM

Liquid Cooling Support

TOP: 240 MM

Power Supply Support

BOTTOM MOUNT(ATX)

Net Weight

4.5KG / 9.92lbs

Gross Weight

4.85KG / 10.69lbs
