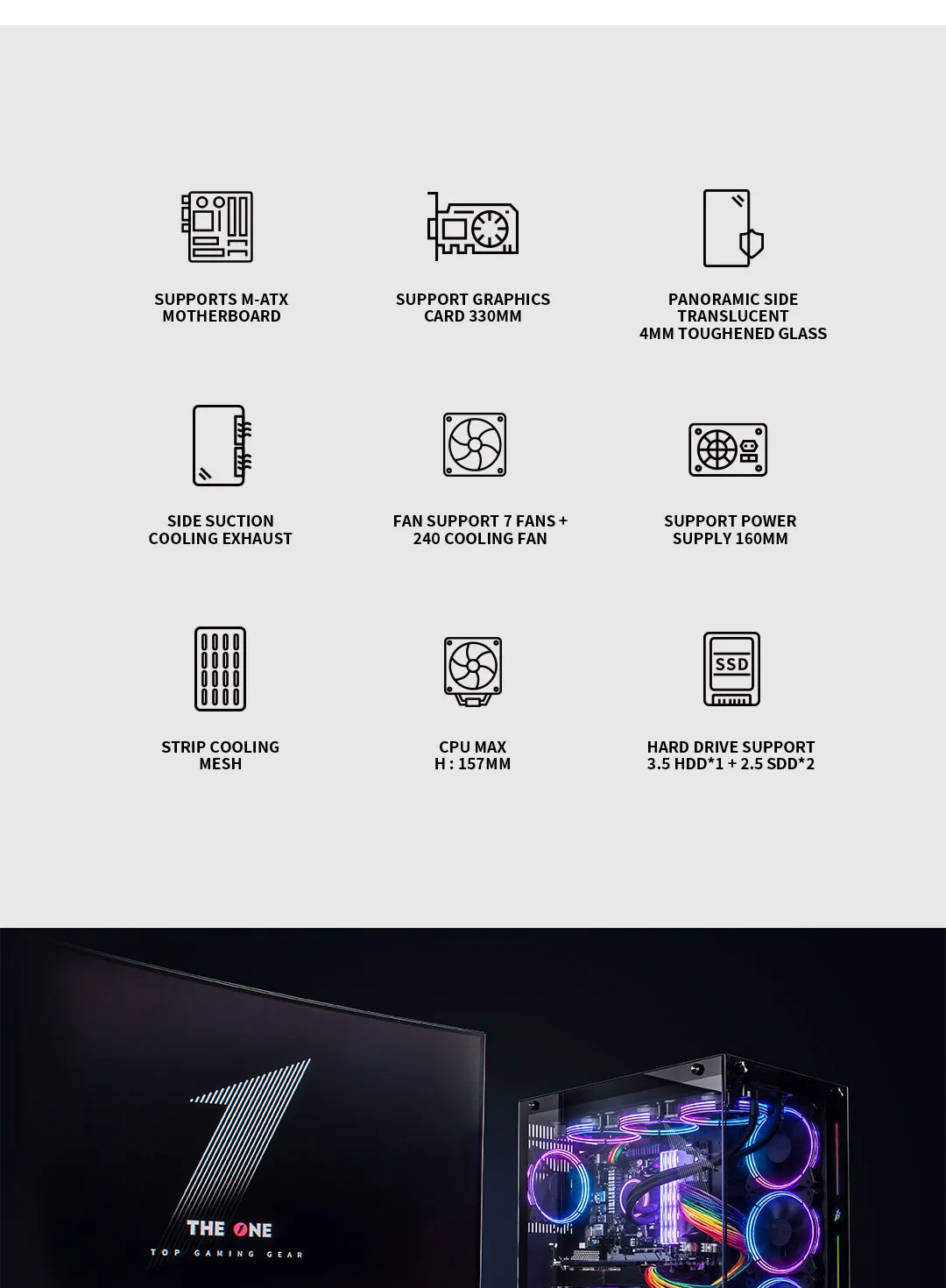

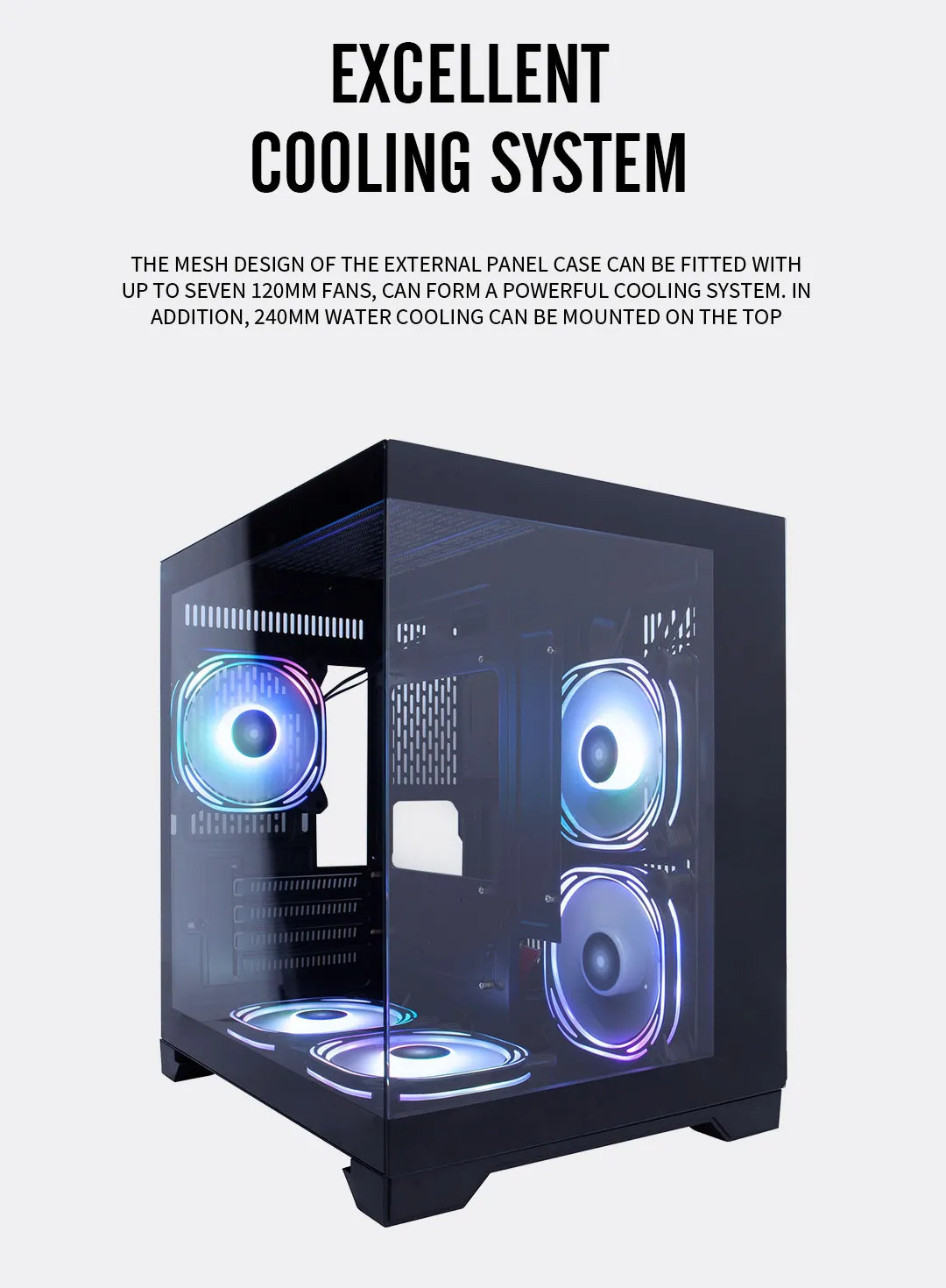

Support up to 7 fans

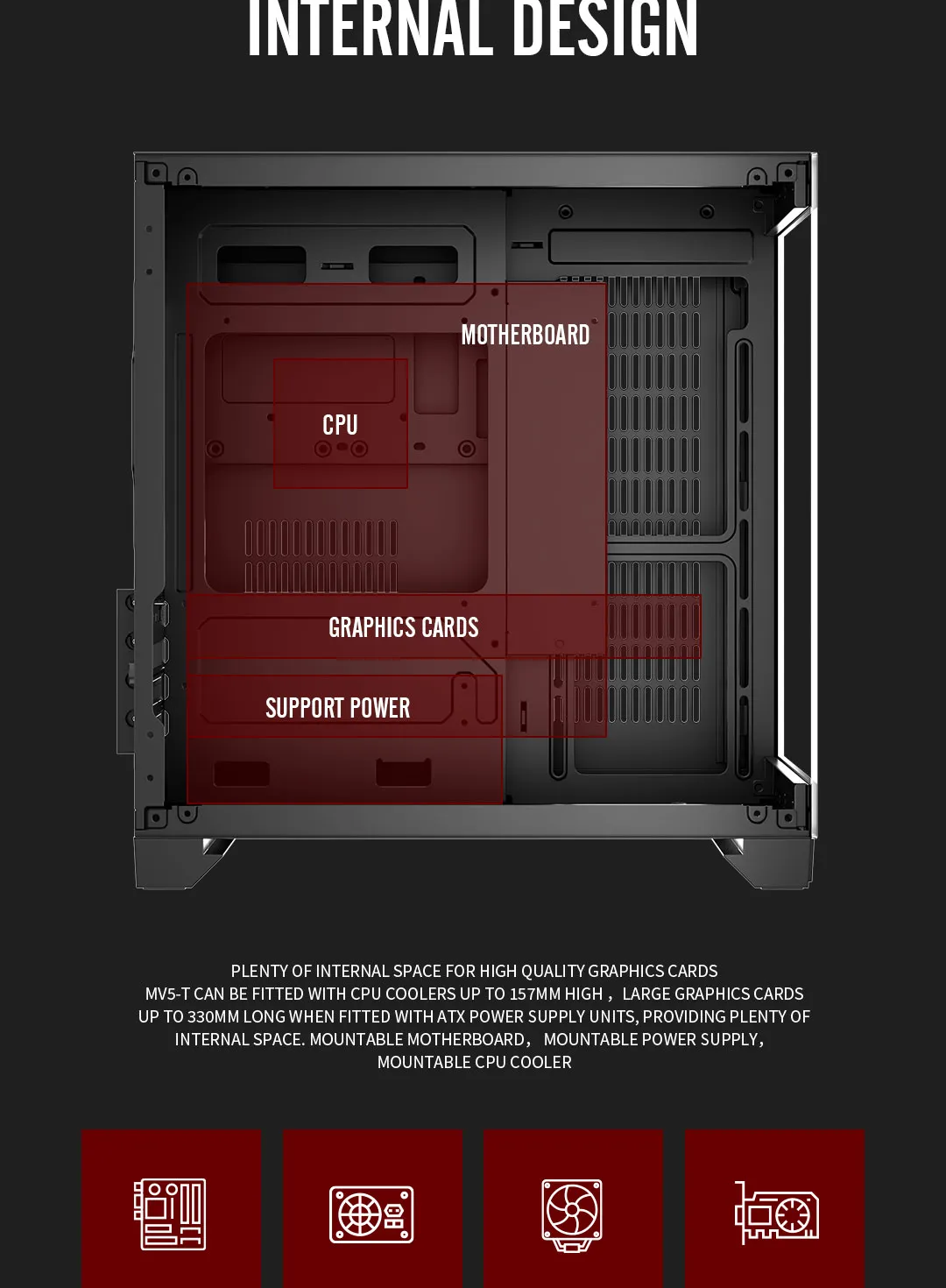

MAX GPU length: 330 mm
MAX CPU cooler height: 157 mm
Support 240 mm liquid cooling at the top and front

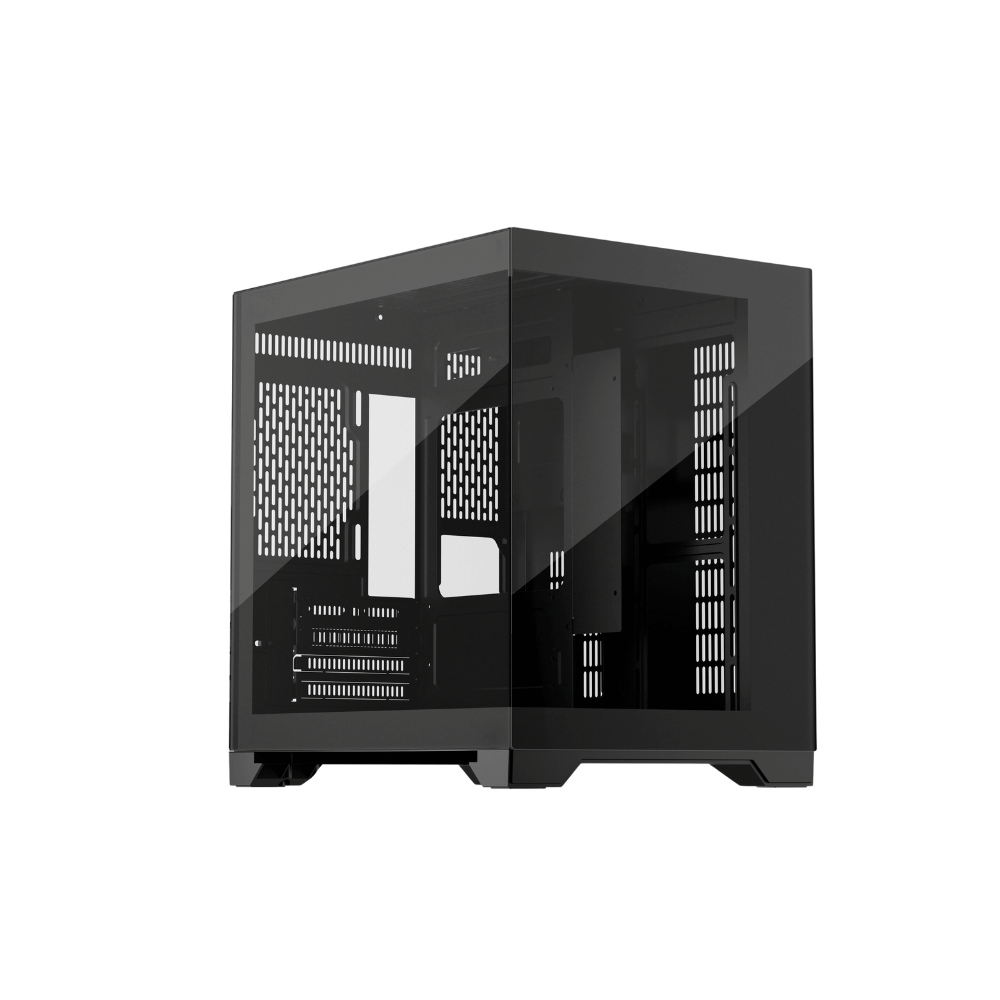

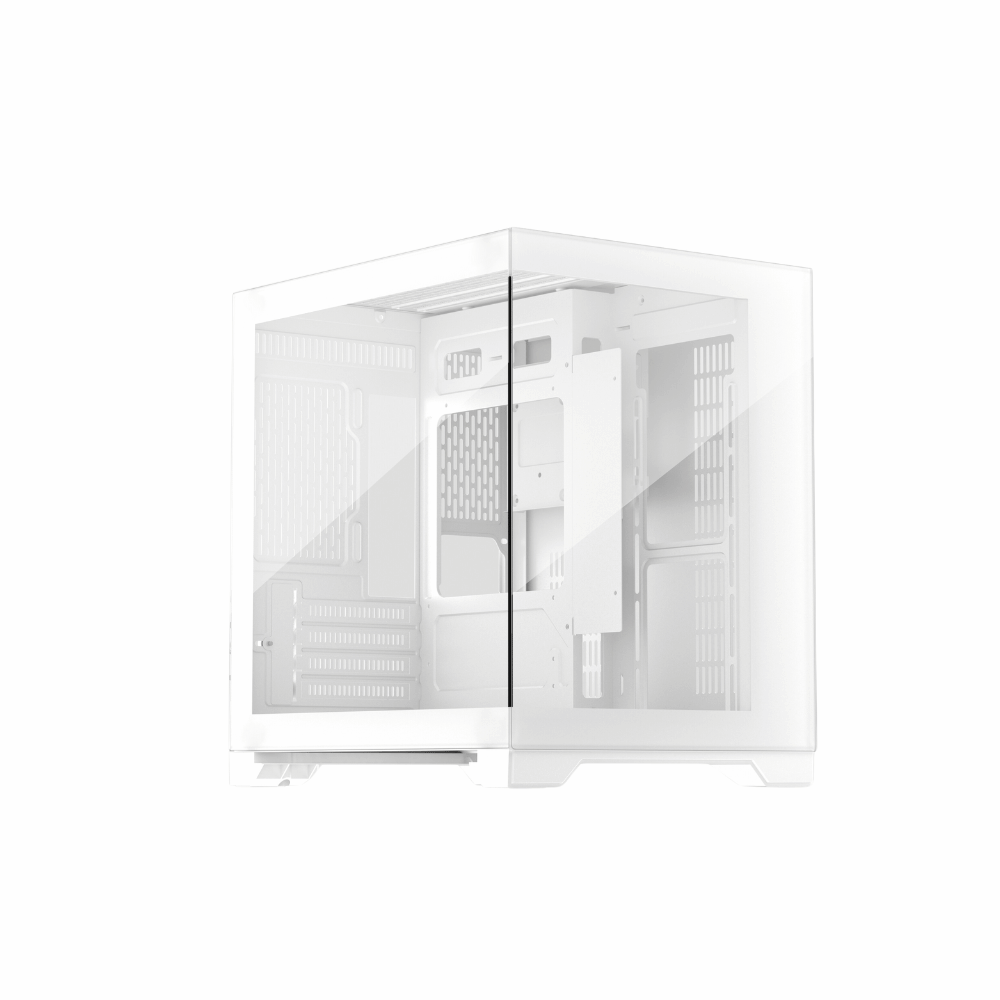

Tempered glass panel on front and left offer a clear view of components
*Computer parts are not included. Cooling fan may vary among different countries/regions.

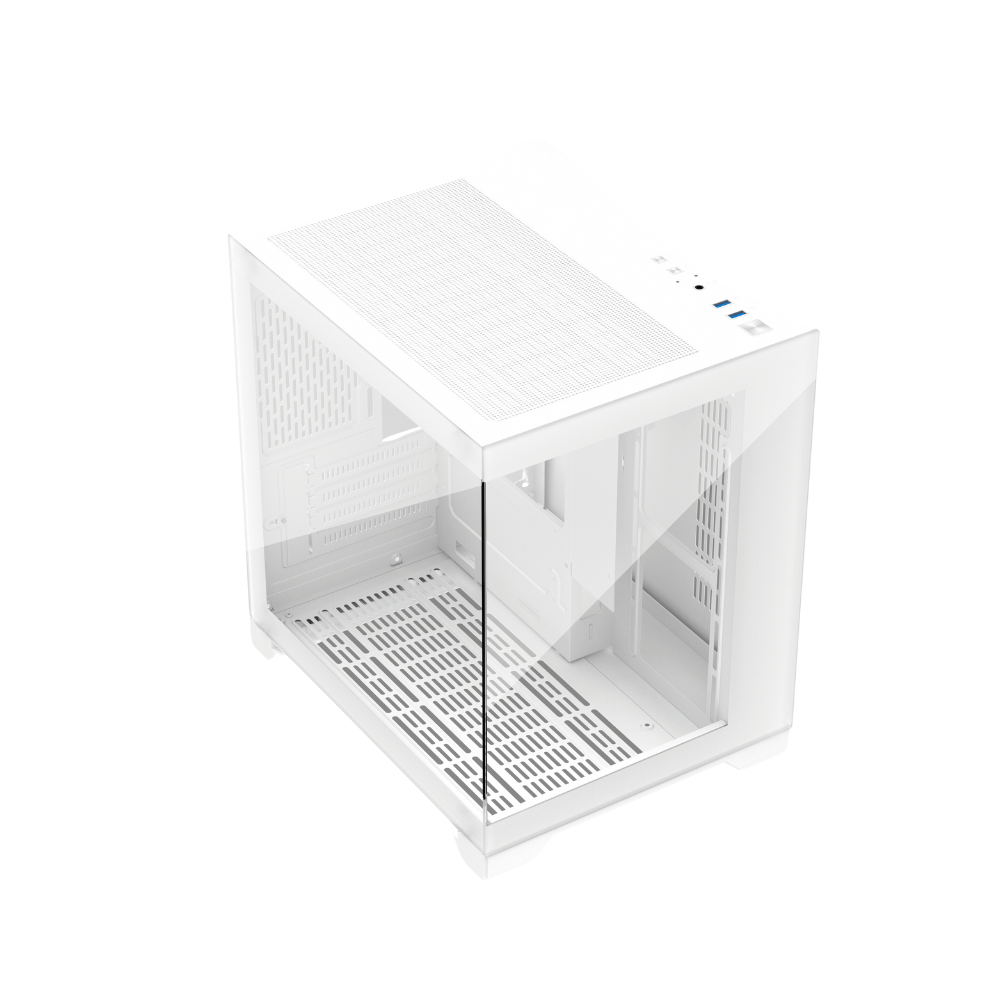

White

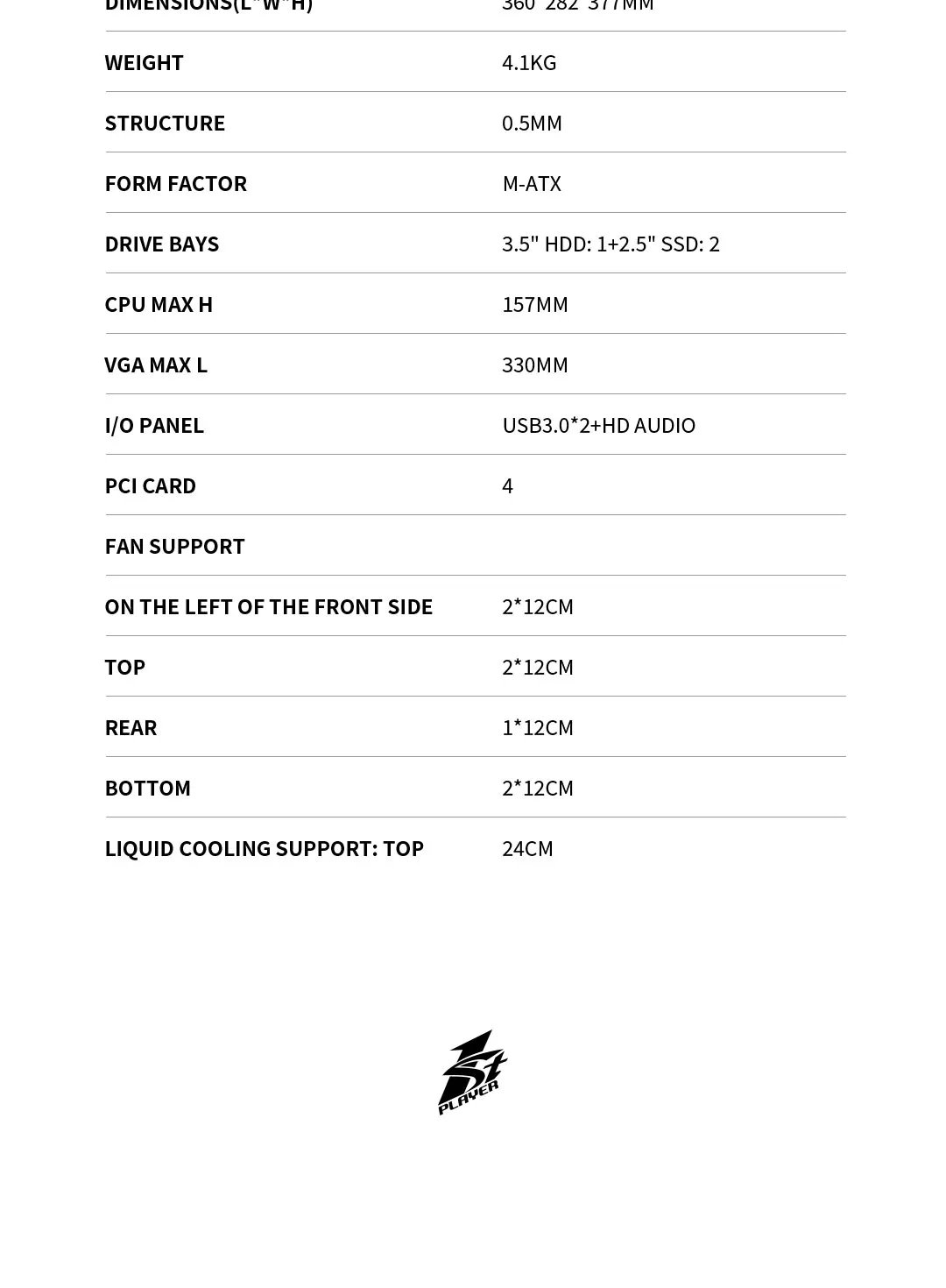

MODEL
MV5-TP
STRUCTURE DIMENSIONS (L x W x H)
345 x 277 x 350 mm

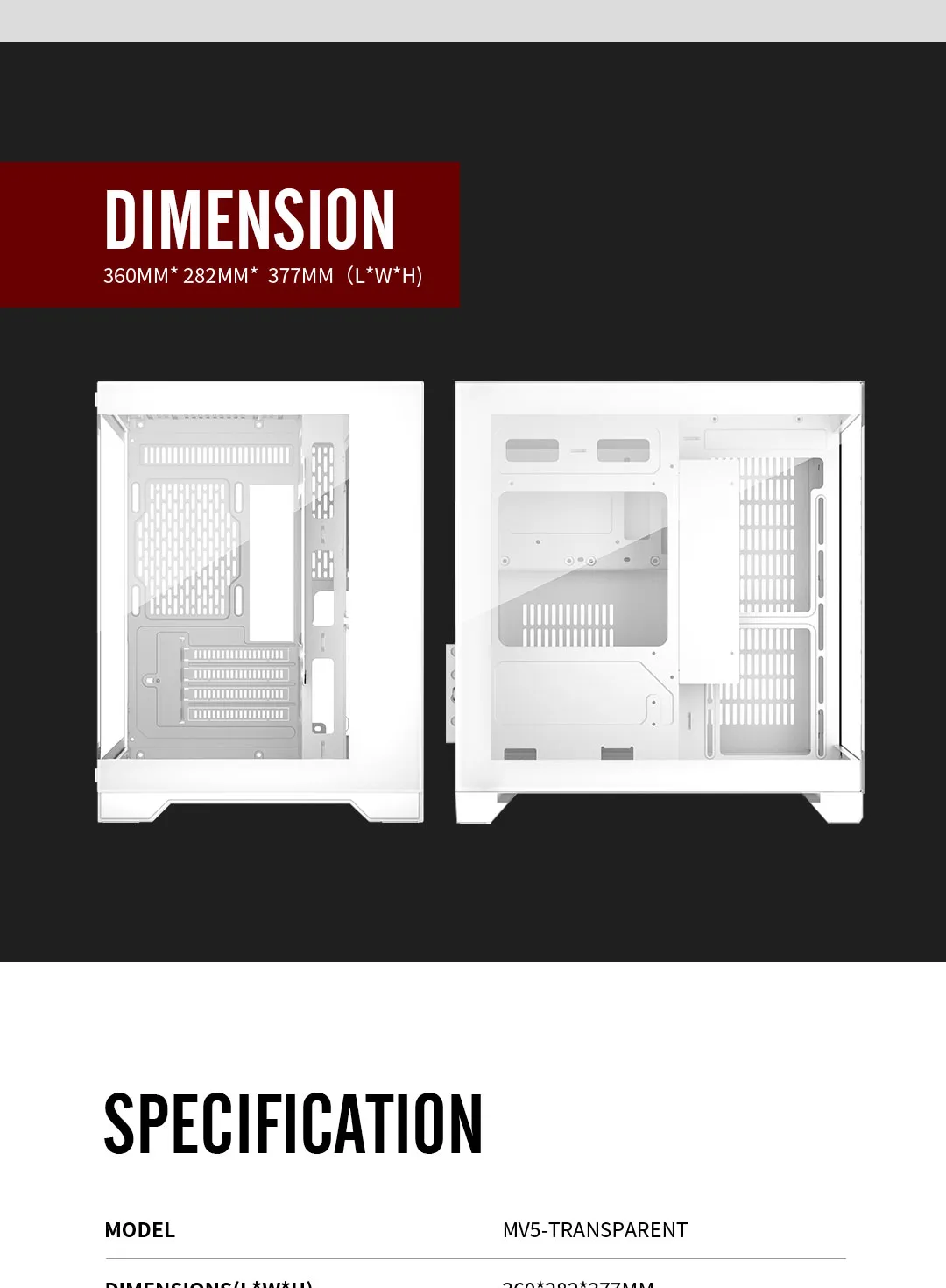

PRODUCT DIMENSIONS (L x W x H)
360 x 282 x 377 mm
PACKAGE DIMENSIONS (L x W x H)
435 x 340 x 425 mm

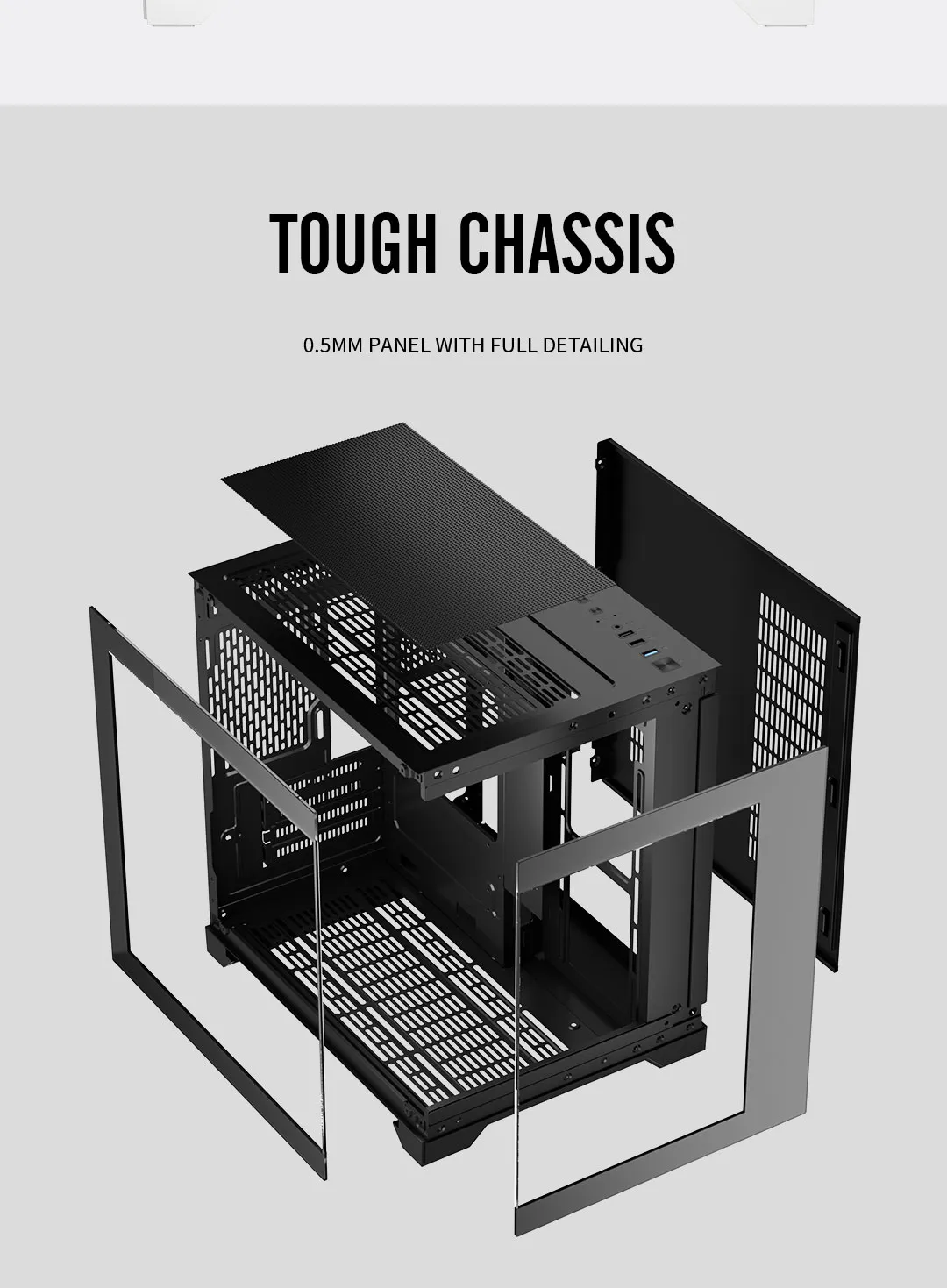

STRUCTURE THICKNESS
0.5 mm
MATERIALS
SPCC 0.5 mm
Front / Left Panel: Tempered glass
FORM FACTOR
M-ATX / Mini-ITX
5.25" CD ROM: 0

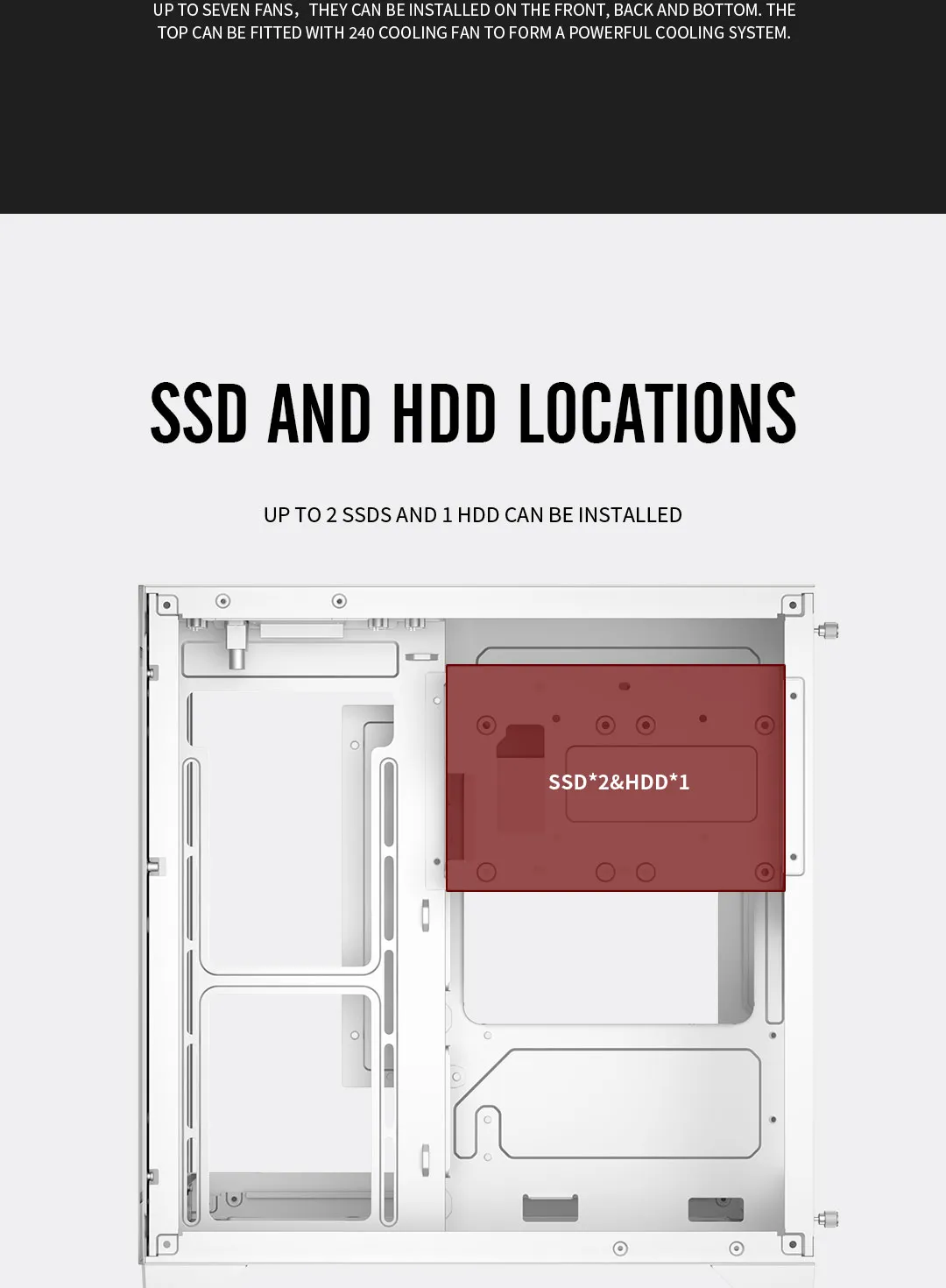

3.5" HDD: 1 + 2.5" SSD: 2
CPU MAX HEIGHT
157 mm
GPU MAX LENGTH
330 mm

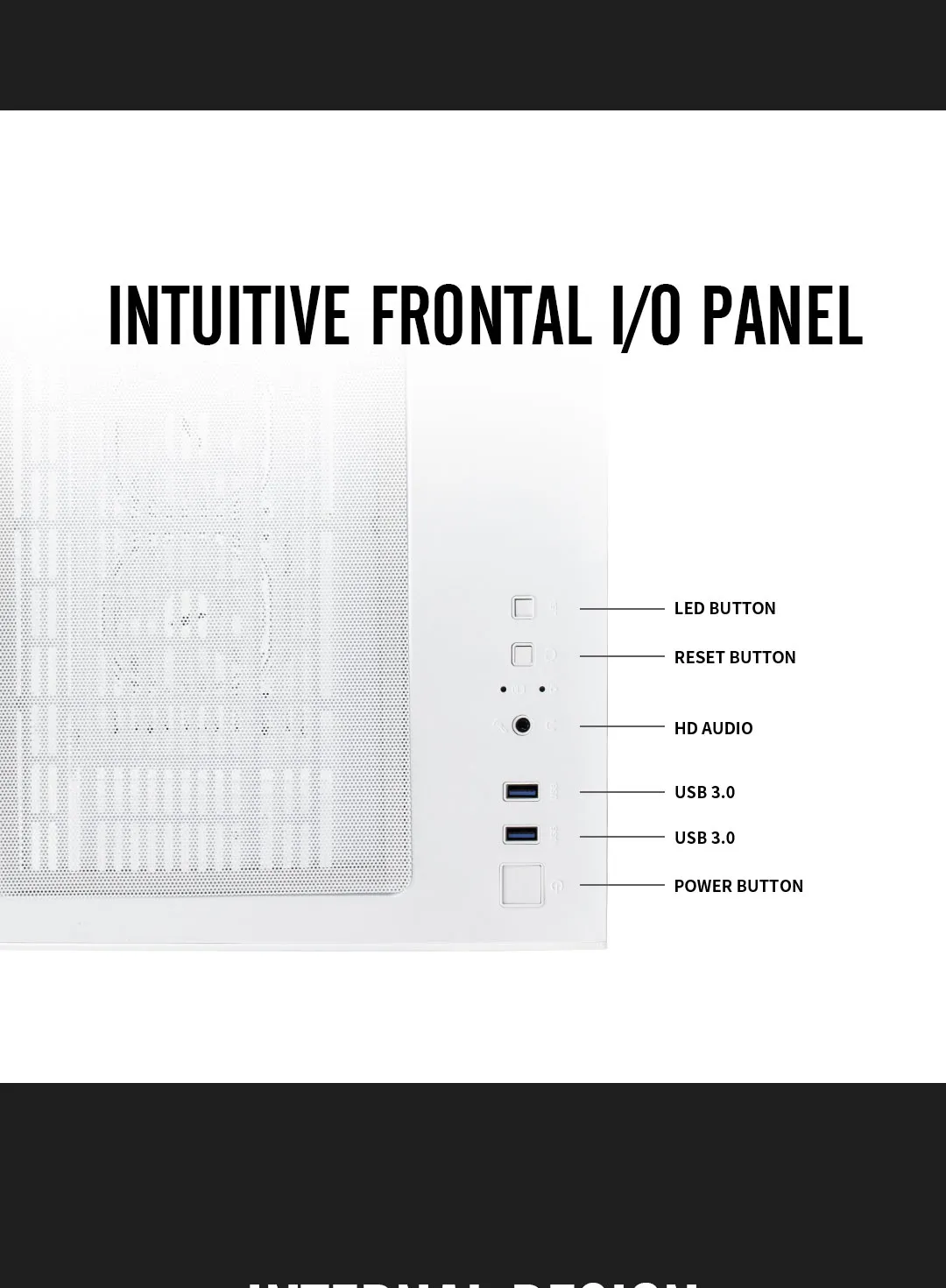

I/O PANEL
USB 3.0 x 2 + HD AUDIO
PCI CARD SLOT
4

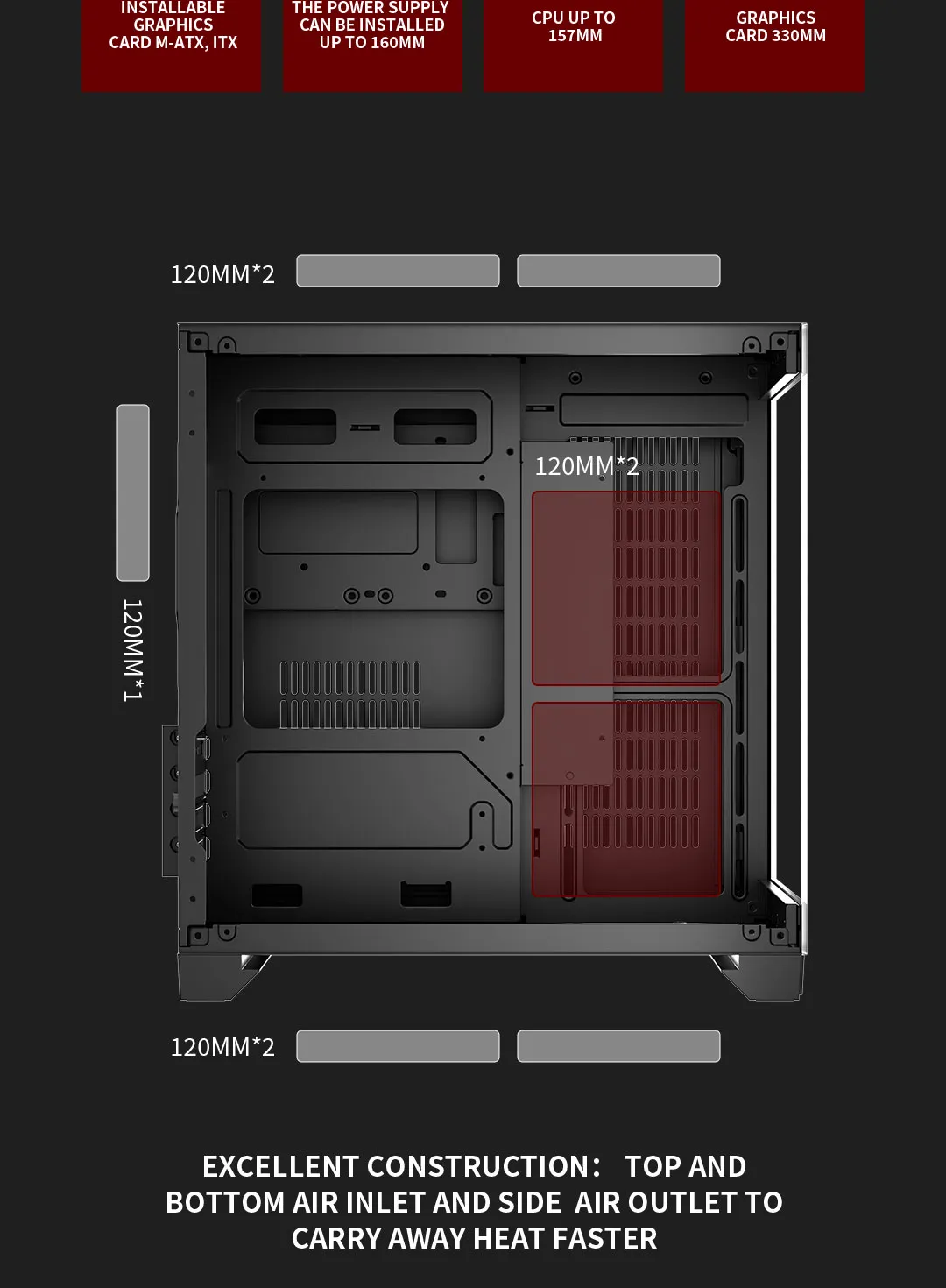

FAN SUPPORT
Front: 2 x 12 cm
Top: 2 x 12 cm
Rear: 1 x 12 cm
Bottom: 2 x 12 cm
LIQUID COOLING SUPPORT
Top: 24 cm
POWER SUPPLY SUPPORT
Bottom mount
NET WEIGHT
N.W.: 4.1 kg
G.W.: 4.9 kg
